JW Speaker Model 735 LED Work Light — Precision Illumination for Work That Demands Accuracy
Built to outperform in demanding environments, the JW Speaker Model 735 with Trapezoid Beam is a premium oval LED work light designed for job sites, machinery, and equipment where clarity and focus are non-negotiable. Delivering powerful 5700K white light with a clean trapezoid beam pattern, this work light offers crisp horizontal illumination perfect for controlled visibility across paths, work zones, or equipment perimeters.
Housed in rugged die-cast aluminum and sealed with a tough polycarbonate lens, this light is engineered to thrive in the face of vibration, weather, and heavy-duty use — a reliable upgrade for professionals in agriculture, automotive, and construction industries.
🔧 Features & Benefits
Trapezoid Beam Pattern for Targeted Area Lighting
This beam is optimized for horizontal forward-facing coverage, giving operators clear visibility of the road, field, or work surface without light spill or glare.
Durable Polycarbonate Lens
The clear lens is made from high-impact polycarbonate, offering excellent resistance to shocks, scratches, and UV exposure, all while protecting the powerful LED core inside.

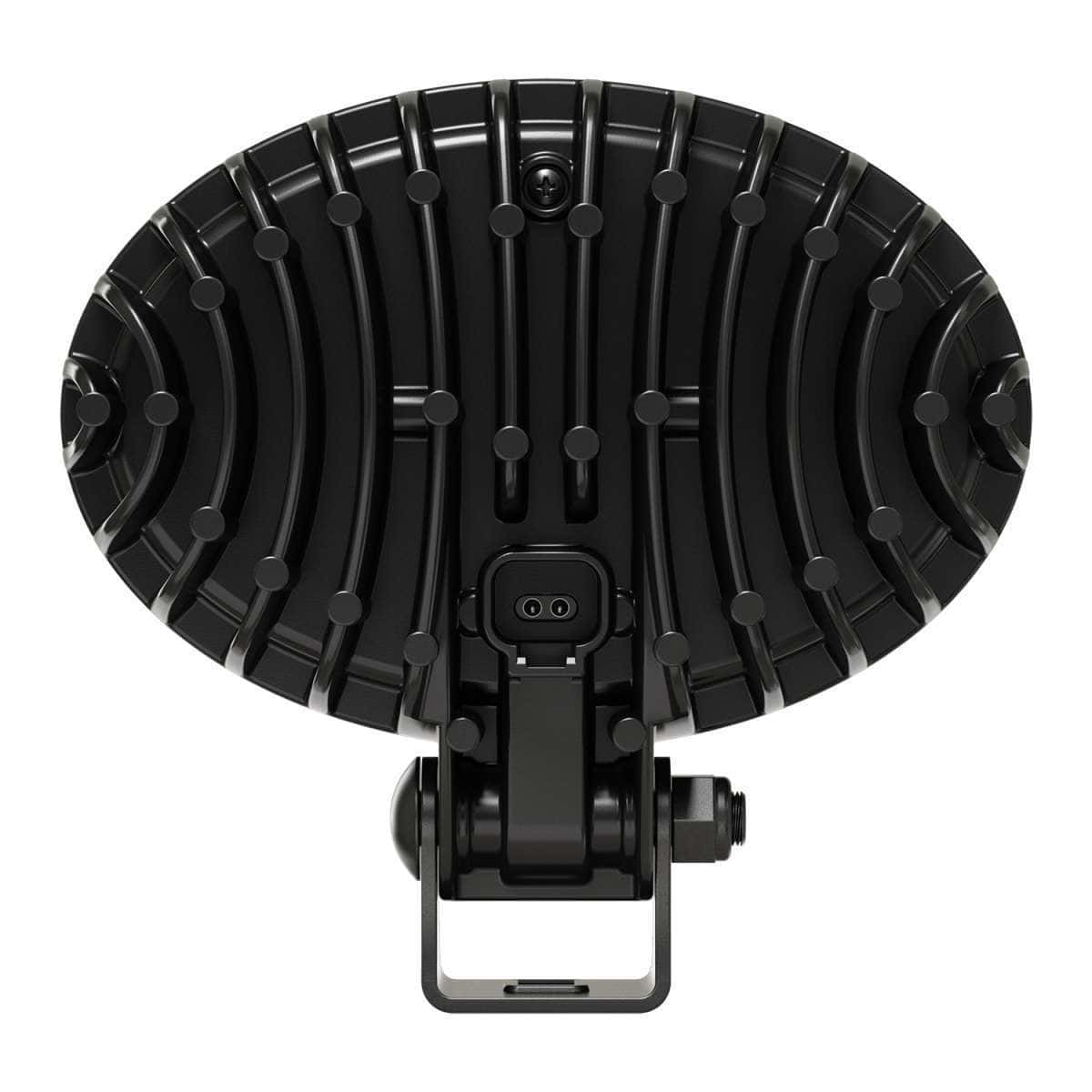

Die-Cast Aluminum Housing
Black-coated housing adds industrial-grade protection against corrosion, debris, and physical impact — perfect for construction sites and off-road equipment.

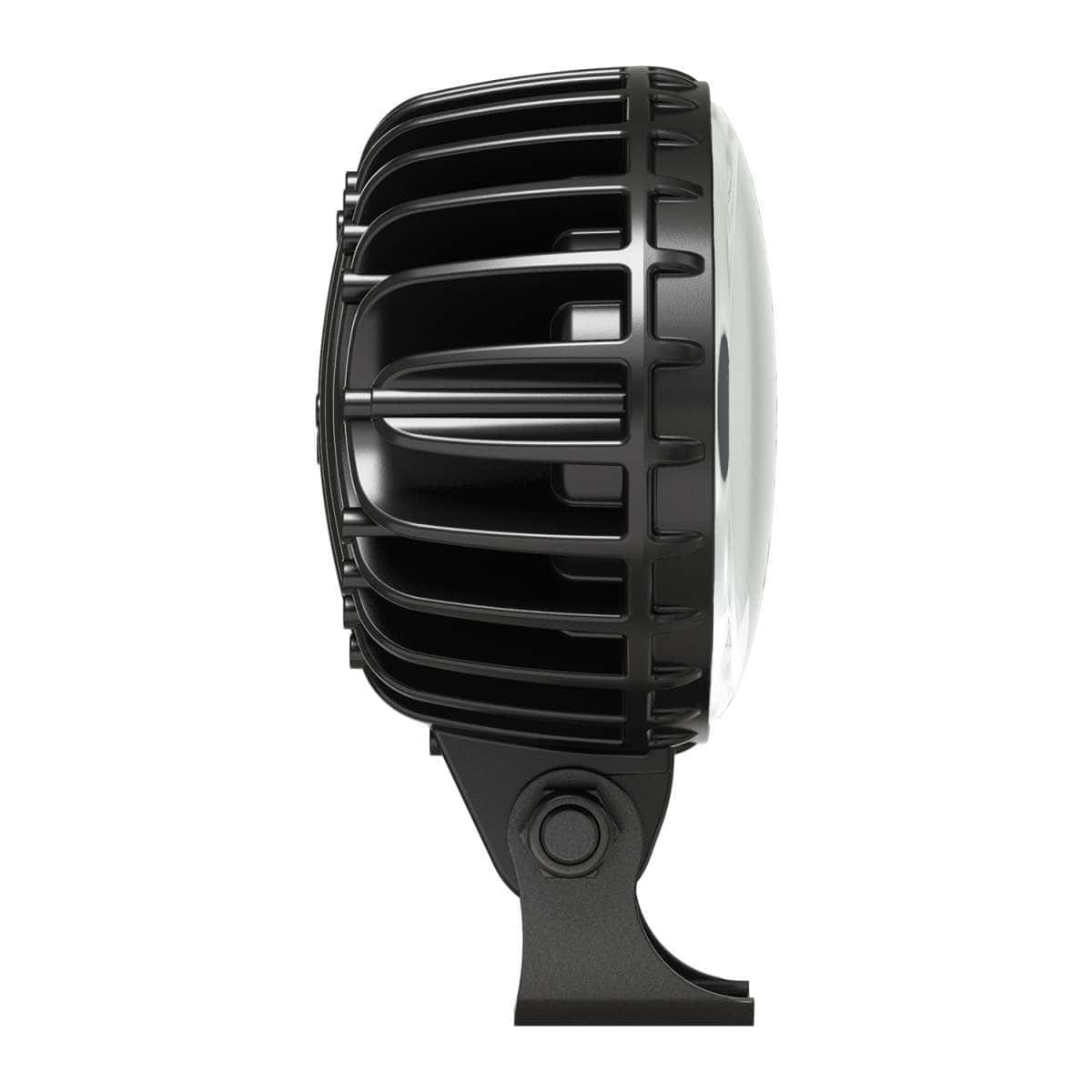

Universal Pedestal Mount
Comes standard with a 5/16″-18 x 0.58″ mounting bolt and pedestal bracket for flexible installation on vehicles and equipment of all types.
Deutsch-Style Weatherproof Connector
The integrated 2-pin Deutsch DT04-2P connector pairs with the DT06-2S plug for a secure, sealed connection — keeping out moisture and vibration that cause electrical failure.
Multi-Voltage Operation (12–24V)
With wide operating range (10–36V DC), this light runs smoothly on both 12V and 24V systems, making it an ideal fit for fleets, machinery, and off-road rigs.
🚜 Applications & Equipment Compatibility
The JW Speaker 735 Trapezoid Beam LED Work Light is trusted by professionals in:
-
Agriculture: Tractors, sprayers, combines
-
Automotive: Work trucks, utility vehicles, UTVs
-
Construction: Loaders, graders, bulldozers, excavators
Its wide, low-glare illumination makes it perfect for operator cabins, perimeter lighting, and job site work zones.
⚙️ Technical Specifications
-
Shape: Oval
-

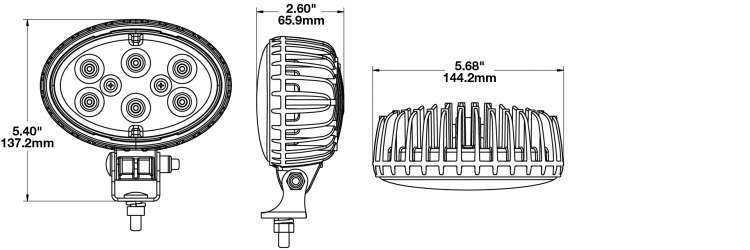

Dimensions: 5.4″ H x 5.68″ W x 2.6″ D
-
Lens Material: Clear Polycarbonate
-
Housing Material: Die-Cast Aluminum
-
Housing Color: Black
-
Mount Type: Universal Pedestal
-
Mounting Hardware: (1x) 5/16″-18 x 0.58″ Bolt
-
Connector Type: Deutsch DT04-2P (2-pin)
-
Mating Connector: DT06-2S
-
Input Voltage: 12–24V DC
-
Operating Voltage: 10–36V DC
-
Current Draw: 3.50A @ 12V / 1.75A @ 24V
-
Beam Pattern: Trapezoid (Forward Lighting)
-
Raw Lumens: 3,900
-
Effective Lumens: 2,700
-
Color Temperature: 5700K
-
Operating Temp: -40°C to 65°C / -40°F to 149°F
🔦 Why Choose the JW Speaker Model 735 Trapezoid Beam?
-
Beam pattern optimized for horizontal visibility with low glare
-
High 2,700 effective lumen output ensures maximum clarity
-
Built for rugged environments with durable housing and sealed connectors
-
Ideal for both mobile equipment and fixed worksite lighting
-
Backed by JW Speaker’s industry-leading optical engineering
When precision lighting and durability are essential, the JW Speaker Model 735 with Trapezoid Beam delivers. It’s the perfect blend of rugged build quality and engineered light control — so you can work smarter, safer, and longer in any condition.
Illuminate your path. Choose JW Speaker.
