Product Overview
The Model 6045 is built as a replacement for stock 4″ round PAR36 fog lights. It gives truck, bus, construction, industrial, mining, off-road, powersports, motorcycle, and specialty vehicle applications a LED fog light option with a durable round housing and 12V DC operation.
Compared to bulb-based PAR36 fog lights, the Model 6045 is designed around LED performance, durability, and long service life. It is also available in a pedestal mount version as the Model 6050 for applications needing a rubber bucket and universal pedestal mount.
Key Features & Benefits
Replaces Stock 4″ Round PAR36 Fog Lights
The Model 6045 is designed to retrofit PAR36 fog light applications. Its 4.4″ round shape makes it a strong option when replacing stock 4″ round PAR36 fog lights in compatible housings.
12V SAE/ECE LED Fog Light Kit
This is a 12V SAE/ECE LED fog light with a black inner bezel. The kit includes two lights, making it suitable for paired fog light replacement where the application uses matching left and right PAR36-style lights.
500 Effective Lumens With 750 Raw Lumens
The Model 6045 is rated at 750 raw lumens and 500 effective lumens. Effective lumens are especially useful because they better reflect usable light output after optics and lens losses.
5000K LED Color Temperature
The LEDs have a nominal 5000K color temperature. This gives the fog light a clean white output without using unsupported color or brightness claims beyond the supplied data.
Forward Lighting Fog Beam Pattern
The Model 6045 uses a forward lighting fog beam pattern. This makes it purpose-built for fog light applications rather than being positioned as a general flood or work light.
Hard-Coated Clear Polycarbonate Lens
The outer lens is clear, hard-coated polycarbonate. This gives the fog light a durable lens material for demanding vehicle and equipment applications.
Die-Cast Aluminum Housing
The housing is die-cast aluminum with a black housing color. This gives the Model 6045 a rugged housing construction for truck, bus, construction, mining, industrial, and specialty vehicle use.
Black Inner Bezel
The black inner bezel gives the fog light a clean, modern appearance inside the clear round lens. This helps it work well on blacked-out, utility, industrial, or modernized vehicle builds.
9-18V DC Operating Range
The Model 6045 has a 12V DC input voltage and operates from 9-18V DC. Current draw is listed at 0.75A at 12V DC.
Transient Spike Protection
This fog light includes transient spike protection rated at 150V peak at 1 Hz for 100 pulses. That is a useful electrical protection detail for vehicles and equipment operating in demanding environments.
Metri-Pack 2-Pin Connector
The connector is listed as Metri PE12059450-B black 2-pin, with mating connector Packard #12124818. Red wire is positive and black wire is negative.
Made in the USA
The supplied product data states that the Model 6045 is made in the USA. It also lists Buy America Standards and Eco Friendly under regulatory standards compliance.
Performance / Compatibility / Use-Case
Best Use: PAR36 LED Fog Light Replacement
The Model 6045 is best used as a LED replacement for stock 4″ round PAR36 fog lights. It is not a make/model-specific truck fog light unless the vehicle or equipment application uses compatible PAR36-style fog light fitment.
Common Application Types
The supplied product data lists these application categories:
- Construction
- Industrial
- Mining
- Motorcycle
- Off-Road 4×4
- Powersports
- Specialty Vehicles
- Truck and bus LED fog lights
Model 6045 vs Model 6050
The Model 6045 is the PAR36 retrofit fog light. The Model 6050 is the pedestal mount version with a rubber bucket and universal pedestal mount. Buyers should choose based on whether they need a PAR36 retrofit light or a pedestal-mounted version.
Installation / Fitment / Technical Details
Installation depends on whether your vehicle or equipment uses a compatible 4″ round PAR36 fog light setup. Confirm your existing light size, mounting style, connector, wiring polarity, and available depth before ordering.

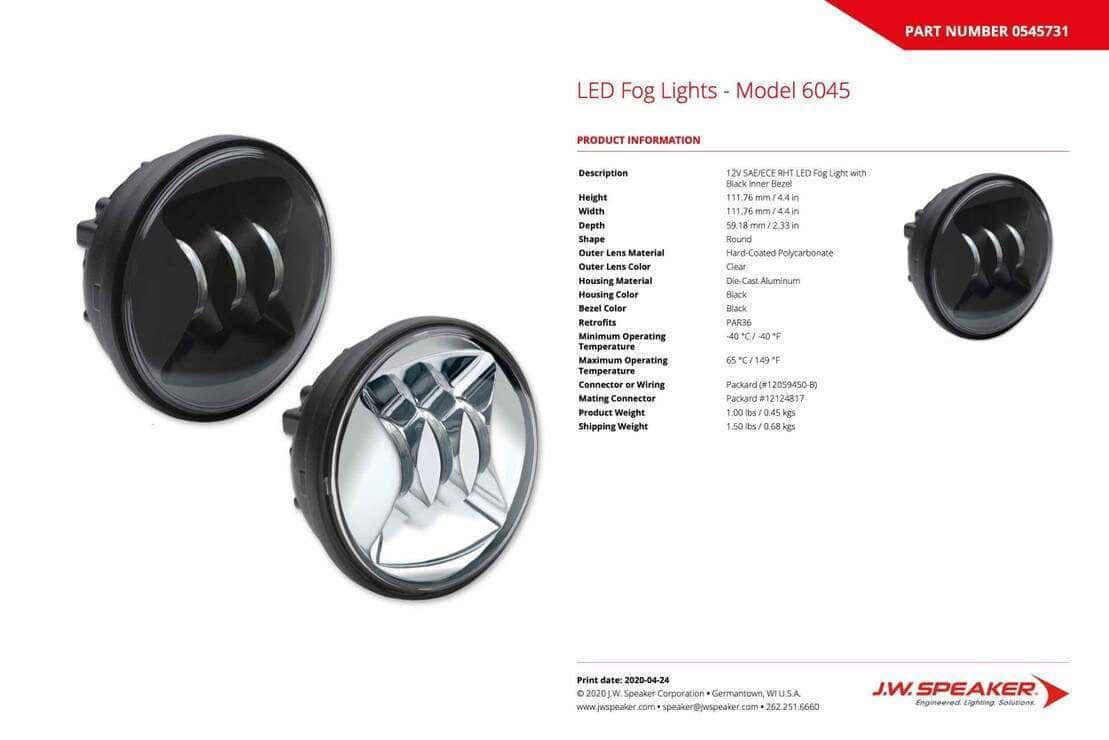

Technical specifications:
- Description: 12V SAE/ECE LED fog light with black inner bezel, 2-light kit
- Height: 111.76 mm / 4.4 in
- Width: 111.76 mm / 4.4 in
- Depth: 59.18 mm / 2.33 in
- Shape: Round
- Retrofits: PAR36
- Outer lens material: Hard-coated polycarbonate
- Outer lens color: Clear
- Housing material: Die-cast aluminum
- Housing color: Black
- Bezel color: Black
- Connector: Metri PE12059450-B black 2-pin
- Mating connector: Packard #12124818
- Product weight: 2.00 lbs / 0.91 kg
- Shipping weight: 3.10 lbs / 1.41 kg
- Input voltage: 12V DC
- Operating voltage: 9-18V DC
- Current draw: 0.75A at 12V DC
- Red wire: Positive
- Black wire: Negative
- Minimum operating temperature: -40°C / -40°F
- Maximum operating temperature: 65°C / 149°F
- Raw lumen output: 750
- Effective lumen output: 500
- Nominal LED color temperature: 5000K
- Beam pattern: Forward lighting, fog
Confirm connector compatibility before installation. Do not assume this kit fits every 4″ round opening without checking depth, wiring, and mounting requirements.
Build Quality / Warranty
The Model 6045 uses a hard-coated clear polycarbonate lens, die-cast aluminum housing, black inner bezel, 2-pin connector, and 12V DC LED fog light design. It is listed with SAE/ECE, Buy America Standards, Eco Friendly, and Made in the USA details based on the supplied product information.
The product information does not list a warranty term in the data provided, so warranty should be confirmed before publishing unless BTS has the manufacturer warranty available separately.
Warranty: 5-year manufacturer warranty.
What’s Included
- Two Model 6045 LED fog lights
- Black inner bezel configuration
- 2-pin connector setup
Package contents beyond the 2-light kit are not confirmed. Check the product listing or contact BTS Lighting to confirm whether mounting hardware, adapters, or installation instructions are included.
Frequently Asked Questions
What is the Model 6045 LED fog light designed to replace?
The Model 6045 is designed to replace stock 4″ round PAR36 fog lights. Confirm your existing light size, mounting style, connector, and available depth before ordering.
Is the Model 6045 sold as a pair?
Yes, the supplied product information describes this as a 2-light kit. That makes it suitable for replacing a pair of compatible PAR36-style fog lights.
What is the lumen output?
The Model 6045 is rated at 750 raw lumens and 500 effective lumens. Effective lumens are the more practical output number because they reflect usable light after the optical system.
What color temperature is the Model 6045?
The Model 6045 has a nominal LED color temperature of 5000K. This gives it a clean white LED output based on the supplied product data.
What voltage does the Model 6045 use?
The Model 6045 has a 12V DC input voltage and an operating voltage range of 9-18V DC. Current draw is listed at 0.75A at 12V DC.
Is the Model 6045 a fog beam or driving beam?
The Model 6045 is listed with a forward lighting fog beam pattern. It should be positioned as a LED fog light, not a general driving light or work light.
What connector does the Model 6045 use?
The supplied product data lists a Metri PE12059450-B black 2-pin connector with mating connector Packard #12124818. Red wire is positive and black wire is negative.
What is the difference between Model 6045 and Model 6050?
The Model 6045 is designed as a PAR36 retrofit fog light. The Model 6050 is the version with a rubber bucket and universal pedestal mount.
Is the Model 6045 made in the USA?
Yes, the supplied product overview states that the Model 6045 is made in the USA. The product information also lists Buy America Standards.
What vehicles or equipment can use the Model 6045?
The supplied applications include construction, industrial, mining, motorcycle, off-road 4×4, powersports, specialty vehicles, and truck and bus fog light applications. Fitment depends on whether the application uses compatible 4″ round PAR36 fog lights.
