Product Overview
Designed for 7″ round PAR56 applications, this high-performance hi/lo beam headlight delivers premium visibility, SmartHeat® heated lens technology, J.W. Speaker Dual Burn® optics, and the signature EVO-X “X” optic in a proven round sealed-beam replacement format.
Key Features & Benefits
The Model 8700 EVO-X is engineered for 7″ round PAR56 headlight applications, making it a strong upgrade for vehicles using 2D1 sealed beam headlights.
This headlight provides:
- Premium visibility with modern styling
- Clean, controlled LED output
- Full brightness at minimum voltage
- All forward lighting functions in a 5-in-1 design
- A proven 7″ round headlight format
Its 7″ round design makes it ideal for vehicle platforms that require dependable forward lighting with a modern LED upgrade.
Hi/Lo Beam Functionality
The 8700 EVO-X combines high beam and low beam functionality in one headlight assembly.
Lighting benefits include:
- Low beam spread for road coverage
- High beam punch for stronger distance visibility
- All forward lighting functions in one compact 5-in-1 design
- Simple integration across compatible vehicle platforms
This makes it a versatile lighting solution for vehicles that need controlled low beam output and powerful high beam performance.
Advanced Dual Burn® Optical Performance
The EVO-X uses J.W. Speaker Dual Burn® technology to improve beam performance across both low and high beam operation.
Dual Burn® benefits include:
- Wider low beam spread
- Stronger high beam punch
- Clean, consistent illumination
- Improved control over the beam pattern
This helps deliver dependable visibility while maintaining controlled light distribution for demanding on-road use.
SmartHeat® Heated Lens Technology
The integrated SmartHeat® system helps prevent snow and ice buildup on the lens.
SmartHeat® benefits include:
- Reduced snow accumulation
- Reduced ice buildup
- More consistent light output in harsh winter conditions
- Improved cold-weather visibility
This makes the Model 8700 EVO-X a strong option for trucks, buses, work vehicles, and equipment operating in harsh weather.

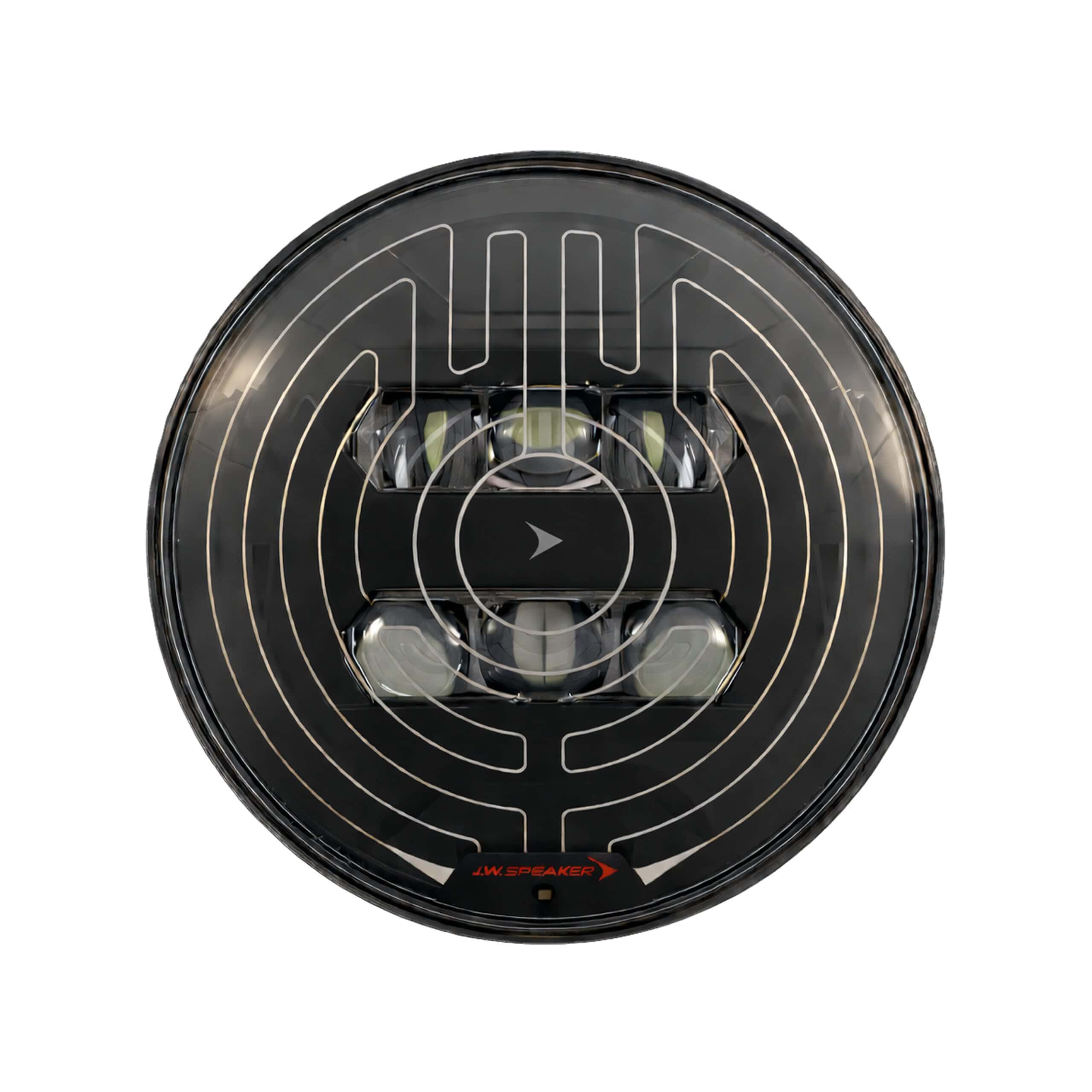

Distinctive EVO-X “X” Optic Design
The signature EVO-X “X” optic gives this headlight a modern, recognizable appearance while supporting functional lighting performance.
This design enhances both:
- Front-end styling
- Optical light distribution
With a clear hardcoated polycarbonate lens and black or chrome bezel options, this headlight delivers a premium look for a wide range of vehicle applications.
Performance / Compatibility / Use-Case
Built for Harsh Environments
The Model 8700 EVO-X is designed to perform in demanding operating conditions.
Common applications include:
- Agriculture
- Automotive
- Construction
- Industrial
- Mining
- Motorcycle
- Off-road 4×4
- Powersports
- Specialty vehicles
- Truck and bus
With a polycarbonate housing, hardcoated polycarbonate lens, sealed integrated connector, and wide operating temperature range, this headlight is built for tough commercial, industrial, and specialty vehicle use.
Installation / Fitment / Technical Details
Fitment and Retrofit Details
The 8700 EVO-X is designed to retrofit 2D1 “PAR56” or 7″ round headlights.
Fitment details:
- Size: 7″ round
- Shape: Round
- Retrofits: 2D1 PAR56 or 7″ round headlights
- Connector: Integrated 6-pin Deutsch to H4
- Lead Length: 10″
- Mating Connector: H4 AMP #172615-2
- Bezel Color: Black or chrome
Before ordering, confirm your existing headlight size, connector, bezel option, and beam requirements.
Electrical Performance
- Input Voltage: 12–24V DC
- Operating Voltage: 9–32V DC
- Yellow Wire: Low Beam
- White Wire: High Beam
- Black Wire: Ground
Physical Specifications
- Height: 177.20 mm / 6.98 in
- Width: 177.20 mm / 6.98 in
- Depth: 84.35 mm / 3.32 in
- Outer Lens Material: Hardcoated polycarbonate
- Outer Lens Color: Clear
- Housing Material: Polycarbonate
- Housing Color: Black
- Bezel Color: Black or chrome
- Minimum Operating Temperature: -40°C / -40°F
- Maximum Operating Temperature: 65°C / 149°F
Compliance & Legal Use
The JW Speaker Model 8700 EVO-X supports DOT and ECE compliance for on-road applications.
Compliance details:
- DOT compliant for U.S. use
- ECE compliant
- Meets applicable U.S. FMVSS Section 108 requirements
- DOT compliance is etched directly on the lens
- Buy American Act compliant
- Street legal supporting DOT standards
- Sealed integrated connector rated IP67 and IP69K
Note: Direction indicator function is not DOT compliant.
Build Quality / Warranty
Warranty: 2-year manufacturer warranty.
What’s Included
- 1 × JW Speaker Model 8700 EVO-X 7″ Heated LED Headlight, Hi/Lo Beam
Frequently Asked Questions
What size is this headlight?
This is a 7″ round headlight designed for PAR56 applications. It retrofits 2D1 “PAR56” or 7″ round headlights.
Is this a high beam or low beam headlight?
This is a hi/lo beam headlight. It provides both low beam spread and high beam punch in one assembly.
Does this headlight have a heated lens?
Yes. The Model 8700 EVO-X features SmartHeat® heated lens technology to help prevent snow and ice buildup.
What voltage systems does it support?
This headlight supports 12–24V DC input and operates from 9–32V DC.
Is this headlight street legal?
Yes. This version supports DOT standards for U.S. on-road use and is also ECE compliant. DOT compliance is etched directly on the lens.
What does this headlight retrofit?
It retrofits 2D1 “PAR56” or 7″ round headlights.
What connector does it use?
It uses an integrated 6-pin Deutsch to H4 connector with a 10″ lead length and H4 AMP #172615-2 mating connector.
