United Pacific · 32860 / 32861

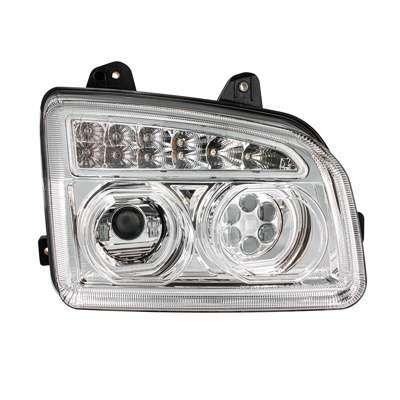

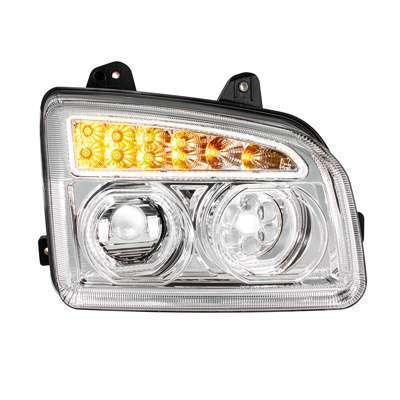

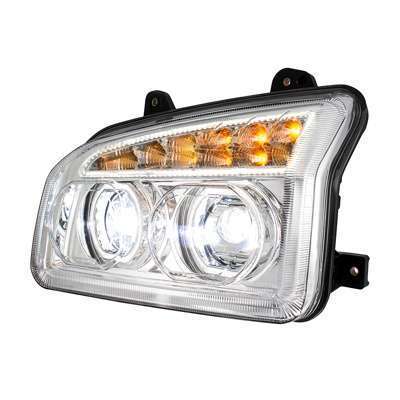

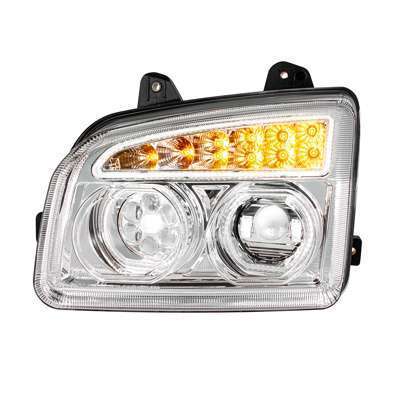

Chrome 11-LED halo headlight assembly

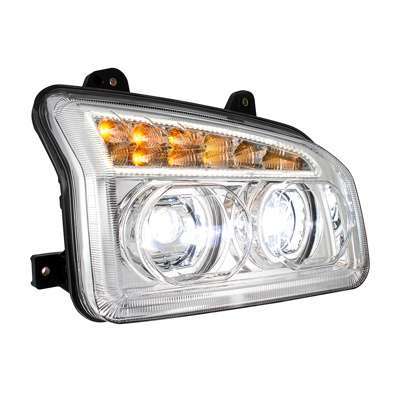

Three low-beam LEDs and eight high-beam LEDs form the main headlight, surrounded by a 202-LED white halo daytime running light. A ten-LED amber turn signal and six-LED amber side marker provide the separate signaling functions.
1,200 / 2,400-lumen beams
The low beam is rated at 1,200 lumens and the high beam at 2,400 lumens, with separate 12V power ratings.
White halo DRL
The halo uses 202 white LEDs; the amber side marker is listed with a P2 rating.

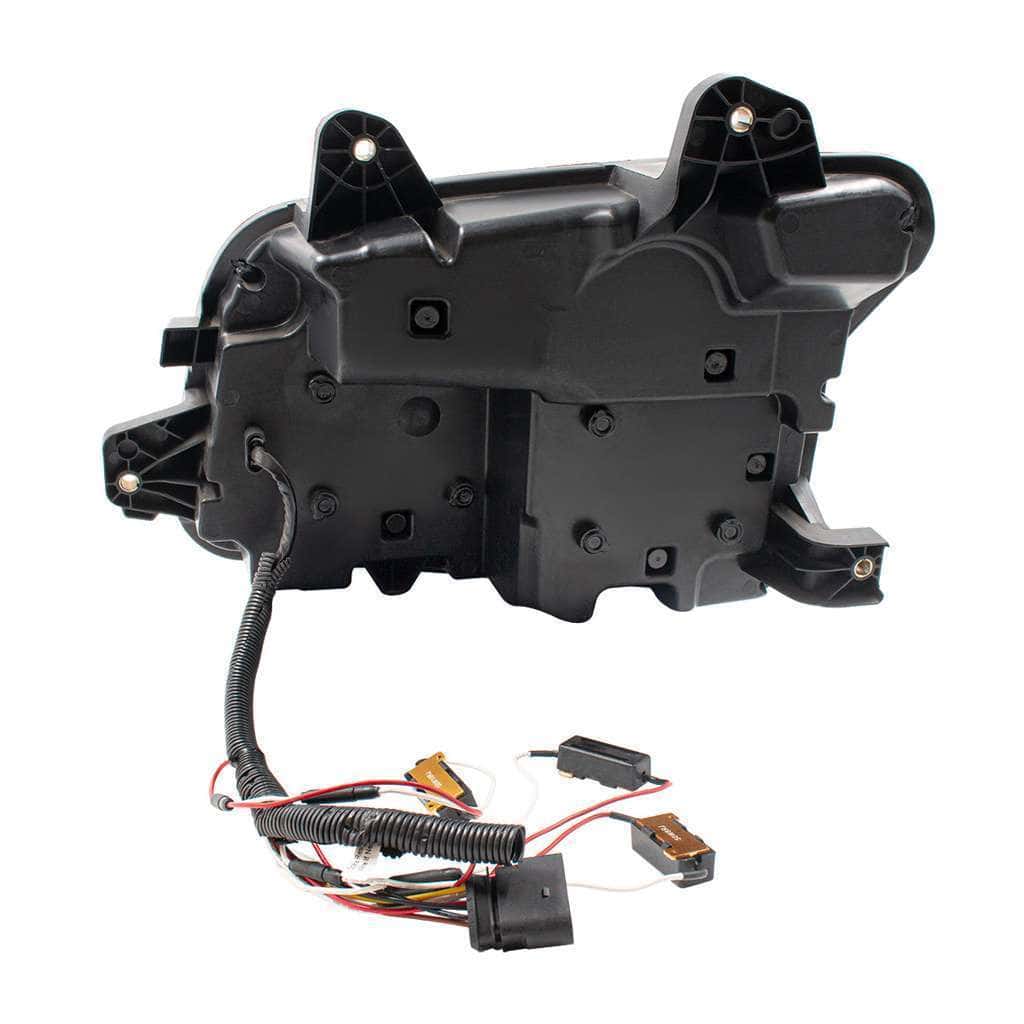

Removable load resistor
A resistor is pre-installed. The supplier provides a specific removal note for dimming or failure to illuminate.

Fitment & selection
Match the assembly to your truck

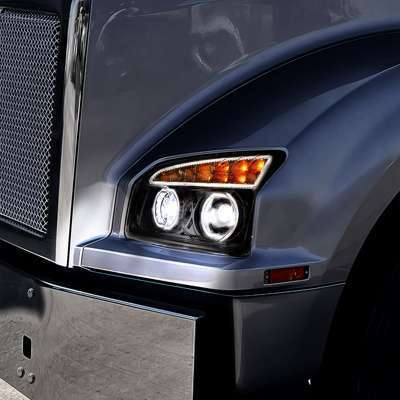

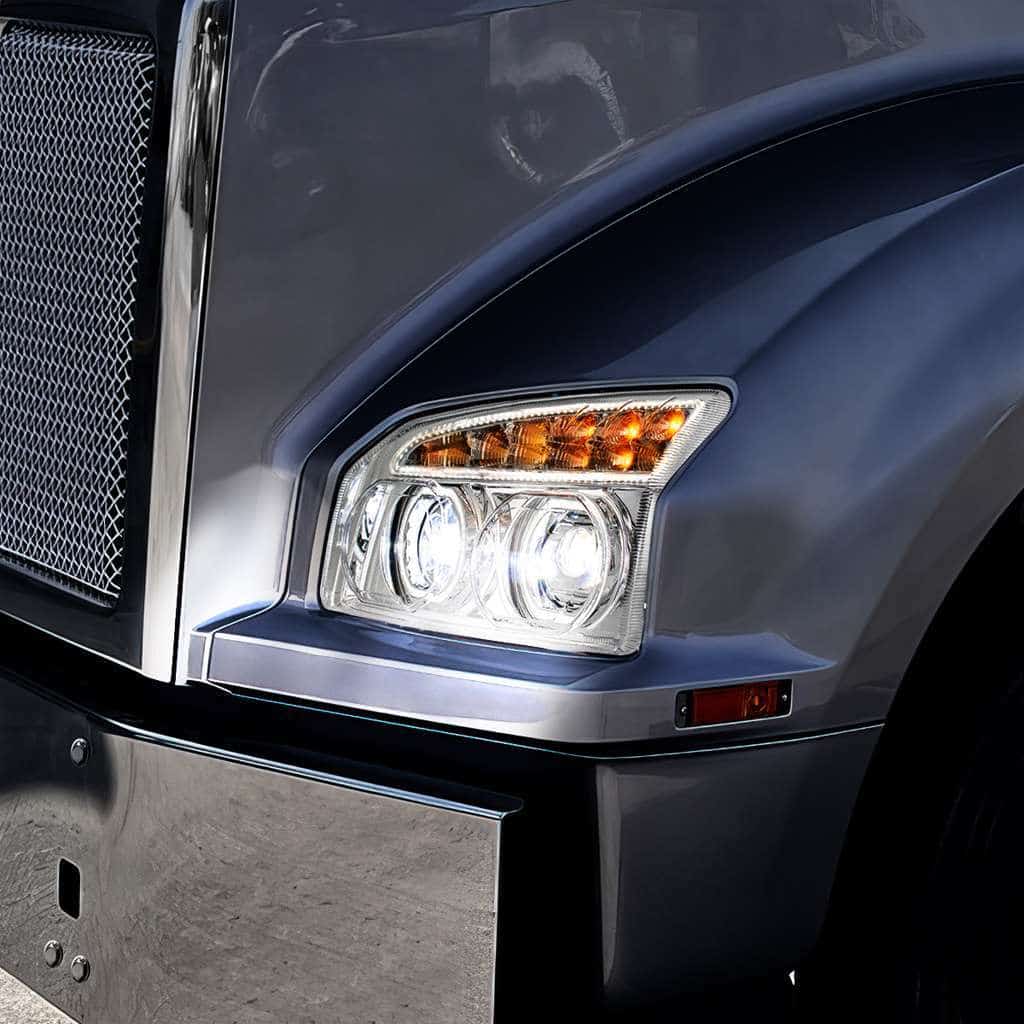

For 2015–2026 Kenworth T880 trucks. Match the original headlight connector, mounting points and selected side before ordering.
Each option is one headlight assembly. Select driver or passenger side; order both side options if you need a pair.
| Driver | 32860 — one assembly |
|---|---|

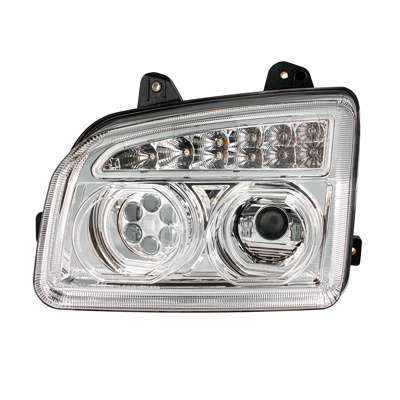

| Passenger | 32861 — one assembly |
Lighting details
Specifications for this headlight
| Low beam | Three LEDs · 1,200 lumens · 32W at 12V DC |
|---|---|
| High beam | Eight LEDs · 2,400 lumens · 64W at 12V DC |
| Turn signal | Ten amber LEDs · 300 lumens · 12W at 12V DC |
| Halo DRL | 202 white LEDs |
| Position light | 100 lumens · 5W at 12V DC |
| Side marker | Six amber LEDs · P2 rating |
| Load resistor | Removable, pre-installed |
| Finish | Chrome Inner Housing |
| Package | One selected-side assembly |
| Manufacturer compliance listing | DOT/SAE · FMVSS 108 |
Installation & aiming
Use the instructions for your part number
Connect to the existing harness after checking the original connector and mounting points. United Pacific says to remove the pre-installed load resistor if the lights dim or do not turn on; have the installer check the truck’s circuit and follow that exact product guidance. Test each lighting function and have the beam aim set.
Product questions
Before you order
What does 11-LED describe?
It is the main-beam arrangement: three LEDs for low beam and eight for high beam. The halo, turn signal and side marker have their own LED counts.
What if the lights dim or do not illuminate?
The supplier’s note identifies the removable pre-installed load resistor and instructs removal for those symptoms. Have the installer check the exact headlight and truck circuit before changing the connection.
Is it rated for 24V?
The published electrical ratings for this family are at 12V DC. A 24V rating is not established for these part numbers.
Does the selected option include both sides?
No. Each option is one assembly for the selected side. Order both side options if you need a pair.
3-year manufacturer warranty
United Pacific lists a 3-year warranty for these exact part numbers. Keep your purchase information and contact BTS Lighting for help with a product issue.
