United Pacific · 32866 / 32867

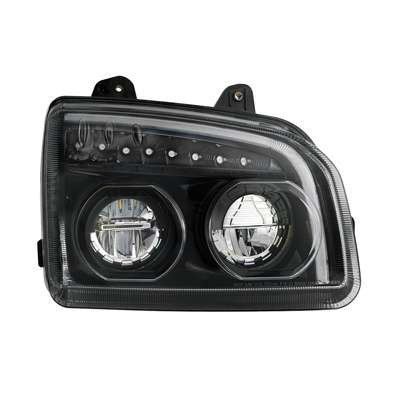

Black LED headlight with turn signal and light bar
An integrated LED headlight with eight amber turn-signal LEDs and a 32-LED light bar. This family uses a non-sequential turn signal and includes a removable load resistor already installed.
Integrated LED beams
Low beam is rated at 800 lumens and 31W; high beam at 1,600 lumens and 64W, at 12V DC.
Non-sequential signal
Eight amber LEDs provide the turn signal beside the 32-LED light bar.

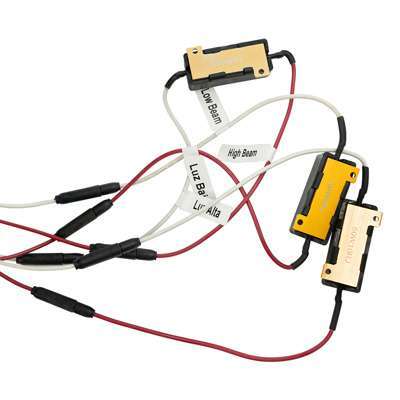

Pre-installed resistor
A removable load resistor is included on the assembly; use the exact part-number instructions when fitting it.

Fitment & selection
Match the assembly to your truck

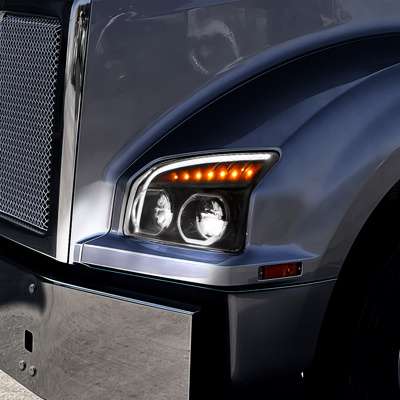

For 2015–2026 Kenworth T880 trucks. Compare the original headlight connector, mounting points and selected side before ordering.
Each option is one headlight assembly. Select driver or passenger side; order both side options if you need a pair.
| Driver | 32866 — one assembly |
|---|---|
| Passenger | 32867 — one assembly |
Lighting details
Specifications for this headlight
| Low beam | 800 lumens · 31W · 12V DC |
|---|---|
| High beam | 1,600 lumens · 64W · 12V DC |
| Turn signal | Eight amber LEDs · non-sequential |
| Light bar | 32 LEDs |
| Load resistor | Removable, pre-installed |
| Connection | Existing headlight wiring harness |
| Finish | Black Inner Housing |
| Package | One selected-side assembly |
| Manufacturer compliance listing | DOT/SAE · FMVSS 108 |
Installation & aiming
Use the instructions for your part number
Use the 32864–32867 manual for the original harness plug and the separate low- and high-beam adjusters. It identifies vertical and horizontal adjustments for each beam. Check all lighting functions and have the aim set after installation. The manual also explains when persistent fogging or pooled water requires inspection.
Product questions
Before you order
Is the turn signal sequential?
No. United Pacific lists this family’s turn signal as non-sequential.
Does the assembly include a load resistor?
Yes. The supplier lists a removable load resistor pre-installed on this family.
Is this the 11-LED halo headlight?
No. This version has an eight-LED amber signal and 32-LED light bar, with its own 800/1,600-lumen beam ratings. The 11-LED halo assembly is a separate option.
Does the selected option include both sides?
No. Each option is one assembly for the selected side. Order both side options if you need a pair.
3-year manufacturer warranty
United Pacific lists a 3-year warranty for these exact part numbers. Keep your purchase information and contact BTS Lighting for help with a product issue.
