Product Overview
Standard marker lights offer one brightness level and limited durability. The ArcBlast 3/4″ LED Dual Function Mini Light delivers enhanced flexibility and long-term reliability in a compact design.
-
Low mode for standard marker lighting
-
High mode for increased visibility
-
Epoxy-sealed moisture protection
-
Stainless steel bezel durability
If you’re searching for 3/4 red LED marker lights, dual function penny lights, or high output LED clearance lights, this ArcBlast model delivers professional-grade performance in a tight footprint.
Key Features & Benefits
Dual Function High / Low Brightness
This mini light operates in two output levels:
-
Low brightness mode for standard clearance/marker function
-
High brightness mode for increased visibility
Perfect for drivers who want adaptable lighting without adding additional fixtures.
Super Bright Red LED Output
A high-intensity red LED provides:
-
Strong rear visibility
-
Crisp illumination through a clear lens
-
Efficient energy consumption
Ideal for rear marker and clearance positions.
Epoxy-Sealed Polycarbonate Lens
The polycarbonate lens is epoxy sealed to the housing, preventing:
-
Moisture intrusion
-
Corrosion damage
-
Internal LED failure
Built for all-weather durability and harsh road conditions.
Stainless Steel Bezel Construction
The polished stainless steel bezel offers:
-
Corrosion resistance
-
Structural reinforcement
-
Clean, professional appearance
Perfect for fleets and custom builds alike.
Performance / Compatibility / Use-Case
Designed for Clearance & Marker Use
This red configuration is ideal for:
-
Rear side marker lighting
-
Rear clearance lighting
-
Identification lighting when installed correctly
Designed to meet DOT/SAE and FMVSS 108 requirements when properly installed.
12V System Compatible
-
Designed for 12V DC systems
-
3-wire hookup for dual brightness control
-
0.180″ bullet plugs for simple installation
Compatible with semi-trucks, trailers, RVs, motorcycles, and custom vehicles.
Installation / Fitment / Technical Details

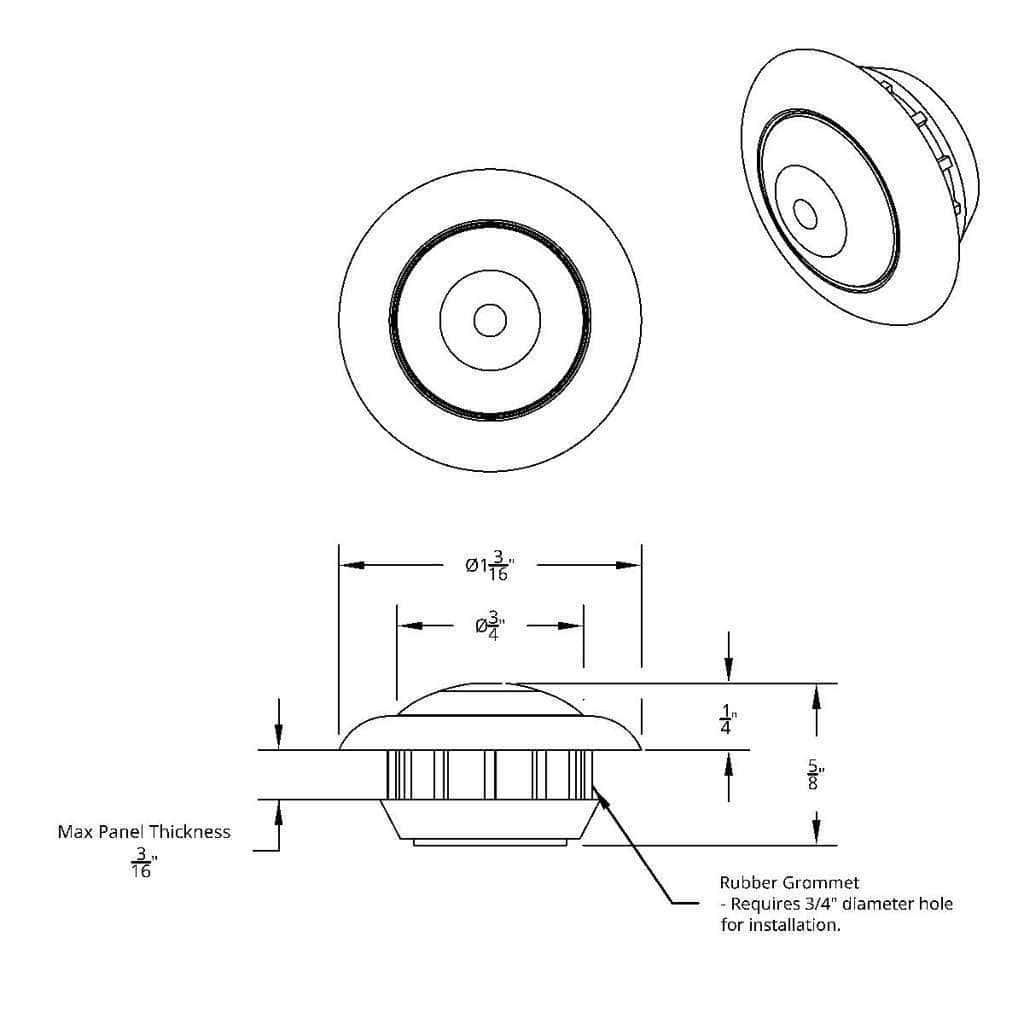

Mounting
-
Requires 3/4″ diameter hole
-
Mounts securely with included rubber grommet
Wiring Setup (3-Wire System)
-
Ground
-
Low brightness power
-
High brightness power
-
0.180″ male bullet plugs
Simple integration into marker circuits.
Build Quality / Warranty
-
Single high-output red LED
-
Polycarbonate lens
-
Epoxy-sealed housing
-
Stainless steel bezel
-
IP67 waterproof rating
-
12V DC compatible
Built for long-term reliability in commercial and custom applications.
Warranty: 10-year manufacturer warranty.
What’s Included
-
1 x LED Dual Function ArcBlast 3/4″ Mini Light – Red LED / Clear Lens
-
1 x Rubber Grommet
-
3-wire hookup with 0.180″ bullet plugs
Frequently Asked Questions
What does dual function mean on this light?
Dual function means the light operates in two brightness modes: low for marker lighting and high for increased visibility.
Is this light DOT compliant?
Yes. When installed properly, this red LED marker light meets DOT/SAE and FMVSS 108 standards for clearance and marker lighting.
Will this fit a standard 3/4″ mounting hole?
Yes. It is specifically designed for 3/4″ grommet-mount openings.
Is this light waterproof?
Yes. It features epoxy-sealed electronics and carries an IP67 water-resistant rating.
How long is the warranty?
This ArcBlast mini light is backed by a 10-year warranty for dependable long-term performance.
