Product Overview
If you want compliant front clearance lighting plus functional white utility output in one compact housing, the 2 LED 3/4″ Mini Dual Function Double Fury Light delivers versatility without adding extra fixtures.
Unlike single-color mini lights, this model offers:
-
Primary amber LED for legal clearance/marker use
-
Secondary white LED for auxiliary or work-light applications
-
Dual high/low brightness control on the amber circuit
-
Compact 3/4″ flush-mount installation
-
IP67 weather protection
If you’re searching for dual function penny lights, amber and white LED marker lights, or compact 3/4 dual revolution clearance lights, this Double Fury setup gives you compliance and functionality in one clean install.
Key Features & Benefits
Dual-Color LED Functionality (Amber & White)
Two LEDs are integrated into one housing:
-

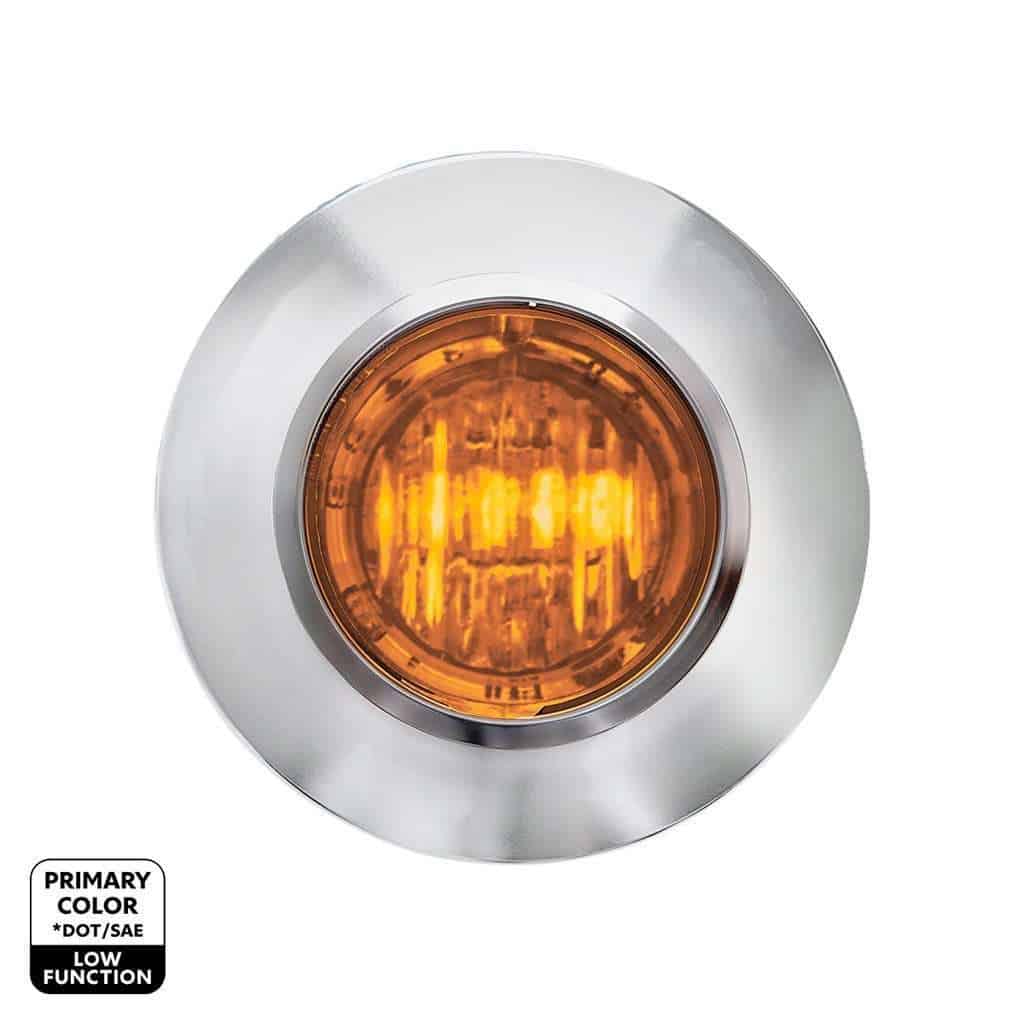

Amber (Primary) – Clearance/marker function
-

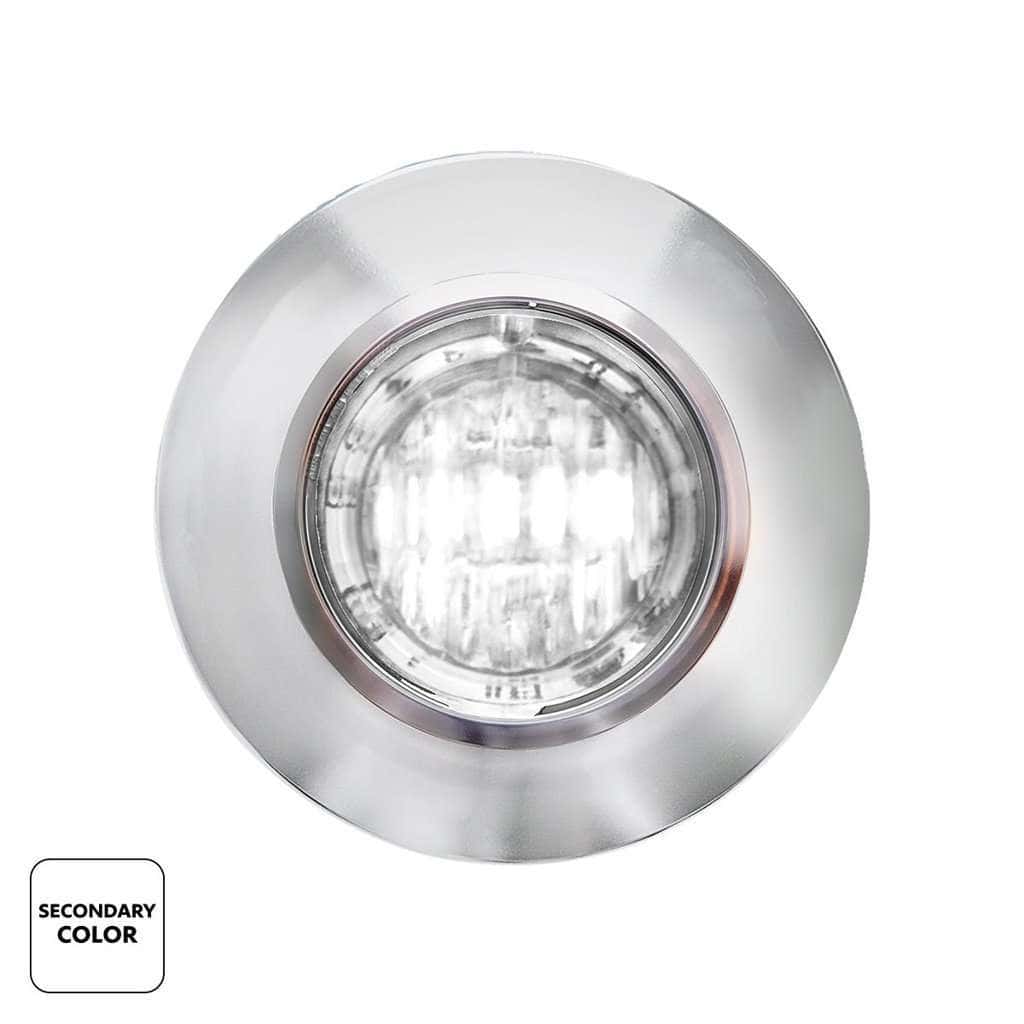

White (Secondary) – Auxiliary/work light function
-
White overrides amber when activated
Ideal for drivers who want compliant front lighting on the road and bright white utility lighting when parked or working.
Dual High / Low Amber Output
The primary amber LED offers two brightness settings:
-
Low mode – Standard clearance/marker operation
-
High mode – Increased forward visibility
Perfect for improved presence in low-light conditions without adding additional lights.
180° Wide Light Spread
The specially engineered lens projects light broadly to improve visibility from multiple angles.
180°lightspread180° light spread
This wide-angle projection increases side visibility compared to narrow-beam marker lights.
Durable & Weatherproof Construction
Built for demanding environments:
-
Clear polycarbonate lens
-
Resin-sealed electronics
-
IP67 water-resistant rating
-
Protection against dust, moisture, and vibration
Engineered for long-term performance on trucks and trailers.
Polished Stainless Steel Bezel
The stainless steel bezel provides:
-
Corrosion resistance
-
Structural reinforcement
-
Clean, modern appearance
Perfect for fleet vehicles and custom builds alike.
Performance / Compatibility / Use-Case
DOT / SAE Certified (Primary Color)
-
Meets FMVSS 108 and DOT/SAE standards when wired correctly
-
Amber primary circuit is compliant for front clearance/marker use
-
White LED is intended for auxiliary or off-road use only
Always confirm local lighting regulations before installation.
12V System Compatible
-
Designed for 12V DC systems
-
3-wire hookup with 0.180″ bullet plugs
-
Compatible with semi-trucks, trailers, RVs, motorcycles, and utility vehicles
Installation / Fitment / Technical Details

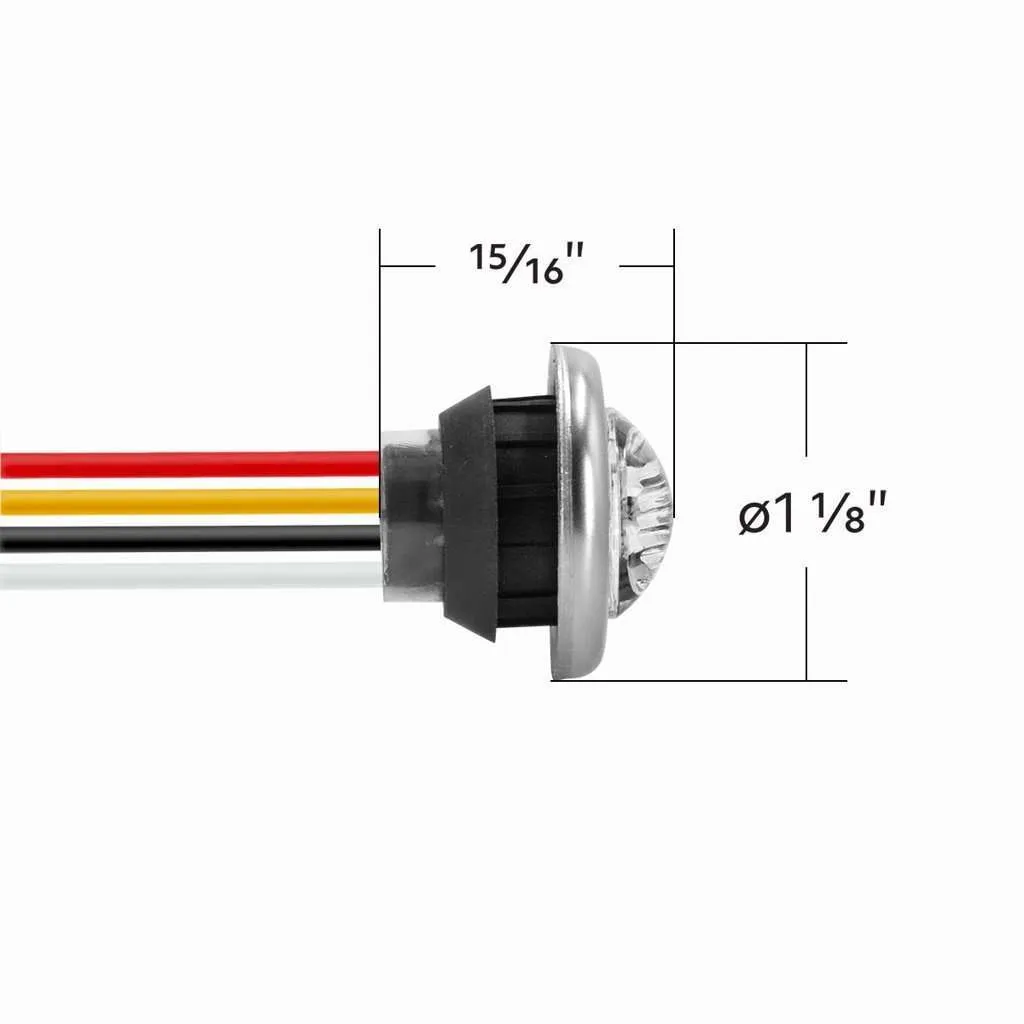

Mounting
-
Requires 3/4″ diameter mounting hole
-
Includes rubber grommet for secure flush fit

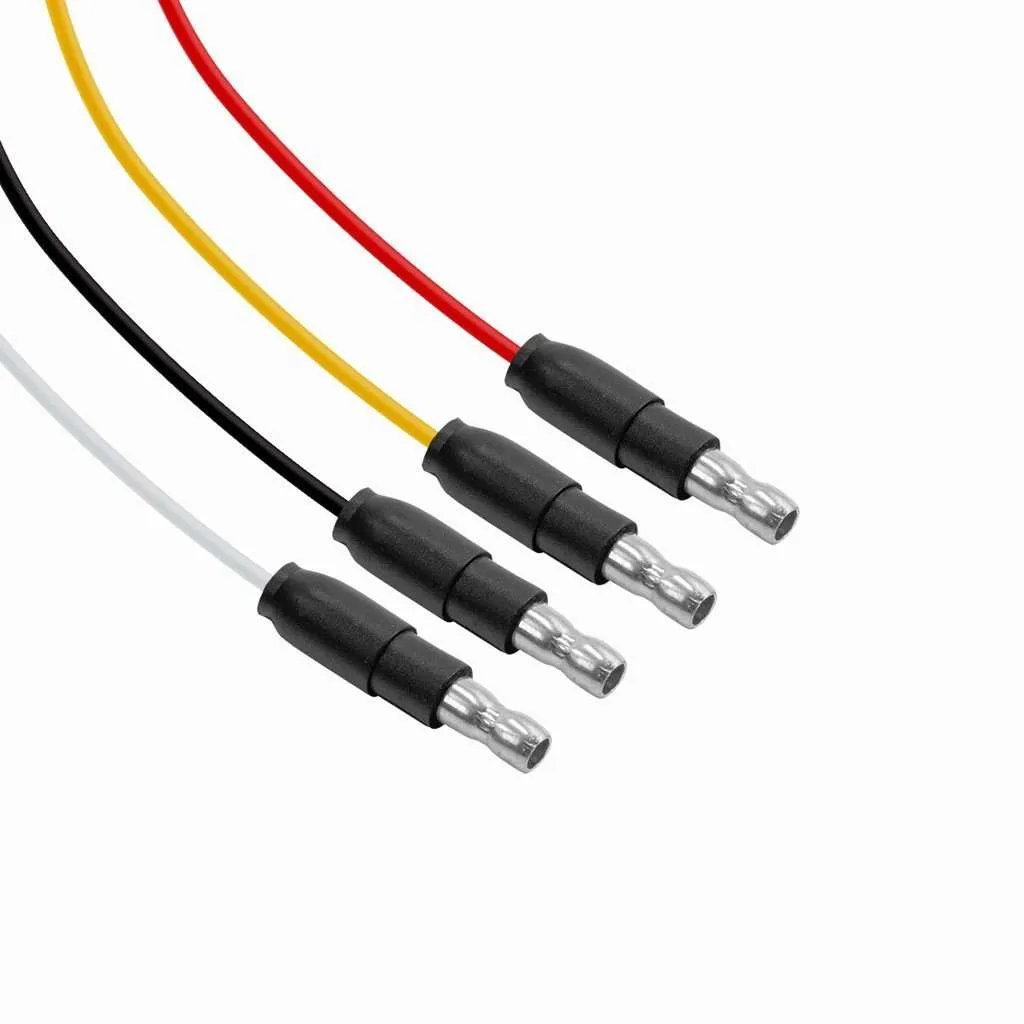

Wiring Configuration
-
White = Ground
-
Black = Low Function (Primary Amber LED)
-
Red = High Function (Primary Amber LED)
-
Yellow = Secondary Color (White LED)
Simple integration into clearance and auxiliary circuits.
Build Quality / Warranty
-
2 LED dual-color configuration
-
Clear polycarbonate lens
-
Stainless steel bezel
-
IP67 water resistant
-
12V DC compatible
Designed for dependable performance and modern styling.
Warranty: 3-year manufacturer warranty.
What’s Included
-
1 x 2 LED 3/4″ Mini Dual Function Double Fury Light – Amber & White
-
1 x Stainless Steel Bezel
-
1 x Rubber Grommet
-
3-wire leads with 0.180″ bullet plugs
Frequently Asked Questions
What happens when both amber and white are powered?
The white LED overrides the amber primary LED when both circuits are energized.
Is this light legal for highway use?
Yes. The amber primary circuit meets DOT/SAE and FMVSS 108 requirements when installed correctly. The white LED is for auxiliary or work-light use only.
Will this fit a standard 3/4″ hole?
Yes. It is specifically designed for standard 3/4″ grommet-mount openings.
Is this light waterproof?
Yes. It features resin-sealed electronics and carries an IP67 water-resistant rating.
Can this be installed on trailers?
Absolutely. It is compatible with semi-trucks, trailers, and any 12V DC system requiring compact dual-function lighting.
