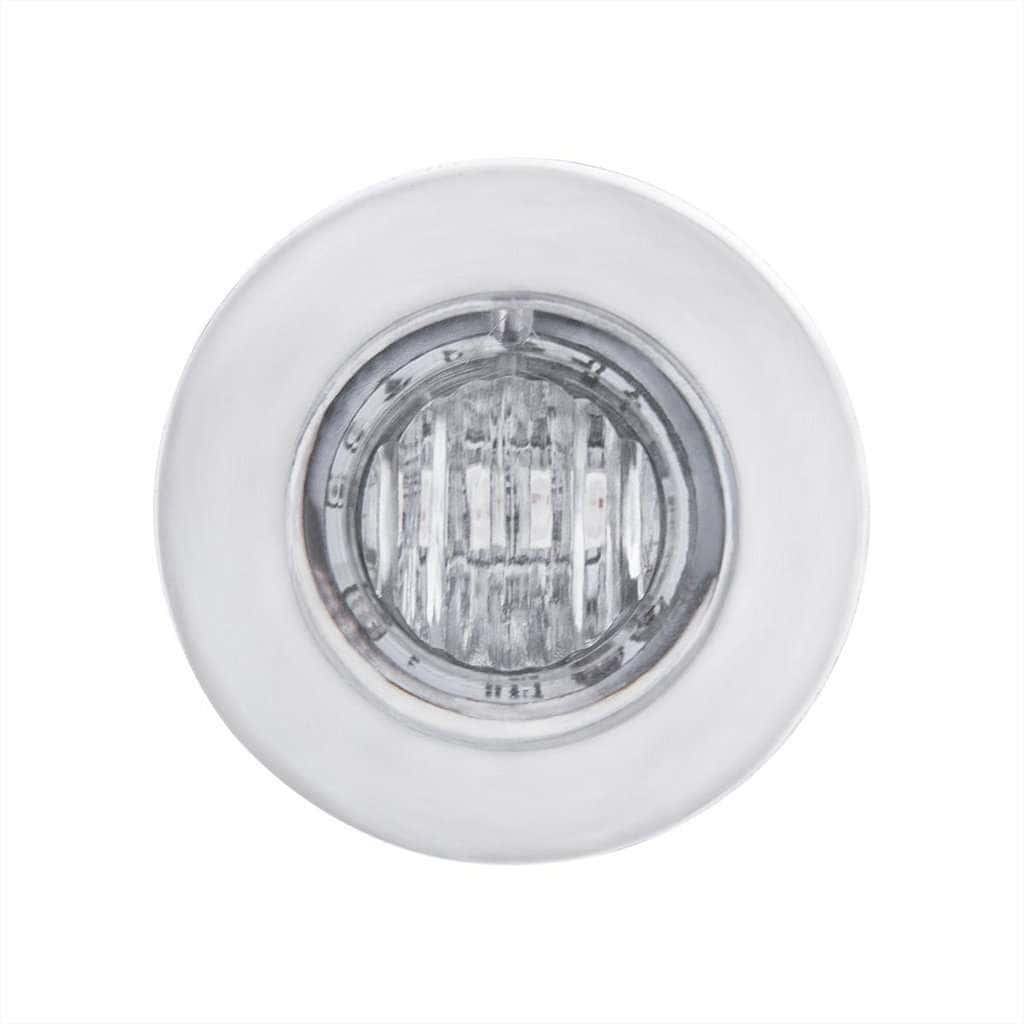

3/4″ Dual Function Double Fury Penny Light – Red & White

Product Overview

When you need compliant rear marker lighting plus functional white utility output in one compact housing, the 2 LED 3/4″ Mini Dual Function Double Fury Light delivers both.

Unlike single-color mini lights, this model offers:

• Primary red LED for legal clearance/marker use

• Secondary white LED for auxiliary or off-road lighting

• Dual high/low brightness control on the red circuit

• Compact 3/4″ flush-mount design

• IP67 weather protection

If you’re searching for dual revolution penny lights, red and white LED marker lights, or compact 3/4 dual function clearance lights, this Double Fury model combines flexibility, durability, and clean installation.

Key Features & Benefits

Dual-Color LED Functionality (Red & White)

This light integrates two LEDs in one housing:

• Red (Primary) – Clearance/marker function

• White (Secondary) – Auxiliary/work lighting

• White LED overrides red when activated

Perfect for drivers who want rear compliance plus added utility lighting without installing multiple fixtures.

Dual High / Low Red Output

The primary red LED offers two brightness levels:

• Low mode – Standard marker operation

• High mode – Increased visibility

Ideal for applications requiring enhanced rear presence.

180° Wide Light Spread

The specially designed lens projects light broadly to improve visibility from multiple angles.

$$180°lightspread$$

This wide-angle projection enhances side visibility compared to narrow-beam marker lights.

Durable & Weatherproof Construction

Built for demanding trucking environments:

• Clear polycarbonate lens

• Resin-sealed electronics

• IP67 water-resistant rating

• Resistant to dust, vibration, and road debris

Engineered for long-term performance in all conditions.

Polished Stainless Steel Bezel

The stainless steel bezel provides:

• Corrosion resistance

• Structural reinforcement

• Clean, professional finish

Perfect for fleet trucks and custom builds alike.

Performance / Compatibility / Use-Case

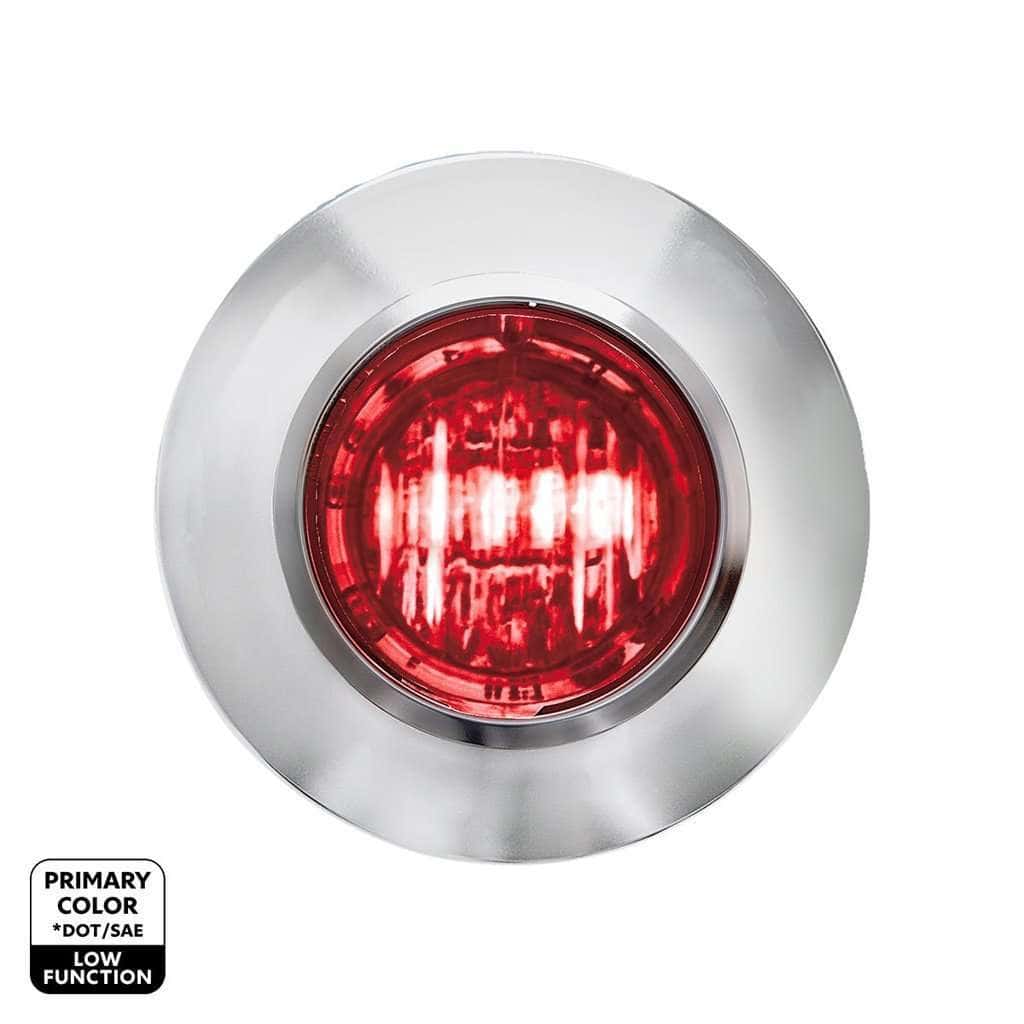

DOT / SAE Certified (Primary Color)

• Meets FMVSS 108 and DOT/SAE standards when wired properly

• Red primary circuit is compliant for rear clearance/marker use

• White circuit is intended for auxiliary/off-road applications

Always confirm local lighting regulations before installation.

12V System Compatible

• Designed for 12V DC systems

• 3-wire hookup with 0.180″ bullet plugs

• Compatible with semi-trucks, trailers, RVs, motorcycles, and utility vehicles

Installation / Fitment / Technical Details

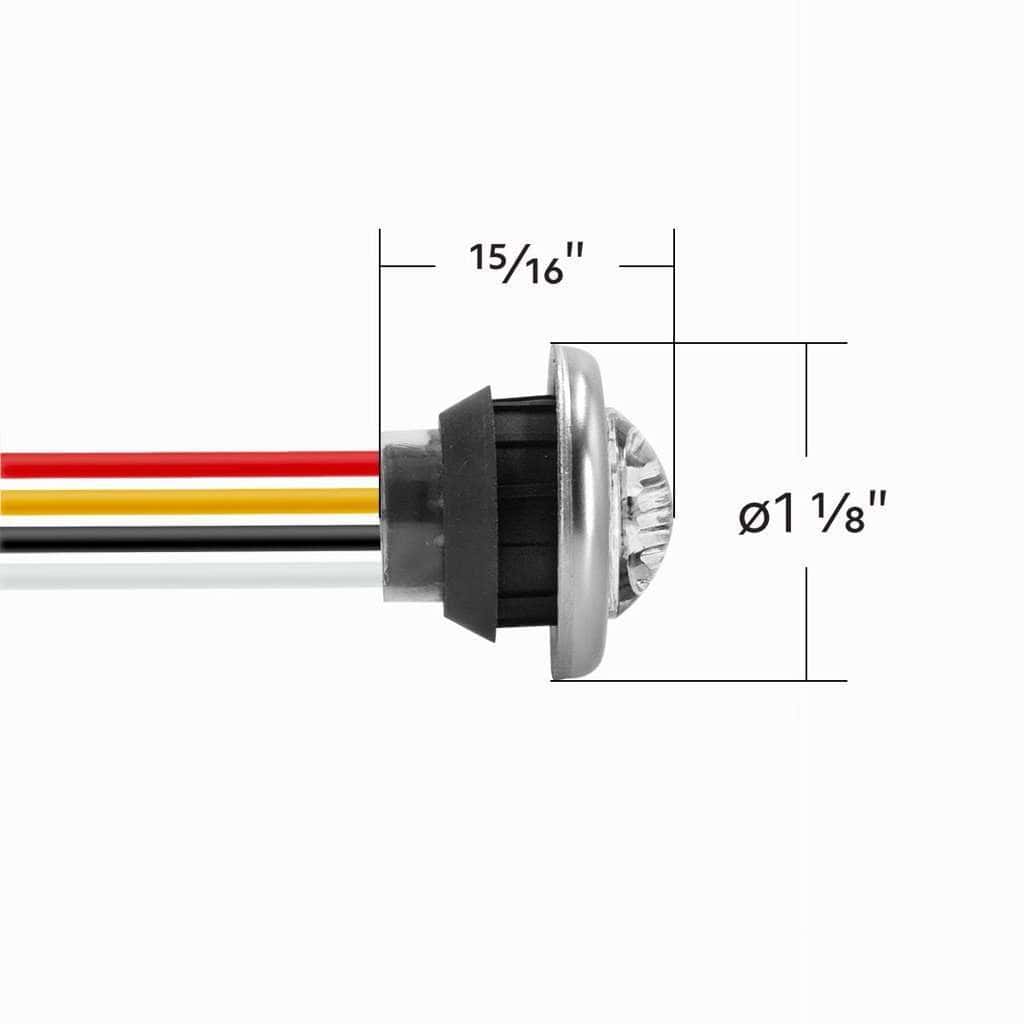

Mounting

• Requires 3/4″ diameter mounting hole

• Includes rubber grommet for secure flush fit

Wiring Configuration

• White = Ground

• Black = Low Function (Red LED)

• Red = High Function (Red LED)

• Yellow = Secondary White LED

Straightforward integration into marker and auxiliary circuits.

Build Quality / Warranty

• 2 LED dual-color configuration

• Clear polycarbonate lens

• Stainless steel bezel

• IP67 water resistant

• 12V DC compatible

Built for dependable performance and modern styling.

Warranty: 3-year manufacturer warranty.

What’s Included

• 1 x 2 LED 3/4″ Mini Dual Function Double Fury Light – Red & White

• 1 x Stainless Steel Bezel

• 1 x Rubber Grommet

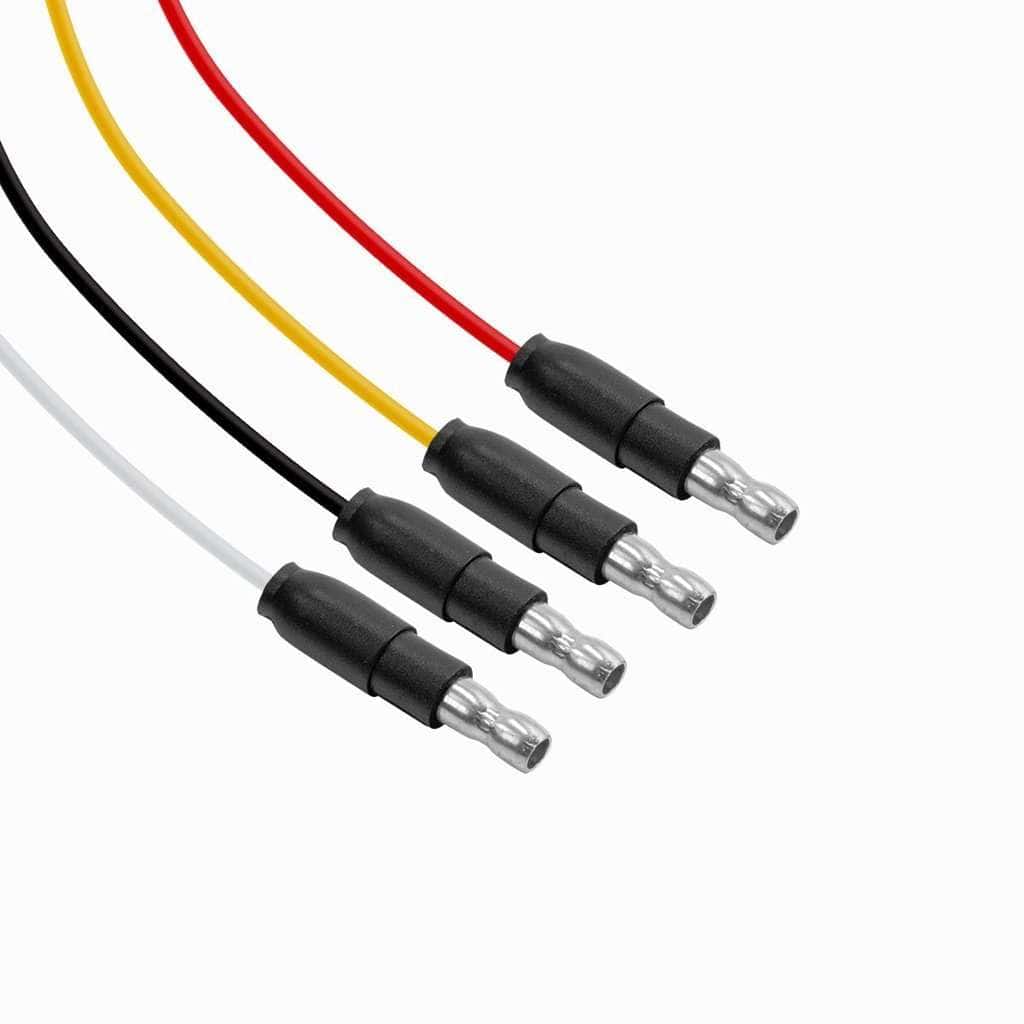

• 3-wire leads with 0.180″ bullet plugs

Frequently Asked Questions

What happens when both red and white are powered?

The white LED overrides the red primary LED when both circuits are energized.

Is this light legal for highway use?

Yes. The red primary circuit meets DOT/SAE and FMVSS 108 requirements when installed correctly. The white LED is for auxiliary use only.

Will this fit a standard 3/4″ hole?

Yes. It is specifically designed for standard 3/4″ grommet-mount openings.

Is this light waterproof?

Yes. It features resin-sealed electronics and carries an IP67 water-resistant rating.

Can this be installed on trailers?

Absolutely. It is compatible with semi-trucks, trailers, and any 12V DC system requiring compact dual-function lighting.
