Product Overview
When you need compliant rear marker lighting with adjustable brightness and long-term durability, the ArcBlast 3/4″ LED Dual Function Mini Light delivers professional-grade performance in a compact footprint.
Unlike standard single-output marker lights, this model provides:
-
Low mode for standard rear marker function
-
High mode for enhanced visibility
-
Epoxy-sealed moisture protection
-
Stainless steel bezel durability
If you’re searching for 3/4 red penny lights, dual function LED marker lights, or compact LED clearance lights for trucks, this ArcBlast version combines compliance, durability, and flexibility.
Key Features & Benefits
Dual Function High / Low Brightness
Two brightness levels provide installation versatility:
-
Low brightness mode for standard marker lighting
-
High brightness mode for increased visibility
Perfect for clearance, marker, and auxiliary rear lighting applications.
High-Intensity Red LED Output
A powerful red LED delivers:
-
Strong rear visibility
-
Even illumination through a red lens
-
Energy-efficient performance
Ideal for rear clearance and side marker positions.
Epoxy-Sealed Polycarbonate Lens
The polycarbonate lens is epoxy sealed to the housing to protect against:
-
Moisture intrusion
-
Corrosion
-
Road debris
-
Premature LED failure
Designed for harsh weather and long-haul reliability.
Stainless Steel Bezel Construction
The polished stainless steel bezel provides:
-
Corrosion resistance
-
Added structural protection
-
Clean, professional appearance
Perfect for working fleets and custom builds.
Performance / Compatibility / Use-Case
Designed for Rear Clearance & Marker Use
This red LED / red lens configuration is ideal for:
-
Rear side marker lighting
-
Rear clearance lighting
-
Identification lighting (when installed correctly)
When properly installed, it meets DOT/SAE and FMVSS 108 standards for legal rear marker applications.
12V System Compatible
-
Designed for 12V DC systems
-
3-wire hookup for dual brightness control
-
0.180″ bullet plugs for simple installation
Compatible with semi-trucks, trailers, RVs, motorcycles, and custom vehicles.
Installation / Fitment / Technical Details

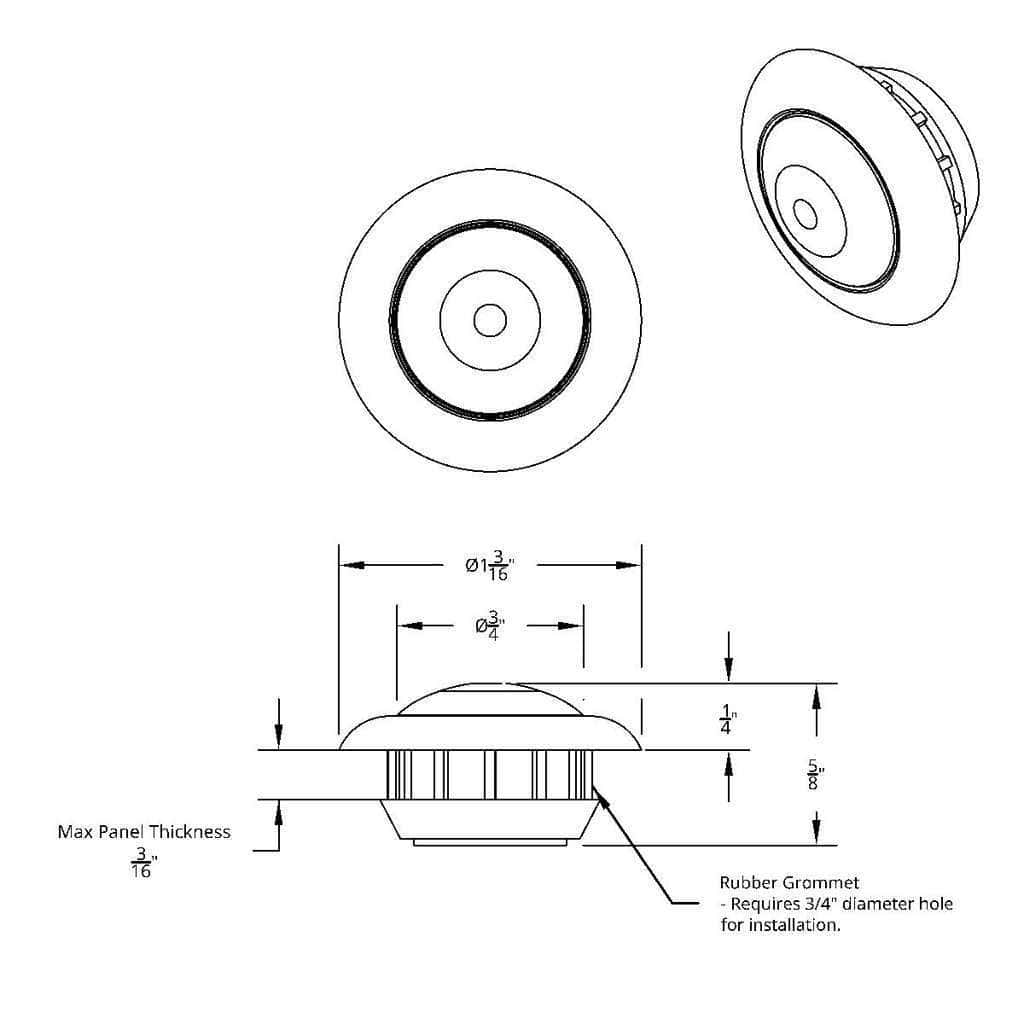

Mounting
-
Requires 3/4″ diameter hole
-
Mounts securely with included rubber grommet
Wiring Setup (3-Wire System)
-
Ground
-
Low brightness power
-
High brightness power
-
0.180″ male bullet plugs
Straightforward integration into existing marker circuits.
Build Quality / Warranty
-
Single high-output red LED
-
Red polycarbonate lens
-
Epoxy-sealed housing
-
Stainless steel bezel
-
IP67 waterproof rating
-
12V DC compatible
Engineered for dependable long-term performance.
Warranty: 10-year manufacturer warranty.
What’s Included
-

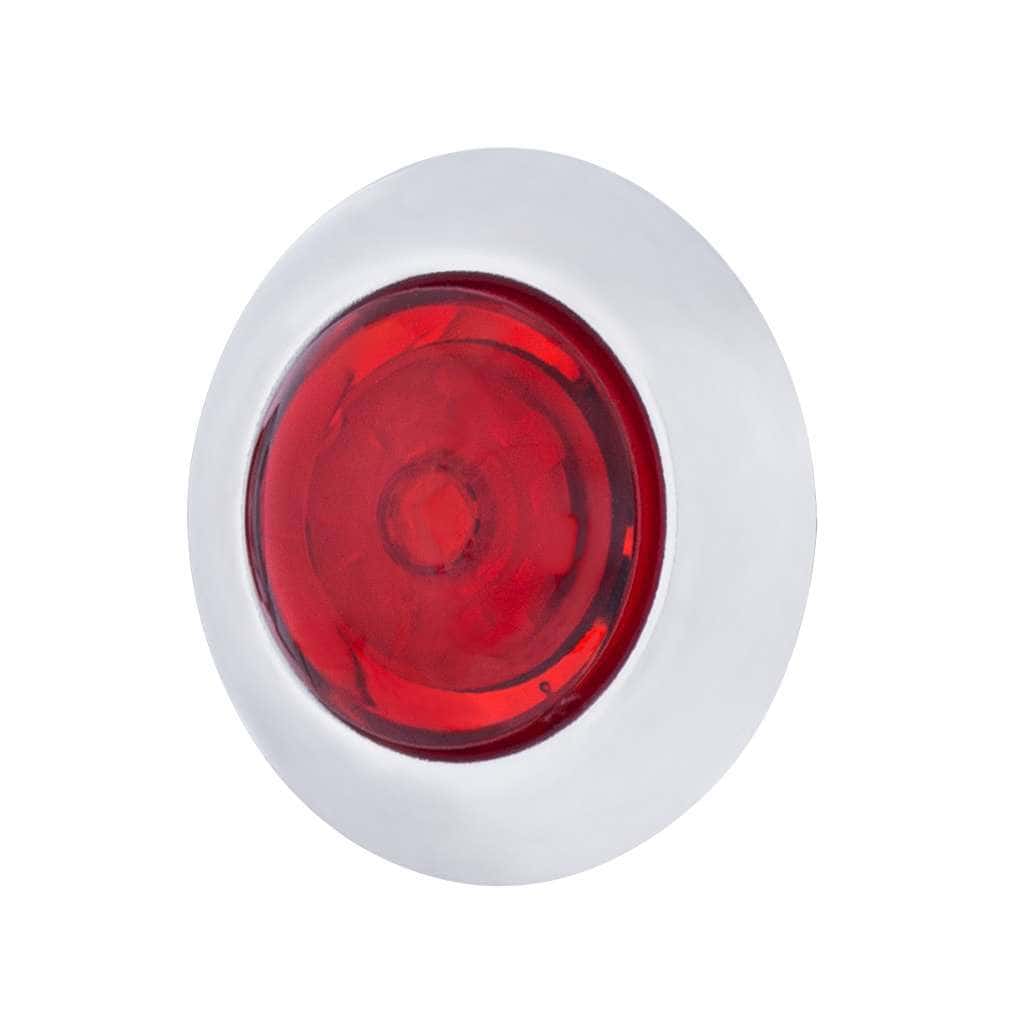

1 x LED Dual Function ArcBlast 3/4″ Mini Light – Red LED / Red Lens
-
1 x Rubber Grommet
-
3-wire hookup with 0.180″ bullet plugs
Frequently Asked Questions
What does dual function mean on this light?
Dual function means the light operates at two brightness levels: low for standard marker use and high for increased visibility.
Is this light DOT compliant?
Yes. When installed correctly, this red LED marker light meets DOT/SAE and FMVSS 108 standards for rear clearance and marker lighting.
Will this fit a standard 3/4″ mounting hole?
Yes. It is specifically designed for 3/4″ grommet-mount openings.
Is this light waterproof?
Yes. It features epoxy-sealed electronics and carries an IP67 water-resistant rating.
How long is the warranty?
This ArcBlast mini light is backed by a 10-year warranty for reliable long-term use.
