Product Overview

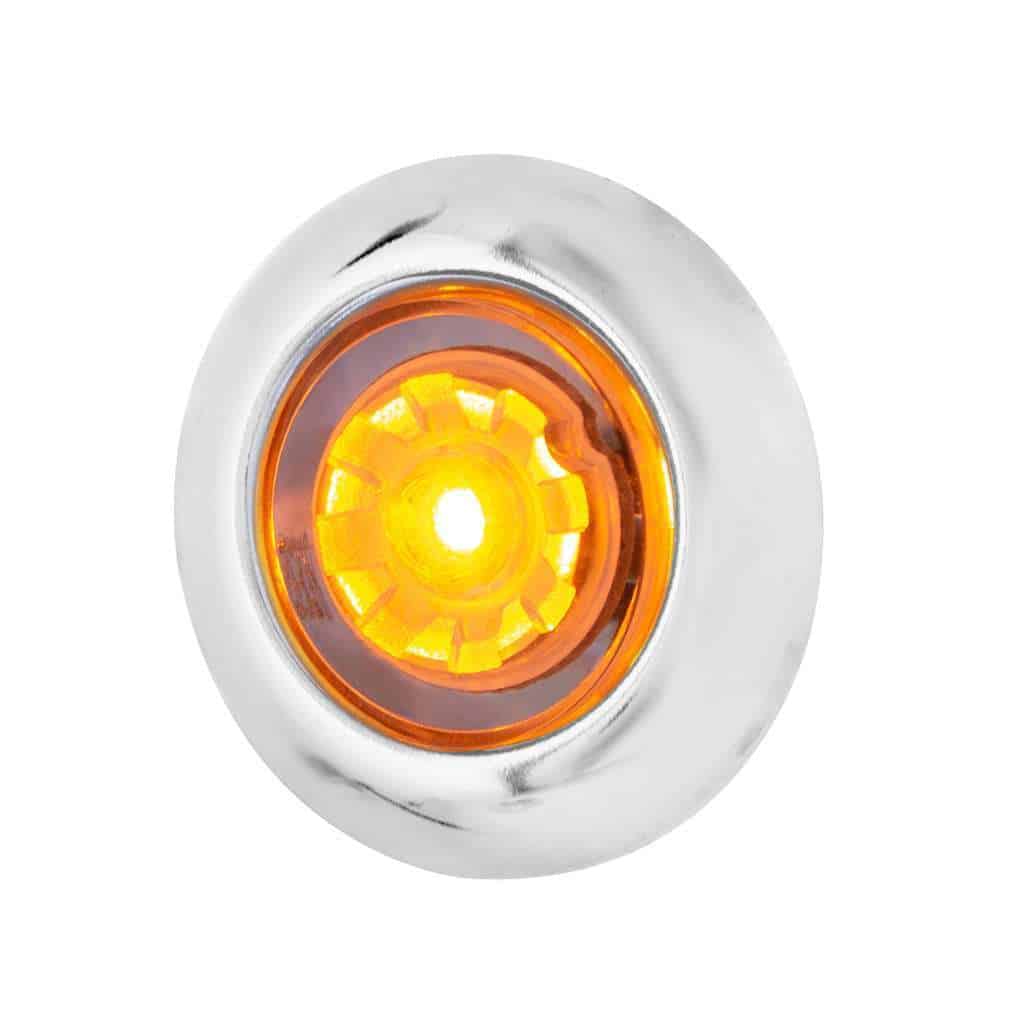

When you need reliable front marker lighting with simple wiring and long-term durability, the ArcBlast 3/4″ Single Function LED Mini Light delivers professional performance in a compact, easy-to-install design.
Unlike dual-function lights, this model provides:
-
Consistent single-output brightness
-
Epoxy-sealed moisture protection
-
Stainless steel bezel durability
-
Simple 2-wire hookup
If you’re searching for 3/4 amber penny lights, single function LED marker lights, or compact LED clearance lights for trucks, this ArcBlast model is built for clean installs and long service life.
Key Features & Benefits
Super Bright Amber LED Output
A high-intensity amber LED provides:
-
Strong forward visibility
-
Clean illumination through a clear lens
-
Efficient energy consumption
-
Long operational lifespan
Perfect for front side marker and clearance positions.
Epoxy-Sealed Polycarbonate Lens
The polycarbonate lens is epoxy sealed to the housing to protect against:
-
Moisture intrusion
-
Corrosion
-
Road debris
-
Premature LED failure
Built to withstand rain, vibration, and harsh road conditions.
Stainless Steel Bezel Construction
The polished stainless steel bezel provides:
-
Corrosion resistance
-
Structural reinforcement
-
Clean, professional appearance
Ideal for fleet trucks and custom builds alike.
Performance / Compatibility / Use-Case
Designed for Front Clearance & Marker Use
This amber LED / clear lens configuration is ideal for:
-
Front side marker lighting
-
Front clearance lighting
-
Perimeter outlining
When installed correctly, it meets DOT/SAE and FMVSS 108 standards for legal clearance and marker applications.
12V System Compatible
-
Designed for 12V DC systems
-
Simple 2-wire hookup
-
0.180″ bullet plugs for quick installation
Compatible with semi-trucks, trailers, RVs, motorcycles, and utility vehicles.
Installation / Fitment / Technical Details

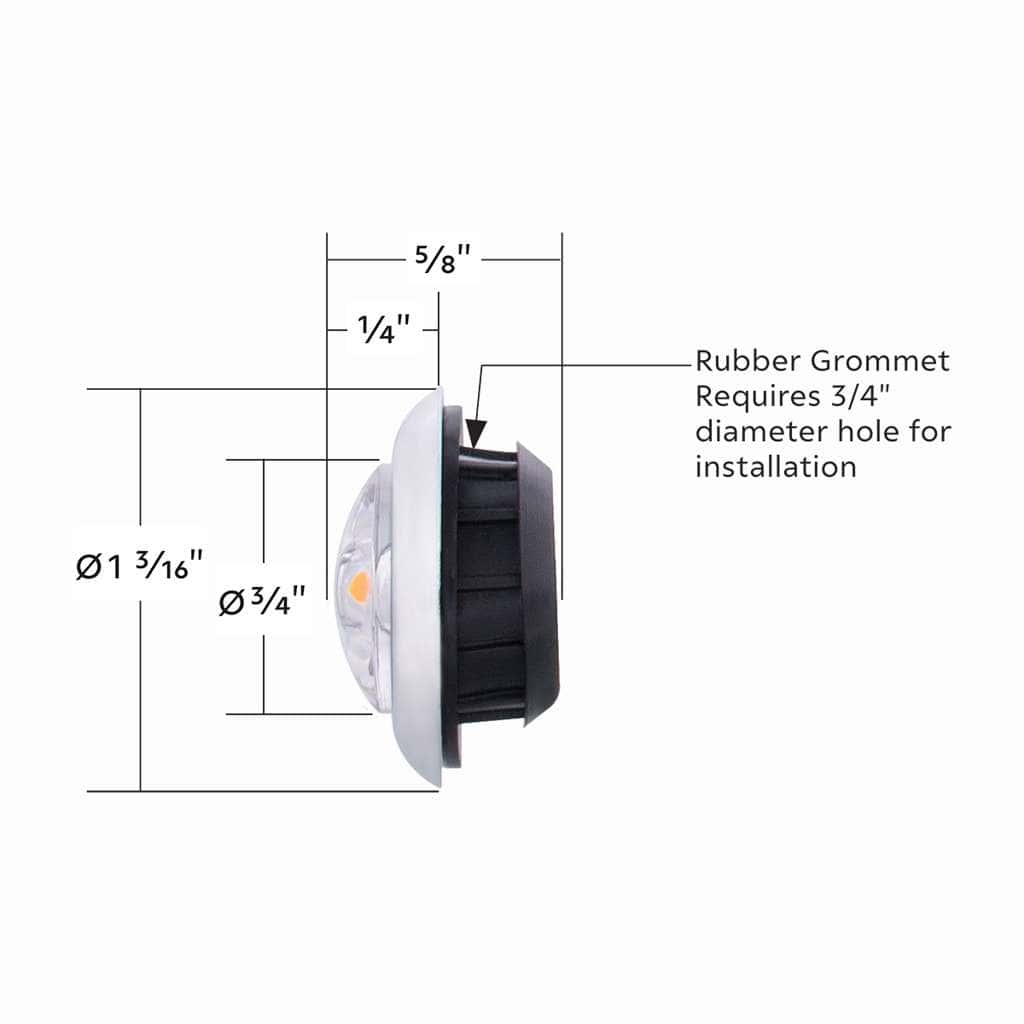

Mounting
-
Requires 3/4″ diameter hole
-
Mounts securely with included rubber grommet
Wiring Setup (2-Wire System)
-
Ground
-
Power
-
0.180″ male bullet plugs
Straightforward integration into existing marker circuits.
Build Quality / Warranty
-
Single high-output amber LED
-
Clear polycarbonate lens
-
Epoxy-sealed housing
-
Stainless steel bezel
-
IP67 waterproof rating
-
12V DC compatible
Engineered for dependable long-term performance.
Warranty: 10-year manufacturer warranty.
What’s Included
-
1 x LED Single Function ArcBlast 3/4″ Mini Light – Amber LED / Clear Lens
-
1 x Rubber Grommet
-
2-wire hookup with 0.180″ bullet plugs
Frequently Asked Questions
What does single function mean?
Single function means the light operates at one consistent brightness level, ideal for standard clearance and marker applications.
Is this light DOT compliant?
Yes. When properly installed, this amber LED marker light meets DOT/SAE and FMVSS 108 standards for clearance and marker lighting.
Will this fit a standard 3/4″ mounting hole?
Yes. It is specifically designed for 3/4″ grommet-mount openings.
Is this light waterproof?
Yes. It features epoxy-sealed electronics and carries an IP67 water-resistant rating.
How long is the warranty?
This ArcBlast mini light is backed by a 10-year warranty for reliable long-term use.
