Product Overview

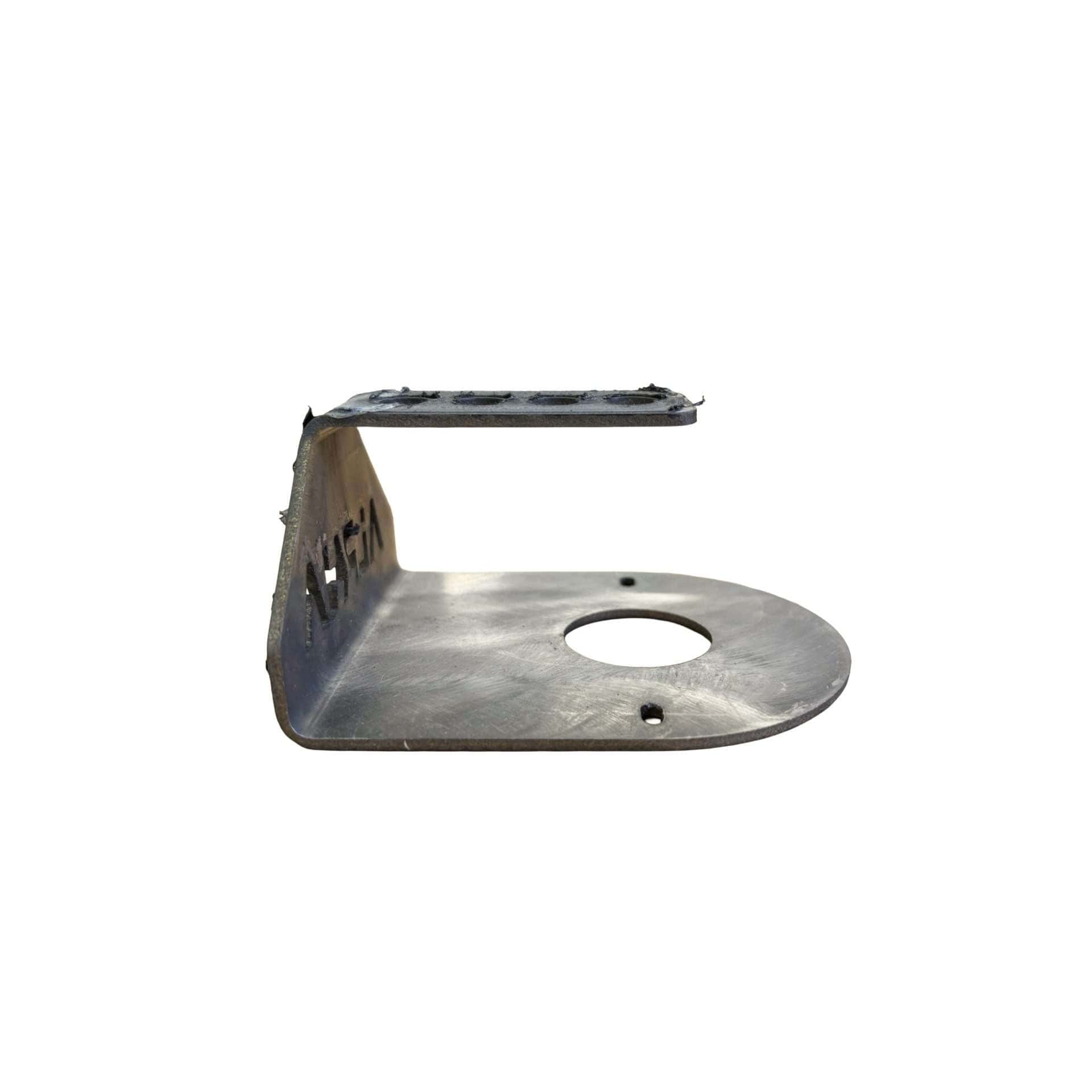

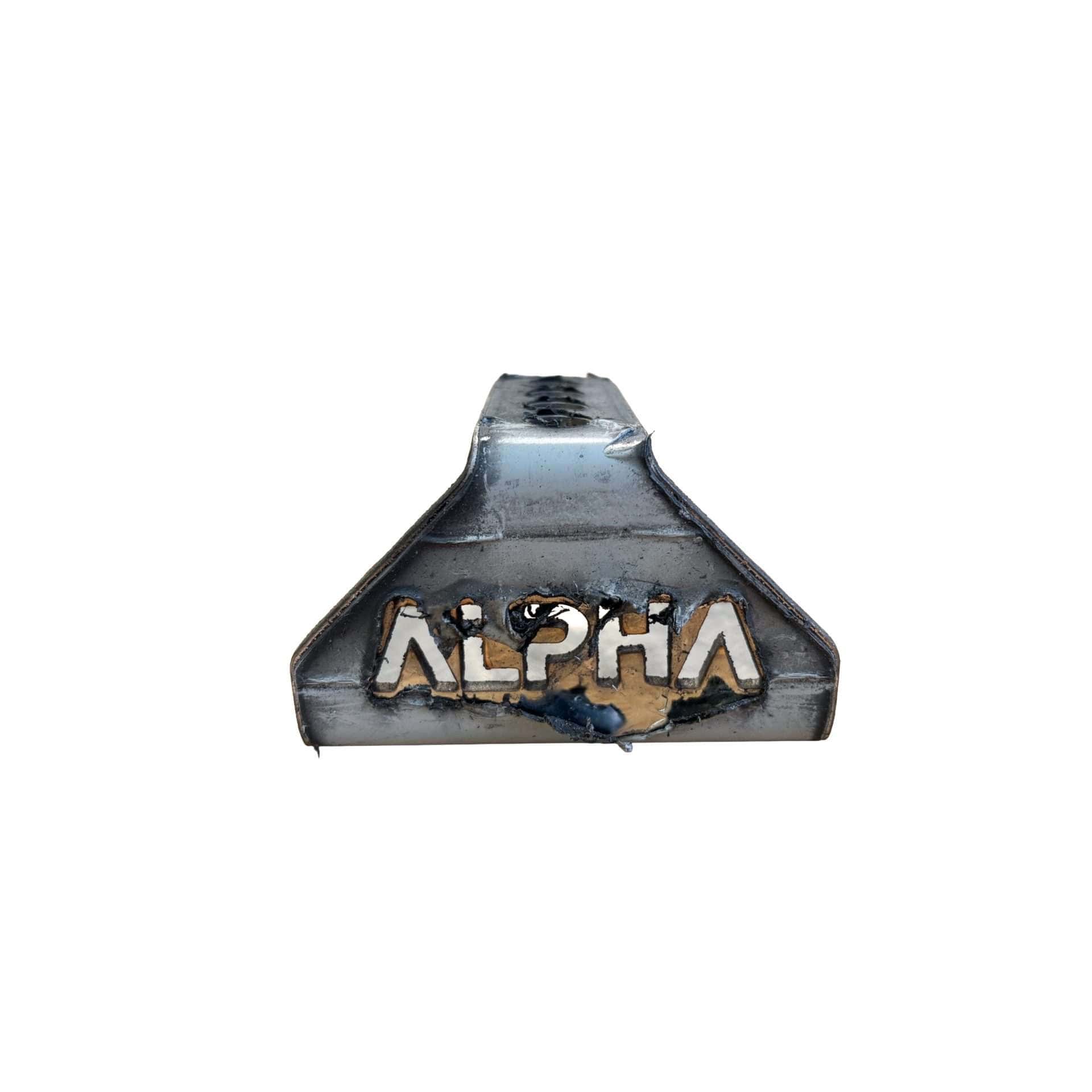

The Alpha Series A0014-LS legacy mirror bracket holds a full-size watermelon light at a 90-degree downward angle on a compatible round-bar mirror arm. It is made in Canada from 11-gauge stainless steel with a mirror-polished finish and is sold individually.
Specifications and light layout
- Part number: A0014-LS.
- Light angle: 90 degrees downward.
- Mounting: clamp-on round-bar mirror arm arrangement with pre-drilled mounting holes.
- Light format: nominal 4¼-inch full-size watermelon light with a centre-stud mount; confirm mounting fit.
- Material: 11-gauge stainless steel, mirror-polished.
- Quantity: one bracket. Made in Canada.
- Mirror finish supplied with protective film.
Fitment and installation
Compare the round mirror arm, bracket mounting holes and the light’s mounting arrangement before ordering. Check the light housing clearance and the hardware required for the arm. This listing does not establish fitment from the truck model alone.
What is included?
One legacy 90-degree mirror light bracket. The watermelon light is not included. Two brackets are needed for one installation on each mirror.
Warranty
No warranty. This is a clearance item; the existing final-sale notice applies.
Choose lights and matching panels
Start with our Glass Is Class watermelon lights when choosing the main light for your build. Match the light’s mounting arrangement, housing clearance and electrical requirements to the bracket before ordering. Lights are purchased separately.
Frequently Asked Questions
What angle does A0014-LS hold the light at?
It positions the light downward at 90 degrees.
What type of mirror arm does this bracket use?
It is intended for a round-bar mirror arm. Compare the arm, clamp arrangement and mounting holes before ordering.
Is the bracket sold as a pair?
No. It is sold individually. Two brackets are needed if you want one light bracket on each mirror.
What size watermelon light is listed?
The listed format is a nominal 4¼-inch full-size watermelon light with a centre-stud mount. Match its mounting hardware and housing clearance to the bracket; the nominal diameter alone does not confirm fit.
What are the terms for this legacy clearance bracket?
The existing listing states final sale with no returns or refunds. This item has no warranty, and the light is sold separately.
