NX505 – 5″ LED Work Light (12–24V, 7650 Lumens, 90W, Flood Beam)
Big Output. Rugged Build. Compact Footprint.
When maximum brightness meets uncompromising durability, you get the NX505 5″ LED Work Light — a high-performance lighting solution engineered for heavy-duty environments. With a staggering 7650 lumens of crisp 5700K white light in a flood beam pattern, this compact powerhouse illuminates wide areas with clarity and confidence.
Ideal for off-road rigs, industrial vehicles, and worksite machinery, the NX505 is built with a stainless steel mounting bracket, impact-resistant polycarbonate lens, and IP69K waterproof rating — all designed to thrive in harsh conditions and extended use.
Key Features & Benefits
-
Massive Output: Delivers 7650 lumens from a compact 5″ housing for large-area visibility.
-
Flood Beam Pattern: Broad light spread ideal for work zones, rear lighting, and task-specific applications.
-
Wide Voltage Range: Operates from 9–32V, making it compatible with both 12V and 24V systems.
-
Built Tough: Features a heavy-duty stainless steel bracket for maximum vibration and shock resistance.
-
Weatherproof & Wash-Down Safe: IP69K rating ensures protection from water, mud, dust, and high-pressure spray.
-
Crystal-Clear Visibility: 5700K white color temperature for optimal definition and reduced eye strain.
-
Impact-Resistant Lens: Durable polycarbonate lens withstands harsh environments and road debris.
-
Quick-Connect Wiring: DT connector with fly lead included for a clean, sealed connection.
-
5-Year Warranty: Guaranteed performance and long-term reliability backed by Noxsolis.
Light Up More — Without Bulking Up
The NX505 Work Light is perfect for applications where space is limited but performance can’t be compromised. Whether you’re working late on the job site, exploring trails after dark, or upgrading your utility setup, this light gives you wide, clean illumination with a rugged build that won’t let you down.
It’s the perfect fit for users who need big power in a mid-size light, whether mounted on roof racks, bumpers, trailers, or agricultural equipment.
Vehicle & Equipment Compatibility
Ideal for:
-
Pickup trucks, utility rigs, and service vehicles
-
4WDs, UTVs, ATVs, and expedition setups
-
Farm machinery and industrial equipment
-
Trailers, transport trucks, and emergency vehicles
-
Construction lighting, reverse lighting, and campsite illumination
Compatible with 12V and 24V electrical systems.
Technical Specifications
-
Light Output: 7650 Lumens
-
Power Consumption: 90W
-
Beam Type: Flood
-
Voltage Range: 9–32V DC
-
Color Temperature: 5700K
-
Lens Material: Polycarbonate
-
Connector: DT Plug with Fly Lead
-
Bracket Material: Stainless Steel
-
Waterproof Rating: IP69K
-

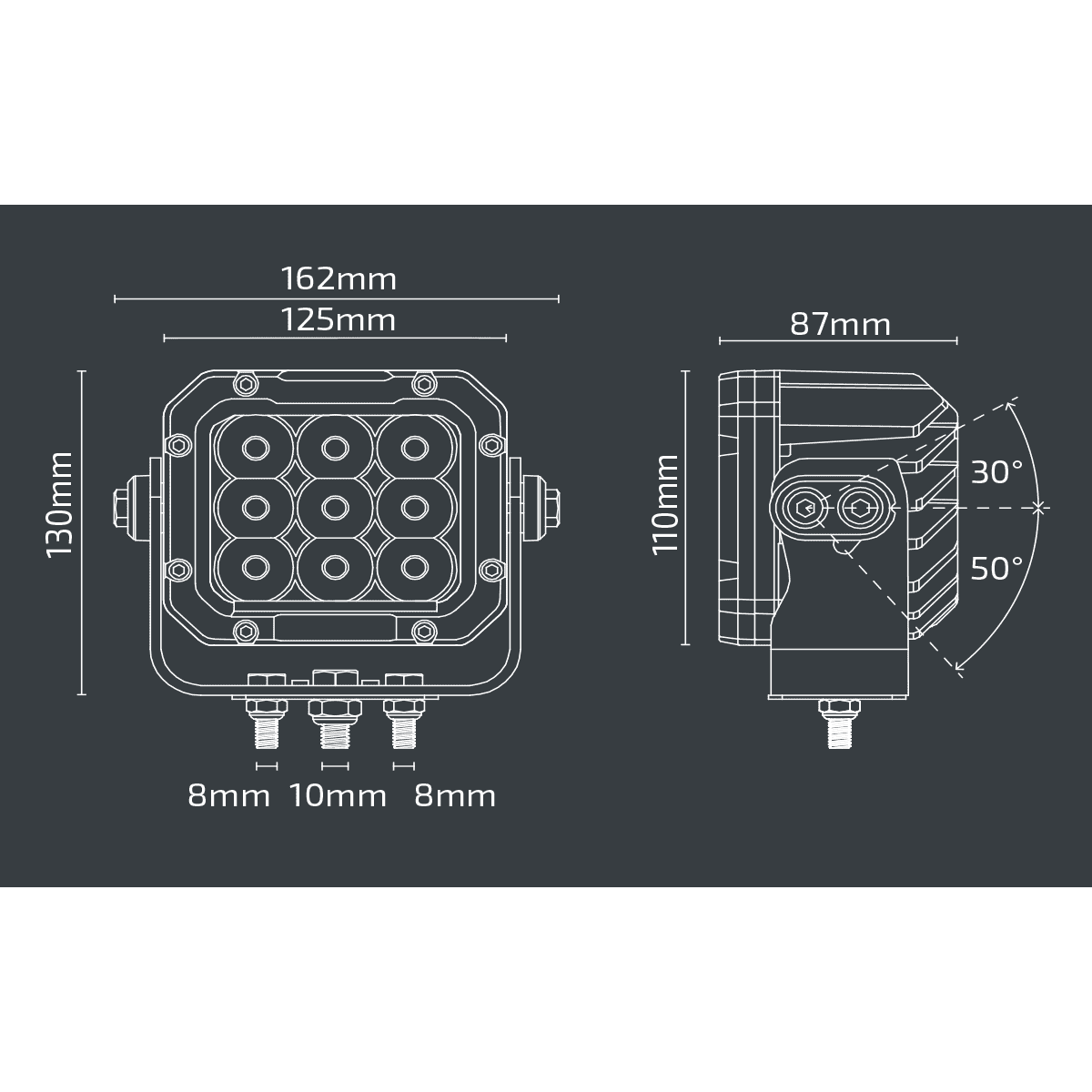

Housing Size: 5″
-
Warranty: 5-Year Limited Warranty
What’s Included
-
1x NX505 5″ LED Work Light (Flood Beam)
-
All stainless steel mounting hardware
-
DT Connector with fly lead
Now Available at BTS Lighting — Flood the Worksite with Power
Upgrade your visibility with the NX505 LED Work Light — the ideal balance of size, strength, and flood coverage. Whether you’re lighting up your trail, your job site, or your rear bumper, this high-output work light delivers serious performance wherever it’s mounted.
