NX802 – 21″ Slimline LED Light Bar (12–24V, 9,600 Lumens, Combo Beam)
Slim Profile. Long Distance. Maximum Versatility.
The NX802 21″ Slimline LED Light Bar combines extreme output with a low-profile design for maximum flexibility. At only 33mm thick, this light bar delivers a powerful 9,600 raw lumens of 5700K white light through a precision reflector system — creating a combo beam that reaches an impressive 579m at 1 Lux. Whether mounted on a bumper, rack, or grille, the NX802 offers both wide flood coverage and long-distance projection in one sleek package.
Built tough with IP68 & IP69K waterproofing, EMI-compliant electronics, and multiple mounting options, the NX802 is the go-to solution for off-roaders, work trucks, and anyone needing serious performance from a compact light bar.
Key Features & Benefits
-
Ultra-Slim 33mm Profile: Fits where traditional light bars won’t — ideal for modern bumper and grille integration.
-
High Output Beam: Projects light up to 579 meters at 1 Lux with a balanced combo beam pattern.
-
Brilliant Performance: Emits 9,600 raw lumens powered by 108W of high-efficiency LEDs.
-
Wide Voltage Support: Runs on both 12V and 24V DC systems — suitable for most vehicles and machinery.
-
Multi-Mount Design: Includes side and adjustable rear brackets for easy installation in tight or angled locations.
-
Waterproof and Dustproof: Rated IP68 and IP69K — sealed against water intrusion, mud, and pressure washers.
-
Clean Light Output: 5700K white light for optimal clarity and reduced driver fatigue.
-
Safe for Electronics: Certified R10 EMI compliant — prevents interference with radios and sensitive electronics.
-
Quick Connection: Includes 500mm main lead + 150mm DT fly lead for a sealed, plug-and-play install.
-
3-Year Warranty: Backed by Noxsolis for lasting reliability.
Compact Design. Full-Scale Illumination.
The NX802 Slimline Light Bar is engineered to fit in tight spaces and still outperform bulky alternatives. Its combo beam delivers the best of both worlds — a long-range spot beam paired with wide-angle flood coverage — making it perfect for highway runs, trail exploration, or worksite utility lighting.
Whether you’re building out a custom off-road rig or upgrading a fleet vehicle, the NX802 gives you a clean fit with unmatched performance.
Vehicle & Application Compatibility
Perfect for:
-
Off-road vehicles and overland builds
-
Pickup trucks and commercial work trucks
-
UTVs, SxS, and farm equipment
-
Enclosed trailers, racks, and flatbeds
-
Construction, mining, and utility fleets
Compatible with both 12V and 24V electrical systems.
Technical Specifications
-
Light Output: 9,600 Lumens (Raw)
-
Power Consumption: 108W
-

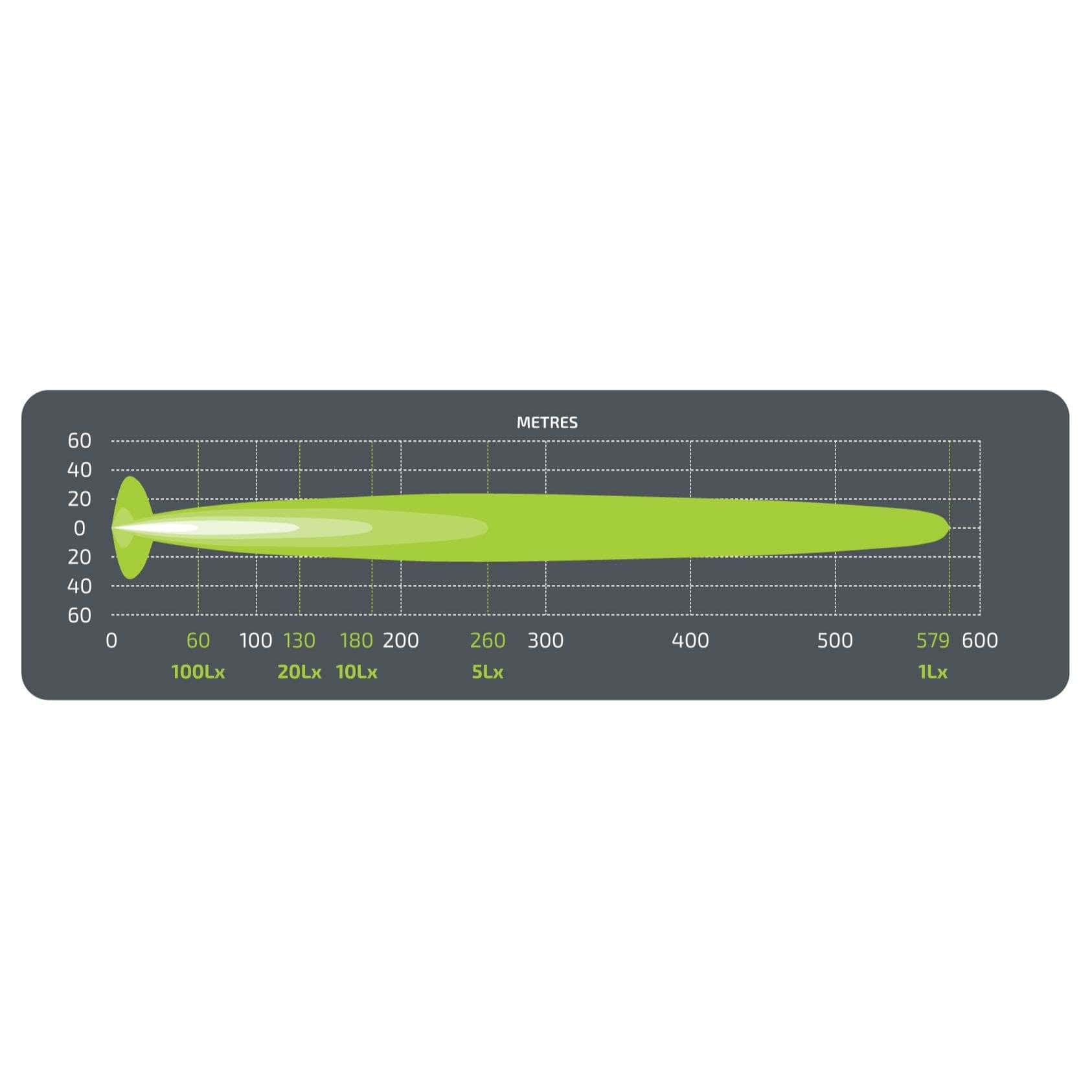

Beam Distance: 1 Lux @ 579m
-
Beam Type: Combo (Spot + Flood)
-
Voltage Range: 12–24V DC
-
Current Draw: 8.1A @ 13.8V / 4.2A @ 24V
-
Color Temperature: 5700K
-
Waterproof Rating: IP68 & IP69K
-
Lens Material: Polycarbonate
-
Mounting Options: Side or adjustable rear brackets
-
EMI Compliance: R10 (radio interference safe)
-
Connector: 2-Pin DT (500mm lead + 150mm DT fly lead)
-
Weight: 1.12kg
-
Warranty: 3-Year Limited Warranty
What’s Included
-
1x NX802 21″ Slimline LED Light Bar (Combo Beam)
-
2x Side Mount Brackets
-
2x Adjustable Rear Brackets
-
All Mounting Hardware
-
150mm DT Fly Lead
Now Available at BTS Lighting — Slim. Powerful. Ready for Anything.
Maximize visibility in minimum space with the NX802 21″ Slimline LED Light Bar. Built for vehicles and equipment where performance and form factor both matter, this bar lights up long-distance paths and wide work zones — without compromise.
