United Pacific · 35841 / 35842

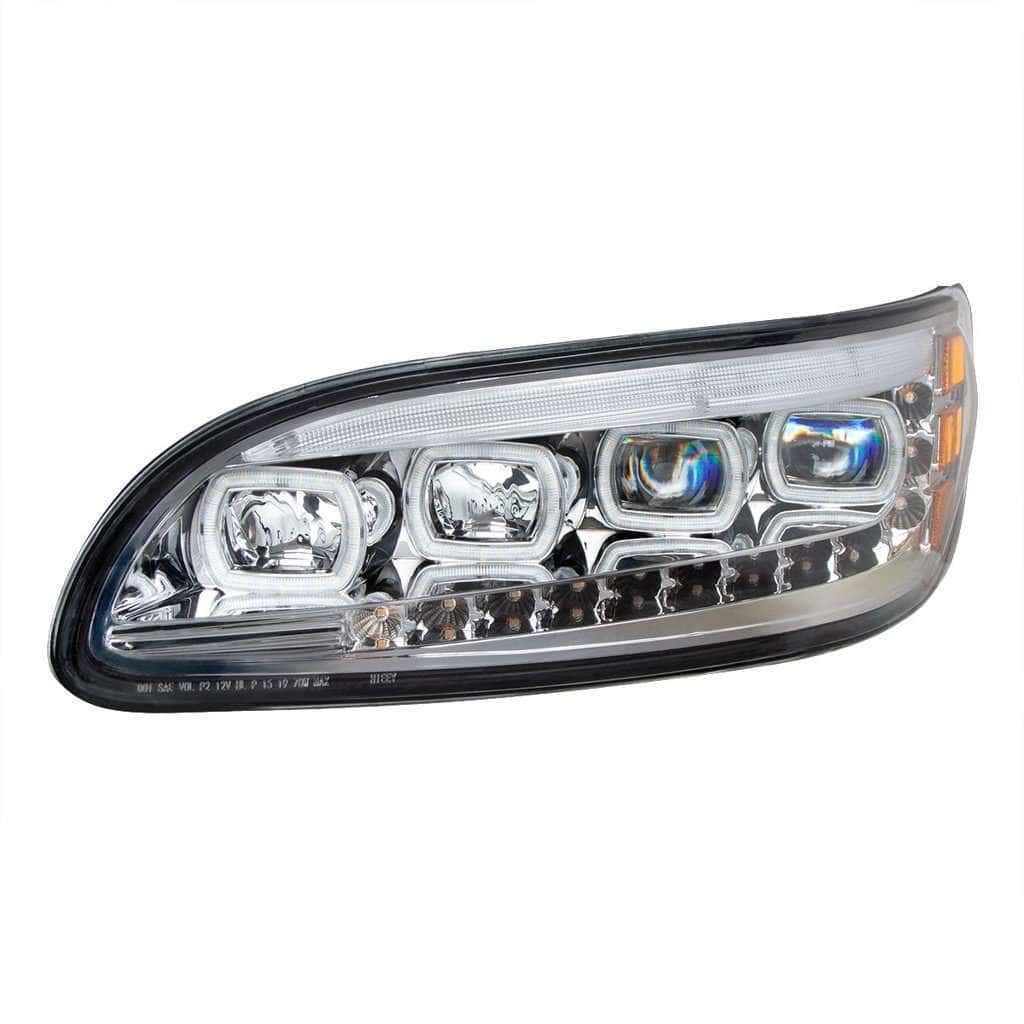

Quad LED optics with a sequential signal
Four LED modules combine low-beam projectors with high-beam reflectors behind a chrome inner housing. A 128-LED white DRL and sequential amber turn signal complete this integrated assembly.
Quad LED layout
Individual projectors and reflectors provide the low- and high-beam functions.

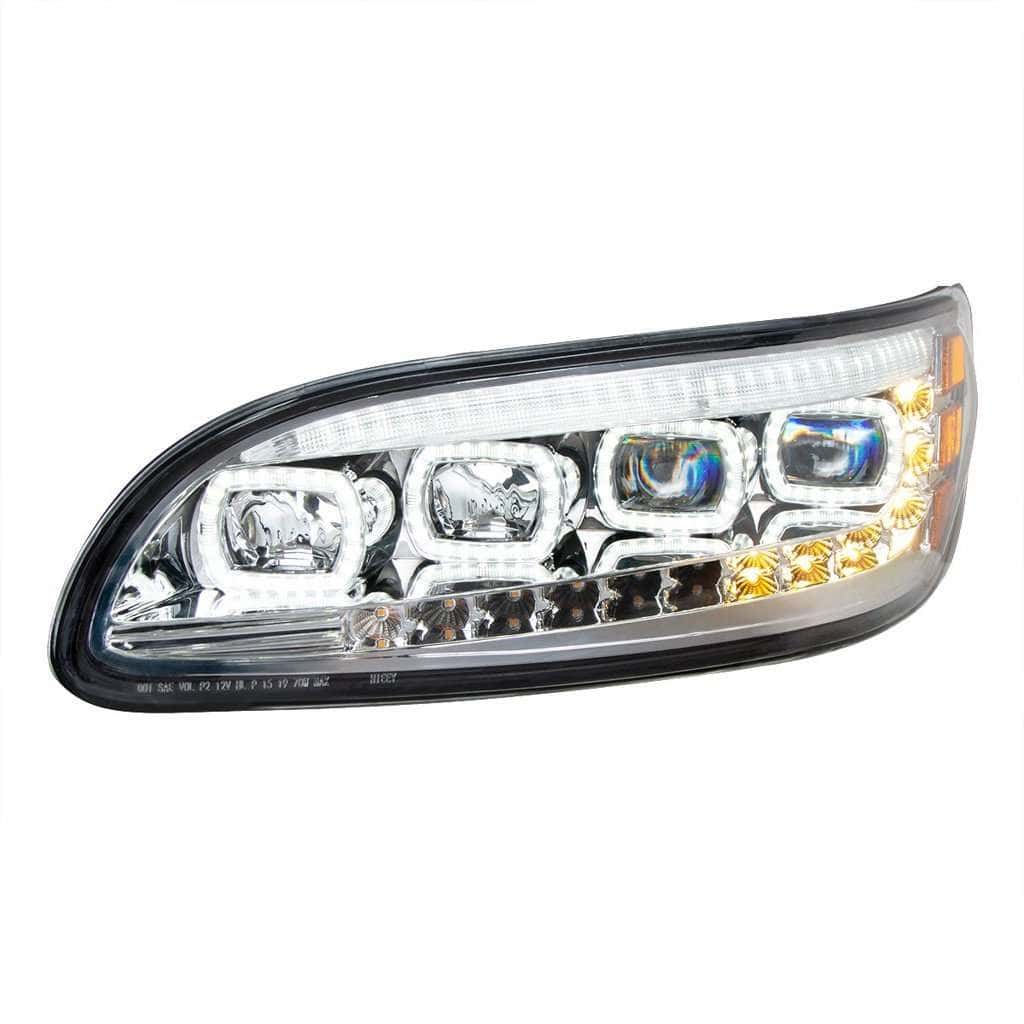

White DRL and amber signal
The DRL uses 128 white LEDs; the sequential turn signal uses twelve 3W amber LEDs.
Polycarbonate and ABS
A polycarbonate front lens and ABS rear housing form the assembly.

Fitment & selection
Match the original headlight
- Peterbilt 386: 2006–2015
- Peterbilt 387: 2001–2010
- Peterbilt 382: 2012–2013
- Peterbilt 384: 2008–2014
For a 2005 Peterbilt 386, 1999–2000 Peterbilt 387, or another year outside the list, confirm the original assembly and connector with BTS before ordering.
| Driver | 35841 · one complete assembly |
|---|---|
| Passenger | 35842 · one complete assembly |
Installation & aiming
Match the original factory harness. The manual identifies separate vertical and horizontal adjusters for the low and high beams; check both after fitting.
Lighting details
Specifications per assembly
| Low beam | 1,500 lumens · 5500K · 1.1A at 12V |
|---|---|
| High beam | 3,000 lumens · 5500K · 4.7A at 12V |
| DRL | 128 white LEDs |
| Turn signal | 12 × 3W amber LEDs, sequential |
| Finish | Chrome Inner Housing |
| Package | One headlight assembly for the selected side |
| Manufacturer standards listing | DOT/SAE · FMVSS 108; correct application and installed aim are required |
Product questions
Before you order
Does the price include both headlights?
No. Each option supplies one complete headlight for the selected side. Choose both sides separately if you need a pair.
Which model years should I check?
Use the exact application list above and match the original housing, mounting and connector. Confirm any year outside that list with BTS before ordering.
Is this an LED bulb kit?
No. This is a complete headlight assembly with integrated LED main beams, supplied for one selected side.
3-year manufacturer warranty
United Pacific lists a 3-year warranty for these exact part numbers. Keep your purchase information and contact BTS Lighting for product support.
