United Pacific · 35883 / 35884
LED beams with a white DRL light bar

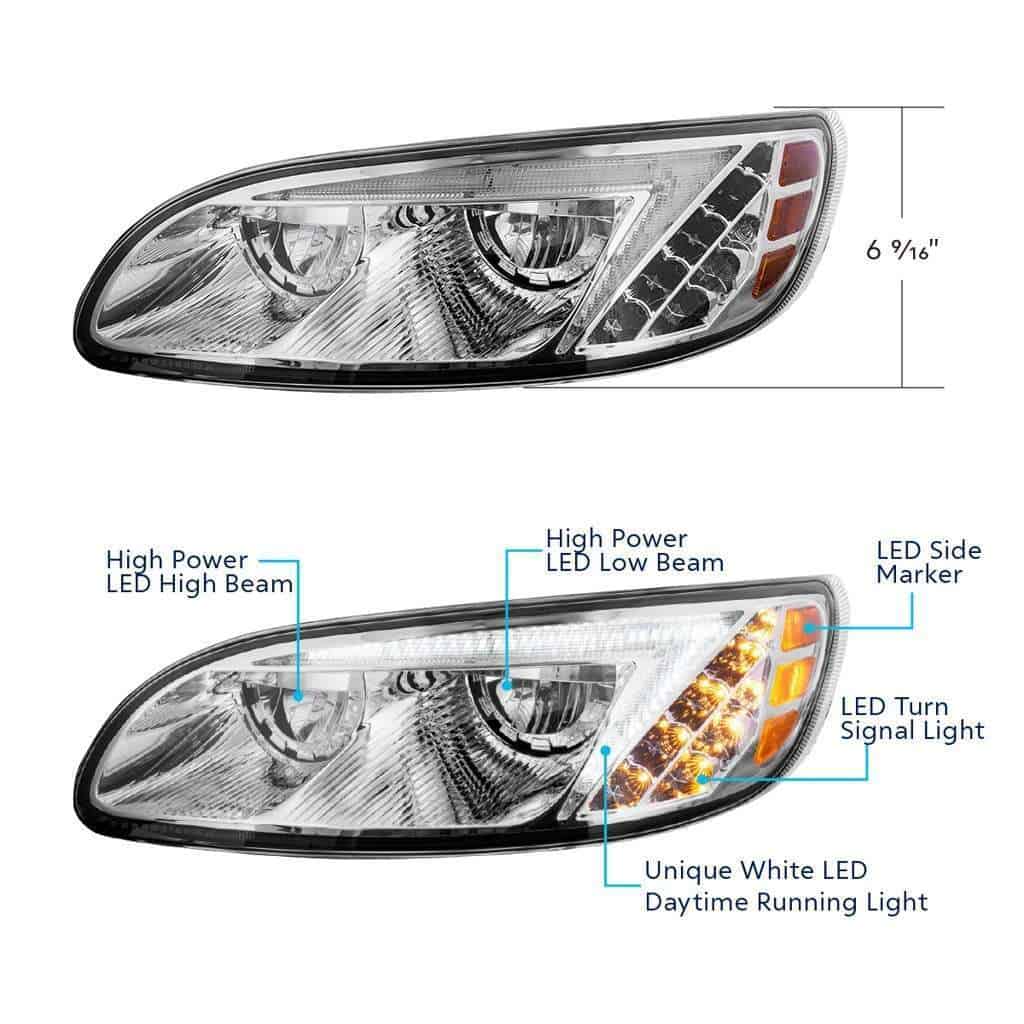

A 50-LED white DRL bar and eight-LED amber signal complement the integrated LED main beams. The chrome inner housing sits behind a polycarbonate lens with an ABS rear housing.
LED low and high beam
Both main-beam functions use integrated LEDs with 6000K rated output.

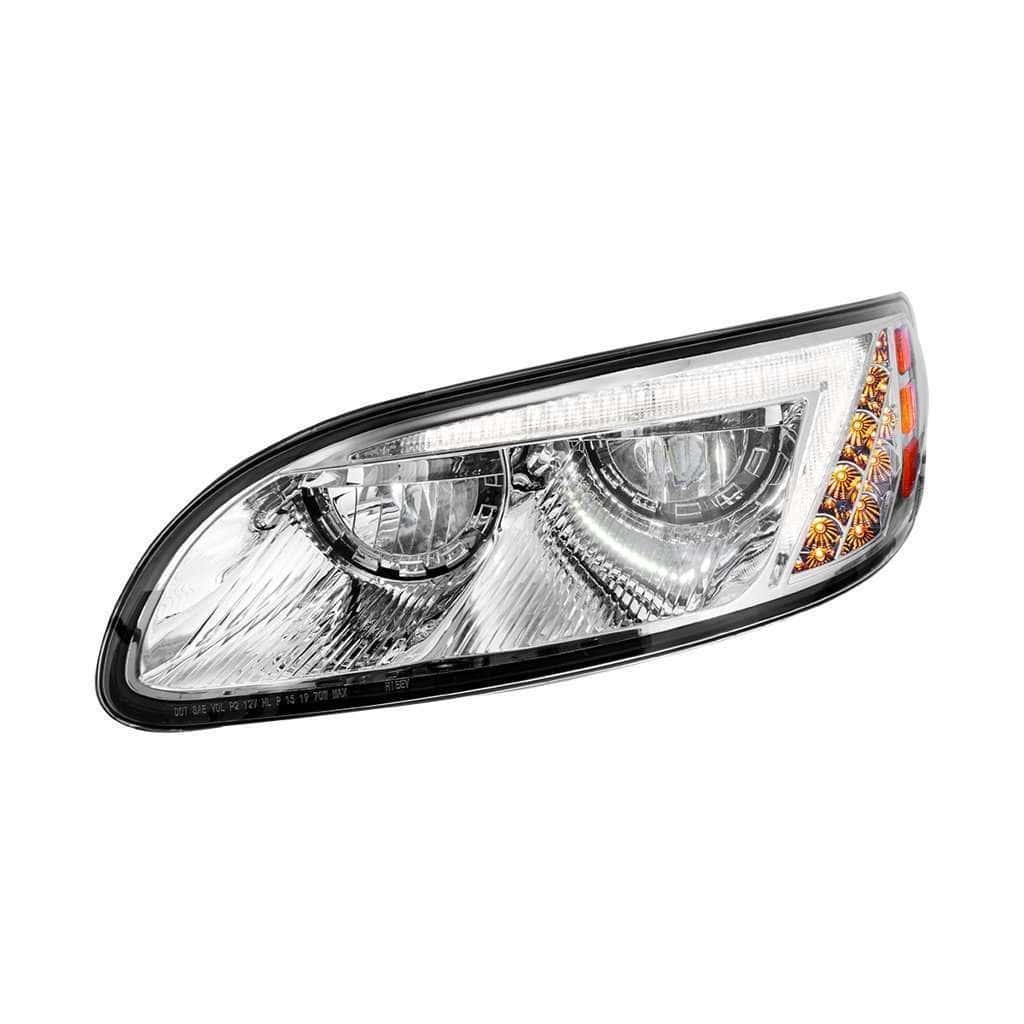

White DRL / amber turn
The white DRL bar and non-sequential amber turn signal are separate lighting functions.

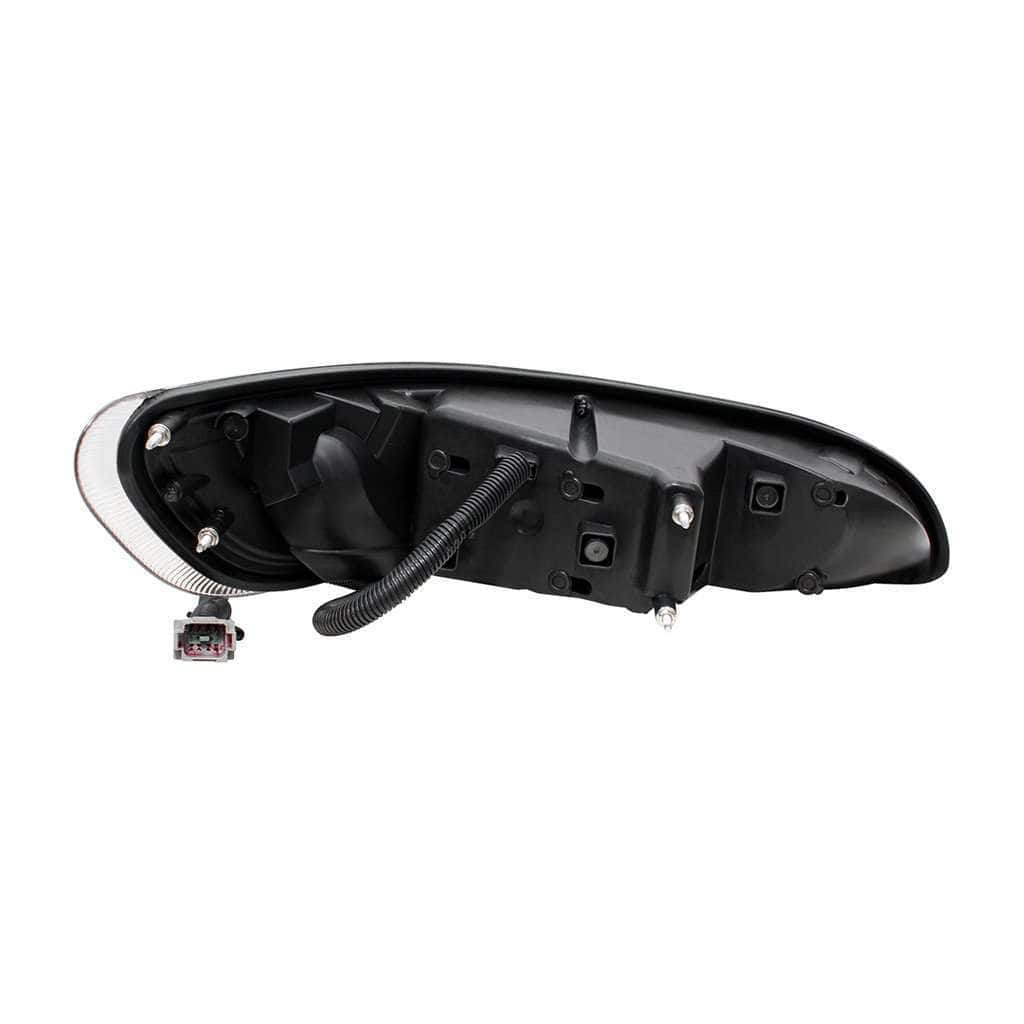

Factory-harness connection
Check the original mounting and connector, then follow the family’s installation diagram.

Fitment & selection
Match the original headlight
- Peterbilt 386: 2006–2015
- Peterbilt 387: 2001–2010
- Peterbilt 382: 2012–2013
- Peterbilt 384: 2008–2014
For a 2005 Peterbilt 386, 1999–2000 Peterbilt 387, or another year outside the list, confirm the original assembly and connector with BTS before ordering.
| Driver | 35883 · one complete assembly |
|---|---|
| Passenger | 35884 · one complete assembly |
Installation & aiming
The manual distinguishes the headlamp beam adjuster from the low- and high-beam adjusters. Match the factory harness and use the diagram for this exact family.
Lighting details
Specifications per assembly
| Low beam | 1,500 lumens · 6000K · 1.4A at 12V |
|---|---|
| High beam | 1,500 lumens · 6000K · 1.4A at 12V |
| DRL / turn signal | 50 white LEDs / 8 amber LEDs |
| Turn-signal operation | Non-sequential |
| Finish | Chrome Inner Housing |
| Package | One headlight assembly for the selected side |
| Manufacturer standards listing | DOT/SAE · FMVSS 108; correct application and installed aim are required |
Product questions
Before you order
Does the price include both headlights?
No. Each option supplies one complete headlight for the selected side. Choose both sides separately if you need a pair.
Which model years should I check?
Use the exact application list above and match the original housing, mounting and connector. Confirm any year outside that list with BTS before ordering.
Is this an LED bulb kit?
No. This is a complete headlight assembly with integrated LED main beams, supplied for one selected side.
3-year manufacturer warranty
United Pacific lists a 3-year warranty for these exact part numbers. Keep your purchase information and contact BTS Lighting for product support.
