United Pacific · 31082 / 31083
LED beams with a dual-colour light bar

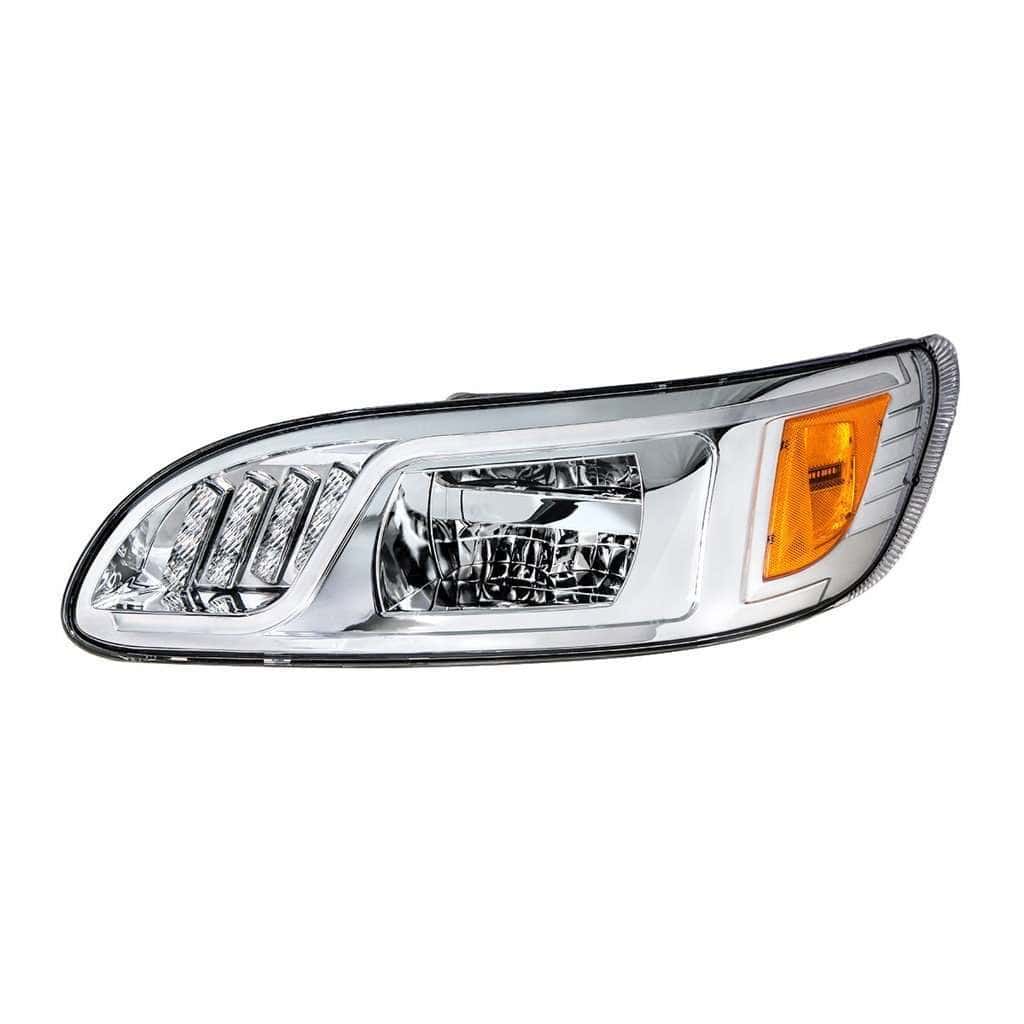

This chrome assembly combines integrated LED low and high beams with a white running-light bar that changes to amber with the turn signal. Choose the required side to replace one complete headlight.
Integrated LED beams
Dedicated LEDs provide the low and high beams; this is a complete lamp, not an LED bulb conversion.

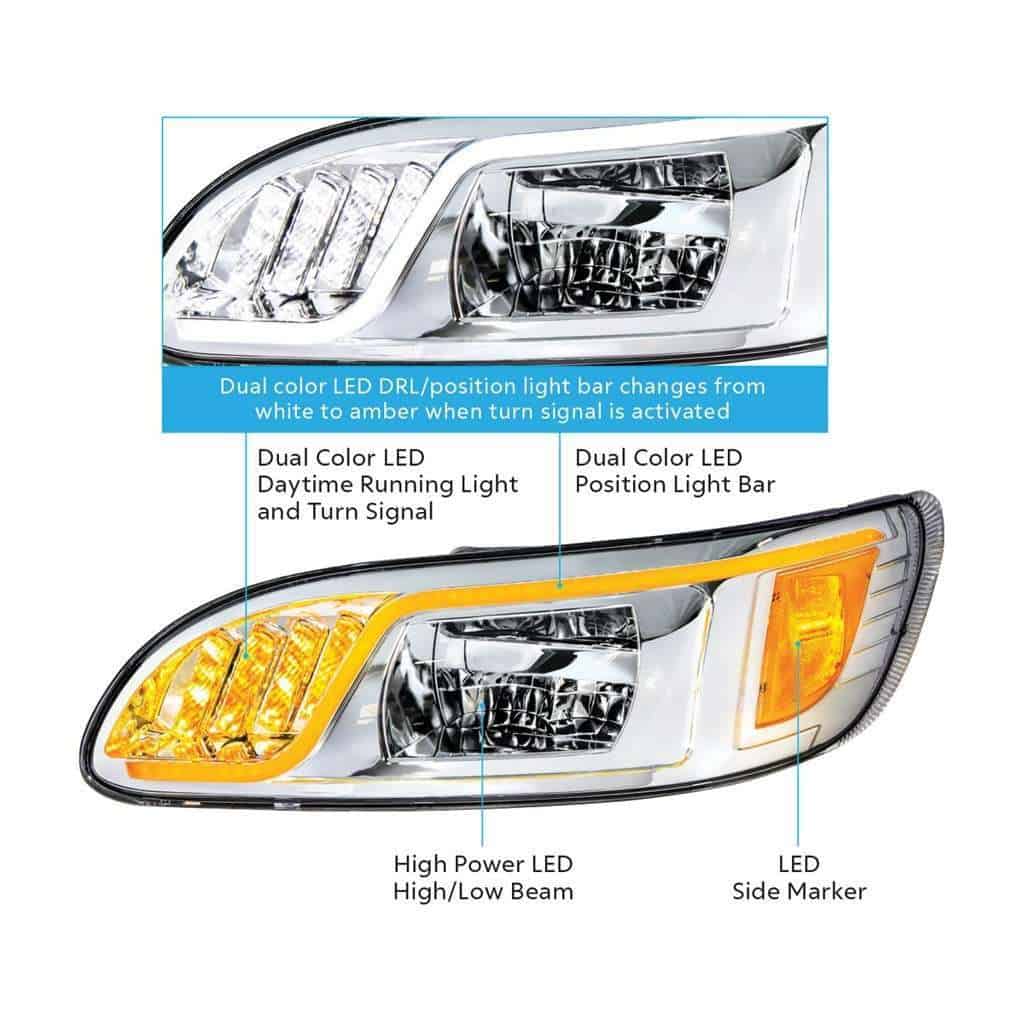

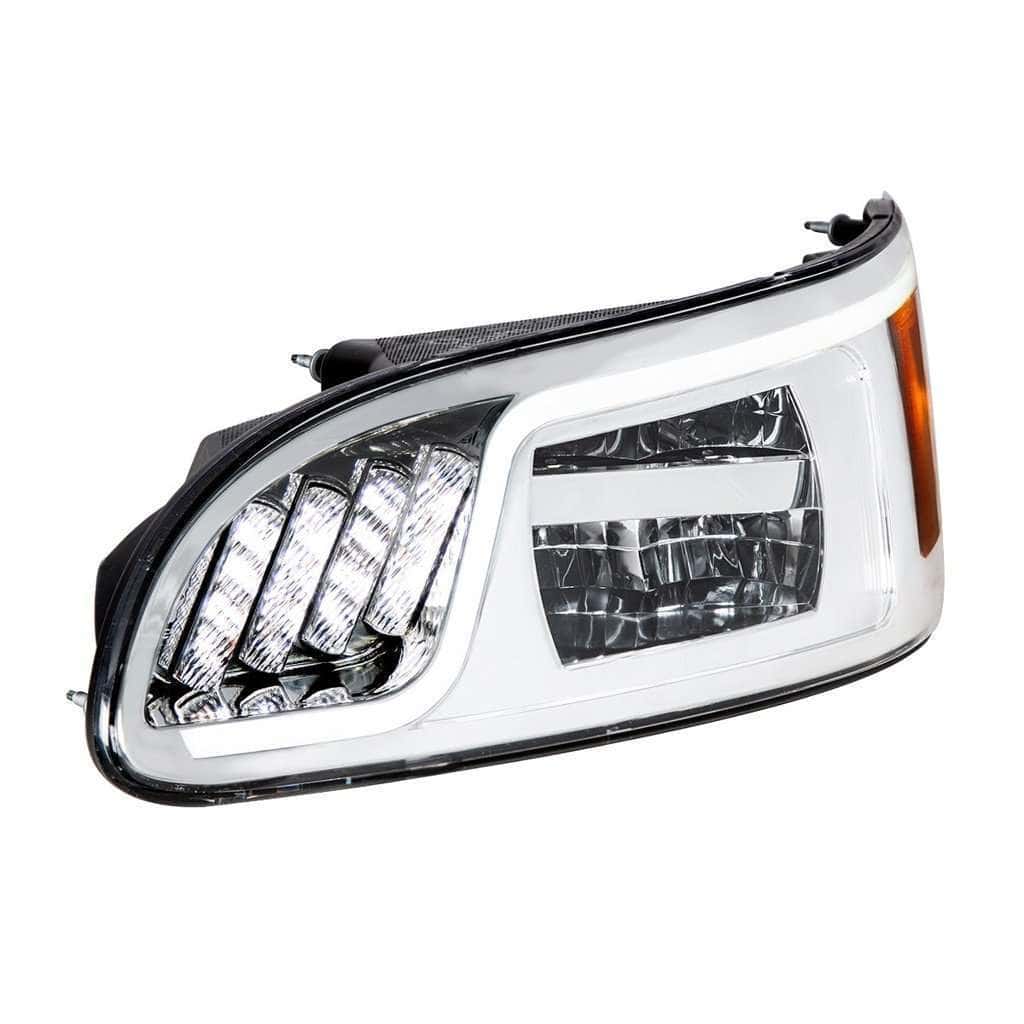

White-to-amber bar

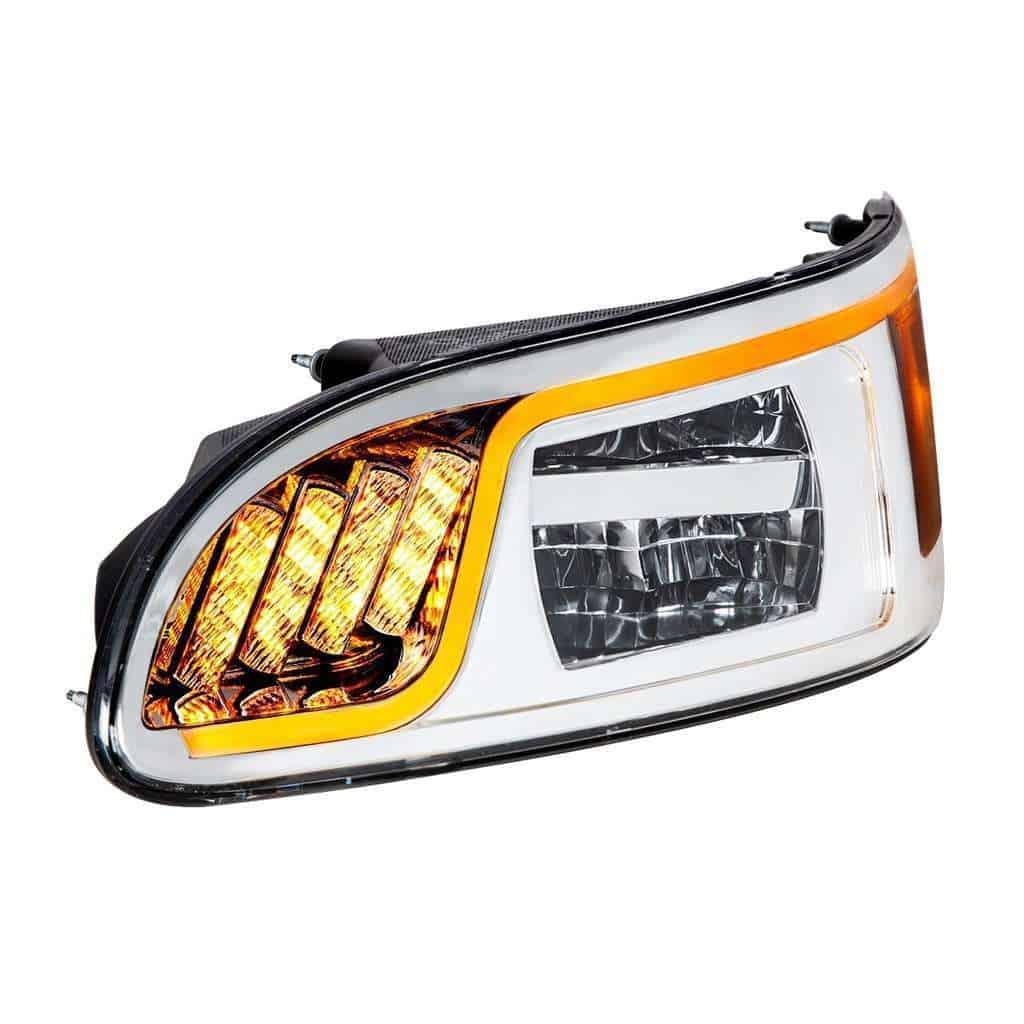

The position/DRL bar switches from white to amber when the turn signal is activated.
Keep the factory harness
The main connection uses the original lighting harness. Keep the factory harness until installation is complete.

Fitment & selection
Match the original headlight
- Peterbilt 386: 2006–2015
- Peterbilt 387: 2001–2010
- Peterbilt 382: 2012–2013
- Peterbilt 384: 2008–2014
For a 2005 Peterbilt 386, 1999–2000 Peterbilt 387, or another year outside the list, confirm the original assembly and connector with BTS before ordering.
| Driver | 31082 · one complete assembly |
|---|---|
| Passenger | 31083 · one complete assembly |
Installation & aiming

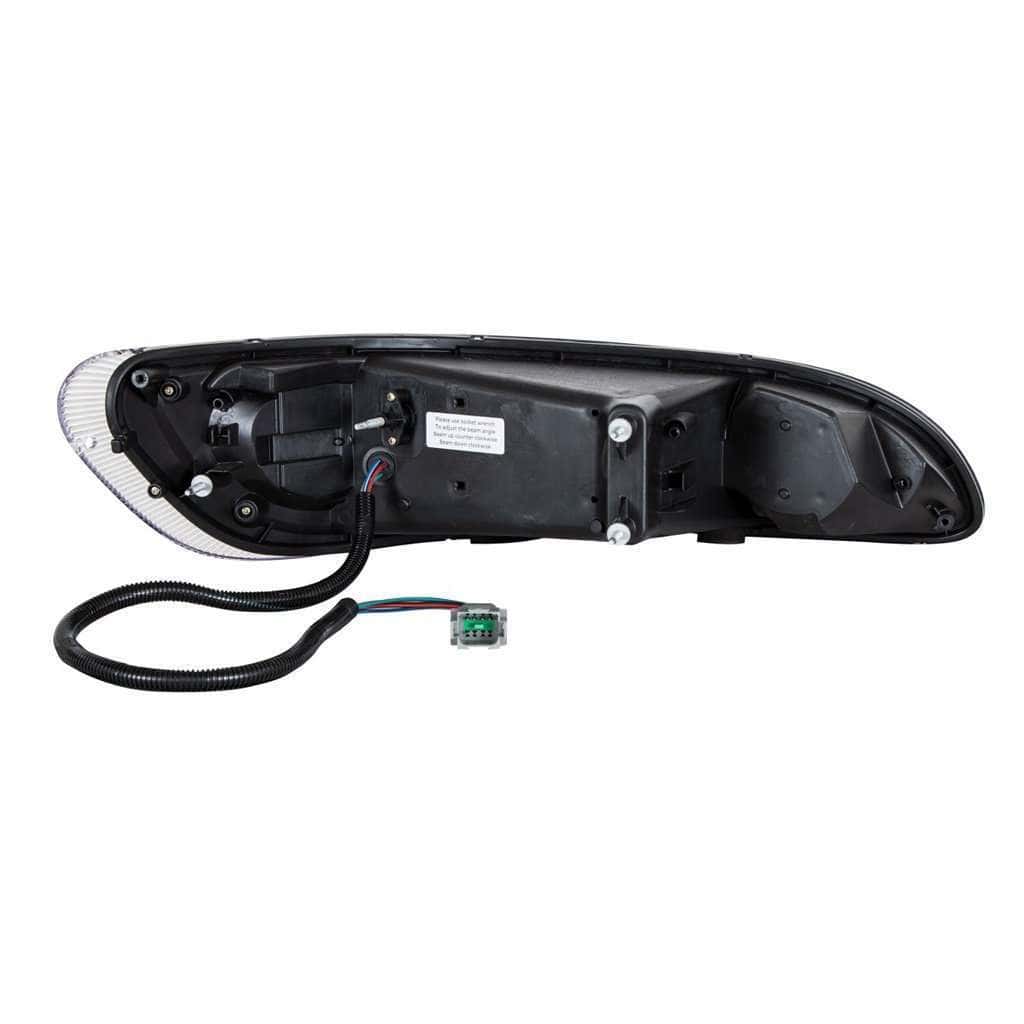

Keep the original factory headlight harness. The manual shows the main lighting-harness connection near the frame rail and the beam adjuster.
Lighting details
Specifications per assembly
| Low beam | 1,800 lumens · 6300K · 2.2A at 12V |
|---|---|
| High beam | 2,500 lumens · 6300K · 2.7A at 12V |
| Accent lighting | 73 DRL/position LEDs; 72 turn-signal LEDs |
| Finish | Chrome Inner Housing |
| Package | One headlight assembly for the selected side |
| Manufacturer standards listing | DOT/SAE · FMVSS 108; correct application and installed aim are required |
Product questions
Before you order
Does the price include both headlights?
No. Each option supplies one complete headlight for the selected side. Choose both sides separately if you need a pair.
Which model years should I check?
Use the exact application list above and match the original housing, mounting and connector. Confirm any year outside that list with BTS before ordering.
Is this an LED bulb kit?
No. This is a complete headlight assembly with integrated LED main beams, supplied for one selected side.
3-year manufacturer warranty
United Pacific lists a 3-year warranty for these exact part numbers. Keep your purchase information and contact BTS Lighting for product support.
