United Pacific · 35767 / 35768
H7 projector beams with sequential LED signals

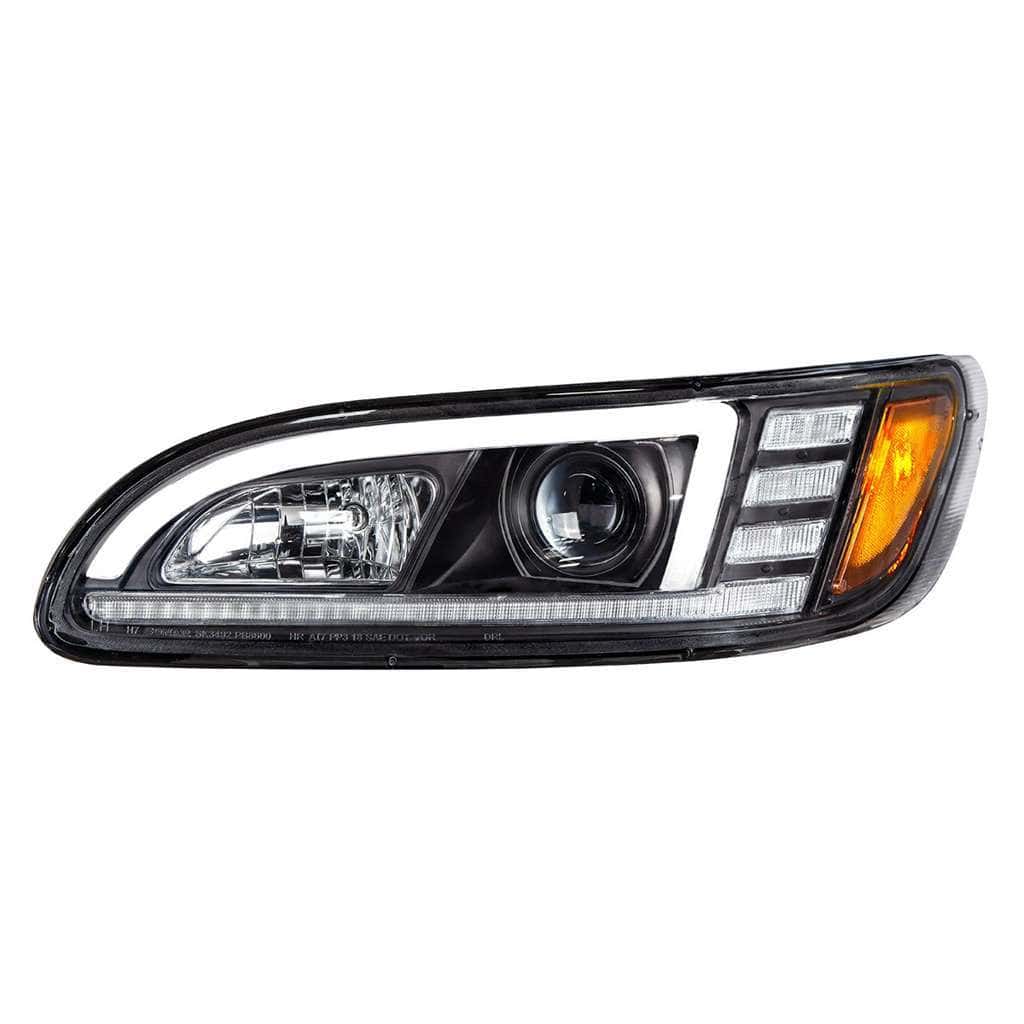

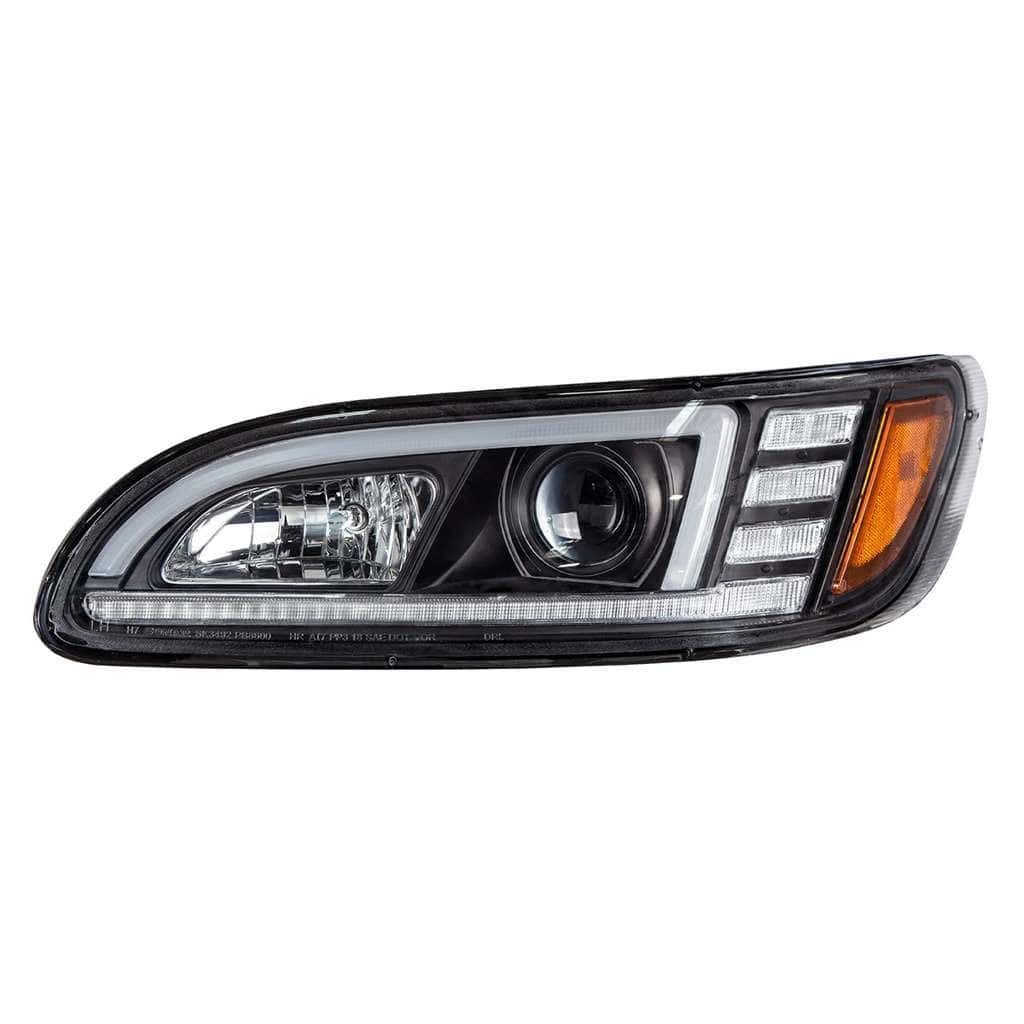

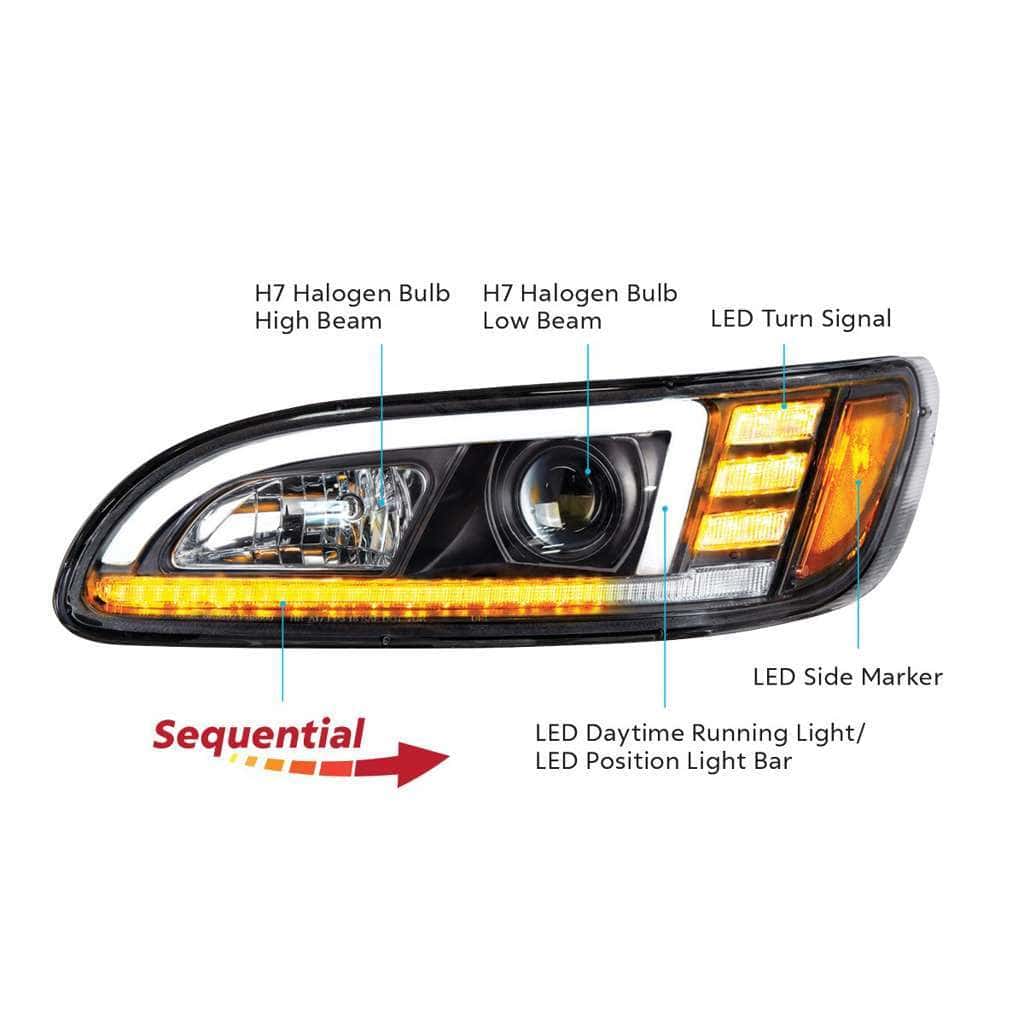

This black projector assembly combines H7 halogen low/high beams with eighteen DRL/position LEDs and a 24-LED sequential turn signal.
H7 low and high beam
Both main-beam positions use 12V, 55W quartz-halogen bulbs.

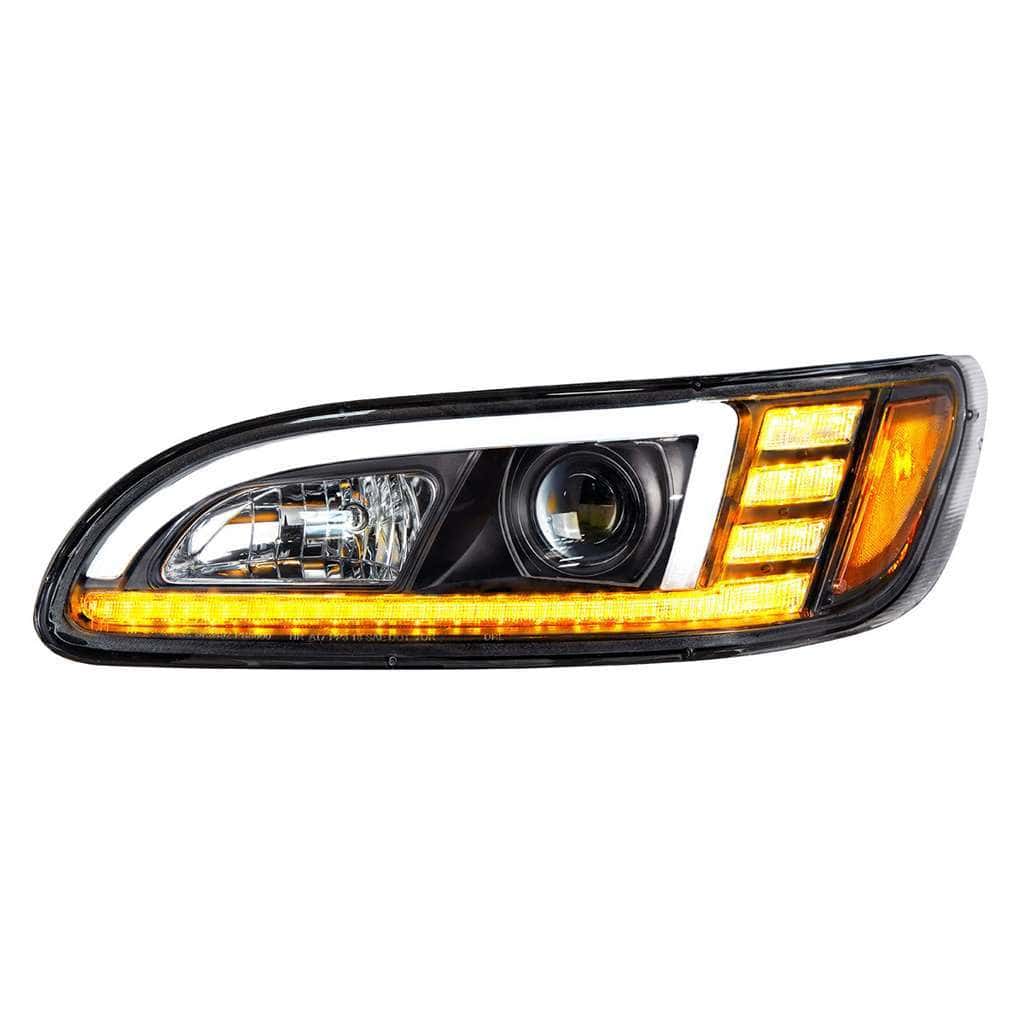

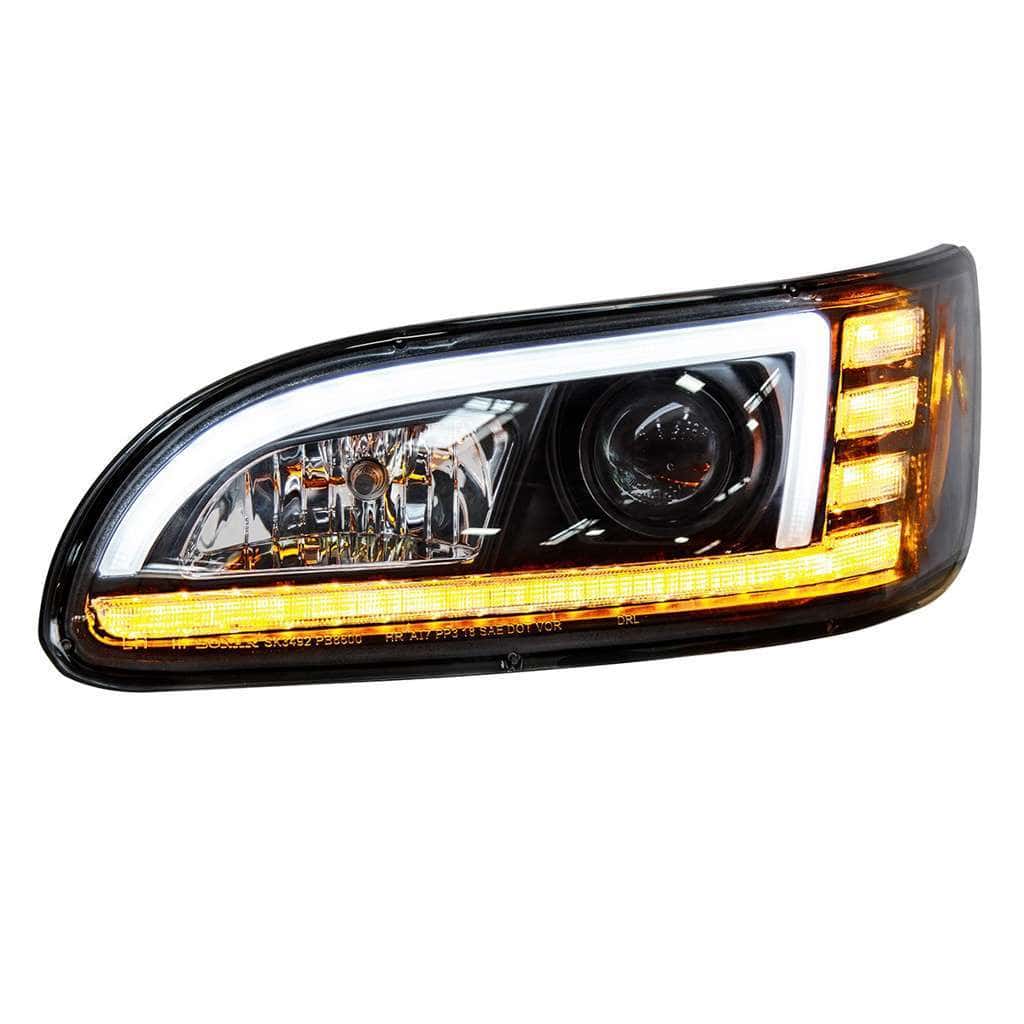

Sequential amber signal
Twenty-four LEDs provide the sequential turn signal; eighteen LEDs provide the DRL/position light.
Check signal loading
A United Pacific 34205 or 34235 load resistor may be required for correct turn-signal operation.

Fitment & selection
Match the original headlight
- Peterbilt 386: 2006–2015
- Peterbilt 387: 2001–2010
- Peterbilt 382: 2012–2013
- Peterbilt 384: 2008–2014
For a 2005 Peterbilt 386, 1999–2000 Peterbilt 387, or another year outside the list, confirm the original assembly and connector with BTS before ordering.
| Driver | 35767 · one complete assembly |
|---|---|
| Passenger | 35768 · one complete assembly |
Installation & aiming

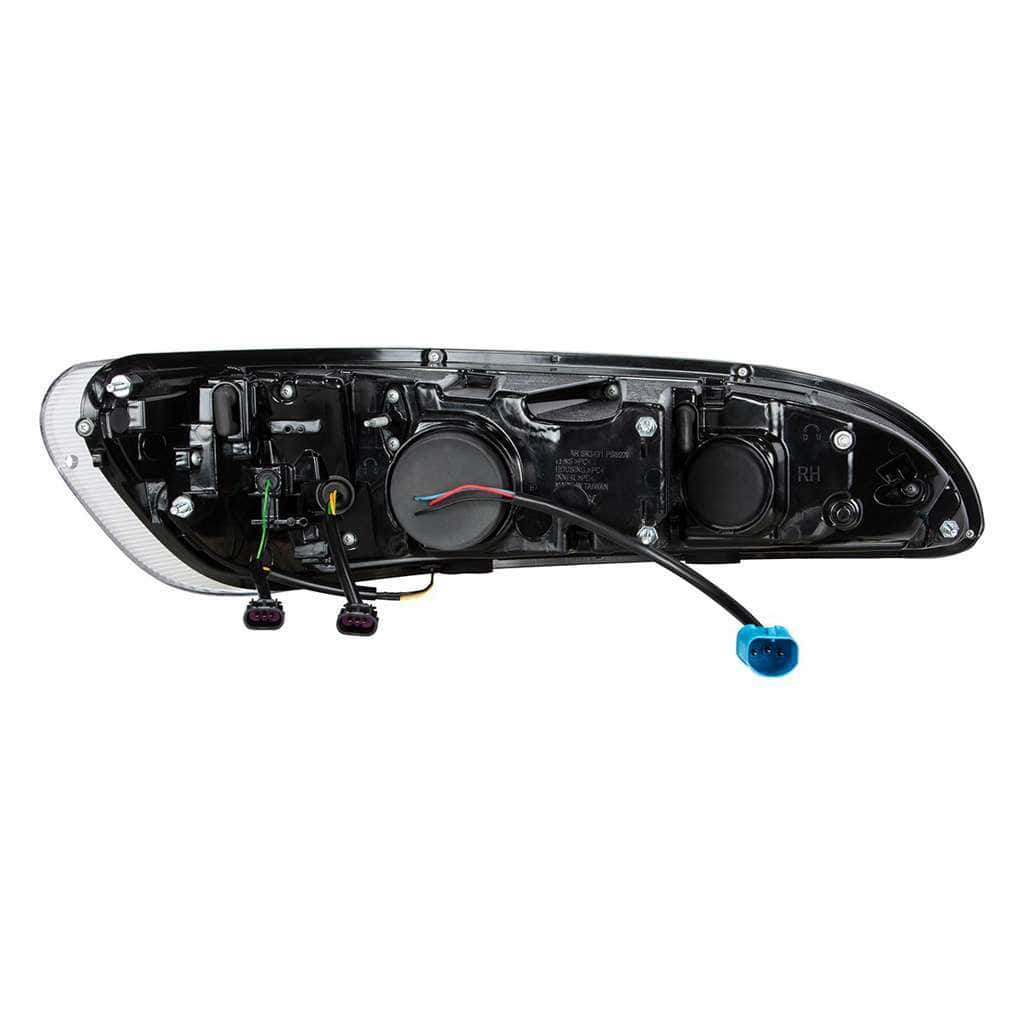

The manual identifies separate signal/light-bar, beam and side-marker plugs. It also shows different low/high adjuster directions and permits the OE flexible cable on the low-beam adjuster. Check whether a 34205 or 34235 signal load resistor is required.
Lighting details
Specifications per assembly
| Low beam | H7 halogen · 55W / 4.58A at 12V |
|---|---|
| High beam | H7 halogen · 55W / 4.58A at 12V |
| DRL / turn signal | 18 LEDs / 24 sequential LEDs |
| Finish | Black Inner Housing |
| Package | One headlight assembly for the selected side |
| Manufacturer standards listing | DOT/SAE · FMVSS 108; correct application and installed aim are required |
Product questions
Before you order
Does the price include both headlights?
No. Each option supplies one complete headlight for the selected side. Choose both sides separately if you need a pair.
Which model years should I check?
Use the exact application list above and match the original housing, mounting and connector. Confirm any year outside that list with BTS before ordering.
Are the main beams LED?
No. This family uses the main-beam bulb types listed above. Its LED position, DRL or signal functions are separate.
Will I need a load resistor?
United Pacific says a 34205 or 34235 resistor may be required for correct turn-signal operation. Have the installer check the truck and exact instructions.
2-year manufacturer warranty
United Pacific lists a 2-year warranty for these exact part numbers. Keep your purchase information and contact BTS Lighting for product support.
