United Pacific · 35808 / 35809
H11/HB3 beams with an LED light bar

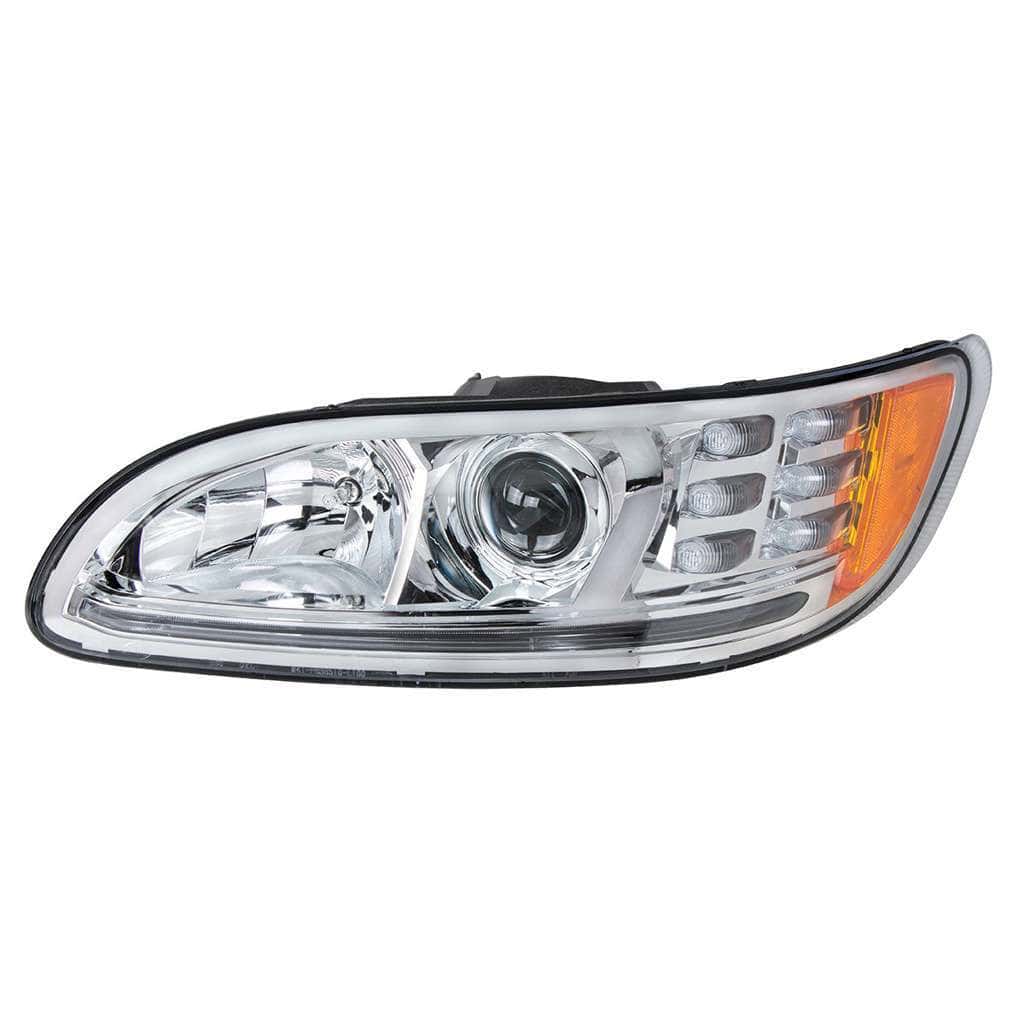

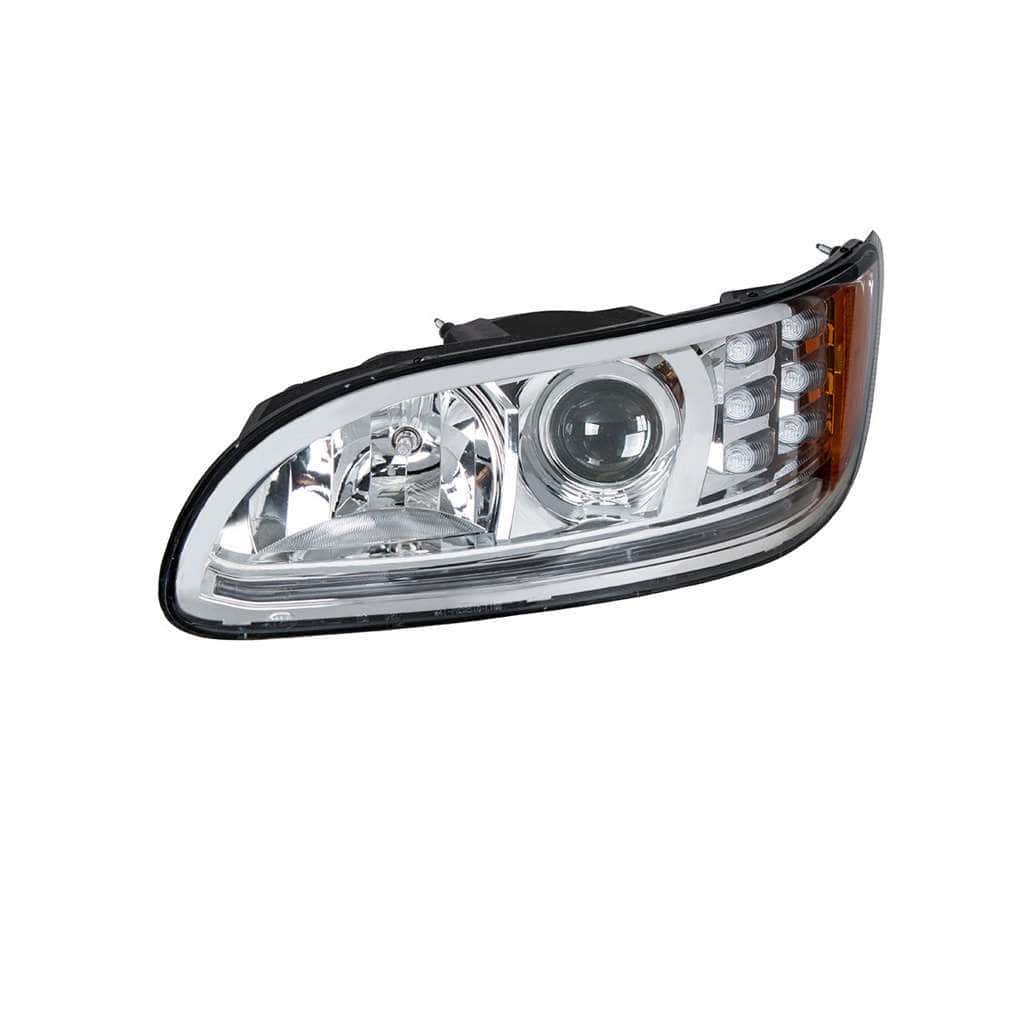

This chrome projection headlight uses an H11 low beam and HB3 high beam. Its white position-light bar and six-LED amber turn signal are separate from the replaceable main-beam bulbs.
H11 low / HB3 high
The road-beam positions use bulbs, despite the LED accent styling.
LED position and signal

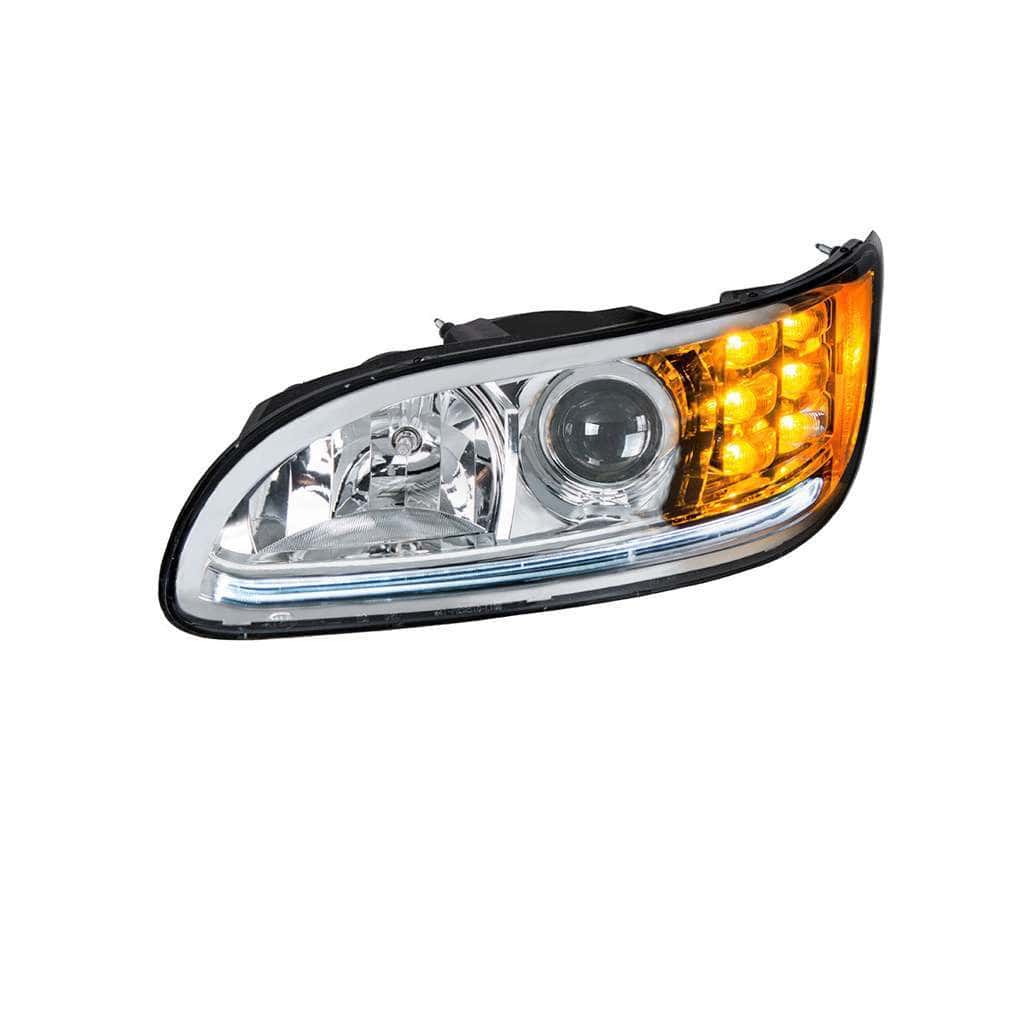

A position-light bar and six amber turn-signal LEDs are built into the assembly.

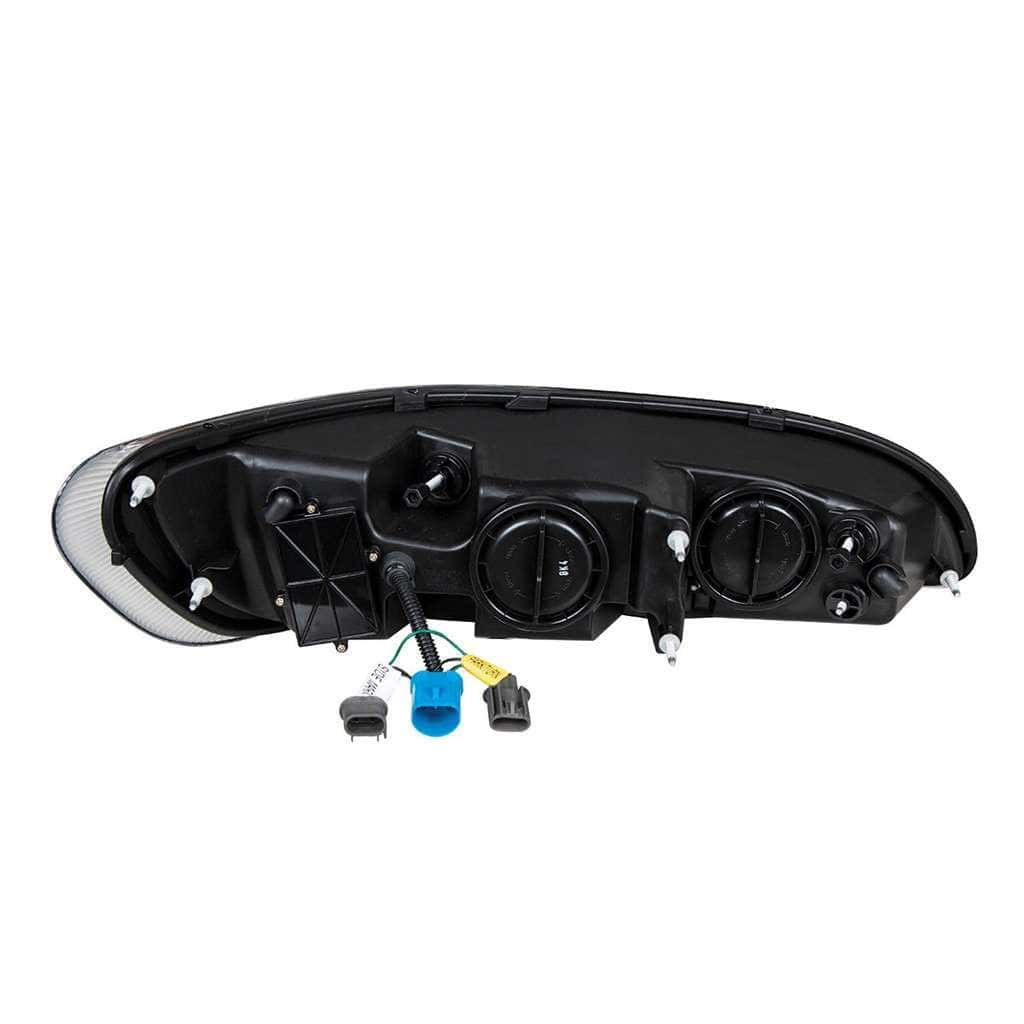

Original-style sockets
Match the original wiring and use the separate connector diagram for beams, signal and position light.

Fitment & selection
Match the original headlight
- Peterbilt 386: 2006–2015
- Peterbilt 387: 2001–2010
- Peterbilt 382: 2012–2013
- Peterbilt 384: 2008–2014
For a 2005 Peterbilt 386, 1999–2000 Peterbilt 387, or another year outside the list, confirm the original assembly and connector with BTS before ordering.
| Driver | 35808 · one complete assembly |
|---|---|
| Passenger | 35809 · one complete assembly |
Installation & aiming
The manual separates the main-beam, park/turn and position-light connections. Use its low/high-beam adjuster diagram and check aim after fitting.
Lighting details
Specifications per assembly
| Low beam | H11 · 55W / 4.5A at 12.8V |
|---|---|
| High beam | HB3 · 60W / 5A at 12.8V |
| Turn signal | 6 amber LEDs |
| Lens | Polycarbonate |
| Finish | Chrome Inner Housing |
| Package | One headlight assembly for the selected side |
| Manufacturer standards listing | DOT/SAE · FMVSS 108; correct application and installed aim are required |
Product questions
Before you order
Does the price include both headlights?
No. Each option supplies one complete headlight for the selected side. Choose both sides separately if you need a pair.
Which model years should I check?
Use the exact application list above and match the original housing, mounting and connector. Confirm any year outside that list with BTS before ordering.
Are the main beams LED?
No. This family uses the main-beam bulb types listed above. Its LED position, DRL or signal functions are separate.
2-year manufacturer warranty
United Pacific lists a 2-year warranty for these exact part numbers. Keep your purchase information and contact BTS Lighting for product support.
