United Pacific 30104: Peterbilt front air-cleaner brackets
United Pacific 30104 supplies two stainless steel front air-cleaner light brackets for a matching Peterbilt setup. Each bracket has 13 cutouts, each 13/16 inch, giving 26 positions across the pair. Lights and electrical components are purchased separately.
Specifications
- Part number: 30104
- Material: Stainless steel
- Position: Front of matching Peterbilt air cleaners
- Light positions per bracket: 13
- Total light positions: 26
- Package quantity: Two bare brackets
- Finish: Highly polished
- Cutout size or style: 13/16-inch

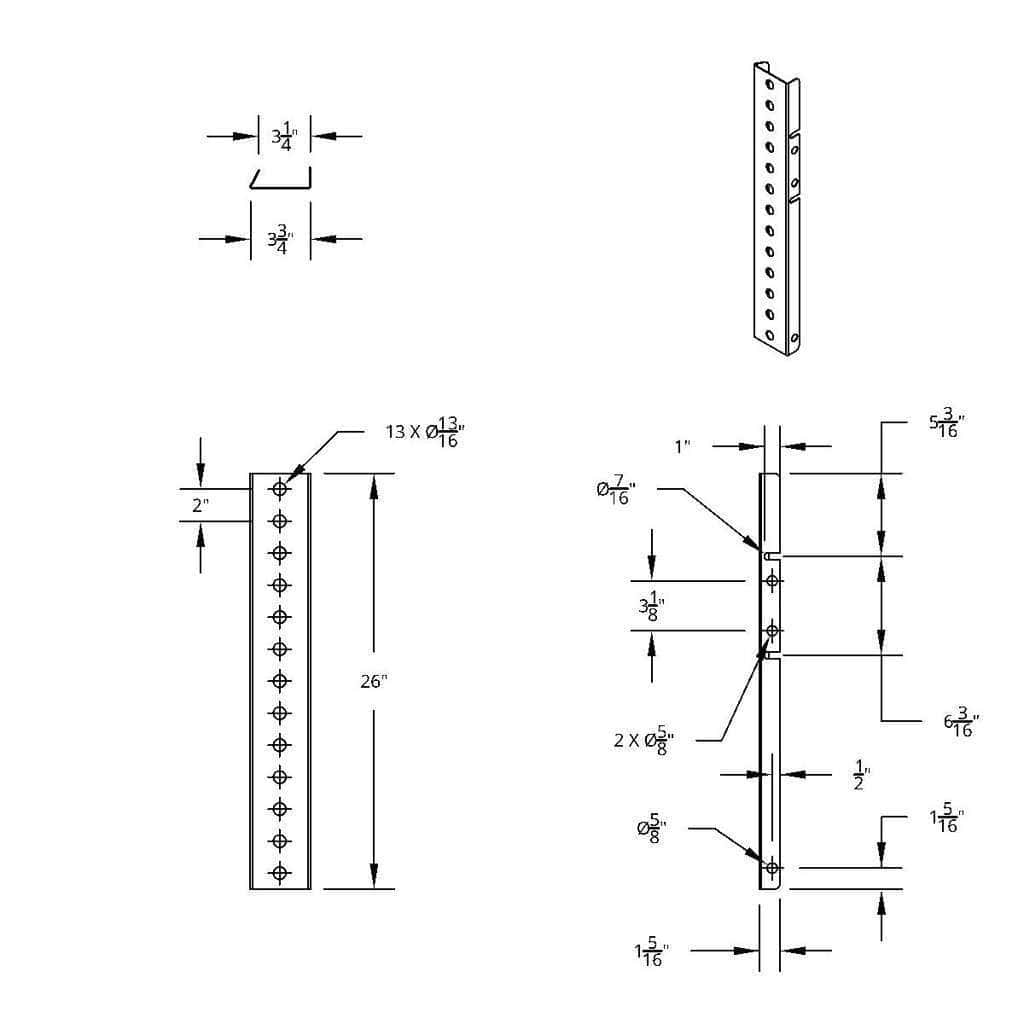

- Approximate bracket dimensions: 26 inches tall × 3⅞ inches wide
Fitment and mounting
For the matching Peterbilt front air-cleaner mounting arrangement. Compare the air-cleaner housing, straps, bracket attachment points and rear clearance before ordering. A truck make or model alone does not establish the correct bracket fit, especially if the air cleaners or straps have been changed.
What’s included
Two 30104 stainless steel brackets with 26 total light positions. Lights, wiring, connectors and lamp-mounting accessories are separate. Confirm the bracket fasteners required for the actual air-cleaner setup.
Installation notes
Compare the bare brackets with the existing air-cleaner mounting points before installing lamps. Check strap clearance and access for the chosen lights, bezels or grommets, and confirm the required fasteners. Plan wiring, connectors and circuit protection for the lights separately; route the wiring clear of sharp edges and moving or hot parts.
Warranty
- Warranty: 6 Months
Frequently Asked Questions
Are the lights included with these brackets?
No. Part 30104 supplies two bare stainless steel brackets. Lights, wiring, connectors and the selected lamps’ bezels or grommets are separate.
Is the 26-light count for one bracket or the pair?
The 26-position count is for both brackets together. Each bracket has 13 light cutouts. Filling every position on the pair requires 26 compatible lights, purchased separately.
What size or style of light opening does this bracket use?
Each opening is listed as a 13/16-inch light cutout. Compare the selected lamp’s required mounting hole, grommet or bezel and rear clearance before assembling it. The light’s nominal size alone does not prove the complete mounting arrangement will fit.
How large are the brackets?
The manufacturer lists approximate bracket dimensions of 26 inches tall × 3⅞ inches wide. Compare those measurements with the air cleaner and surrounding clearance; they are separate from shipping-package dimensions.
Will these brackets fit every air cleaner on the named truck make?
No. Compare the actual air-cleaner housing, straps, attachment points and clearance. Custom housings or changed brackets can alter the fit. Confirm the bracket and selected lamp combination before ordering.
Compare the Alpha Series panel layout
For Peterbilt 379/389 trucks with 13-inch or 15-inch Donaldson or Vortox air cleaners and compatible factory strap bolts, compare BTS’s Alpha Series A0021 front breather panels. They use nine 1.25-inch light positions per panel, a different layout to compare with the arrangement you want. A0021 supplies the panels only; lights and wiring are separate.
