United Pacific · 31146 / 31147
Black LED lighting for your Peterbilt 389

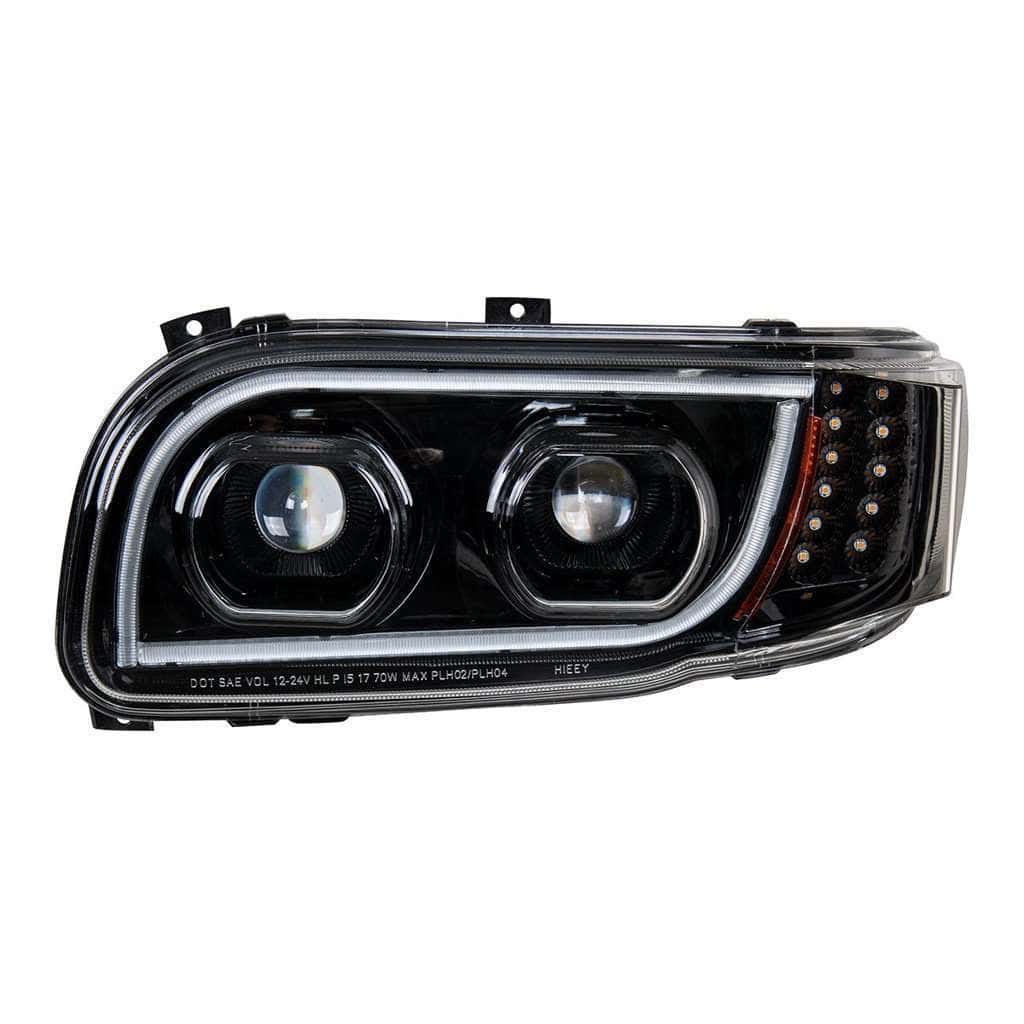

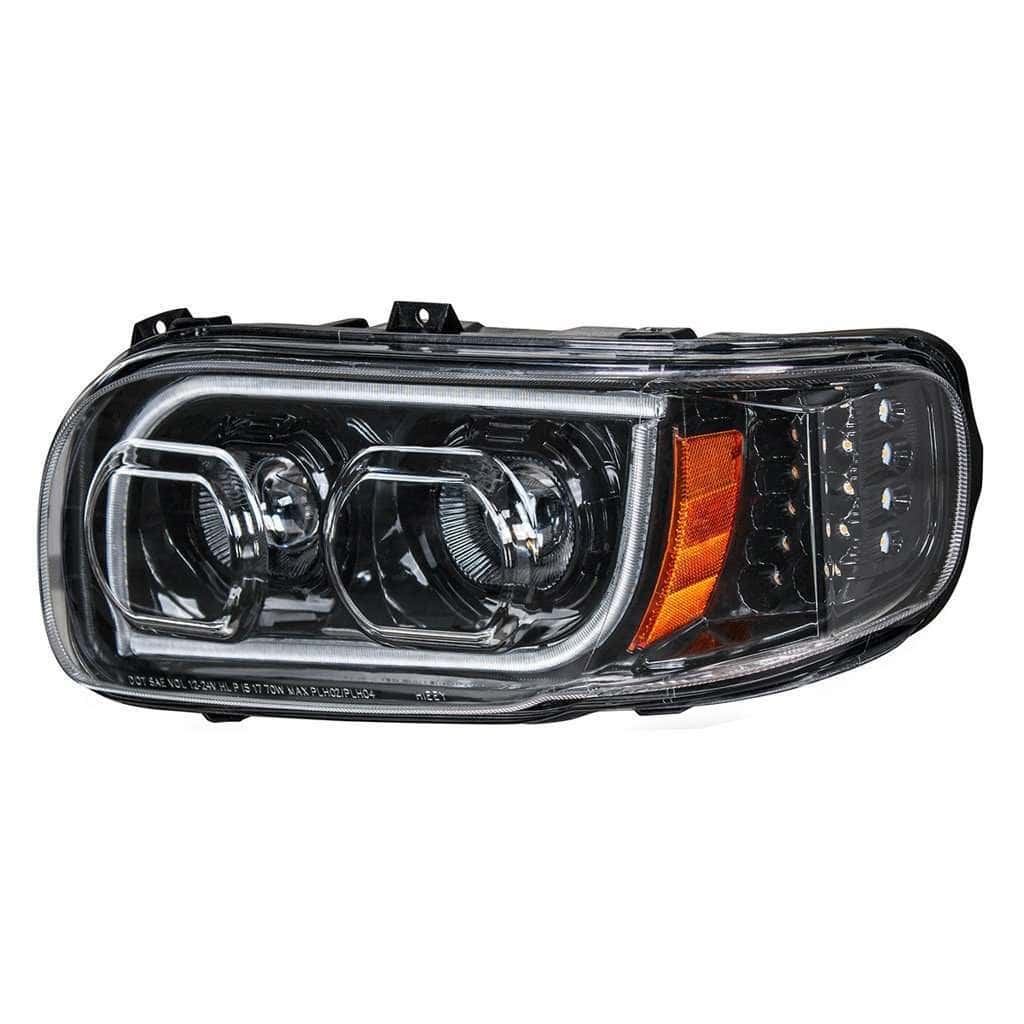

A black inner housing, integrated LED beams and a white-to-amber light bar give this replacement headlight its distinctive look. Choose the driver or passenger assembly for your 2008–2024 Peterbilt 389.
Choose your side
Each headlight is sold individually. Choose the driver or passenger assembly.

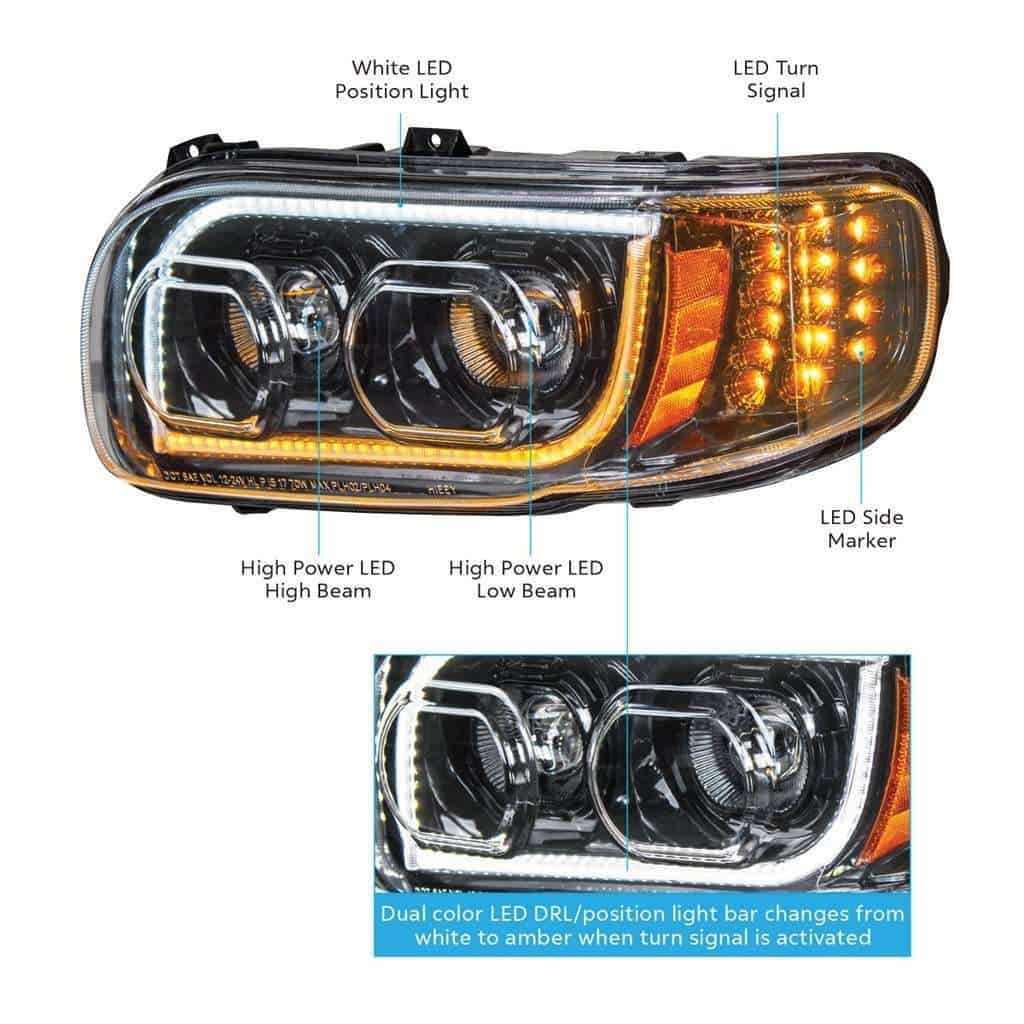

White-to-amber light bar
The 57-LED position bar changes from white to amber with the turn signal.
Integrated LED beams
LED low and high beams plus a separate 16-LED amber turn signal in one assembly.

Fitment & selection
Match the headlight to your truck
For the 2008–2024 Peterbilt 389. Match the original housing, wiring and required side, especially if the truck has been modified.
| Side | Part number | Package |
|---|---|---|
| Driver | 31146 | One LED headlight assembly |
| Passenger | 31147 | One LED headlight assembly |
Installation & wiring
Retain the factory headlight wiring harness. Some installations require a low-beam load resistor; confirm your truck’s requirements before installation. If a resistor is needed, follow United Pacific’s wiring instructions and install it under the hood with air circulation. Check all lighting functions and aim the headlights after installation.
Lighting details
Specifications for this assembly
| Electrical system | 12V DC |
|---|---|
| Low beam | 1,600 lumens · 1.25A at 12V |
| High beam | 2,400 lumens · 2.50A at 12V |
| Position bar | 57 LEDs · white to amber with turn signal |
| Turn signal | 16 amber LEDs |
| Finish | Black inner housing |
| Manufacturer compliance listing | DOT/SAE · FMVSS108 |
Installation support
Installation and aiming instructions

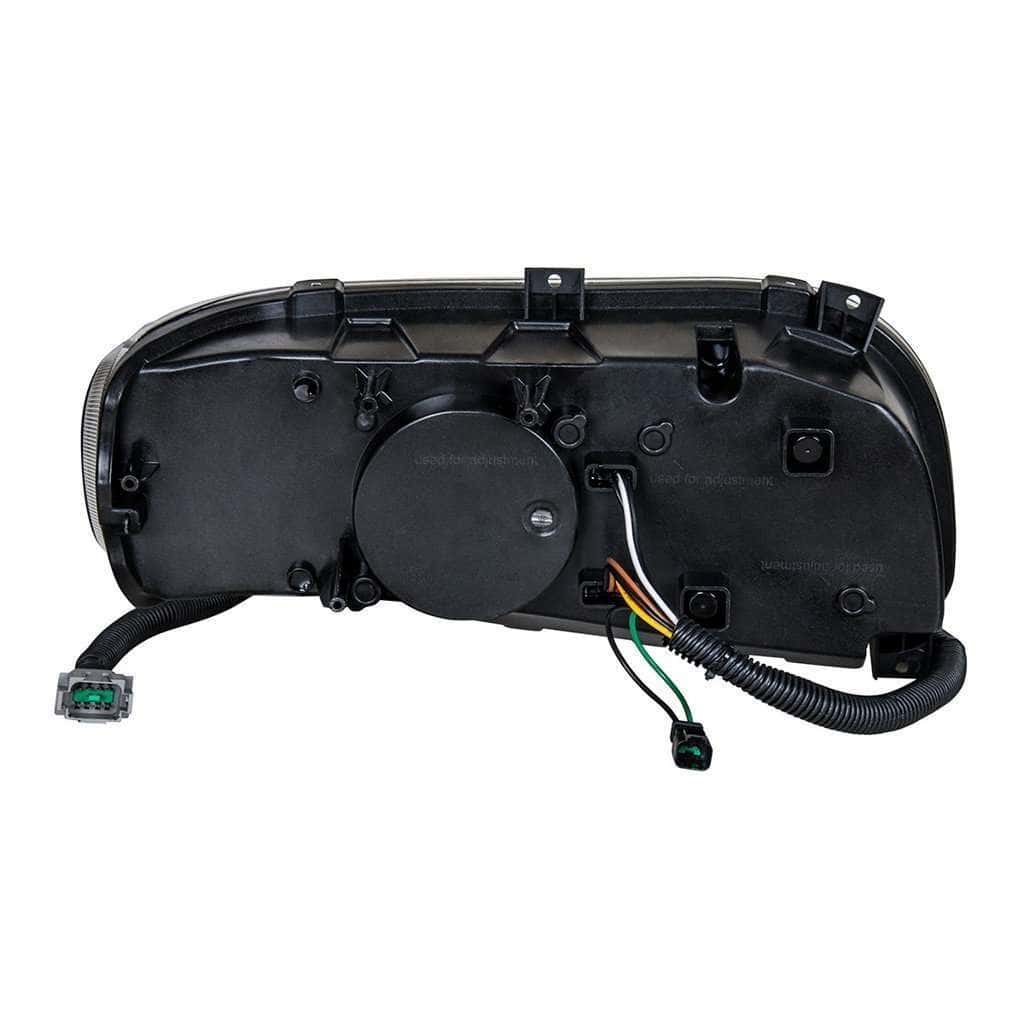

Use the manufacturer’s A/B connector drawing, including the rear-cover turn-signal connection, and the adjustment points shown for this headlight. Keep the original harness and check the low-beam load-resistor requirements for this exact headlight.
Product questions
Before you order
Is this a pair?
No. Each selection is one driver- or passenger-side assembly. Order both sides separately for a complete pair.
Does the light bar change color?
Yes. It shines white as a position light and changes to amber when the turn signal operates.
Does it use replacement low/high bulbs?
No. This family uses integrated LEDs for both headlight beams.
Three-year manufacturer warranty
United Pacific lists a three-year warranty for these assemblies. Keep your purchase information and contact BTS Lighting for help with a product issue.
