United Pacific · 31144 / 31145
Chrome LED lighting for your Peterbilt 389

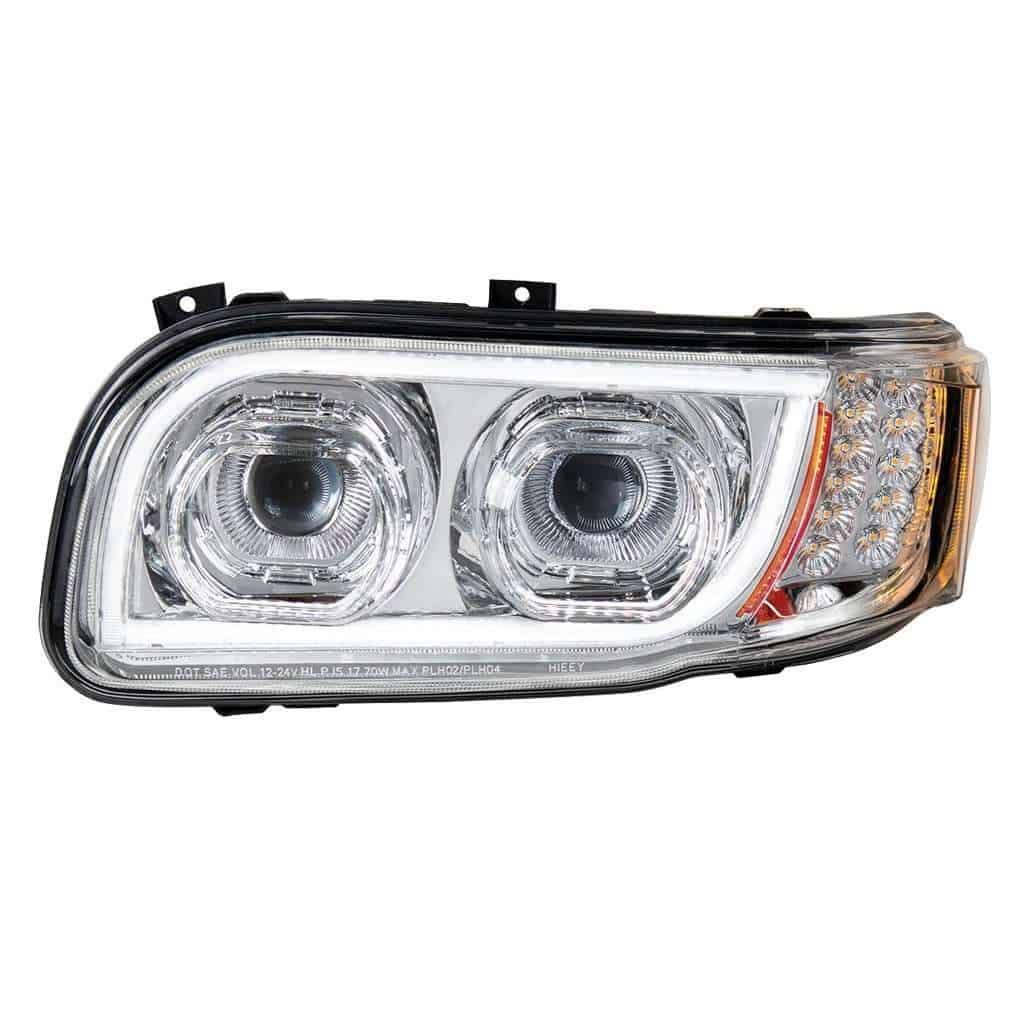

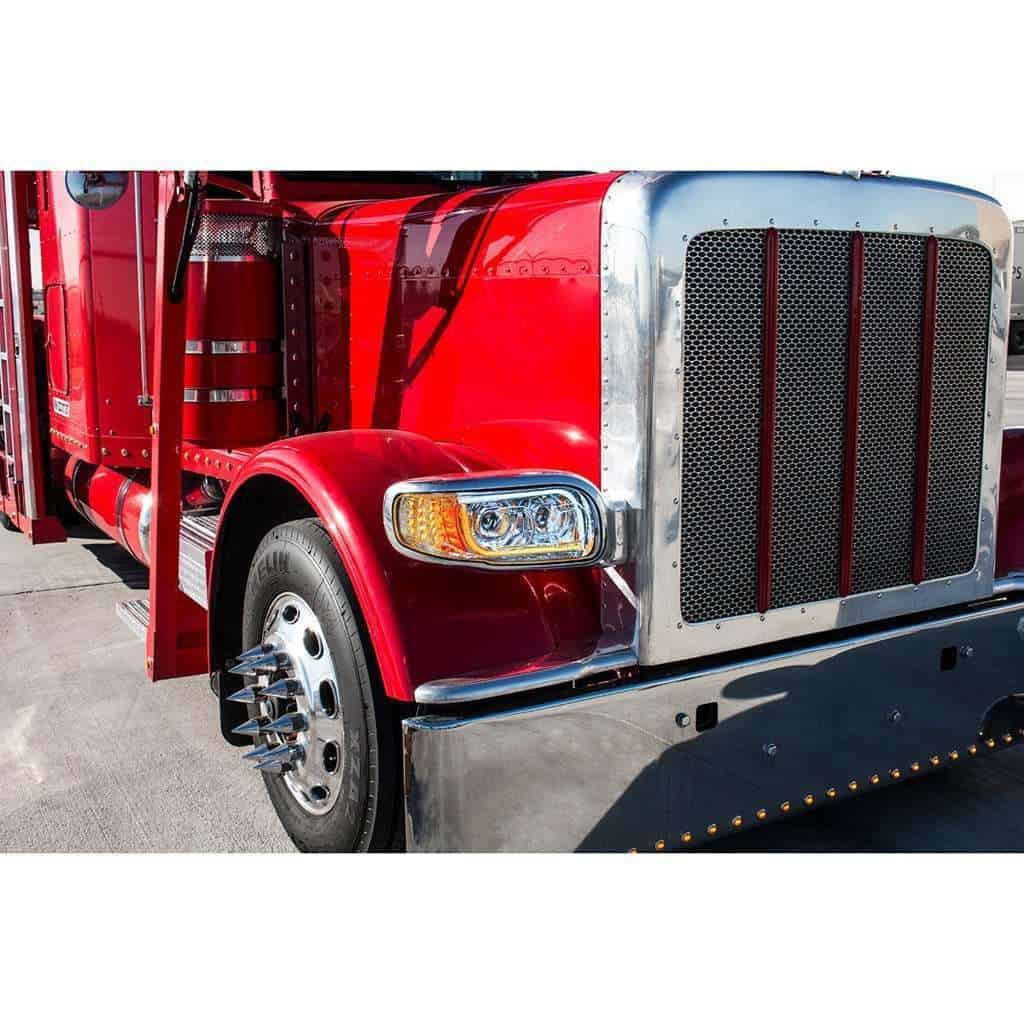

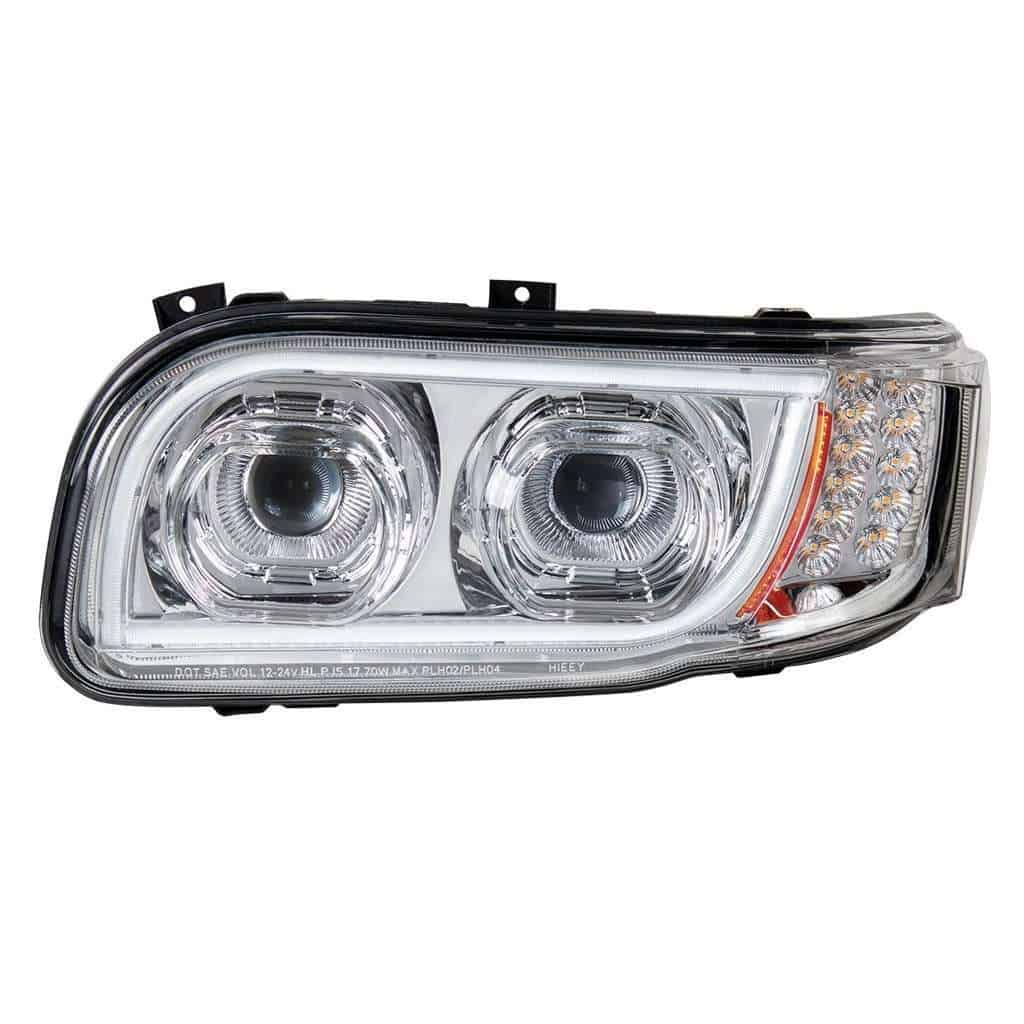

A chrome inner housing, integrated LED beams and a white-to-amber light bar give this replacement headlight its distinctive look. Choose the driver or passenger assembly for your 2008–2024 Peterbilt 389.
Choose your side
Each headlight is sold individually. Choose the driver or passenger assembly.
White-to-amber light bar

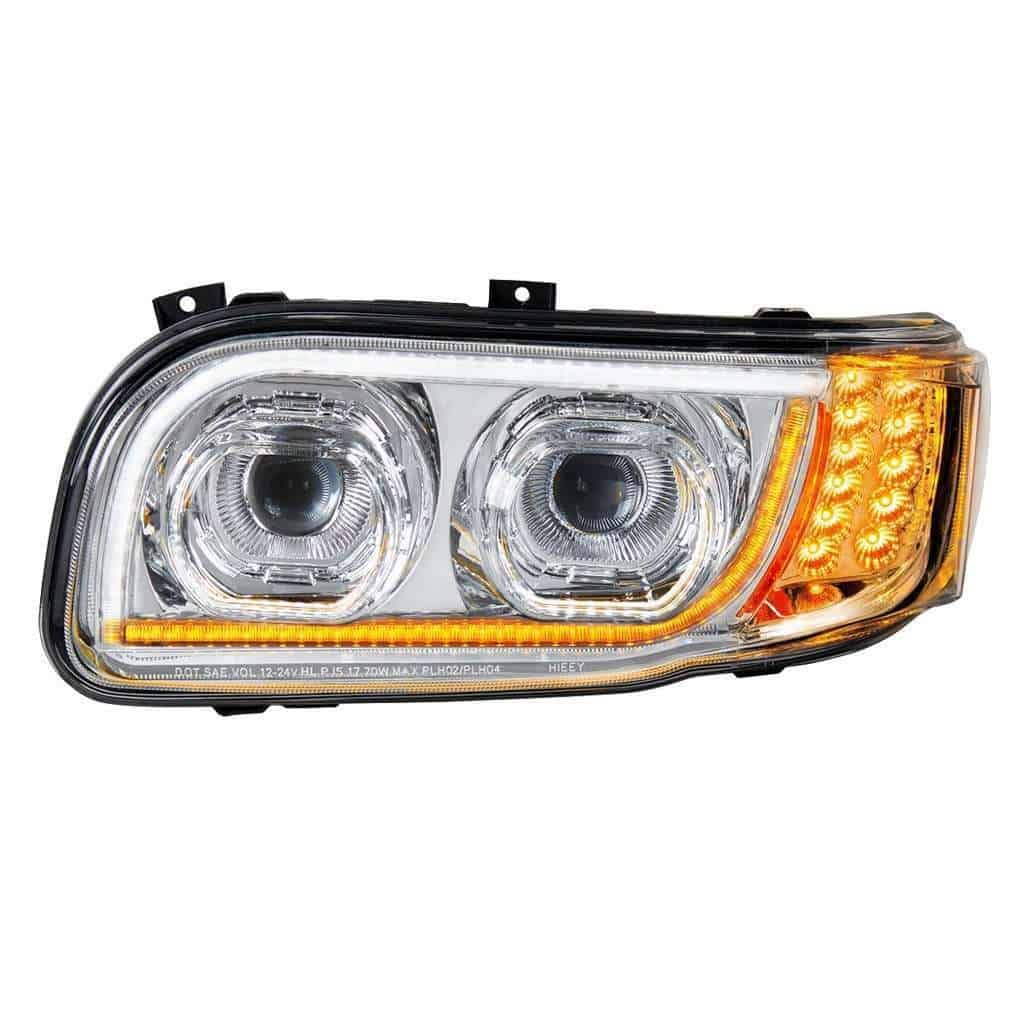

The 57-LED position bar changes from white to amber with the turn signal.
Integrated LED beams
LED low and high beams plus a separate 16-LED amber turn signal in one assembly.

Fitment & selection
Match the headlight to your truck
For the 2008–2024 Peterbilt 389. Match the original housing, wiring and required side before ordering, especially if your truck’s headlights have been modified.
| Side | United Pacific part | Package |
|---|---|---|
| Driver / left | 31144 | One LED headlight assembly |
| Passenger / right | 31145 | One LED headlight assembly |
Installation & wiring
Retain the factory headlight wiring harness. Some installations require a load resistor on the low-beam circuit; confirm whether your truck needs one before installation. If a resistor is needed, follow United Pacific’s wiring instructions and install it under the hood with air circulation. Check all lighting functions and headlight aim after installation.
Lighting details
Low beam, high beam and signal functions
| Electrical system | 12V DC |
|---|---|
| Low beam | 1,600 lumens · 1.25A at 12V |
| High beam | 2,400 lumens · 2.50A at 12V |
| Position light bar | 57 LEDs · white to amber with turn signal |
| Turn signal | 16 amber LEDs |
| Finish | Chrome inner housing |
| Manufacturer compliance listing | DOT/SAE · FMVSS 108 |
The LED low/high beams, light bar and turn signal are integrated into the selected assembly. This is a complete headlight replacement rather than a replacement-bulb kit.
Installation support
Installation and aiming instructions

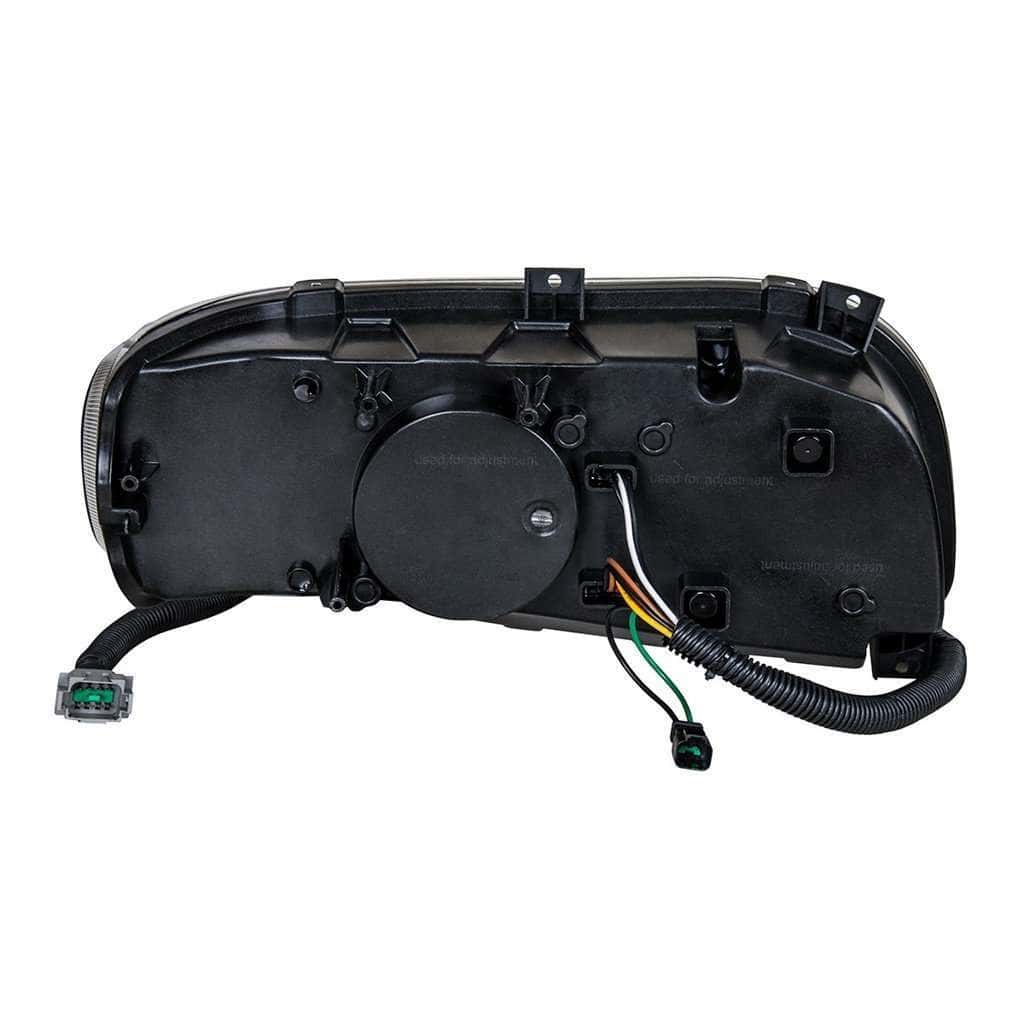

Use the manufacturer’s A/B connector drawing, including the rear-cover turn-signal connection, and the adjustment points shown for this headlight. Keep the original harness and check the low-beam load-resistor requirements for this exact headlight.
Product questions
Before you order
Is the price for a pair of headlights?
No. Each selection is one driver- or passenger-side headlight. Order both sides separately if you need a complete pair.
Does the light bar change color?
Yes. The 57-LED bar is white as a position light and changes to amber when the turn signal operates.
Will I need a load resistor?
Some installations need a resistor on the low-beam circuit. Retain the original harness and follow the manufacturer’s installation instructions; do not assume every truck has the same wiring requirements.
Three-year manufacturer warranty
United Pacific lists a three-year warranty for these assemblies. Keep your purchase information and contact BTS Lighting for help with a product issue.
