United Pacific · 36121 / 36122
Reflector-style LED lighting for your 389
An integrated LED low/high beam, 8-LED amber turn signal and 4-LED position light bring a clean reflector-style layout to your 2008–2024 Peterbilt 389. This version has a black inner housing.
Integrated LED beams
Low and high beams use LEDs, not halogen replacement bulbs.
Signal and position lighting

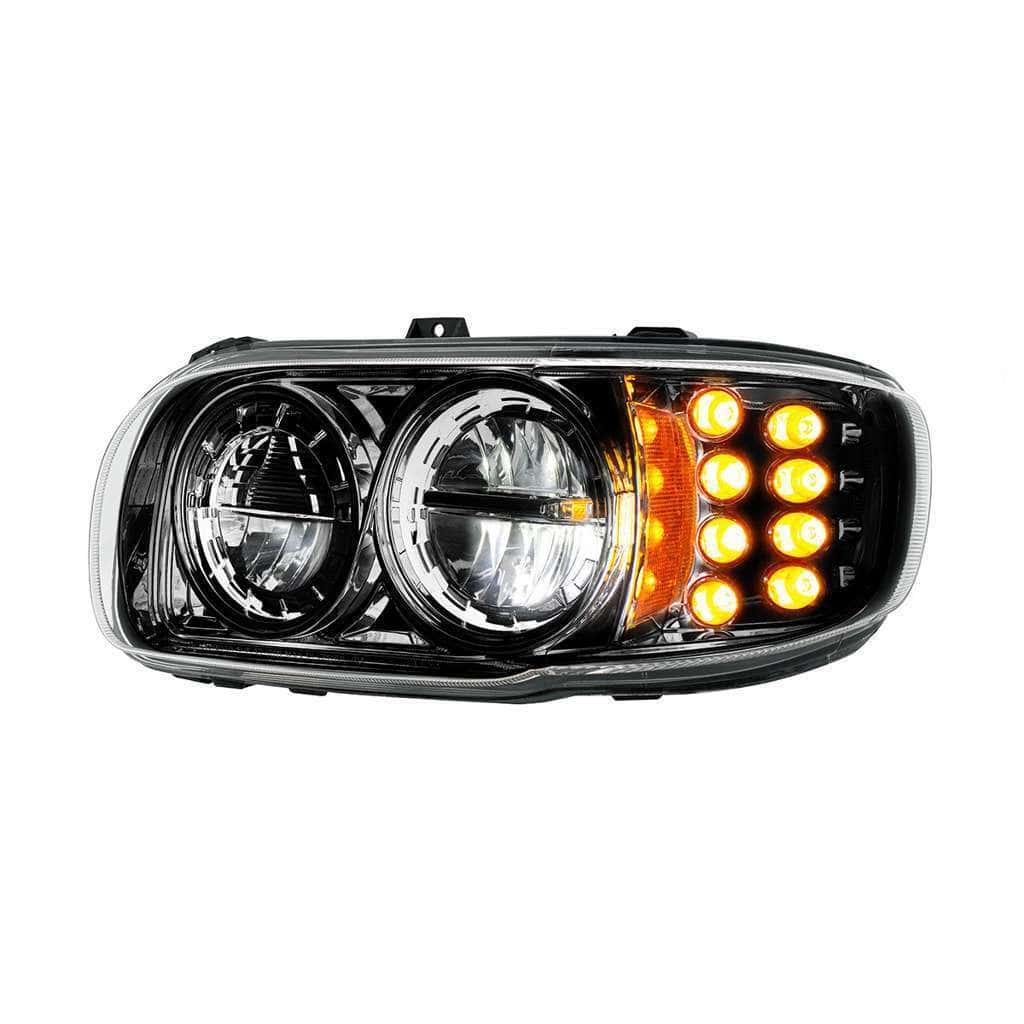

An 8-LED amber turn signal and 4-LED position light complete the assembly.
Choose your side
One driver- or passenger-side headlight per purchase. Sold individually.

Fitment & selection
Match the headlight to your truck
For the 2008–2024 Peterbilt 389. Match the original housing, wiring and required side, especially if the truck has been modified.
| Side | Part number | Package |
|---|---|---|
| Driver | 36121 | One LED headlight assembly |
| Passenger | 36122 | One LED headlight assembly |
Installation & wiring
Match the original housing, side and electrical connections before ordering. Retain the factory headlight wiring harness, including unused connections needed for the installation. Check each lighting function and headlight aim after fitting.
Lighting details
Specifications for this assembly
| Electrical system | 12V DC |
|---|---|
| Low beam | 800 lumens · 16W |
| High beam | 1,600 lumens · 32W |
| Turn signal | 8 amber LEDs |
| Position light | 4 LEDs |
| Lens | Polycarbonate, sonically sealed to the housing |
| Finish | Black inner housing |
| Manufacturer compliance listing | DOT/SAE · FMVSS108 |
Installation support
Installation and aiming instructions

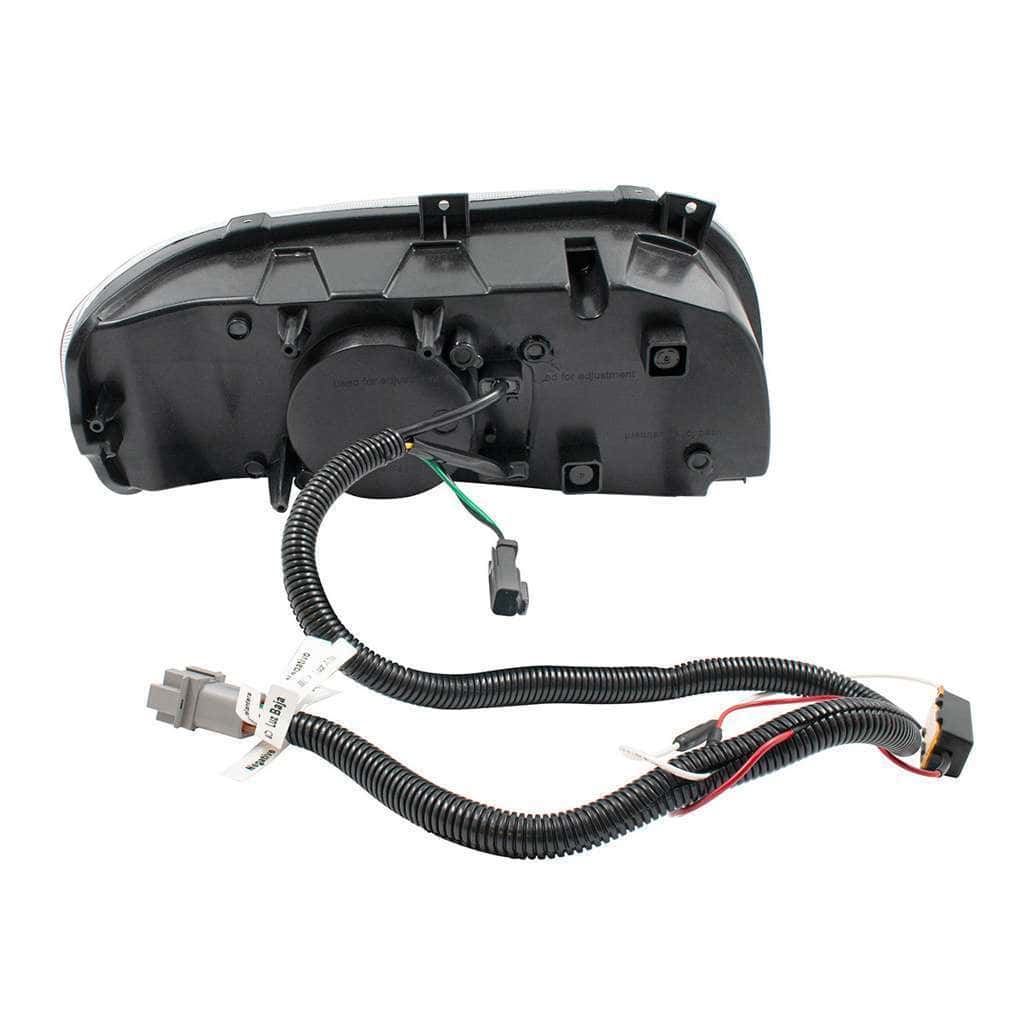

The manual identifies the main lighting connector and the rear-cover turn-signal connection, with both horizontal and vertical adjustment points.
Product questions
Before you order
Does this use halogen low/high bulbs?
No. These exact assemblies use integrated LEDs for the low and high beams.
Does the finish change the output?
The manufacturer lists the same electrical and output specifications for the chrome and black versions. Their inner-housing finish differs.
Is the price for a pair?
No. Select the driver or passenger side; each assembly is sold individually.
Three-year manufacturer warranty
United Pacific lists a three-year warranty for these assemblies. Keep your purchase information and contact BTS Lighting for help with a product issue.
