J.W. Speaker · Model 9600 · Black
Heated LED headlights with a black finish
The Model 9600 combines automatic SmartHeat lens heating, Bi-LED low and high beams, and distinctive blade-style signal optics. Choose one driver- or passenger-side lamp with a black bezel.
Automatic lens heating
SmartHeat activates its heating grid at the low-temperature threshold to help clear snow and ice.
One selected-side lamp
Choose driver or passenger side. Each heated headlight is sold individually.
Harness sold separately
One compatible vehicle harness is required per headlight. Two lamps need two harnesses.

Fitment & selection
Match the side, housing and harness
Match your truck’s original POD headlight housing, model year and lighting controls. The harness connects the lamp to the vehicle; it does not correct an incompatible lighting-control system.
| Side | J.W. Speaker part | Package |
|---|---|---|
| Driver / left | 0562551 | One heated headlight |
| Passenger / right | 0562561 | One heated headlight |
Choose the required wiring harness
- Peterbilt 388, 389 and 567 — 2023 and older: 3271081 wiring harness. The 2008–2011 Peterbilt 389 warning still applies.
- Peterbilt 567 and 589 — 2024 and newer: 3272531 wiring harness. For a 2024 or newer Peterbilt 567, have your dealer confirm the optional fender-DRL configuration before ordering.
2024 Peterbilt 389: contact BTS to confirm the headlight and harness combination before ordering.
Neither harness is included. Purchase one per lamp, confirm the original lighting configuration and check headlight aim after installation.
Lighting & construction
Bi-LED optics and SmartHeat lens heating
Bi-LED switching provides low and high beams, with integrated turn-signal and front-position optics. The clear polycarbonate lens has an anti-fog coating and UV protection. SmartHeat helps clear the lens in cold weather; inspect and clear accumulated snow or ice when conditions require.
The lamp supports the truck’s existing daytime-running-light function. It does not add DRL capability to a truck that does not already have it.
| Nominal voltage / operating range | 12V / 9–18V |
|---|---|
| Effective low-beam output | 614 lumens |
| Effective high-beam output | 1,020 lumens |
| Low / high-beam current | 2.1A / 4.2A at 12V |
| LED color temperature | 5000K |
| Dimensions | 215mm high × 443mm wide × 210mm deep |
| Connector / mating connector | Deutsch DT04-8PA / DT06-8SA |
| Lens / housing | Clear polycarbonate / black polycarbonate |
| Ingress classification | IEC IP67, manufacturer listed |

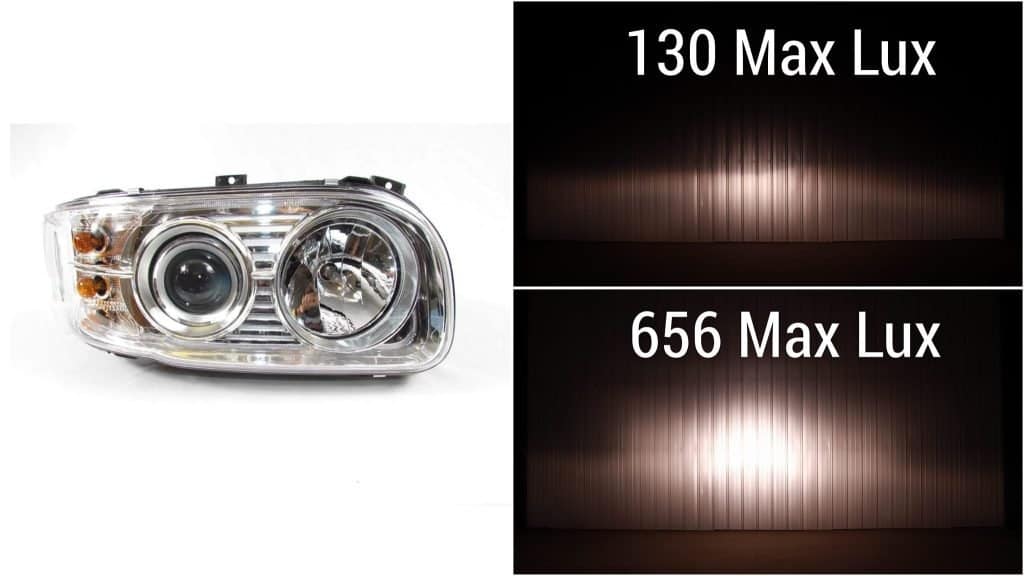

Watch the BTS factory-halogen and Model 9600 comparison to see the two headlight setups.
Installation support
Manufacturer installation and aiming guide
Fit the correct Model 9600 lamp into the original pod and use the required vehicle harness. Keep the original fasteners, follow the original wiring route and have the beam aim checked after installation. Read the manufacturer installation sheet before starting; the early-389 compatibility warning still applies.
Product questions
Before you order
Are the headlights sold as a pair?
No. Each selection is one driver- or passenger-side heated headlight. The vehicle harness is separate; order two lamps and two compatible harnesses for both sides.
Does SmartHeat need a separate switch?
No. The built-in heating grid activates automatically at the low-temperature threshold.
Will a harness fix the issue on a 2008–2011 Peterbilt 389?
No. BTS’s current guidance identifies a CAN-bus/LCM compatibility issue that the wiring harness does not resolve. Contact BTS before purchasing for those years.
Two-year manufacturer limited warranty
J.W. Speaker lists a two-year limited warranty for the heated Model 9600. See the manufacturer warranty terms and keep your purchase information.
