United Pacific · 35856
Black projector fog light with LED position lighting

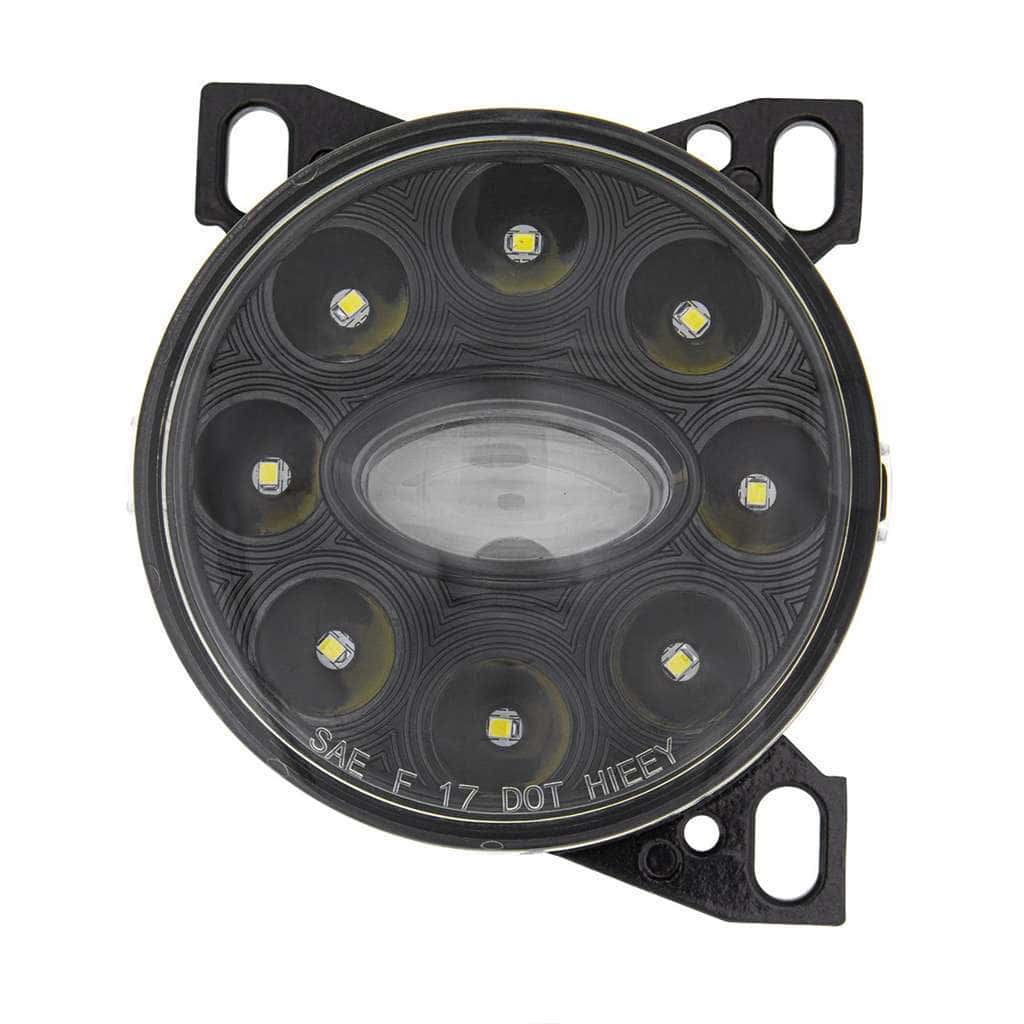

This black 4¼-inch projector fog light combines one high-power main LED with eight additional position-light LEDs. It uses the original-style mounting bracket and main connection, with separate wiring for the position function.
Projector fog beam
One main LED produces the manufacturer-listed 800-lumen output.
Eight position LEDs
A separate positive lead powers the additional position-light function.
12V only
This particular design is specified for 12V DC applications.

Fitment & selection
Match the installed part
- 2008–2017 Kenworth T660
- 2012–2021 Peterbilt 579
- 2012–2016 Peterbilt 587
Compare the original part, mounting and electrical configuration before ordering. Confirm any year outside the listed application separately.
Specifications
Product details
| Fog-light output | 800 lumens, manufacturer listed |
|---|---|
| Operating voltage | 12V DC only |
| Main / position LEDs | 1 / 8 |
| Light diameter | 4¼ inches |
| Finish | Black inner housing |
| Housing | Die-cast aluminium |
| Supplier enclosure rating | IP67 |
| Package | One fog-light assembly |
Installation
Mounting and wiring checks

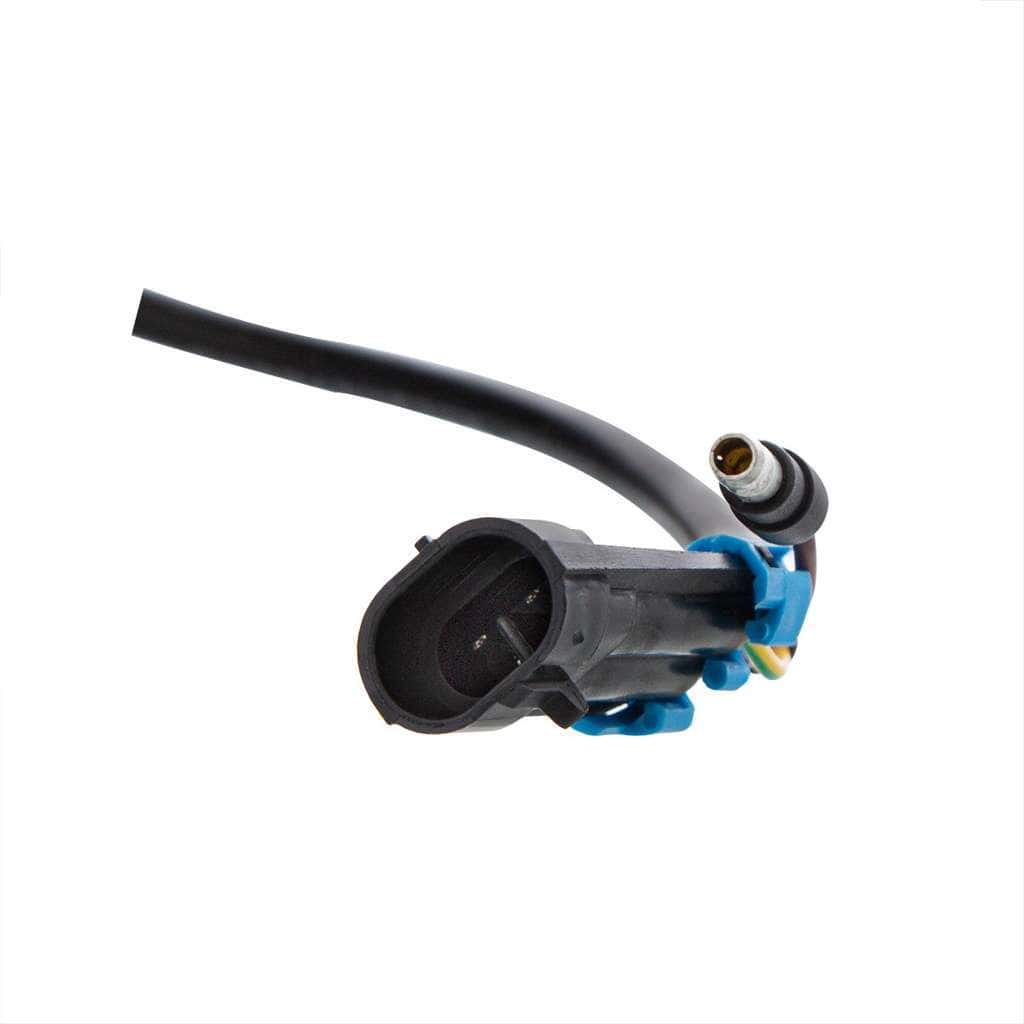

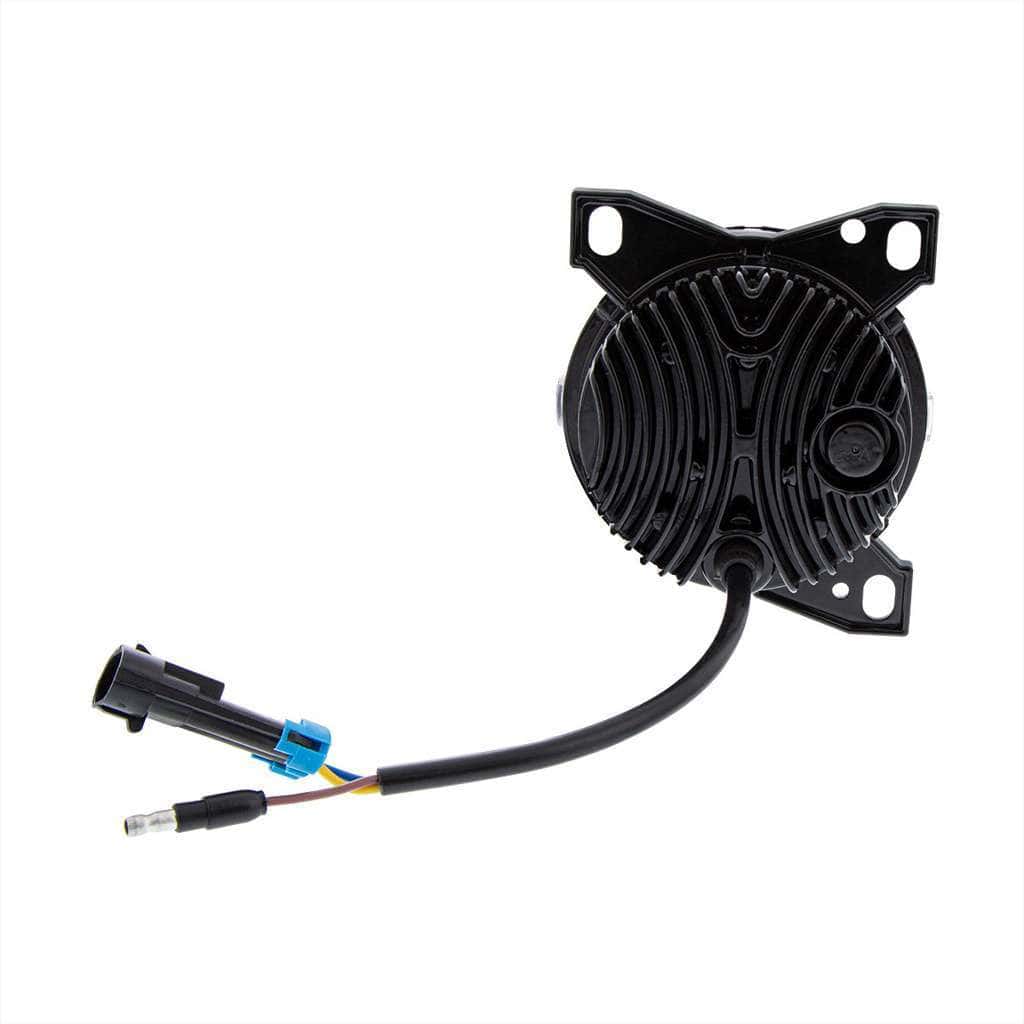

Match the OE-style mounting bracket and fog-light connector before fitting. Use the exact wiring diagram for the two-pin lamp connection and the separate brown position-positive lead. The diagram identifies lamp-side wiring; verify the actual truck-side circuit independently. Connect to a suitable 12V circuit, secure the lamp and wiring, test both functions and check aim.
Product questions
Before you order
Is this a 24V light?
No. United Pacific specifies 12V DC only for this projector design.
Is the position light included in the fog-light plug?
The position lights require their own positive connection through a separate lead. Follow the linked wiring diagram.
Does this listing supply a pair?
No. The package contains one fog-light assembly.
What warranty is listed?
United Pacific lists a one-year manufacturer warranty for this product. Keep the purchase information and applicable warranty terms.
