United Pacific · 35814 / 35815
Halogen projector beams with LED accents

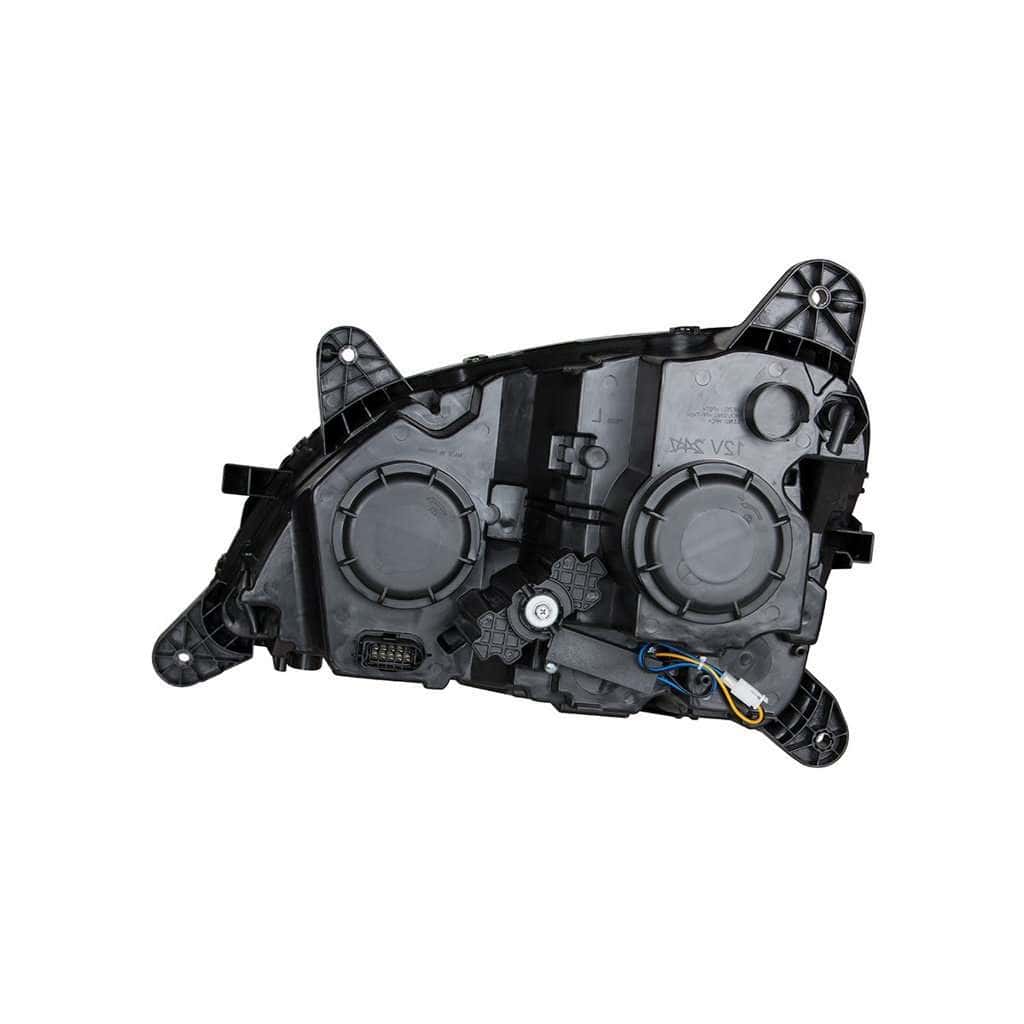

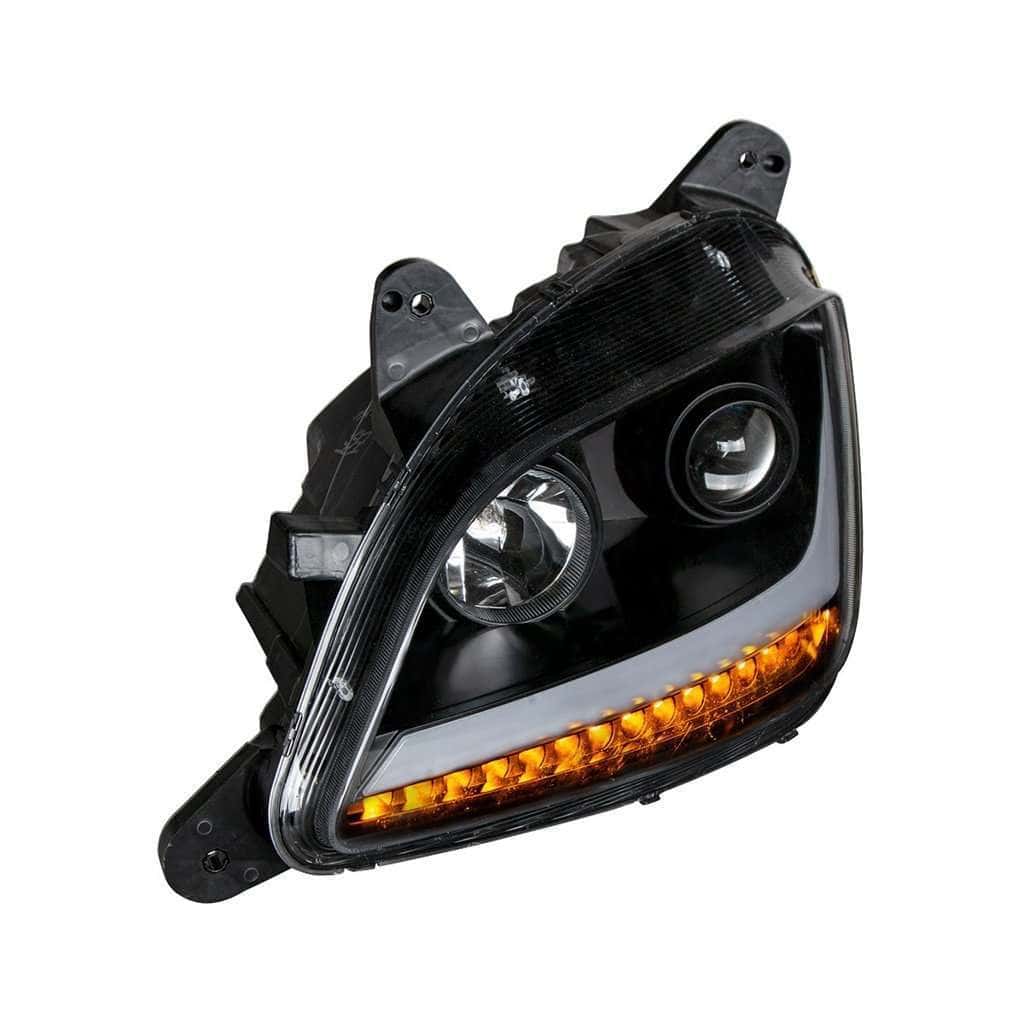

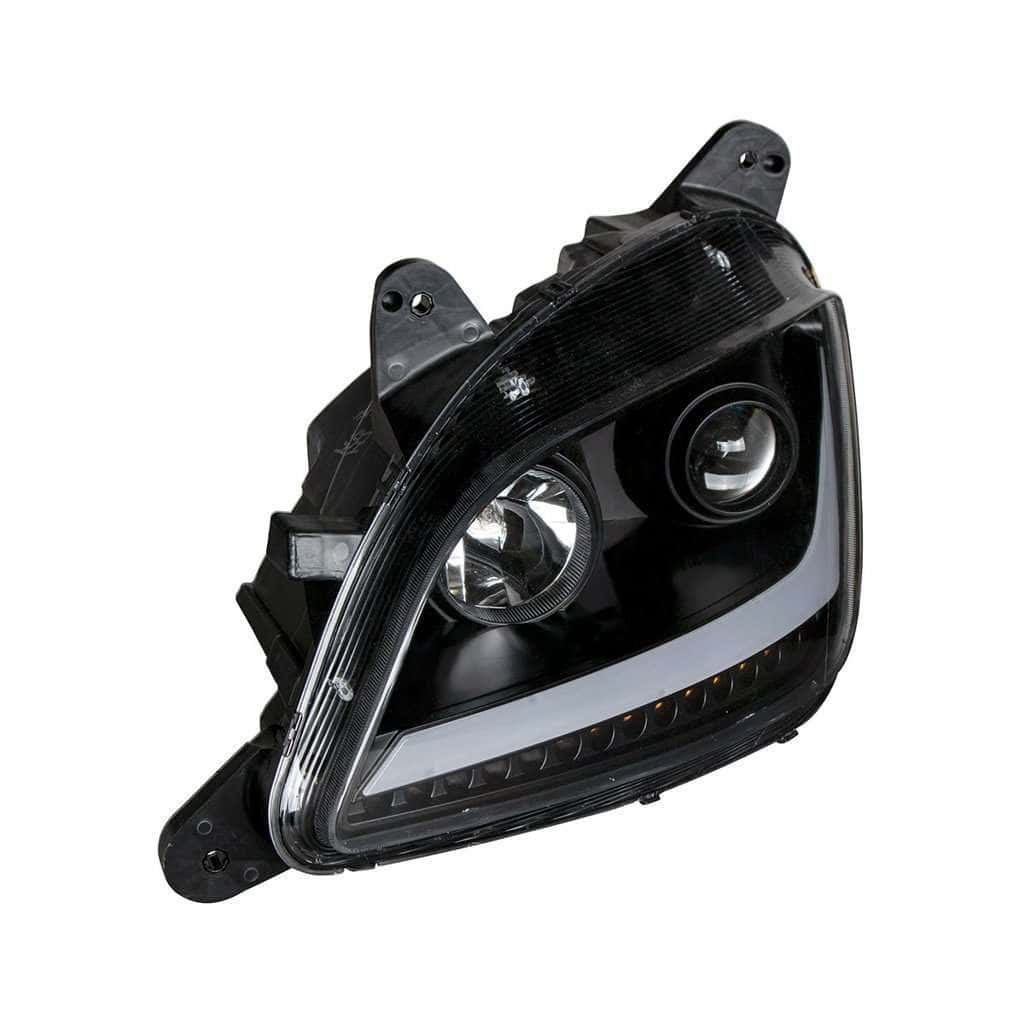

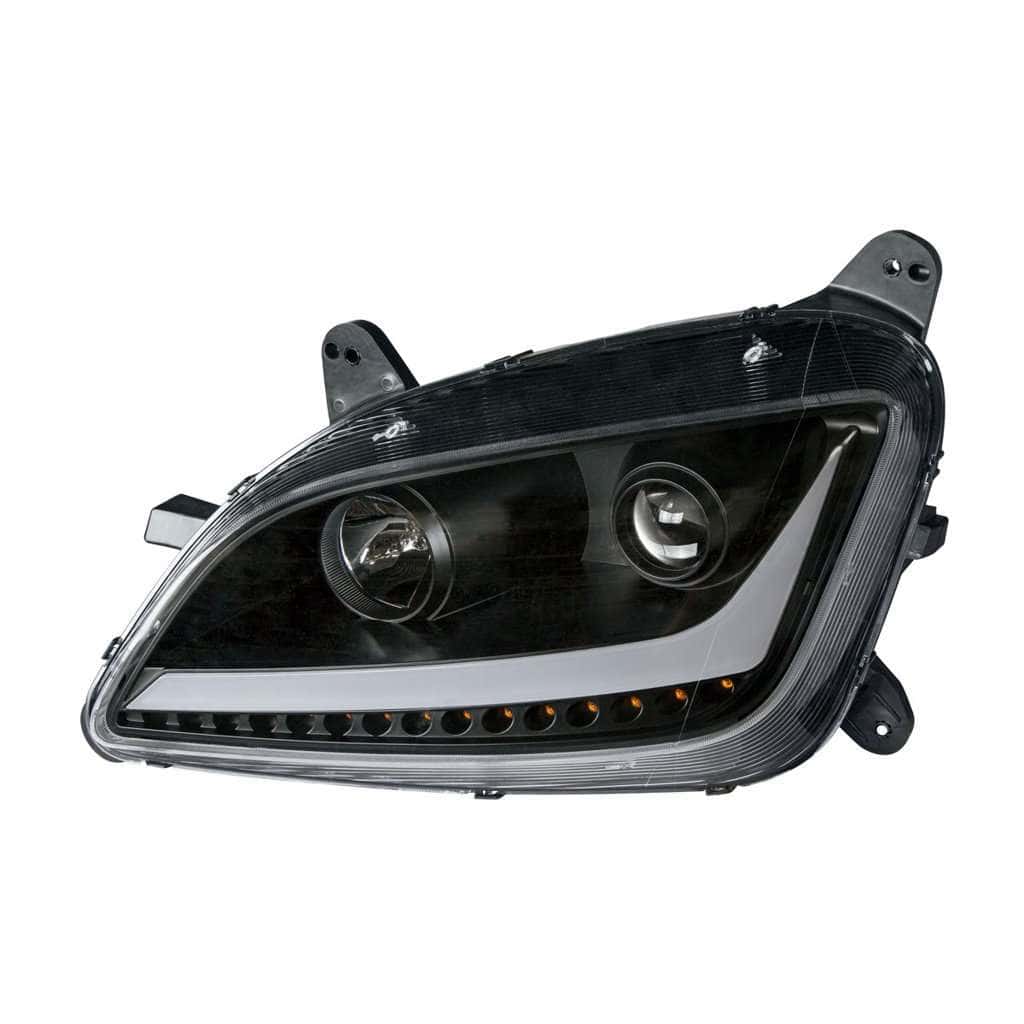

This black headlight combines an H9 low-beam projector and H1 high beam with LED position and turn-signal lighting. It replaces one complete selected-side assembly.
H9 low / H1 high
The low beam uses a 65W H9 quartz-halogen bulb; the high beam uses a 55W H1 quartz-halogen bulb.
LED position and signal
LED accents are separate from the halogen road beams.
Original harness connection
Match the existing mounting and harness connector before installation.

Fitment & selection
Match the original headlight
- Peterbilt 579: 2012–2021
- Peterbilt 587: 2012–2016
For a 2010–2011 Peterbilt 587, confirm the original assembly and connections with BTS before ordering.
| Driver | 35814 · one complete assembly |
|---|---|
| Passenger | 35815 · one complete assembly |
Installation & aiming
A removable load resistor is pre-installed. United Pacific instructs removal if it causes dimming or failure to illuminate. Use the exact connector and adjuster diagram linked below.
Lighting details
Specifications per assembly
| Low beam | H9 halogen · 65W at 12V |
|---|---|
| High beam | H1 halogen · 55W at 12V |
| Accent lighting | LED position light and turn signal |
| Finish | Black Inner Housing |
| Package | One headlight assembly for the selected side |
| Manufacturer standards listing | DOT/SAE · FMVSS 108; correct application and installed aim are required |
Product questions
Before you order
Does the price include both headlights?
No. Each option supplies one complete headlight for the selected side. Choose both sides separately if you need a pair.
Which model years should I check?
Use the exact application list above and match the original housing, mounting and connector. Confirm any year outside that list with BTS before ordering.
Are the main beams LED?
No. This family uses the main-beam bulb types listed above. Its LED position, DRL or signal functions are separate.
2-year manufacturer warranty
United Pacific lists a 2-year warranty for these exact part numbers. Keep your purchase information and contact BTS Lighting for product support.
