Alpha Peterbilt 589 Exhaust Stack Heat Shield Kit
Give your Peterbilt 589 a polished stack profile with the Alpha PBSP-HS7-5-589 heat shield kit. It pairs 64-inch mirror-finish stainless shields with the clamps and mounting hardware for the specified 5-inch muffler pipe and 7-inch top stack configuration.
Check both pipe sizes before ordering. This kit is intended for a Peterbilt 589 with 5-inch muffler pipes and 7-inch top stacks. Custom brackets, replacement pipes or altered stack hardware require an individual fit check.
Specifications
- Application: Peterbilt 589 with the specified exhaust configuration.
- Part number: PBSP-HS7-5-589.
- Shield dimensions: 7.5 inches wide by 64 inches tall.
- Shield material: 18-gauge mirror-finish stainless steel.
- Clamps: 14-gauge stainless steel.
- Muffler pipe size: 5 inches.
- Matching top stack size: 7 inches.
- Package: two shields, four clamps and mounting hardware.
A heat shield upgrade for the stack area

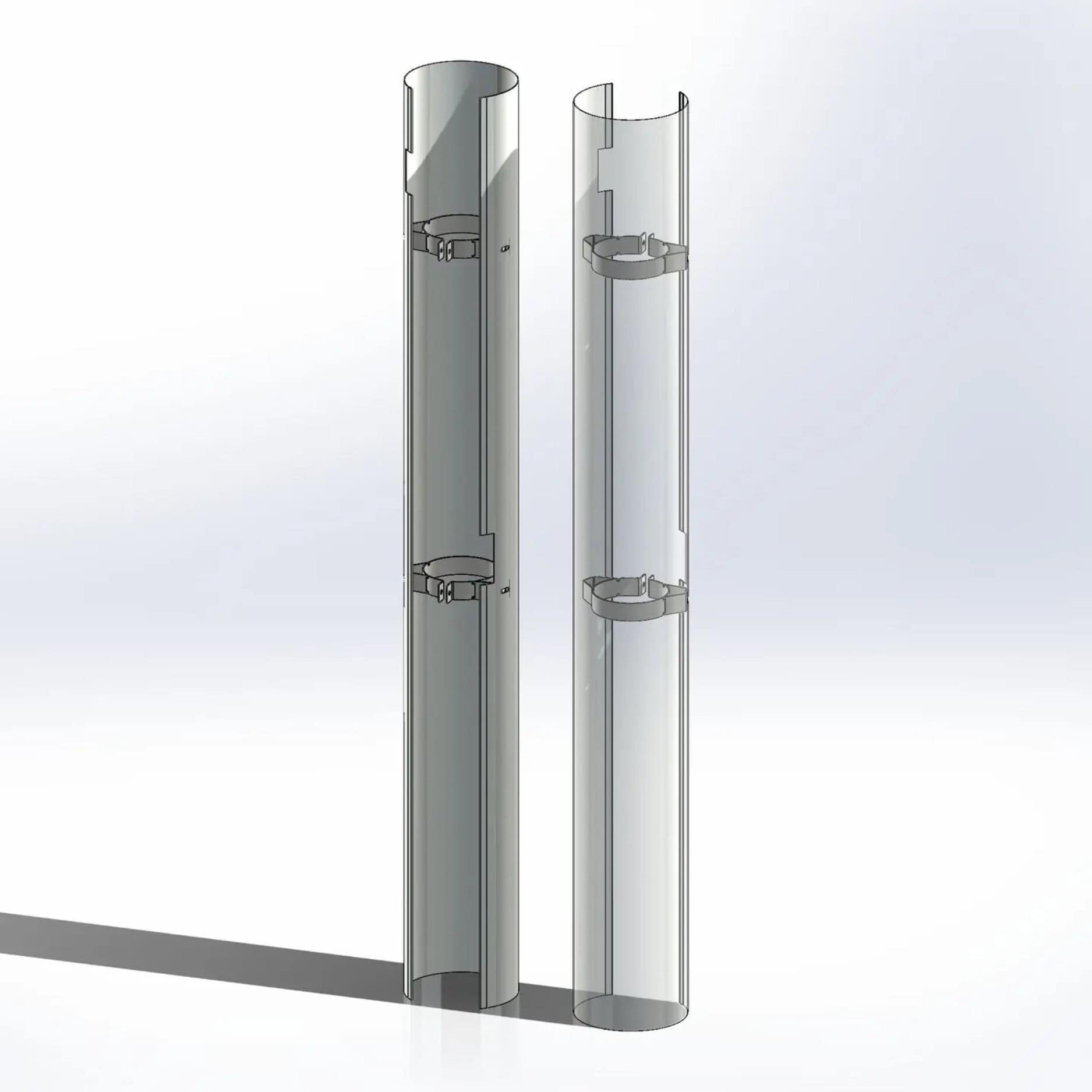

The tall stainless shields create a straight-pipe style appearance around the existing muffler pipe area. The kit replaces the shields; it does not supply replacement exhaust pipes or convert the truck to a straight-pipe exhaust system.
What is included?

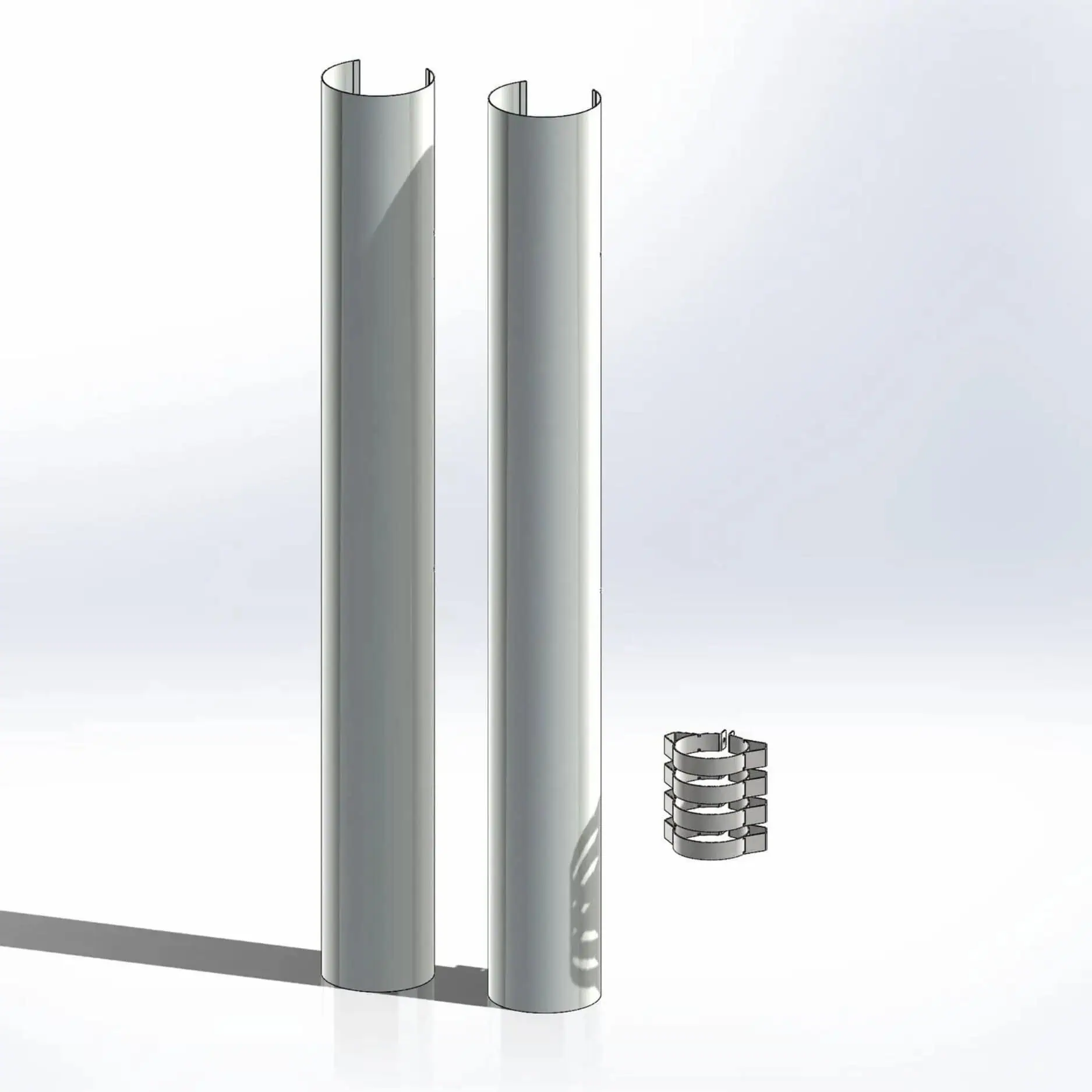

You receive two stainless heat shields, four clamps and mounting hardware. Exhaust stacks, muffler pipes, elbows, installation tools and lights are not included.
Before installation
Compare your current pipe diameter, top stack diameter, bracket arrangement and available clearance with the kit dimensions. The shields mount with the supplied clamps and hardware. Check alignment against the existing exhaust components before tightening the assembly, and have a qualified shop assess a modified exhaust setup.
Frequently Asked Questions
Does this kit fit every Peterbilt 589?
Fitment depends on the exhaust configuration. It is intended for a 589 with 5-inch muffler pipes and 7-inch top stacks. Confirm the dimensions and brackets on your truck, particularly if its exhaust has been modified.
Are the heat shields 7 inches wide?
No. Each shield is 7.5 inches wide and 64 inches tall. The 7-inch designation refers to the top stack size the kit is intended to match; it mounts to the specified 5-inch muffler pipes.
Does the package cover both sides?
Yes. The kit contains two heat shields, four clamps and mounting hardware.
Does this kit include the exhaust stacks or muffler pipes?
No. It supplies the shields, clamps and mounting hardware only. Your exhaust stacks, muffler pipes and elbows are separate components.
Will this give my truck straight-pipe sound?
This is an appearance and heat shield upgrade. It does not replace the muffler pipes or convert the exhaust system to straight pipes.
