Product Overview

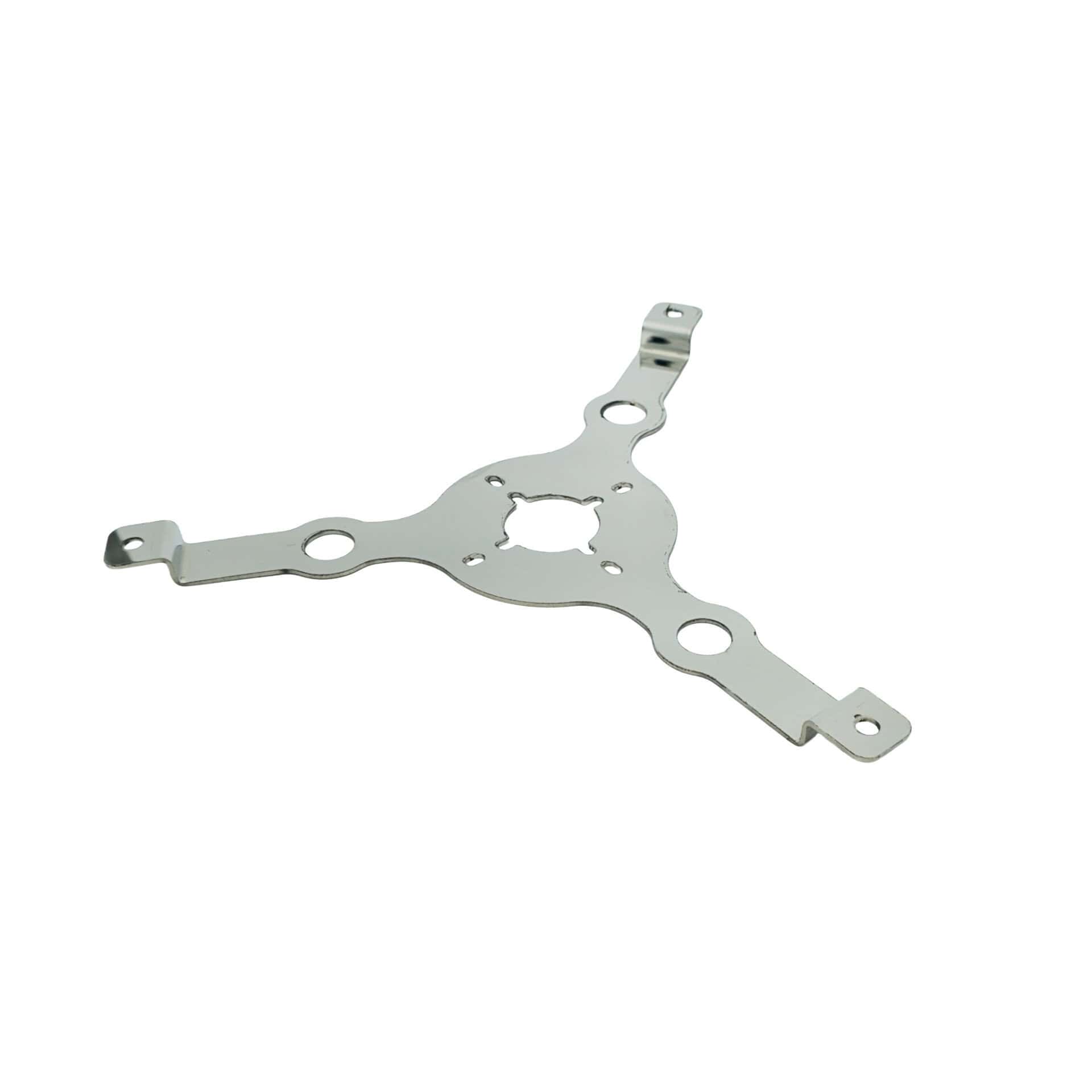

The Alpha Series A0030 bracket pair creates internal light positions inside the premium 15-inch Donaldson push-down-and-twist locking-top breathers on a Peterbilt 589. Each polished 304 stainless steel bracket holds one full-size watermelon light and three mini watermelon or penny lights, with driver- and passenger-side brackets included.
Specifications and light layout
- Part number: A0030.
- Application: Peterbilt 589 with premium 15-inch Donaldson push-down-and-twist locking-top air cleaners.
- Top style: push-down-and-twist locking lid. Only the lid/top removes; the mesh/intake assembly stays in place.
- Not compatible with 15-inch air cleaners secured by four external nuts, where the whole top/mesh assembly removes, or with 13-inch air cleaners.
- Light layout per bracket: one full-size watermelon light and three mini watermelon/penny lights.
- Complete pair layout: two full-size lights and six mini lights, purchased separately.
- Material: polished 304 stainless steel.
- Quantity: two brackets, driver and passenger sides.
Fitment and installation
The intended bolt-on installation uses existing breather holes and bolts without welding. Verify the air cleaner and mounting-hole arrangement before assembly; variations can require additional mounting work. Check the selected lights’ dimensions and internal clearance. Lights, bolts and wiring are separate from the bracket pair.
What is included?
Two internal breather brackets, for driver and passenger sides. Lights, mounting bolts and wiring are sold separately.
Warranty
1-year manufacturer warranty.
Choose lights and matching panels
Compare Glass Is Class Gen 2 watermelon lights as you plan the main light for your build. Match the light’s mounting arrangement, housing clearance and electrical requirements to the bracket before ordering. Lights are purchased separately. This shopping link does not establish Gen 1 and Gen 2 component interchangeability.
Frequently Asked Questions
Will this bracket fit my Peterbilt 589 with a 15″ Donaldson air cleaner?
It is designed for the premium 15-inch Donaldson push-down-and-twist locking top. Only the lid/top removes; the mesh/intake assembly stays in place. It does not fit the 15-inch style secured by four external nuts, where the whole top/mesh assembly removes, or 13-inch air cleaners. Confirm the top style and mounting holes.
How many lights can I mount on each bracket?
Each bracket has positions for one full-size watermelon light and three mini watermelon or penny lights. The pair provides two full-size and six mini light positions.
Do I need to drill or weld to install these brackets?
The intended installation bolts into existing breather holes without welding. Compare the actual hole positions before assembly; some mounting arrangements may need additional work.
Are the lights included with the bracket?
No. The pair contains the brackets only. Lights, mounting bolts and wiring are sold separately.
Will this bracket work with four-nut tops or 13-inch air cleaners?
No. A0030 does not fit 13-inch air cleaners or the 15-inch style secured by four external nuts, where the whole top/mesh assembly removes. It is intended for the premium 15-inch Donaldson push-down-and-twist locking top on the Peterbilt 589, where the mesh/intake assembly stays in place when the lid/top is removed.
What material are the brackets made from?
The brackets are made from 304 stainless steel with a polished finish.
