United Pacific · 31179 / 31180

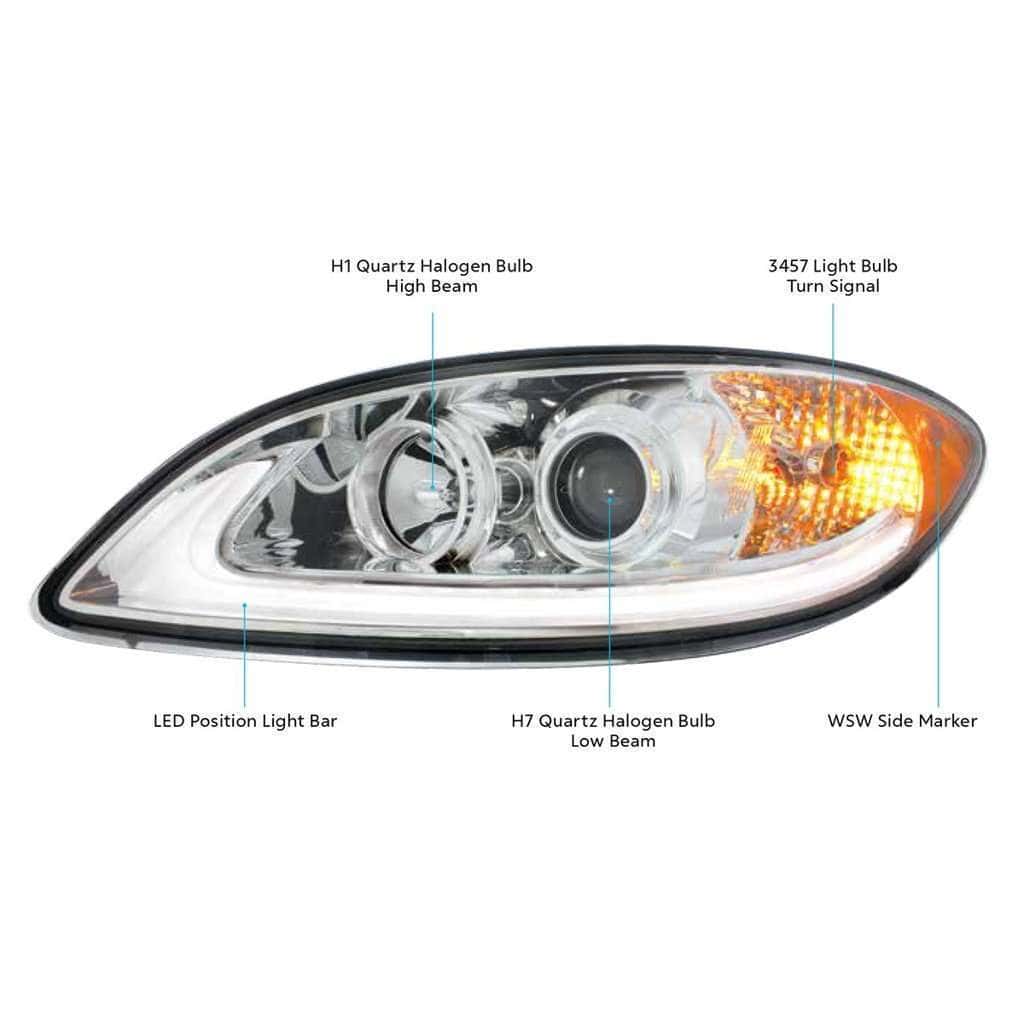

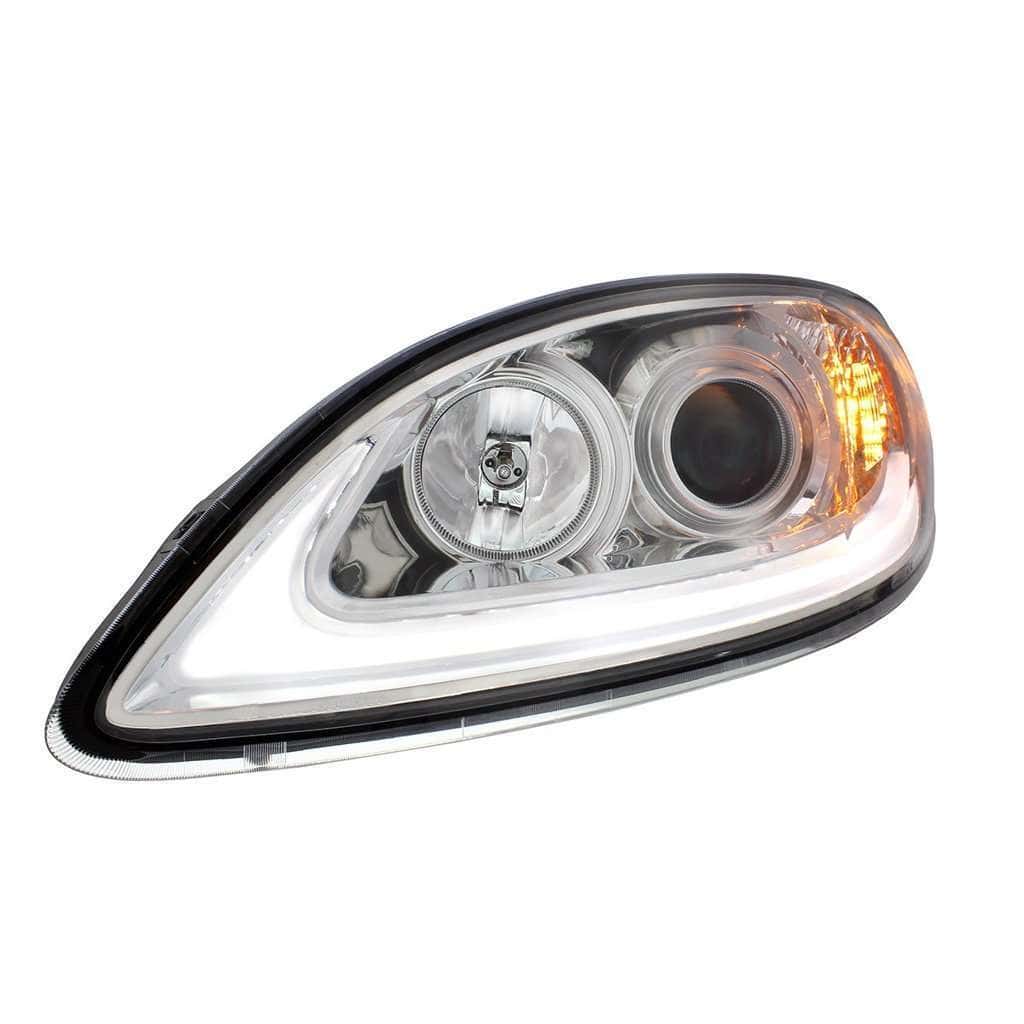

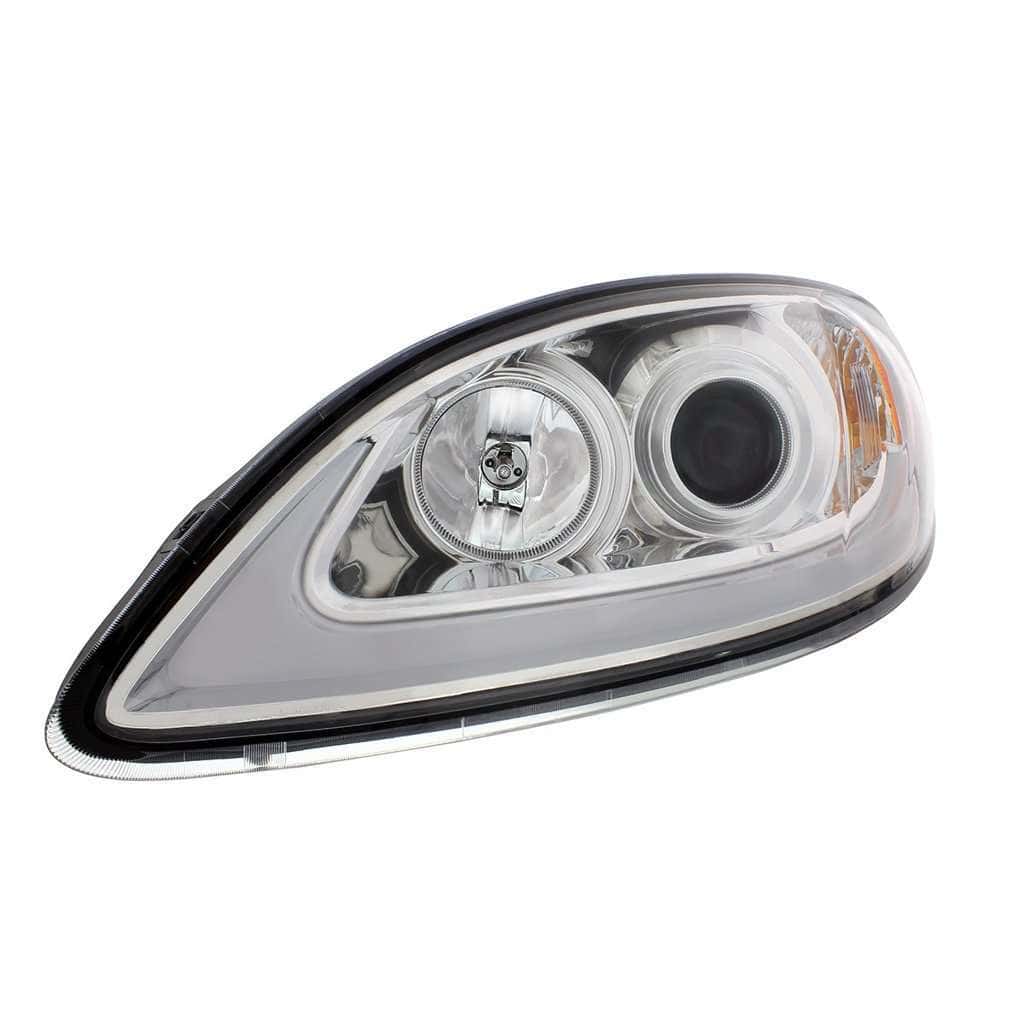

Chrome halogen projector headlight with LED position bar
This projector assembly pairs replaceable H7 and H1 halogen beams with an LED position-light bar. Its bulb-based turn signal distinguishes it from the separate 15-LED-turn-signal version.
Replaceable halogen bulbs
H7 low beam and H1 high beam are each specified at 55W.
LED position bar
The accent bar has its own wiring requirements in the manufacturer instructions.
Separate power connection
The position bar requires an independent ignition-switched 12V feed and a body ground.

Fitment & selection
Match the assembly to your truck

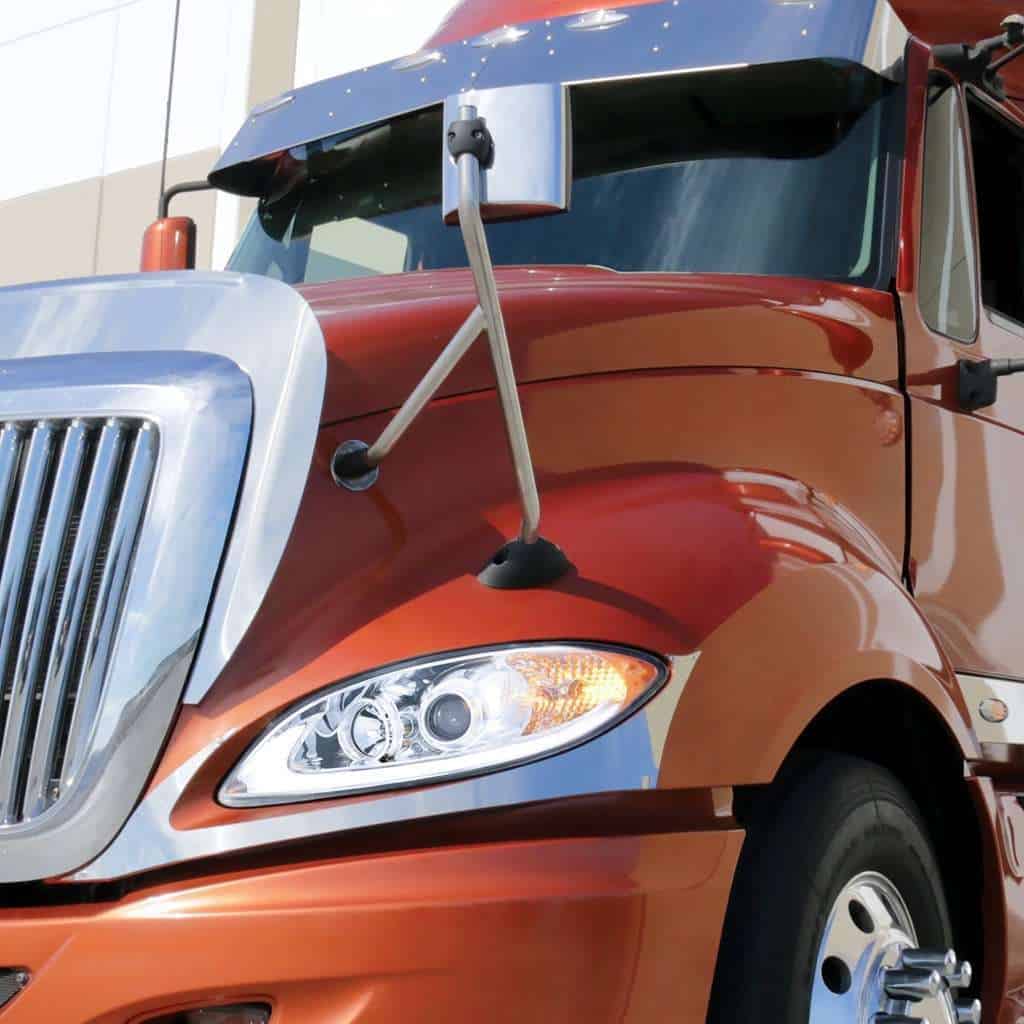

For 2006–2017 International ProStar trucks. Compare your original assembly, connector and mounting points; do not assume the same wiring instructions apply to every ProStar headlight option.
Each option is one headlight assembly. Select driver or passenger side; order both side options if you need a pair.
| Driver | 31179 — one assembly |
|---|---|
| Passenger | 31180 — one assembly |
Lighting details
Specifications for this headlight
| Low beam | H7 halogen · 55W · 4.58A |
|---|---|
| High beam | H1 halogen · 55W · 4.58A |
| Turn signal | 28W · 2.26A |
| Side marker | W5W · 5W · 0.35A |
| Operating voltage | 12V DC |
| Finish | Chrome Inner Housing |
| Package | One selected-side assembly |
| Manufacturer compliance listing | DOT/SAE · FMVSS 108 |
Installation & aiming
Use the instructions for your part number

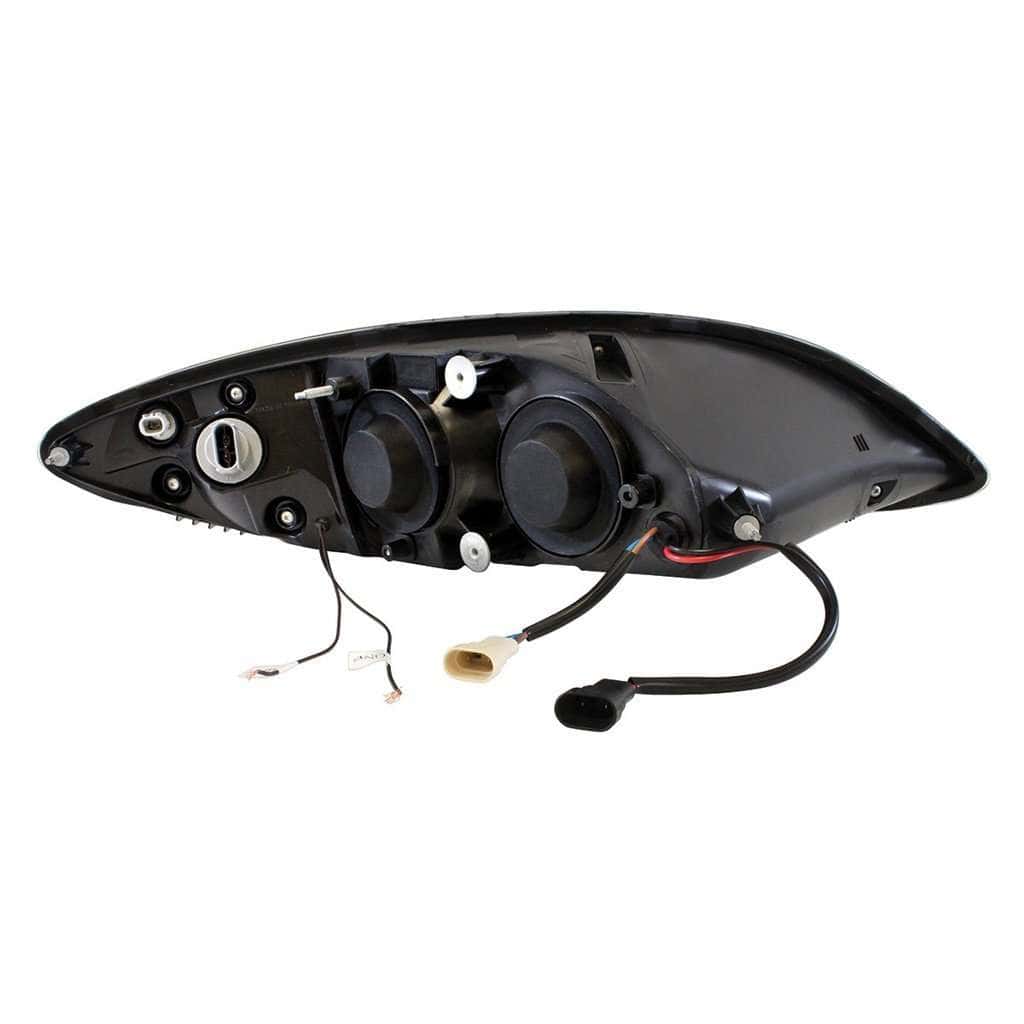

For 31179/31180/31183/31184, the manual requires the position-bar brown positive wire to connect to an independent 12V source switched by the ignition, not to an original headlight harness. The black wire grounds to the truck body. Have a qualified installer identify the correct circuit and follow the exact diagram. The original light connections and beam adjuster are also shown; this version should not be treated as a plug-only installation.
Product questions
Before you order
Is the turn signal LED?
This version lists a 28W bulb-based turn signal. The LED feature is the position-light bar; the low and high beams are halogen.
Can I power the light bar from the original headlight harness?
No. The exact manual says to use an independent ignition-switched 12V source for the brown positive wire and to ground the black wire to the truck body.
What can cause the position bar to flash irregularly?
The manual identifies improper grounding as a possible cause. Have the body-ground connection checked against its wiring instructions.
Does the selected option include both sides?
No. Each option is one assembly for the selected side. Order both side options if you need a pair.
2-year manufacturer warranty
United Pacific lists a 2-year warranty for these exact part numbers. Keep your purchase information and contact BTS Lighting for help with a product issue.
