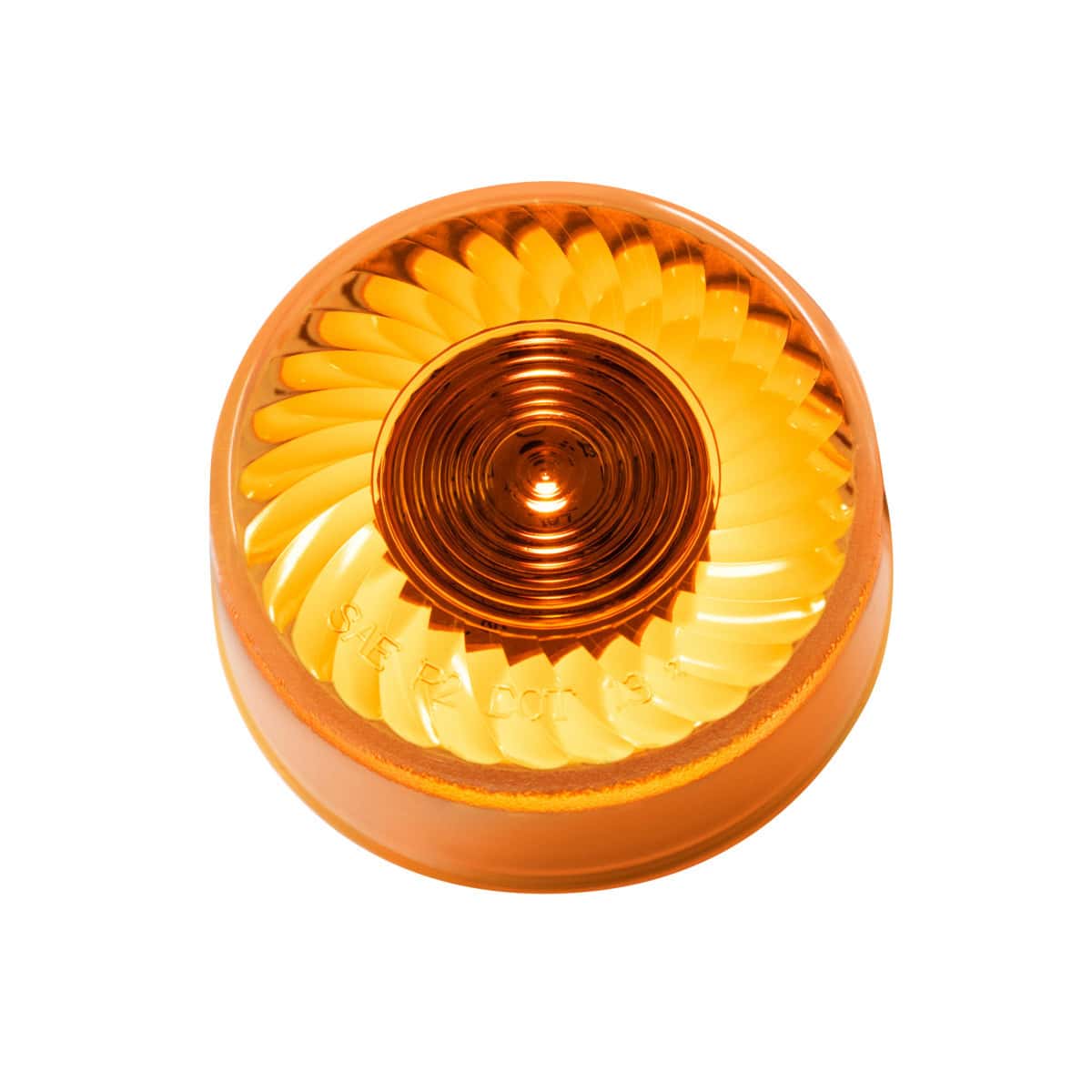

Turbine 2.5″ Round Amber LED Clearance/Marker Light
This Turbine clearance/marker light combines 10 amber SMD LEDs with an amber lens in a 2.5″ round design. A turbine fin pattern around the outer rim gives the light a distinctive appearance.
Polycarbonate Lens and Sealed Housing
The polycarbonate lens is sonically sealed to the housing to help prevent moisture intrusion. The supplied specifications list an IP67 water resistance rating.
10 Amber SMD LEDs
Ten amber SMD LEDs provide light output through the amber lens. This model is designed for clearance and marker lighting applications.

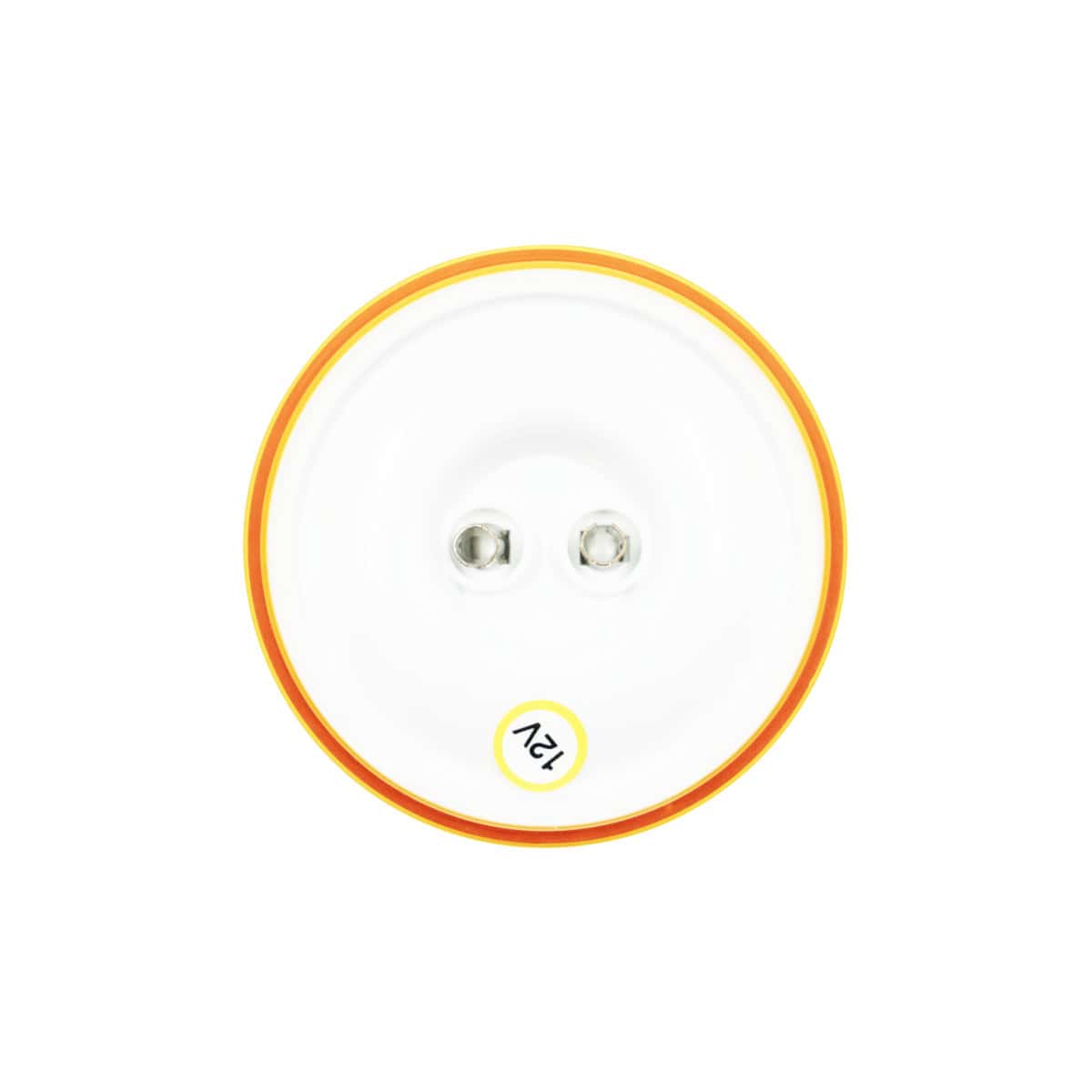

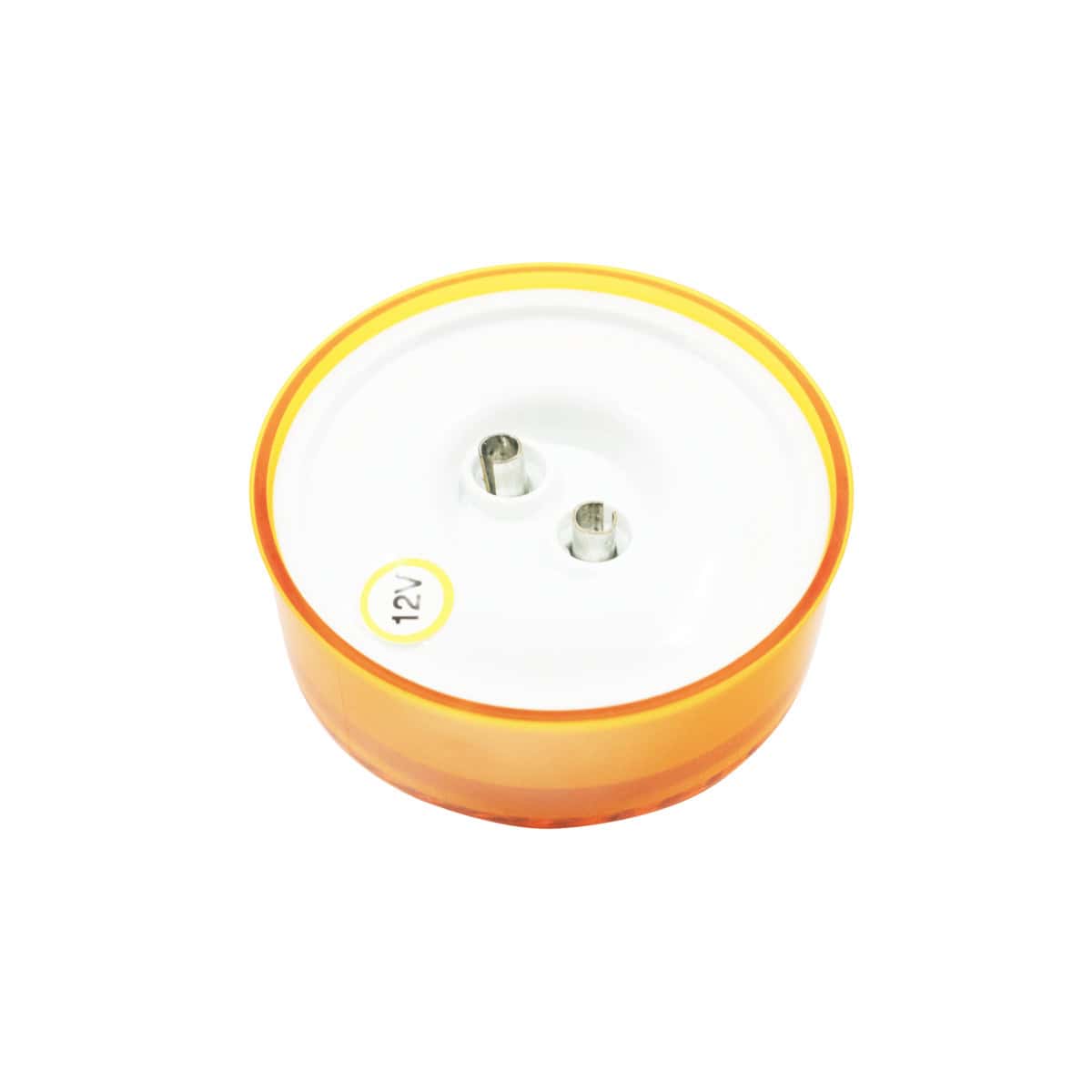

Rear 2-Pin Connection
The rear housing features a 2-pin female contact terminal. Recommended mating plugs include:
- Item #34247
- Item #34242
- Item #34241
These 2-pin male plugs are not included. Confirm the operating voltage and wiring requirements before installation.
Rubber Grommet Mounting
Mounting with a rubber push-in grommet is recommended. Suggested options are item #31506 or #31508, sold separately.
Check the selected grommet’s cutout requirements and the available mounting depth before ordering.
Product Details
- Product type: Round clearance/marker light
- Style: Turbine fin outer rim

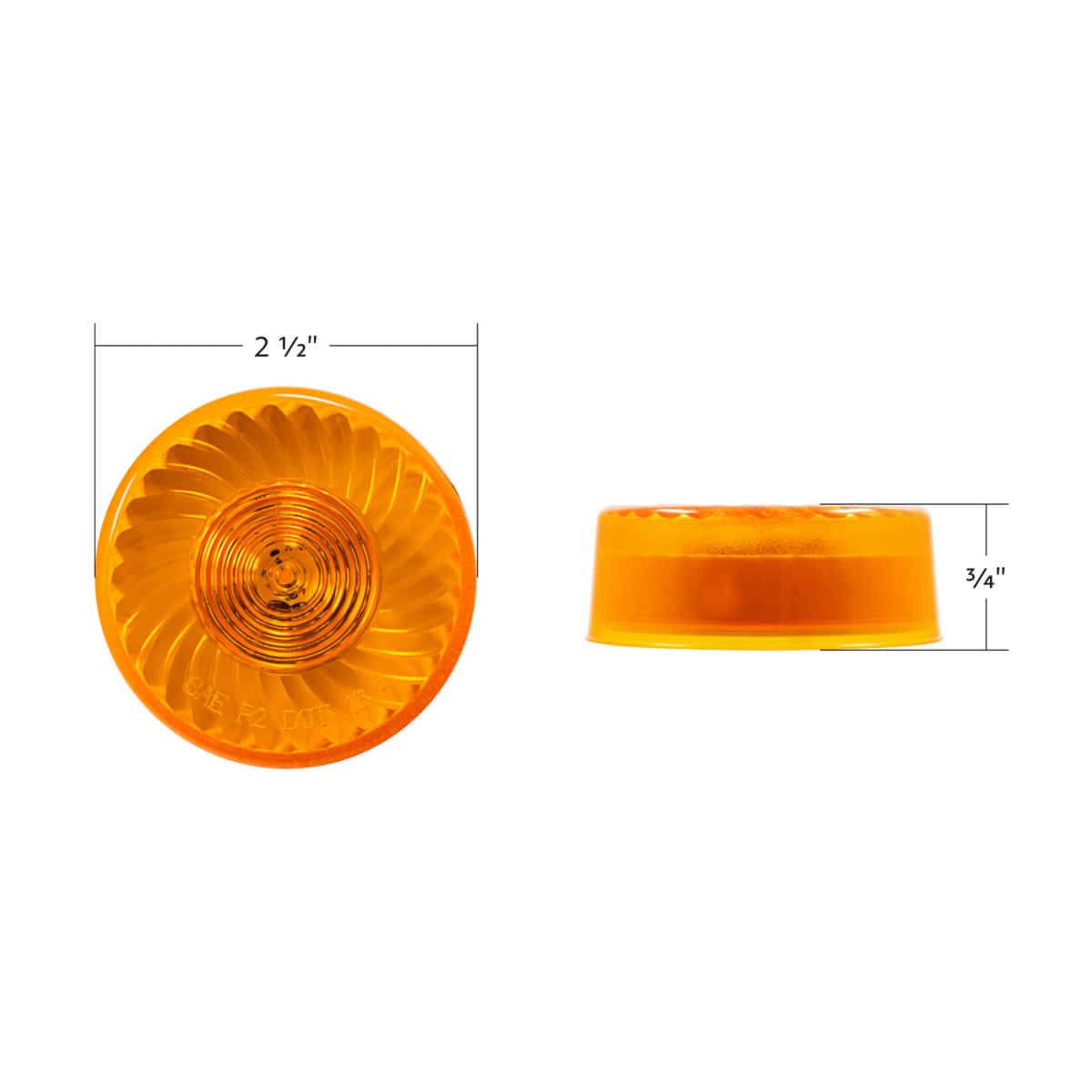

- Listed size: 2.5″
- LED count: 10
- LED type: SMD
- LED colour: Amber
- Lens colour: Amber
- Lens material: Polycarbonate
- Lens seal: Sonically sealed to housing
- Connector: Rear 2-pin female contact terminal
- Water resistance: IP67
- Listed compliance: DOT/SAE, FMVSS 108
- Warranty: Lifetime; coverage terms and exclusions require confirmation
- Recommended plugs and grommets: Not included
FAQs
What colour is this clearance/marker light?
This version has amber LEDs and an amber lens.
How many LEDs does it contain?
The light contains 10 SMD LEDs.
What plug does this light use?
The light has a rear 2-pin female contact terminal. Recommended 2-pin male plugs are items #34247, #34242 and #34241, sold separately.
Is the mounting grommet included?
No. Recommended rubber push-in grommets, items #31506 and #31508, are sold separately.
What is the water resistance rating?
The supplied specifications list an IP67 water resistance rating. The lens is also sonically sealed to the housing to help prevent moisture intrusion.
Is this light compatible with 12V or 24V systems?
Operating voltage was not provided. Confirm the voltage specification before connecting the light to your vehicle.
What warranty is included?
The supplied product information lists a lifetime warranty.
