Product Overview

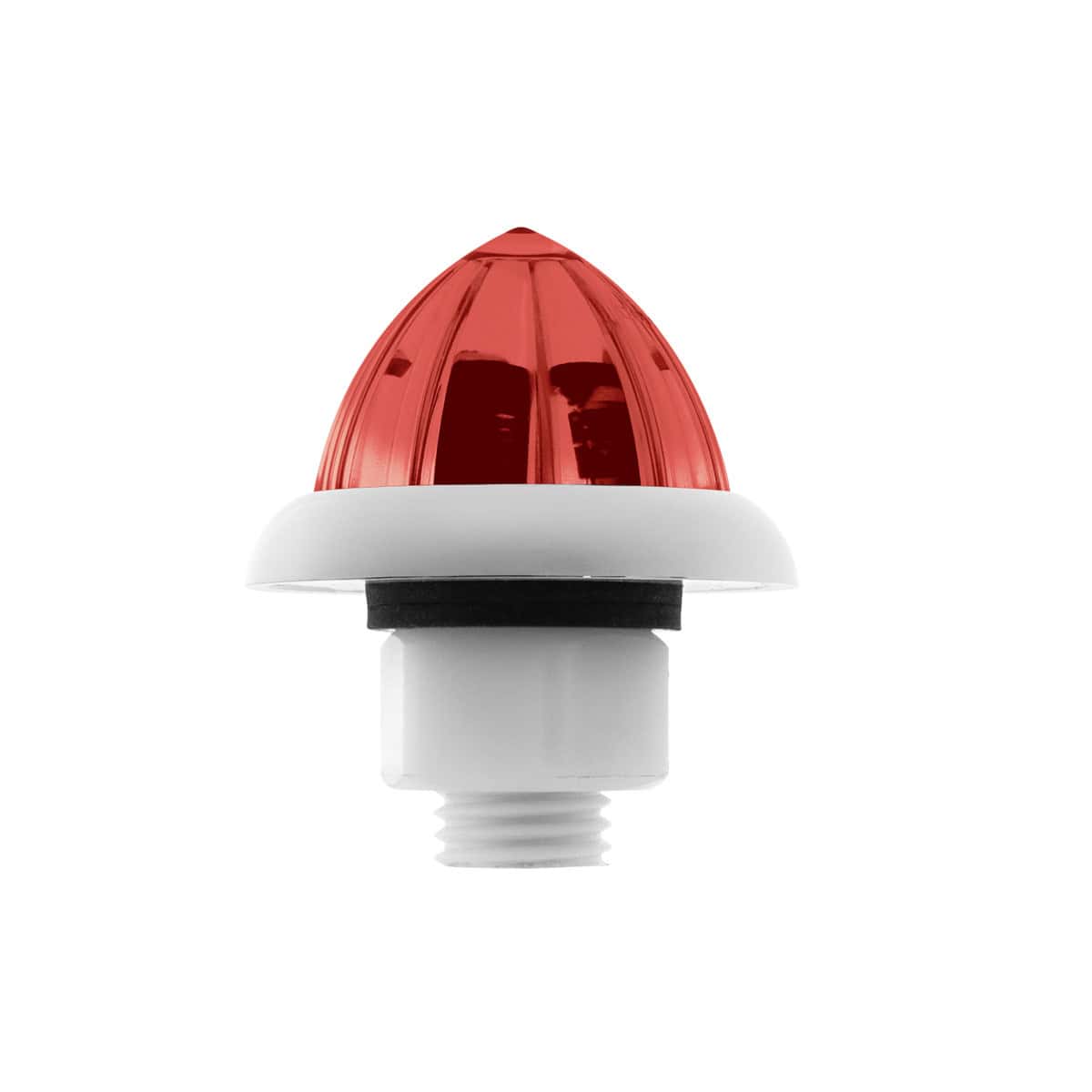

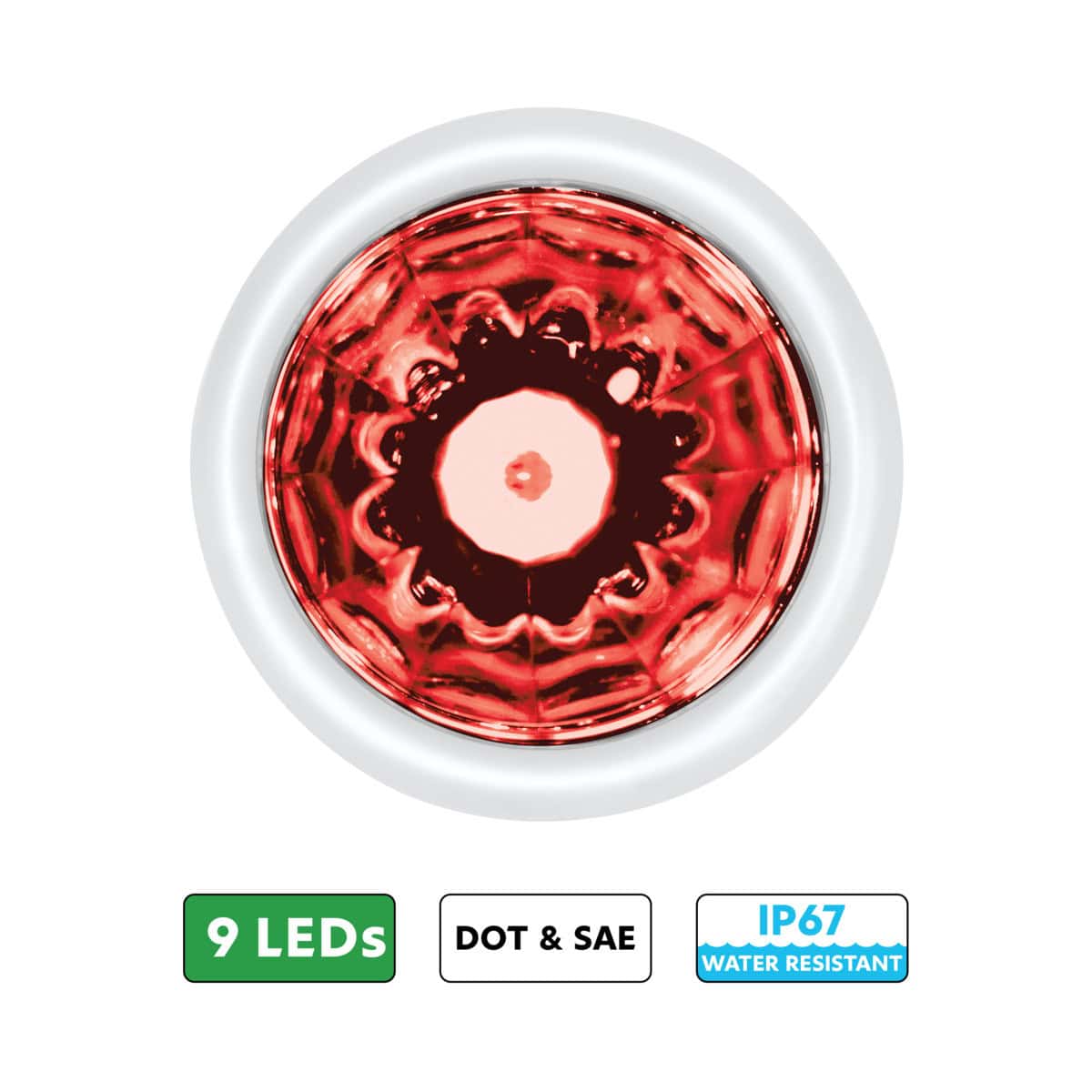

The UltraBurst 9 LED Watermelon Clearance and Marker Light delivers bright red illumination in a compact 1-1/2-inch design. Its distinctive light-burst effect, red polycarbonate lens and chrome plastic bezel combine strong visibility with classic watermelon-light styling.
Nine dual-function LEDs provide separate low- and high-intensity outputs when properly wired. The threaded-stud mounting system requires a 3/4-inch installation hole and includes a nylon mounting nut for secure attachment.
Ideal for:
- Semi trucks
- Trailers
- Tow trucks
- RVs
- Work trucks
- Custom vehicle builds
Key Features & Benefits
Dual-Function Red Lighting
Separate low- and high-intensity inputs allow the red LEDs to support two lighting functions when properly wired.
Nine Bright LEDs
Nine LEDs produce bright red illumination for clearance, marker and other compatible vehicle-lighting applications.
UltraBurst Light-Burst Effect
The UltraBurst optical design creates a distinctive light-burst appearance for enhanced visibility and custom styling.
Red Polycarbonate Lens
The high-quality, injection-molded polycarbonate lens protects the internal LEDs while producing a consistent red appearance.
Chrome Plastic Bezel
A chrome plastic bezel surrounds the red lens, adding a polished accent suited to custom trucks and trailers.
Epoxy-Sealed Construction
The lamp is epoxy sealed to help prevent moisture intrusion and protect its internal electronics.
IP67 Water Resistance
IP67-rated construction provides protection against dust and temporary water immersion under the conditions specified by the rating.
Threaded-Stud Installation
The threaded mounting stud and included nylon nut provide straightforward installation through a 3/4-inch-diameter mounting hole.
Performance / Compatibility / Use-Case
- Voltage: 12V

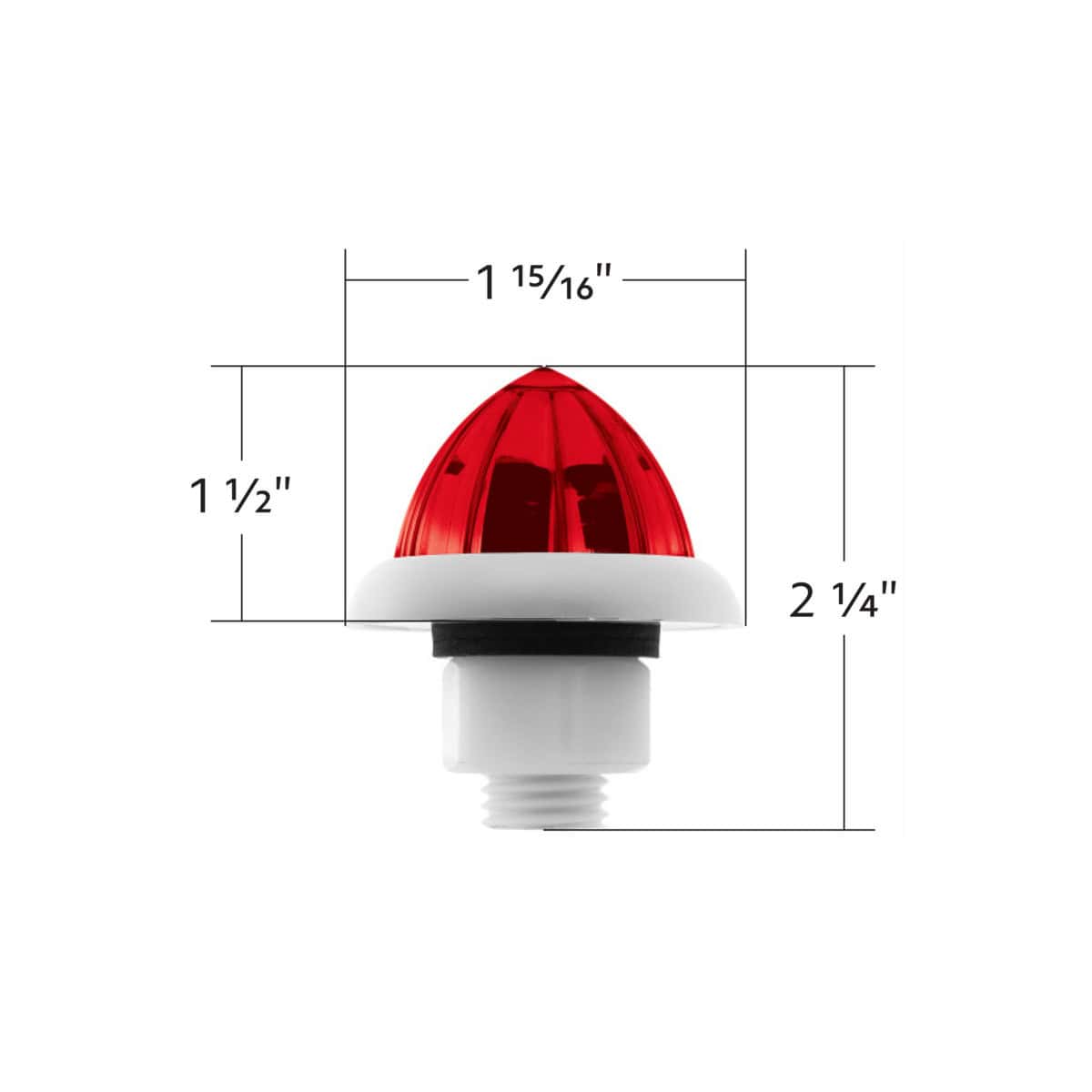

- Light size: 1-1/2 inches
- LED count: 9 LEDs
- LED color: Red
- Lens color: Red
- Functions: Low and high intensity
- Wiring: Three-wire connection
- Connectors: Male bullet plugs
- Mounting style: Threaded stud with nylon mounting nut
- Required mounting hole: 3/4-inch diameter
- Bezel: Chrome plastic
- Water-resistance rating: IP67
- Compliance: DOT/SAE and FMVSS 108
Common uses include:
- Clearance lighting
- Marker lighting
- Tail or signal applications, where permitted and properly configured
- Semi-truck and trailer lighting
- Custom truck-lighting installations
Confirm the intended lighting function, mounting location and applicable vehicle-lighting requirements before installation.
Installation / Fitment / Technical Details
This compact watermelon light installs through a 3/4-inch-diameter mounting hole using its threaded stud and included nylon mounting nut.
Wire Color Code
- White = Ground negative (-)
- Black = Primary low positive (+)
- Red = Primary high positive (+)
The three-wire hookup is fitted with male bullet plugs to simplify electrical connection. Confirm the available mounting clearance, hole size and wiring configuration before drilling or connecting the lamp.
Professional installation is recommended if you are unfamiliar with automotive electrical wiring.
Build Quality / Warranty
Constructed with:
- Injection-molded red polycarbonate lens
- Chrome plastic bezel
- Nine dual-function red LEDs
- Epoxy-sealed internal electronics
- Threaded mounting stud
- Three-wire leads with male bullet plugs
The lamp carries an IP67 water-resistance rating and is epoxy sealed to help prevent moisture intrusion.
Warranty: 3-year manufacturer warranty.
What’s Included
- 1 × UltraBurst 9 LED 1-1/2-Inch Watermelon Light
- 1 × Nylon Mounting Nut
- Integrated threaded mounting stud
- Pre-wired three-wire connection with male bullet plugs
Frequently Asked Questions
What color light does this watermelon lamp produce?
This UltraBurst light produces red illumination through a red polycarbonate lens.
What does dual-function lighting mean?
Dual-function operation provides separate low- and high-intensity red outputs. The exact vehicle functions depend on how the light is wired and the application in which it is installed.
How many LEDs does this light contain?
The light contains nine bright dual-function red LEDs.
What size mounting hole is required?
Installation requires a 3/4-inch-diameter mounting hole. Verify the available clearance and installation location before drilling.
How is the light mounted?
The light installs through the mounting surface using its threaded stud and included nylon mounting nut.
What are the wiring connections?
The white wire is ground, the black wire powers the primary low-intensity function and the red wire powers the primary high-intensity function.
Is this clearance and marker light DOT/SAE compliant?
Yes. The manufacturer identifies this light as DOT/SAE and FMVSS 108 compliant.
Is this watermelon light waterproof?
The lamp carries an IP67 water-resistance rating and features epoxy-sealed construction to help prevent moisture intrusion. Proper installation and protected electrical connections remain important.
What voltage does this light require?
This UltraBurst watermelon light is designed for 12V vehicle electrical systems.
