United Pacific · 35823 / 35824

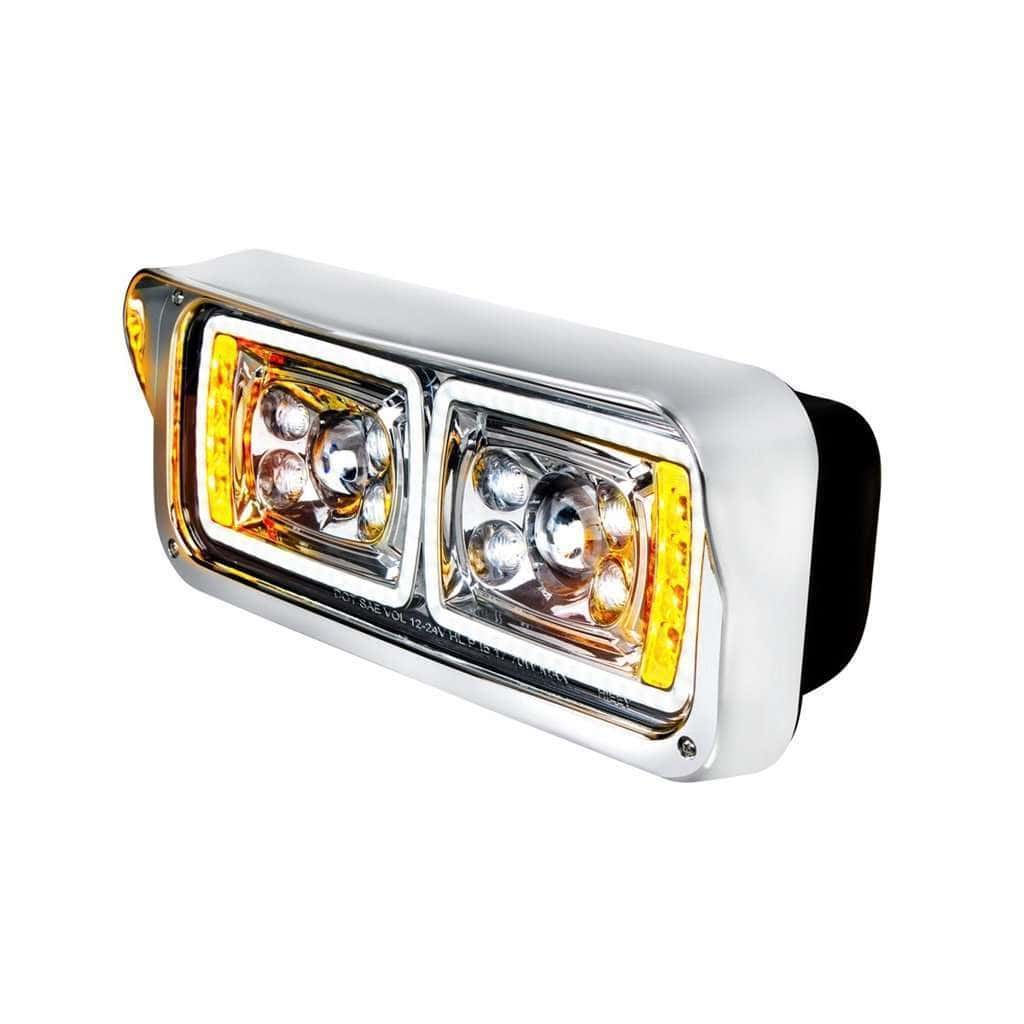

Chrome projector headlights for a dual 4×6 conversion
A complete selected-side LED projector assembly replaces the matching factory dual 4×6 arrangement. Low and high beams use the main plugs; the position bar and turn signal need separate wiring.
Lighting or design
1600-lumen low / 2400-lumen high
Construction or equipment
12–24V
Package
One selected-side assembly; opposite side ordered separately.

Selection
Match the exact part
For the matching factory dual 4×6 layout: Peterbilt 357/365/378/379 OE housings, or the listed fender-mounted Kenworth T600/T800/W900, Freightliner Classic and Western Star 4800/4900/6900 arrangements. Compare the actual mount, side, depth and wiring before ordering.
| 35823 | Driver |
|---|---|
| 35824 | Passenger |
Specifications
Construction and contents
| Manufacturer-rated beam output | 1600-lumen low / 2400-lumen high |
|---|---|
| Finish | Chrome Inner Housing |
| Voltage | 12-24V |
| Package | One selected-side assembly; opposite side ordered separately. |
Installation
Prepare the mounting and connections
The exact six-page manual has separate procedures for fender-mounted Kenworth/Freightliner/Western Star applications and Peterbilt housings. The fender-mounted route can require cradle removal, drilling rivets and fitting the supplied fender liner. Match the lens side marking, use the truck-specific section and test each lighting function before aiming.
Product questions
Before you order
What does one order include?
One selected-side assembly; opposite side ordered separately.
What should I check before ordering?
For the matching factory dual 4×6 layout: Peterbilt 357/365/378/379 OE housings, or the listed fender-mounted Kenworth T600/T800/W900, Freightliner Classic and Western Star 4800/4900/6900 arrangements. Compare the actual mount, side, depth and wiring before ordering.
Does this supply both sides of the truck?
No. Select the required driver or passenger side. Order the matching opposite side separately when replacing both.
Do the main headlight plugs power all functions?
No. The position-light and turn-signal functions require separate wiring. The linked manual also describes the mounting work for the applicable truck family.
What warranty is listed?
United Pacific lists a three-year manufacturer warranty for these exact products. Keep your purchase details and the applicable terms.
