Right-angle connection for a matching three-prong lamp
United Pacific 34216P combines a right-angle male plug with 12-inch insulated leads. Use the three-prong connector and labelled circuit functions to choose the correct replacement for your lamp and wiring route.
Product details

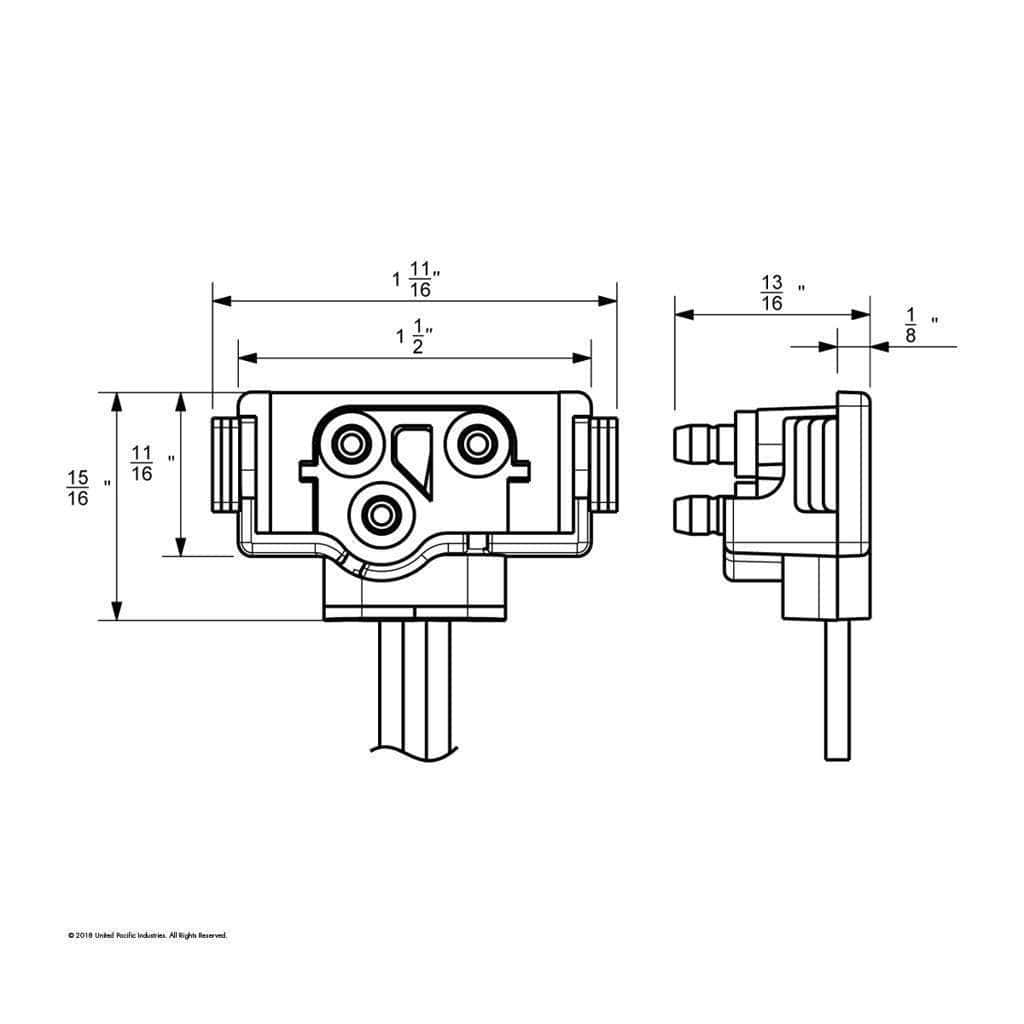

- Three-wire, three-prong right-angle plug.

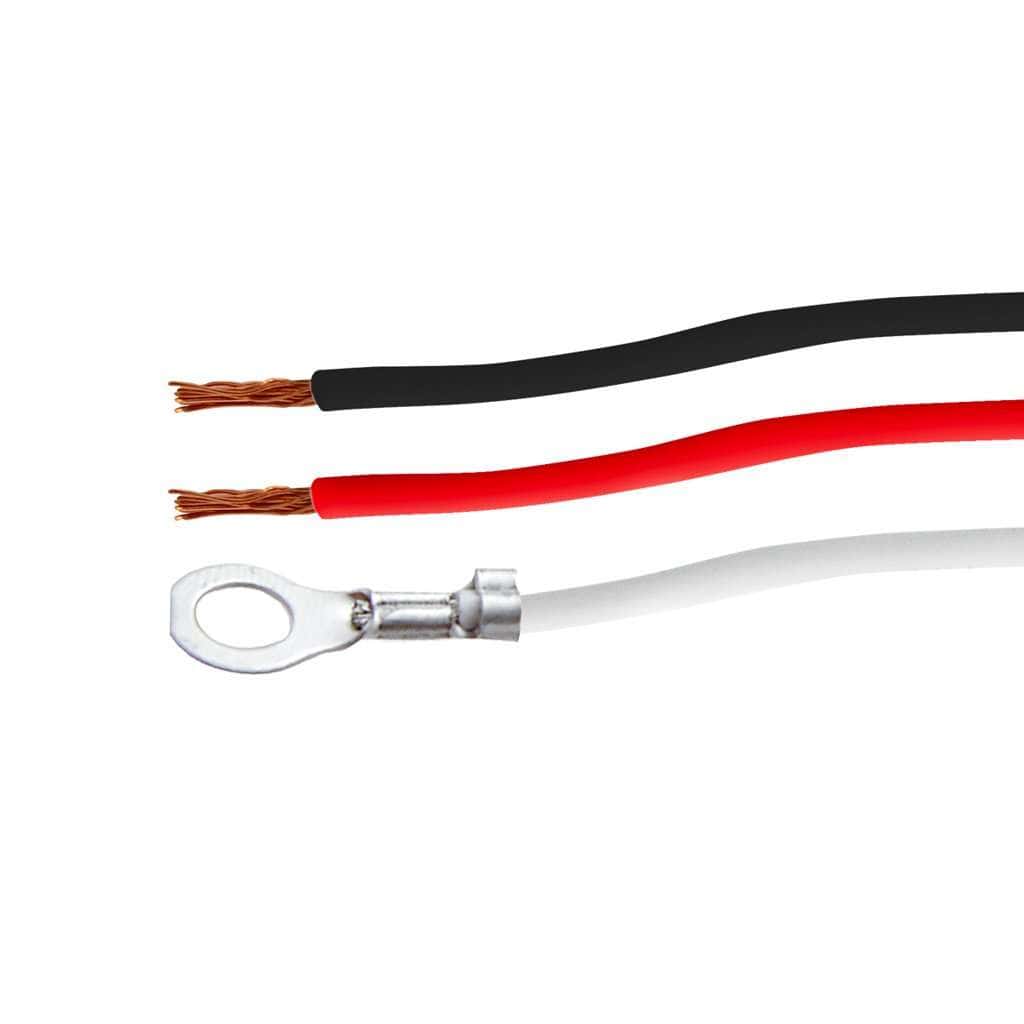

- 16-gauge insulated leads, 12 inches long.
- White ground lead with a #10 crimped ring terminal.
- Black lead for tail/clearance; red lead for stop/turn.
- Retail package quantity: one piece.
Match connector shape and wire functions
Compare the receiving lamp connector, plug orientation and lead routing before ordering. Match each circuit by function and provide a sound ground connection. A three-wire lamp alone is not enough to establish plug compatibility.
A named lamp connection
United Pacific specifically lists 34216P as a connector option for its 36566 Abyss stop/turn/tail light. Other lamps need their own connector match. This retail 34216P item is distinct from the 34216P50 bulk-pack listing.
Warranty:
Backed by a 6-month warranty for added reliability and peace of mind.
Frequently Asked Questions
Is the plug straight or right-angle?
The 34216P uses a right-angle three-prong male plug. Compare its exit direction with the space behind the lamp before selecting it.
How long are the wires, and what gauge are they?
The insulated leads are 12 inches long and 16 gauge. Check that the route reaches the intended connection without stretching or sharp bends.
What does each wire do?
White is ground, black is tail/clearance and red is stop/turn. Match those functions to the lamp and vehicle circuit rather than relying on an unrelated harness’s wire colours.
Does the ground lead include a terminal?
Yes. The white ground lead has a #10 crimped ring terminal. Use a suitable ground attachment for the actual installation.
Is 34216P supplied as a bulk pack?
This retail item is listed as one piece. United Pacific identifies 34216P50 as a separate 50-pack listing; do not use that quantity for 34216P.
