United Pacific 36367 · Single-colour six-LED Mini light
Six amber LEDs, an amber lens and low/high operation

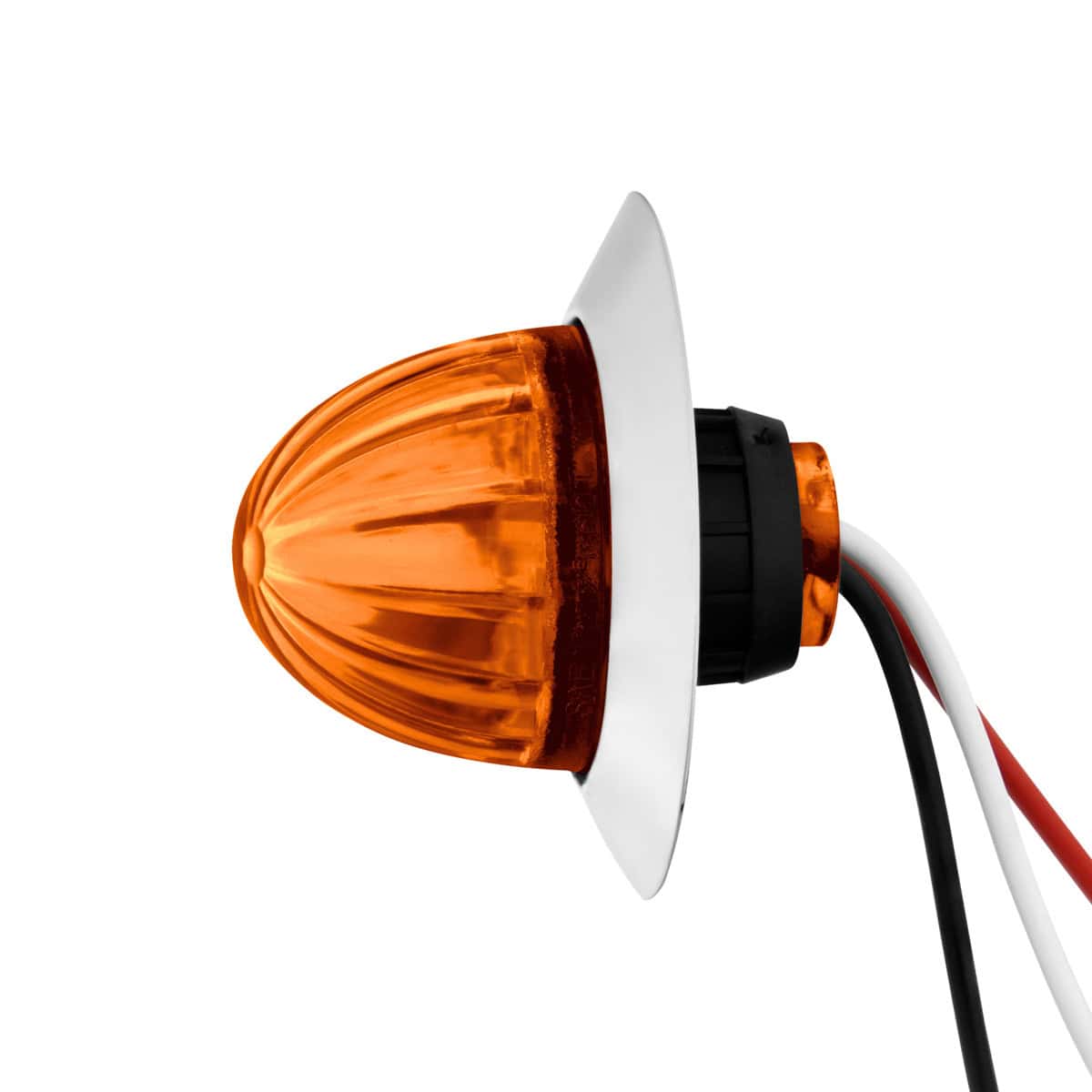

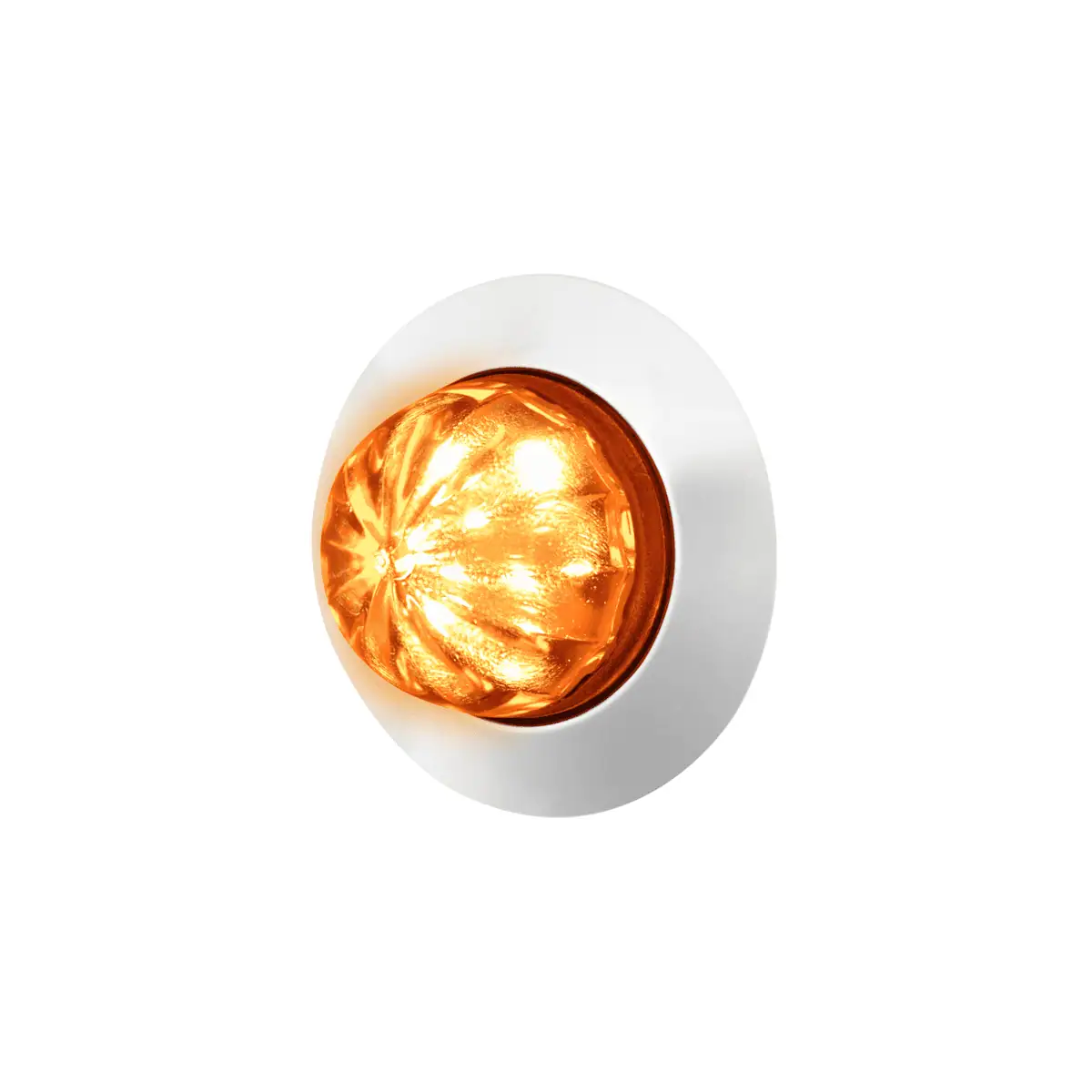

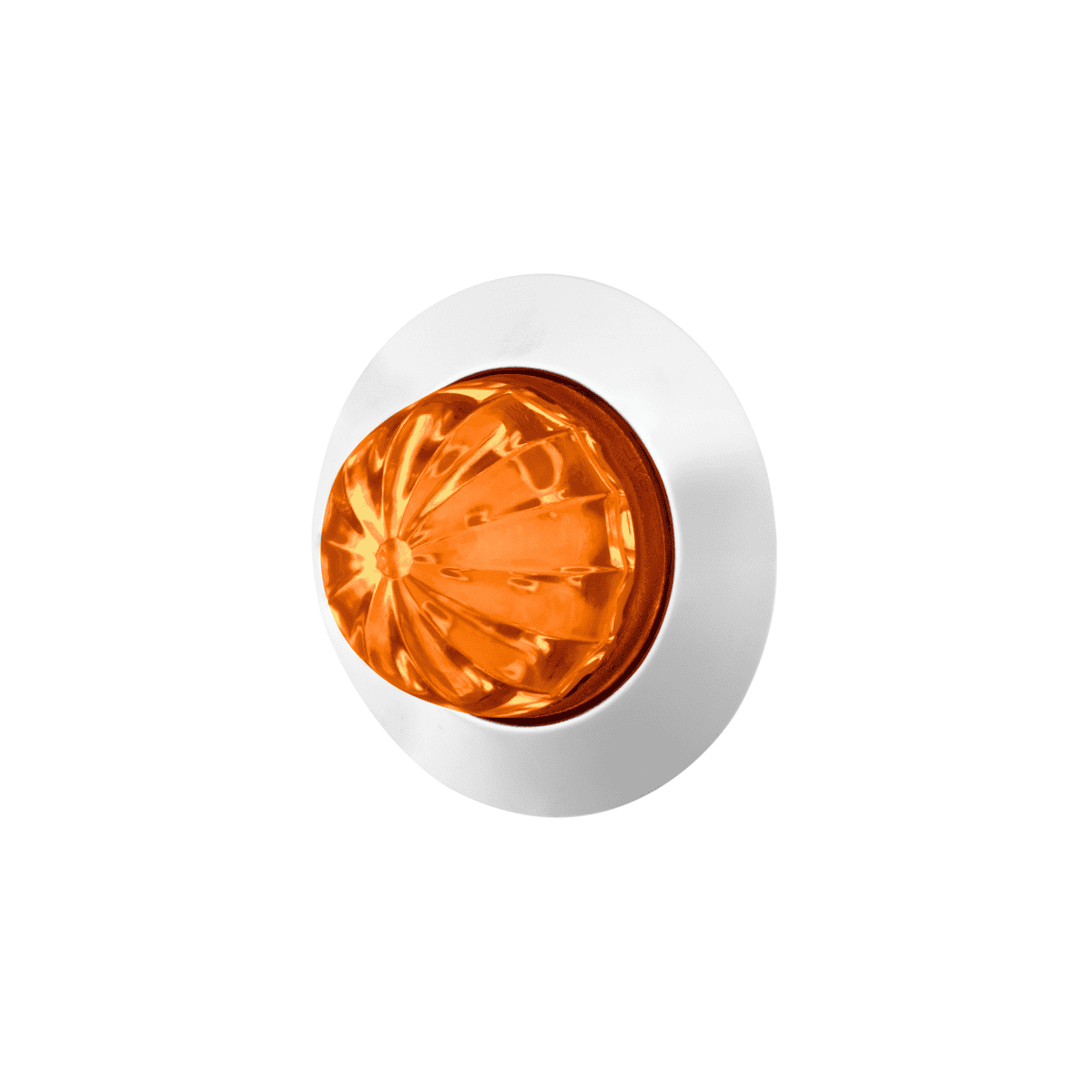

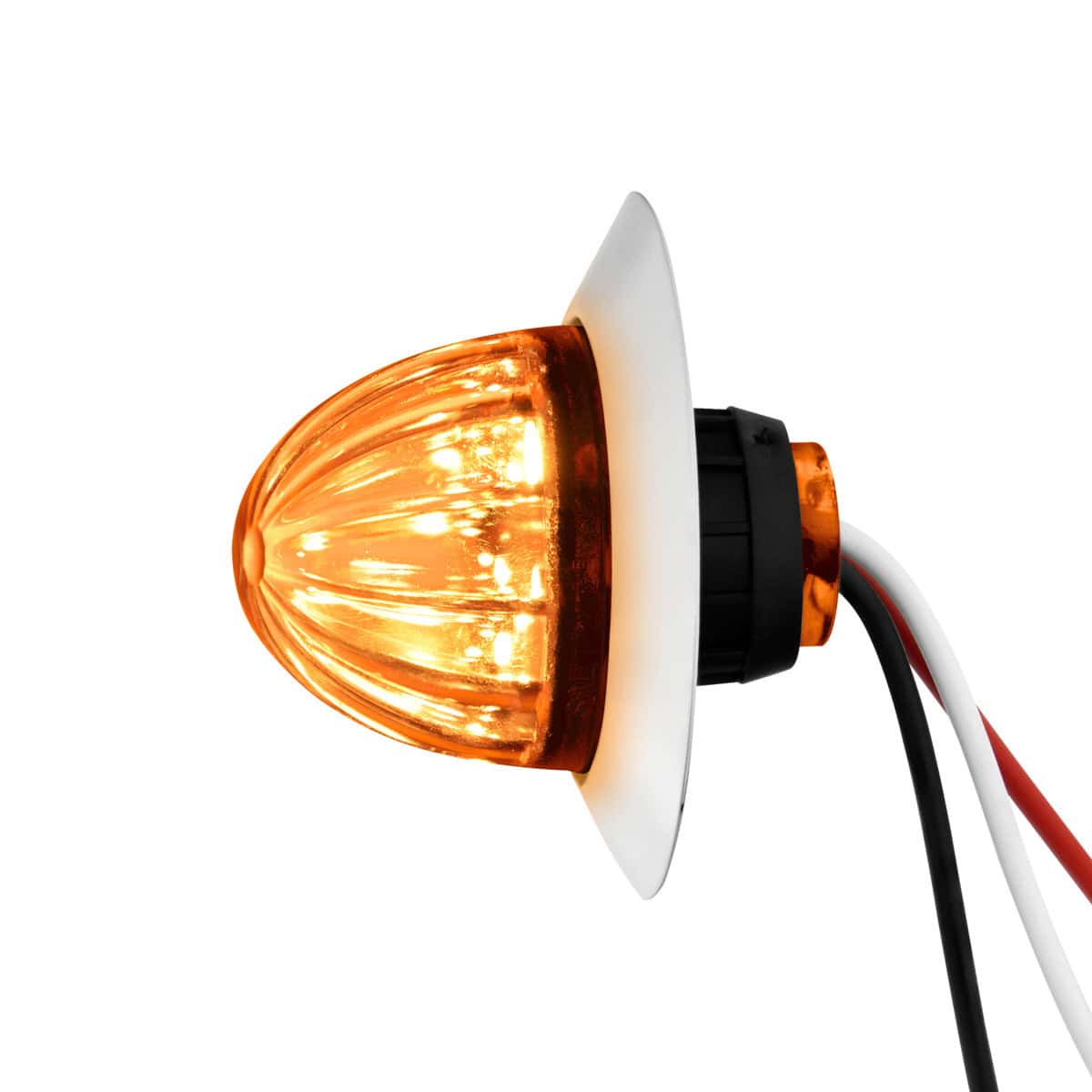

UPI 36367 pairs six amber LEDs with an amber polycarbonate watermelon-style lens and a polished stainless steel bezel. Separate low and high inputs let you wire two brightness functions while keeping the same amber light colour.
Amber LED / amber lens
The LEDs determine the emitted colour. The amber lens describes the lens appearance, including when the light is off.
Single colour, two functions
Separate low and high positive leads provide two brightness functions without changing the LED colour.
3/4-inch grommet mount
The included rubber grommet mounts the light in a 3/4-inch installation hole. Check rear space and wiring access before choosing the mounting position.
Need a separate mount? Compare penny and watermelon-light brackets, then check the exact light’s retention method, bezel and rear clearance against the bracket and mounting location. A matching hole size alone does not confirm fit.
Mounting, power and package details

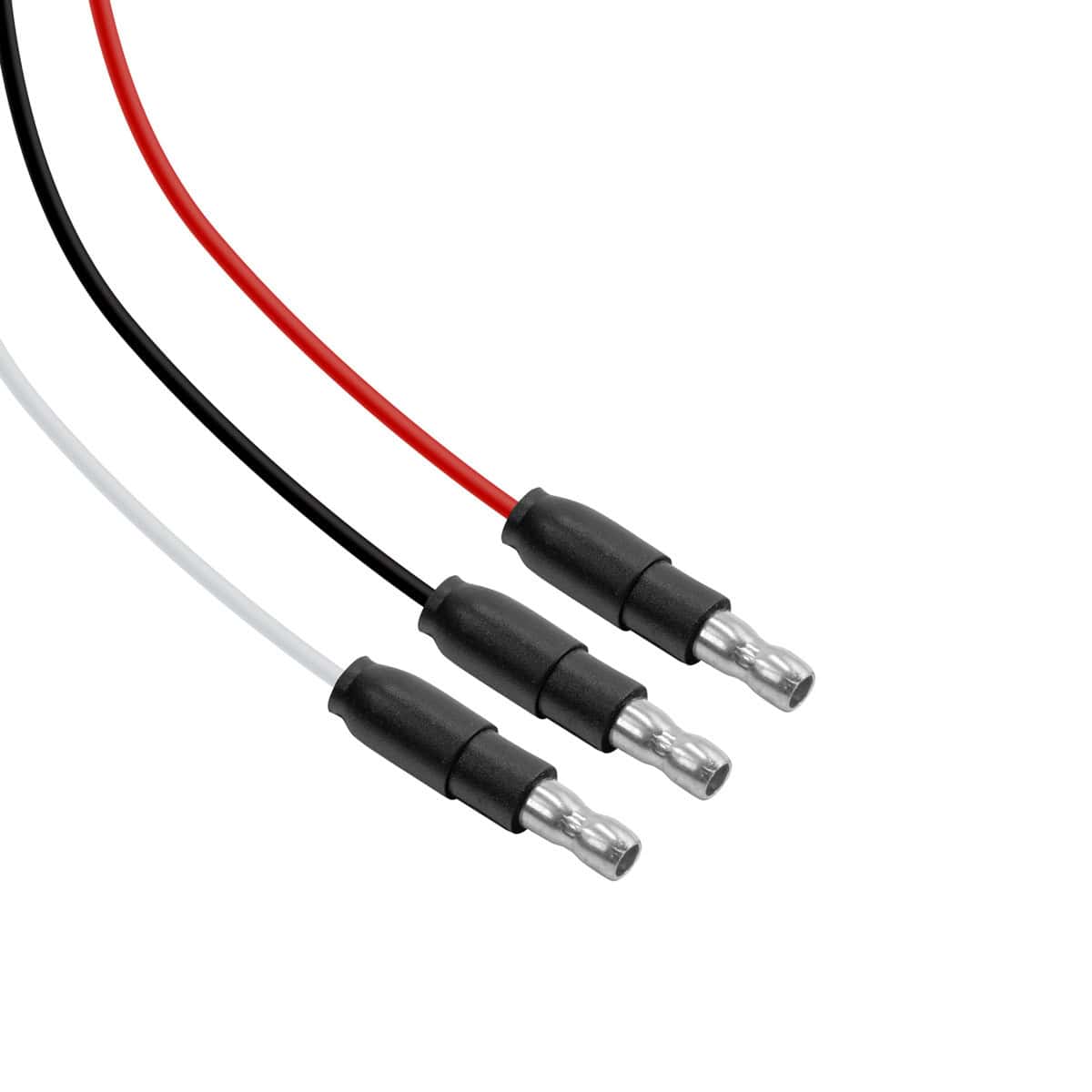

Match the 12V supply and 0.180-inch bullet connectors

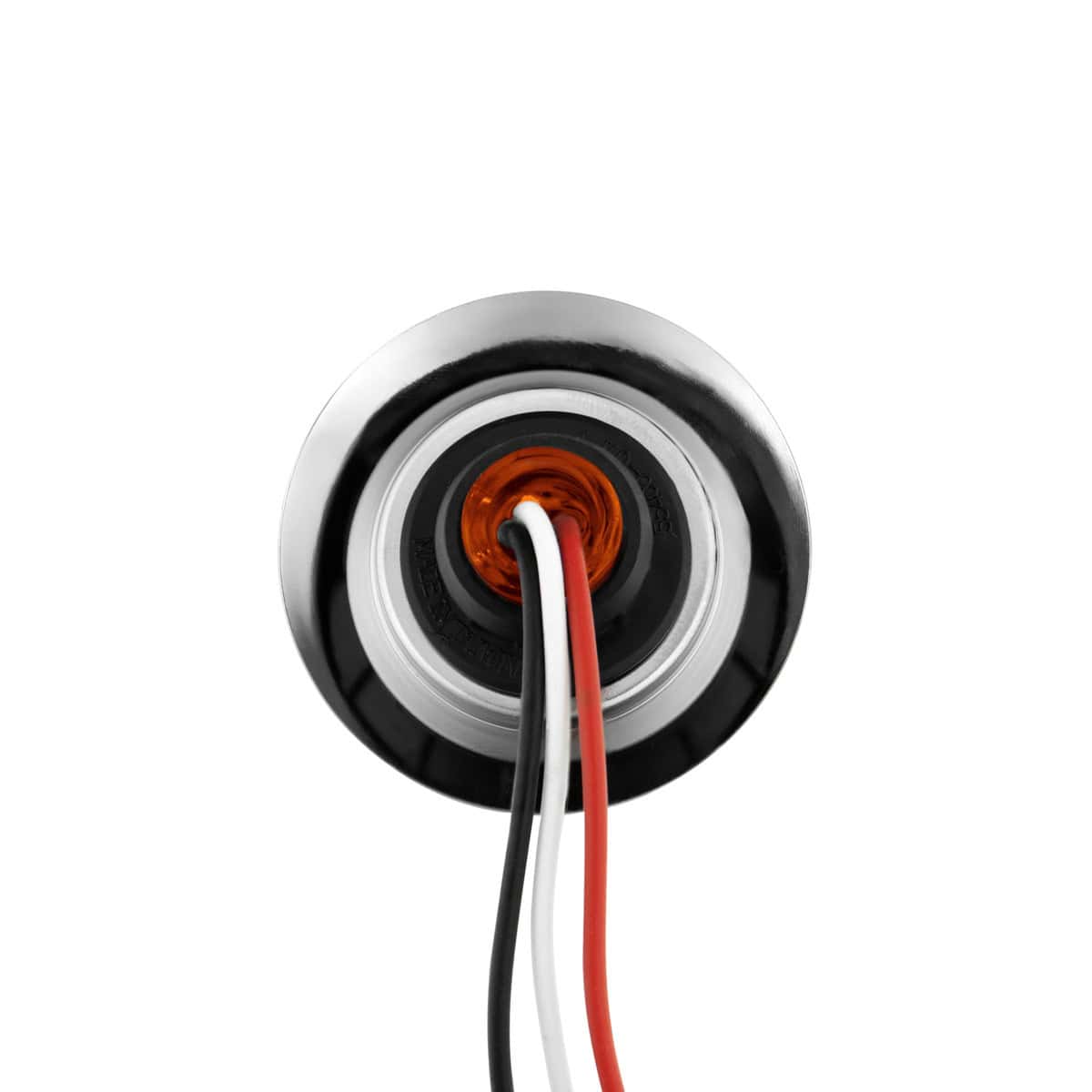

12V low/high wiring
- White: ground
- Black: low-function positive
- Red: high-function positive
- 0.180-inch bullet connectors
Match the supply, intended circuits and mating connectors before connecting the light.
What’s included
- One UPI 36367 six-LED light with amber LEDs, an amber lens and polished stainless steel bezel
- One rubber mounting grommet

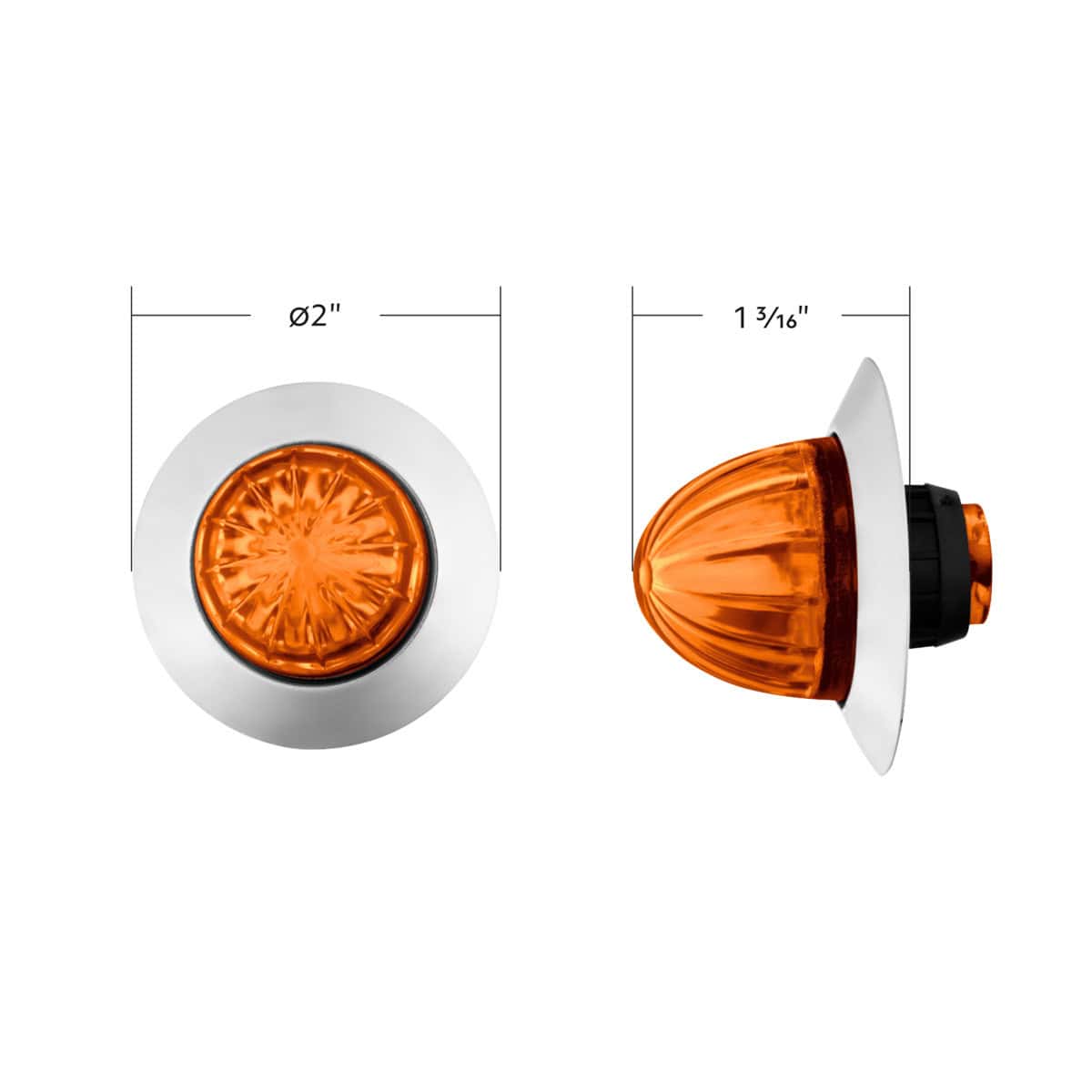

The 3/4-inch figure is the required installation-hole diameter. Check the grommet mount, rear space and wiring access for your installation. The 1-1/4-inch product-name size is not a mounting-hole measurement.
The light has a polycarbonate lens and polished stainless steel bezel. United Pacific describes epoxy sealing to prevent moisture intrusion and an IP67 water-resistant rating.
Choosing a different colour or function? Compare Mini watermelon lights by LED colour, lens colour and function, then check the exact light’s mounting and package details.
Prefer the same amber LED colour with a clear lens? Compare the UPI 36369 amber LED/clear lens 6-LED Mini light. Check that listing’s own availability, package and warranty details.
To compare single-colour low/high operation with two-colour Mini designs, read dual-colour versus dual-function Mini lights.
Before you choose
United Pacific 36367 questions
What size hole is required for installation?
A 3/4" diameter hole is required.
Is this a dual-function light?
Yes. Low and high functions both emit amber light. White is ground, black is the low-function positive lead and red is the high-function positive lead.
What voltage system does it operate on?
It is designed for 12V DC systems.
Is this light waterproof?
United Pacific lists an IP67 water-resistant rating and epoxy-sealed construction for this family.
What material is the bezel made from?
The bezel is made from polished stainless steel.
Warranty
What warranty is included?
This product includes a 3-year warranty.
Warranty: 3-year manufacturer warranty.
