Alpha Series 9004 conversion bundle: product and installation guide

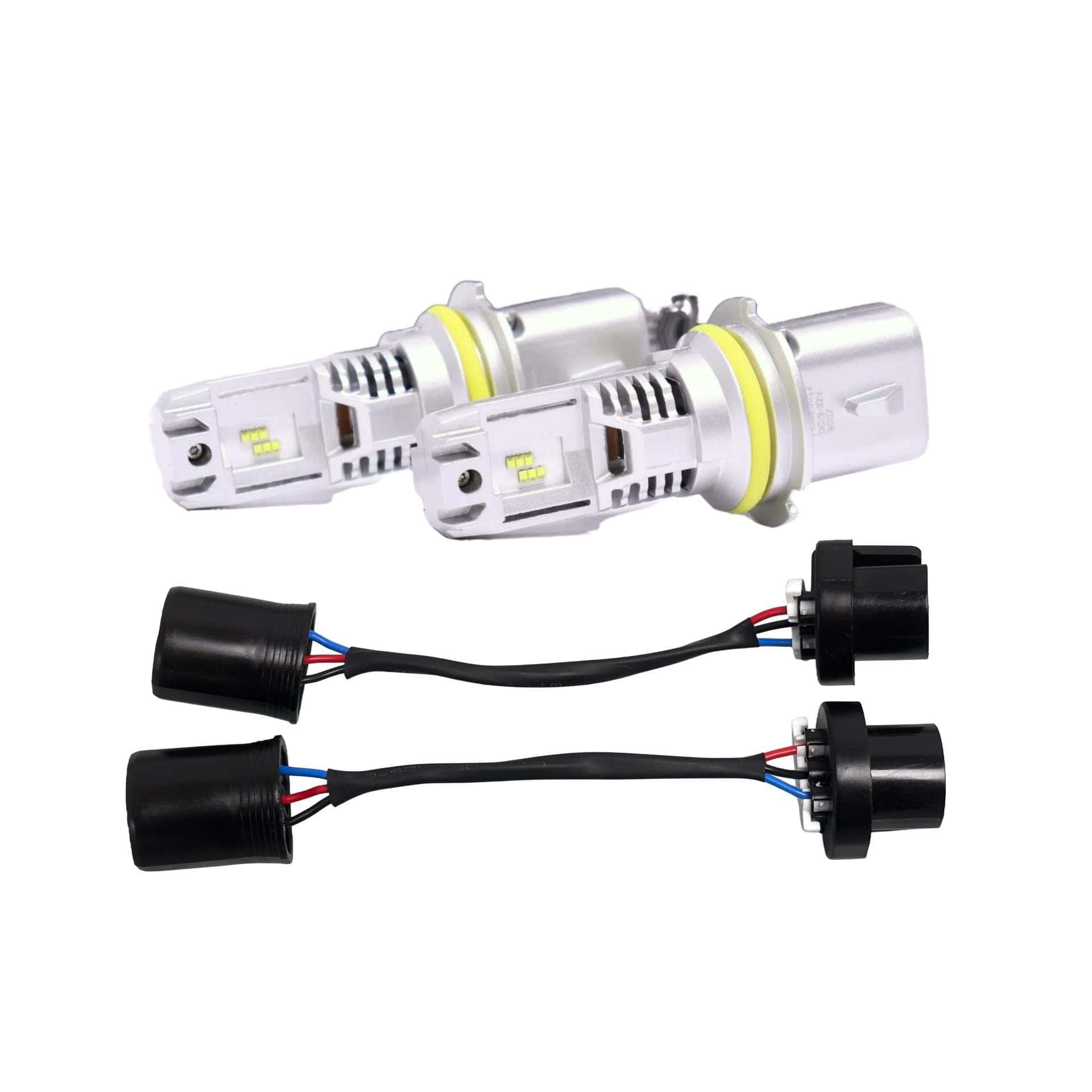

This Alpha Series 9004 conversion bundle contains two A1006 9007 LED bulbs and two ALPHA-9004-ADP conversion adaptors. The adaptors address the 9004-to-9007 connection; they do not remove the bulbs’ double-fan housing restriction or replace a physical fit check.
- Bulb component: A1006: two 9007 LED bulbs

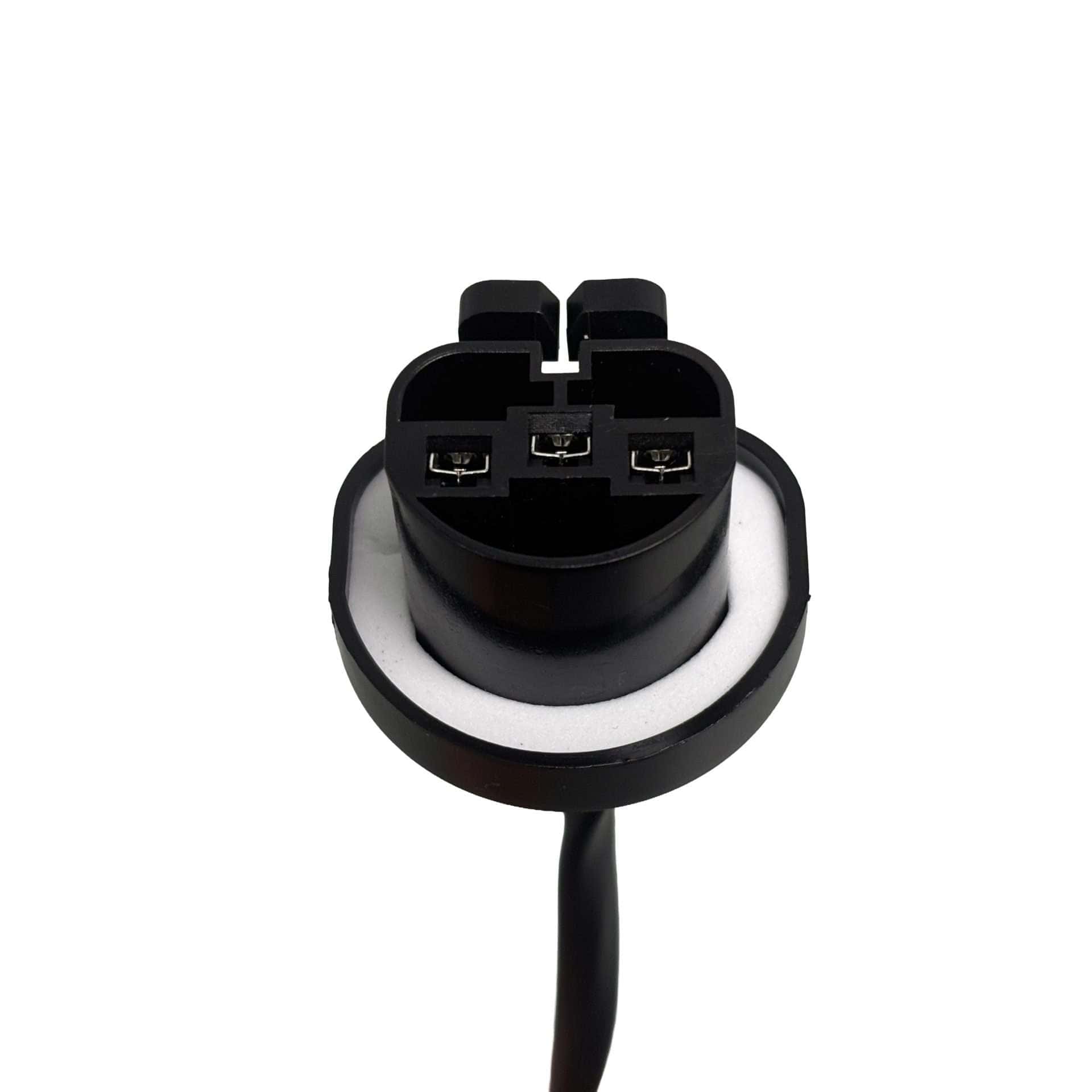

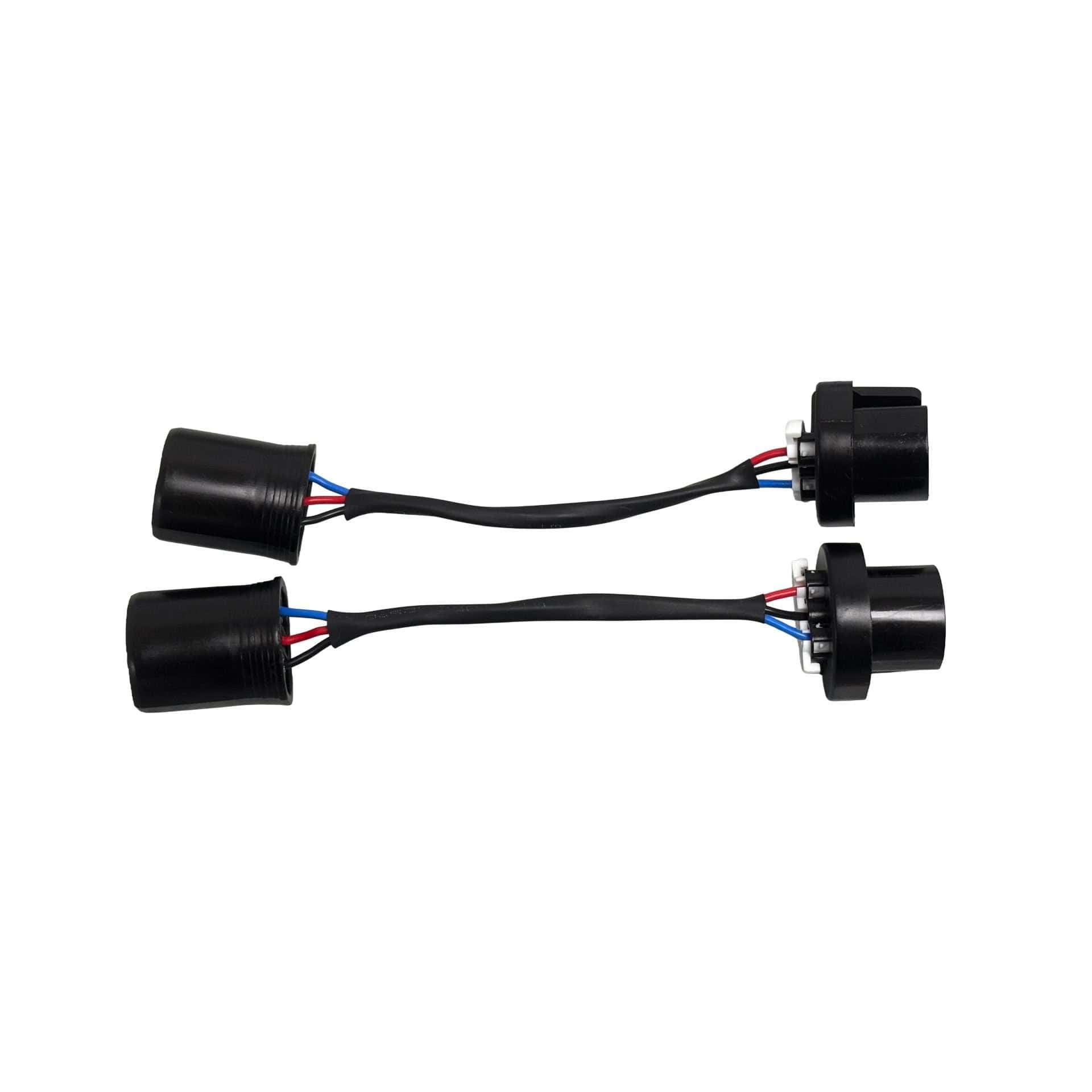

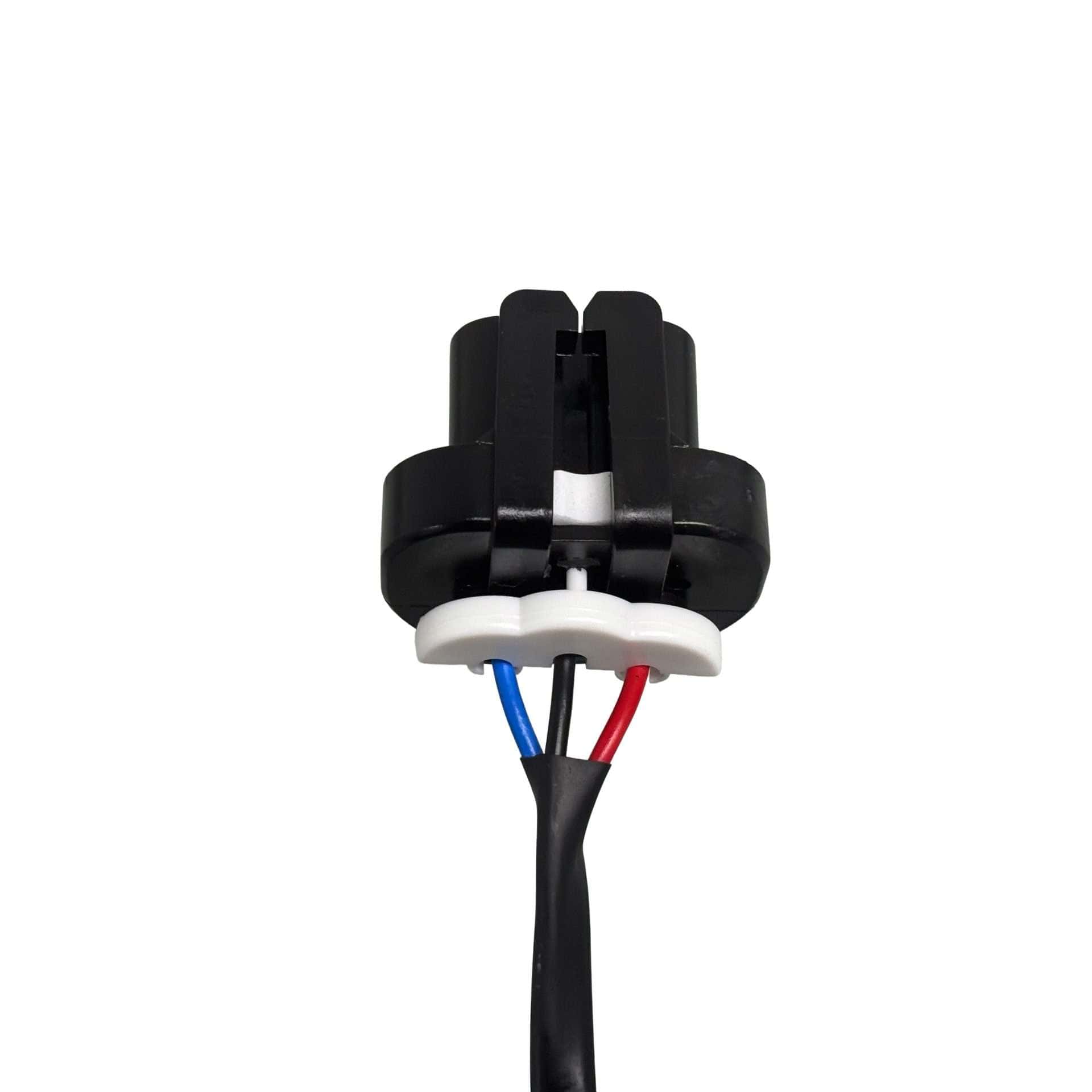

- Adaptor component: ALPHA-9004-ADP: two 9004-to-9007 adaptors
- Colour: 6500K white
- Bulb component output: 5,000 lumens per bulb, as listed for A1006
- Listed input: 9–32V
- Housing restriction: Double-fan A1006 bulbs are not compatible with standard universal housings; check measurements
Compare the installed bulb marking, connector, retainer and available space before removing the original lamp. Test the appropriate lighting functions and check the final beam aim after fitting. A bulb-base match alone does not establish suitability for every housing or lighting circuit.
Frequently Asked Questions
Does this bundle contain dedicated 9004 bulbs?
It contains two A1006 9007 LED bulbs plus two 9004-to-9007 conversion adaptors. The bundle components identify the bulb and adaptor separately.
Will the adaptors make the bulbs fit a standard universal housing?
No. The included A1006 bulb has a double-fan design and an explicit exclusion for standard universal housings. The adaptor changes the electrical connection, not the physical dimensions or housing clearance.
Are the adaptor quantities included or do I buy them separately?
The bundle contains one A1006 bulb-pair component and one ALPHA-9004-ADP adaptor-pair component: two bulbs and two adaptors in total.
Does the adaptor itself increase light output?
No output increase is established by the adaptor. Light output belongs to the bulb specification; mounting, the lamp’s optics and final aim determine the installed result.
What white-light colour does this exact product use?
This exact listing specifies 6500K white light. Match the SKU and product generation when replacing a bulb; another Alpha Series product can use a different colour specification.
Does this bulb product replace a complete factory LED headlight?
It is intended for a compatible serviceable-bulb application. A factory LED assembly can have integrated electronics and light sources that do not use a replaceable bulb of this type. Inspect the installed equipment first.
Will these bulbs prevent every dashboard warning or flicker?
Results depend on the actual lighting circuit and connections. Diagnose any warning or flicker before selecting an additional module, and check the physical lamp application separately.
What warranty applies to this exact Alpha Series product?
This product carries a lifetime limited warranty. The existing terms and exclusions for the purchased SKU apply.
