Diode Dynamics 9006/9012 SL2 LED Bulbs – Powerful Output with a Clean, Compact Fit
Upgrade your fog lights with the Diode Dynamics 9006/9012 SL2 LED Bulbs – delivering 1400 lumens of measured brightness per bulb, with industry-leading optical focus, thermal performance, and long-term reliability. Engineered with a fanless, fully-integrated design, the SL2 is a direct plug-and-play replacement for halogen 9006 bulbs and is available in 6000K Cool White or 3000K Selective Yellow.
Key Features:
✔ True 1400-Lumen Output
-
Significant brightness upgrade over stock halogen bulbs.
-
Engineered optical focus preserves beam pattern, avoids glare, and improves down-road visibility.

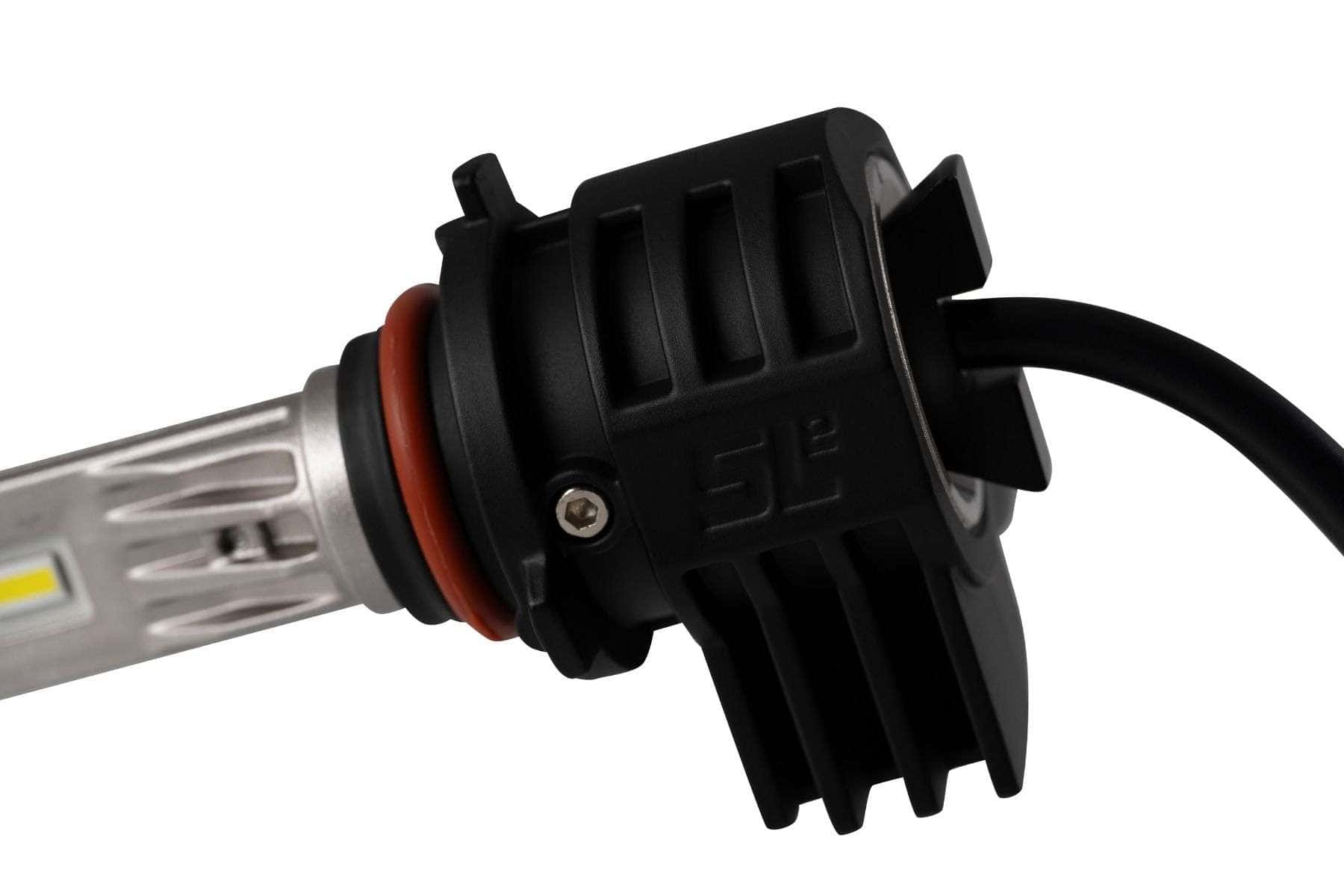

✔ Fanless, Fully-Integrated Design
-
No external drivers or wiring to hide—just a clean, compact bulb that fits right into your housing.
-
Copper-core PCB and aluminum housing allow for efficient passive cooling without noise.
✔ Choose White or Yellow Output
-
6000K Cool White for a modern, OEM-style appearance.
-
3000K Selective Yellow enhances contrast in fog, rain, or snow.
-
Both use multi-die automotive-grade LED emitters for consistent, high-quality performance.

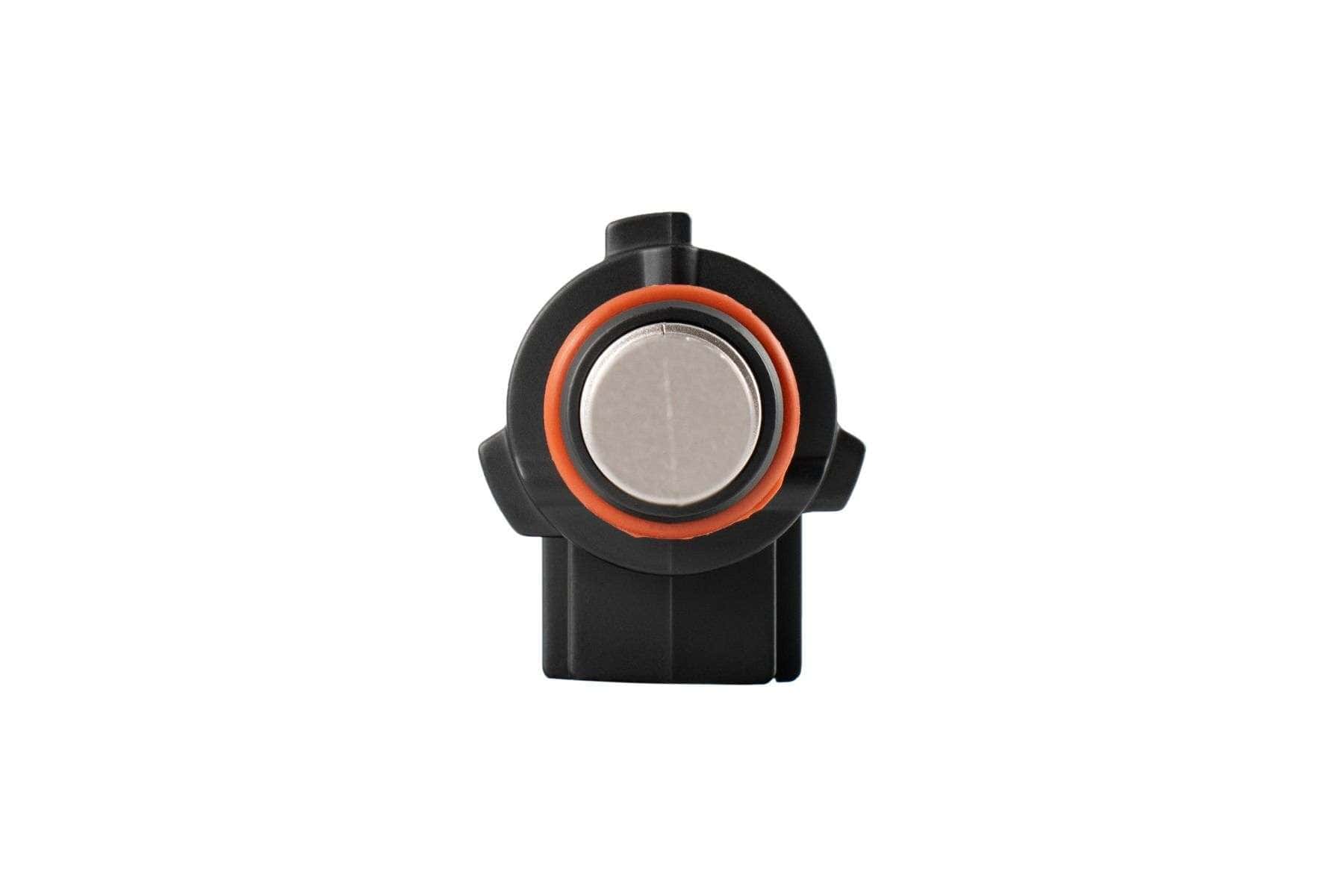

✔ Compact, Plug-and-Play Installation
-
Direct-fit for 9006/9012 sockets—no modifications required.
-
Polarity-specific plug ensures proper connection and operation.
✔ Tested for Durability
-
Built to handle harsh conditions, from -40°F to 185°F.
-
SAE J575 durability tested, and compatible with up to 30V electrical systems.
-
Backed by a Limited Lifetime Warranty for worry-free ownership.

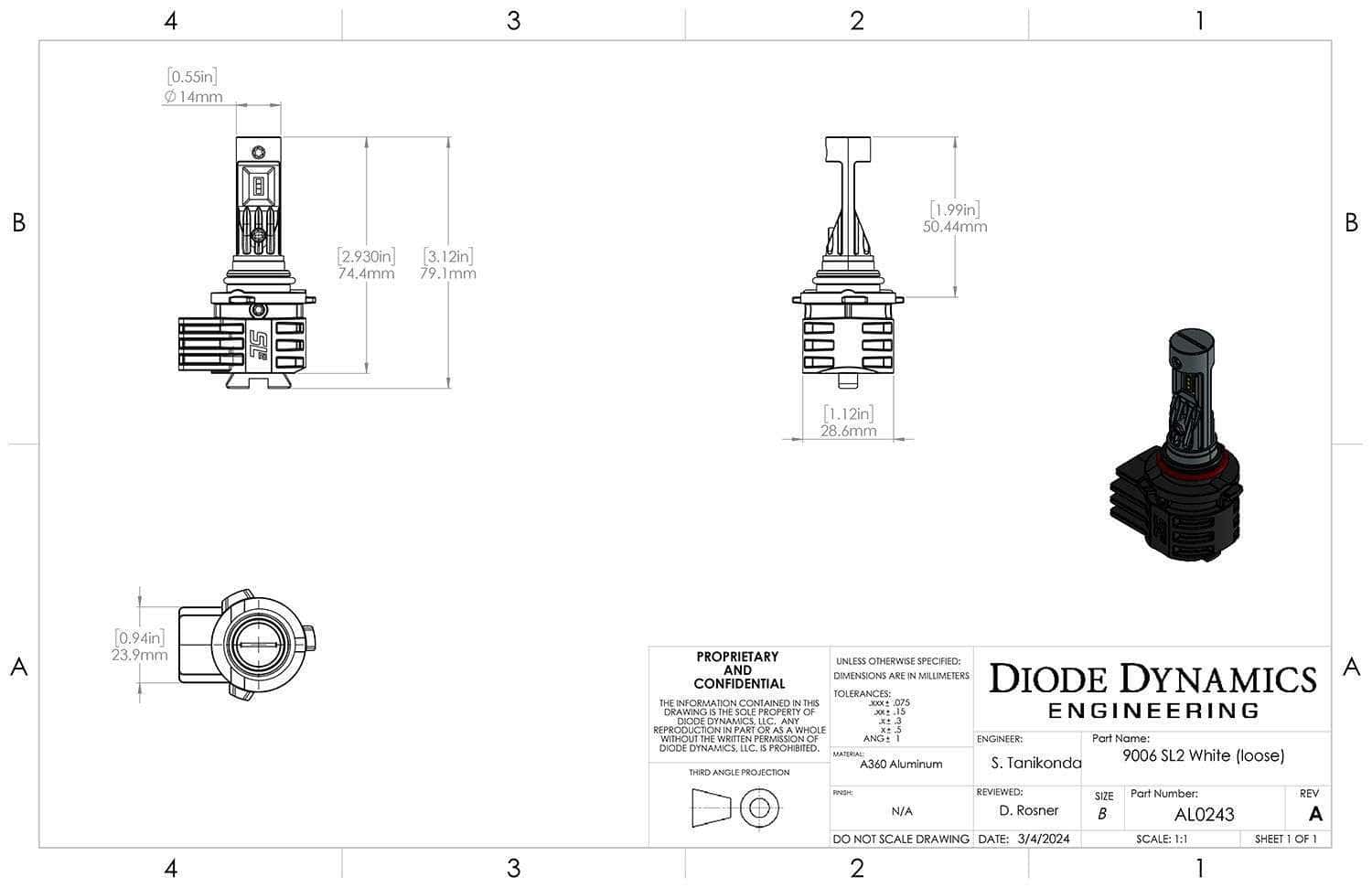

Specifications:
-
Bulb Size: 9006/9012
-
Output: 1400 lumens (per bulb, measured)
-
Color Temperatures: 6000K (Cool White), 3000K (Selective Yellow)
-
Power Draw: 14W
-
Voltage Range: 9–30V
-
Current Draw: 1.1A @ 12.8V
-
Polarity: Polarity-specific
-
LED Type: Multi-Die Automotive Emitters
-
Cooling: Fanless passive heatsink
-
Construction: Copper PCB, Die-Cast A360 Aluminum
-
Operating Temp: -40°C to 85°C (-40°F to 185°F)
-
Driver Features: Internal, Constant Current, Transient Protection
-
Compliance: SAE J575 Durability Test
-
DRL Function: Operates at full brightness
-
Quantity: Pair (2 bulbs)
-
Warranty: Limited Lifetime Warranty
Application Notice:
The 9006/9012 SL2 LED is legal for fog light use only in the USA and not DOT-compliant for headlight applications. It is legal for off-road, motorsport, ATV, and snowmobile use. Please check your local laws for compliance.
