Diode Dynamics 9006/9012 SL2 Pro LED Bulbs – Maximum Performance with Next-Gen TST Technology
Take your vehicle’s lighting to the next level with the Diode Dynamics 9006/9012 SL2 Pro LED Bulbs—featuring 2400 lumens per bulb, cutting-edge TST LED technology, and a fully-integrated, wire-free design. Engineered for unmatched thermal efficiency, precision optical focus, and long-term durability, the SL2 Pro delivers high-performance lighting in a compact, plug-and-play package.
Key Features:
✔ Industry-Leading Light Output
-

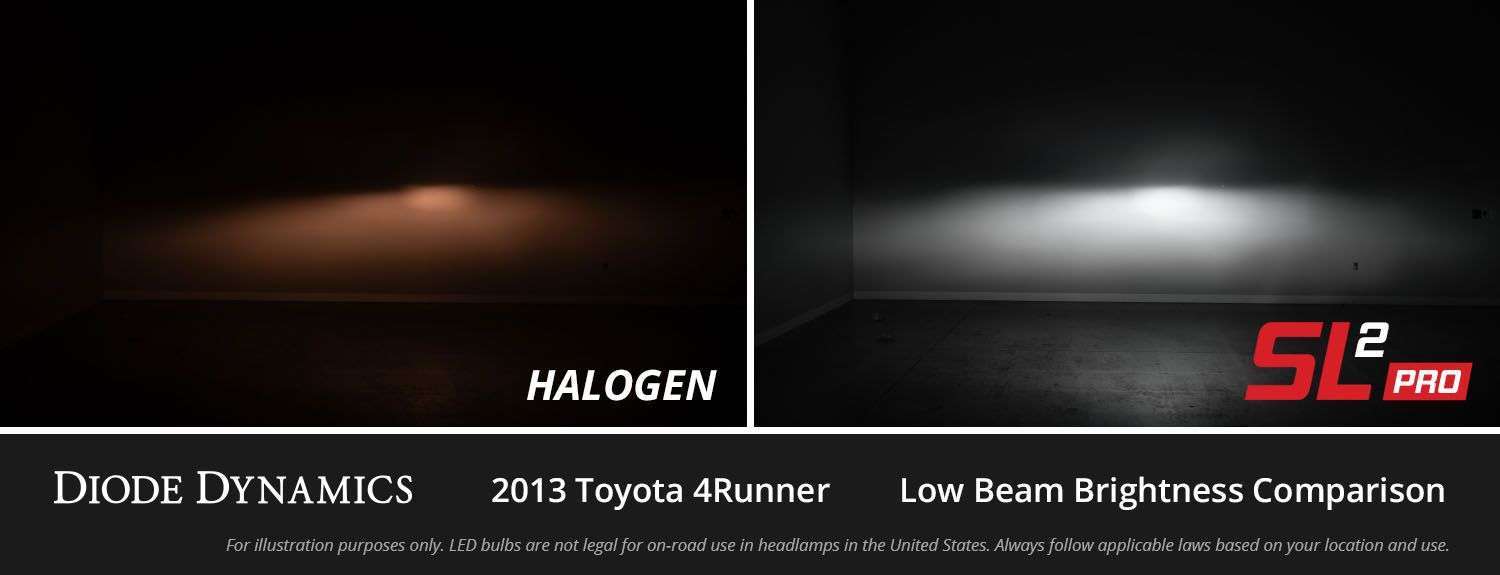

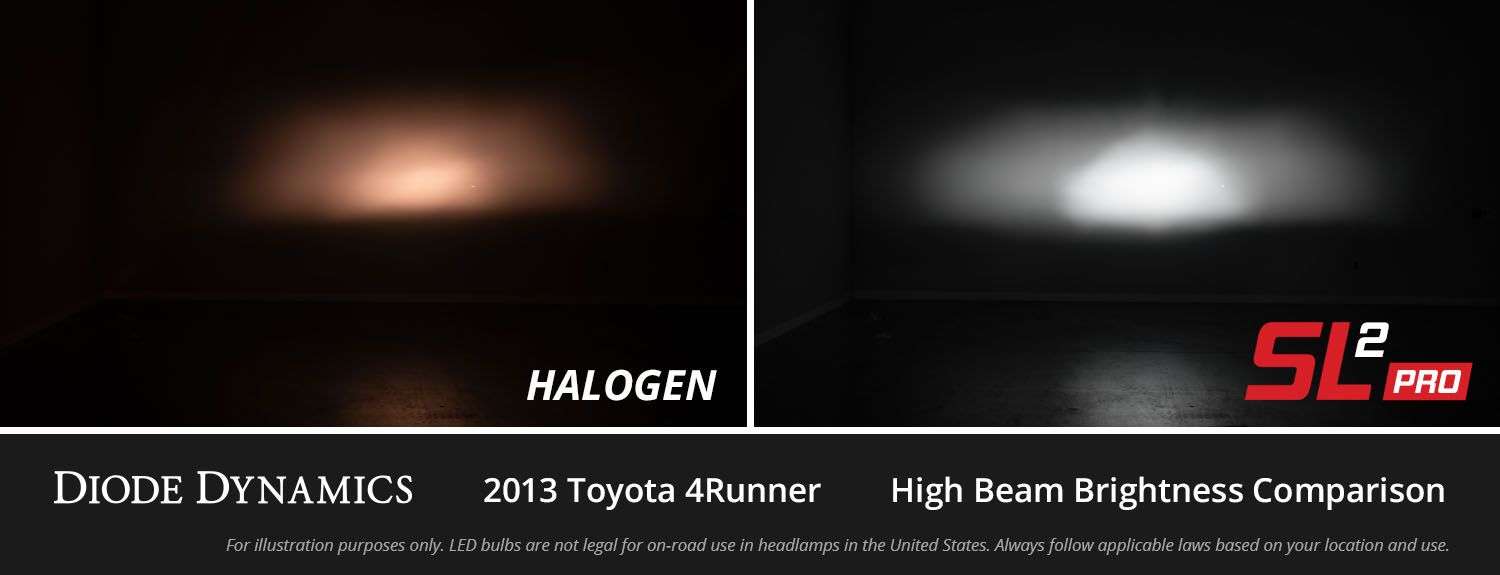

Produces a true 2400 lumens per bulb for dramatic brightness and visibility improvement.
-
Maintains OEM-style beam pattern with no added glare thanks to precision optical focus.
✔ Next-Generation TST LED Technology
-

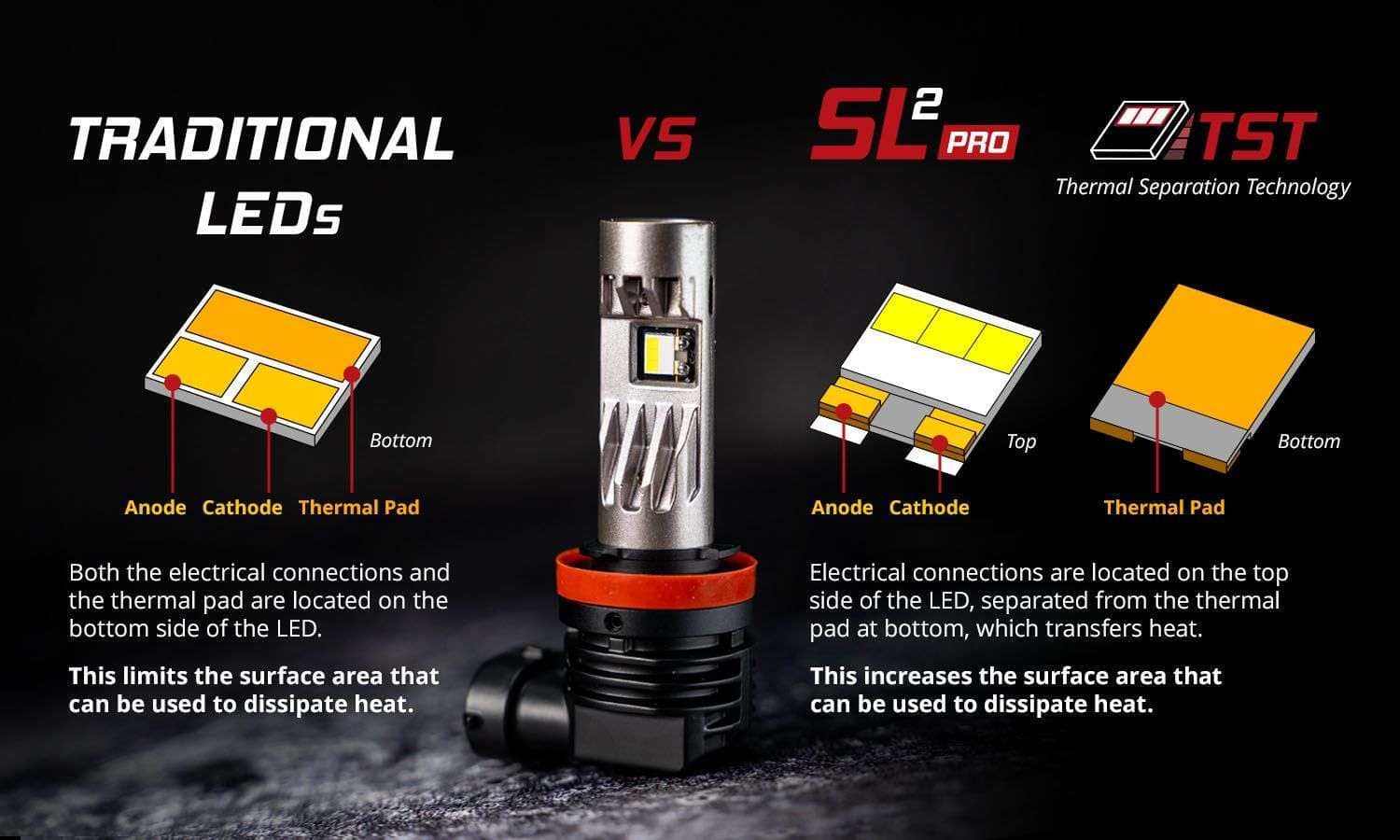

Thermal Separation Technology (TST) allows higher power levels without overheating.
-
Top-mounted electrical design improves heat dissipation directly from the LED base.
✔ Fully Integrated & Compact Design
-
No external wiring or drivers—just a direct plug-and-play replacement for 9006/9012 halogen bulbs.
-
Adjustable locking collar ensures proper alignment in any housing configuration.
-
Compact fitment ideal for tight spaces, with no extra components to hide.
✔ Internal Cooling for Long-Term Reliability
-

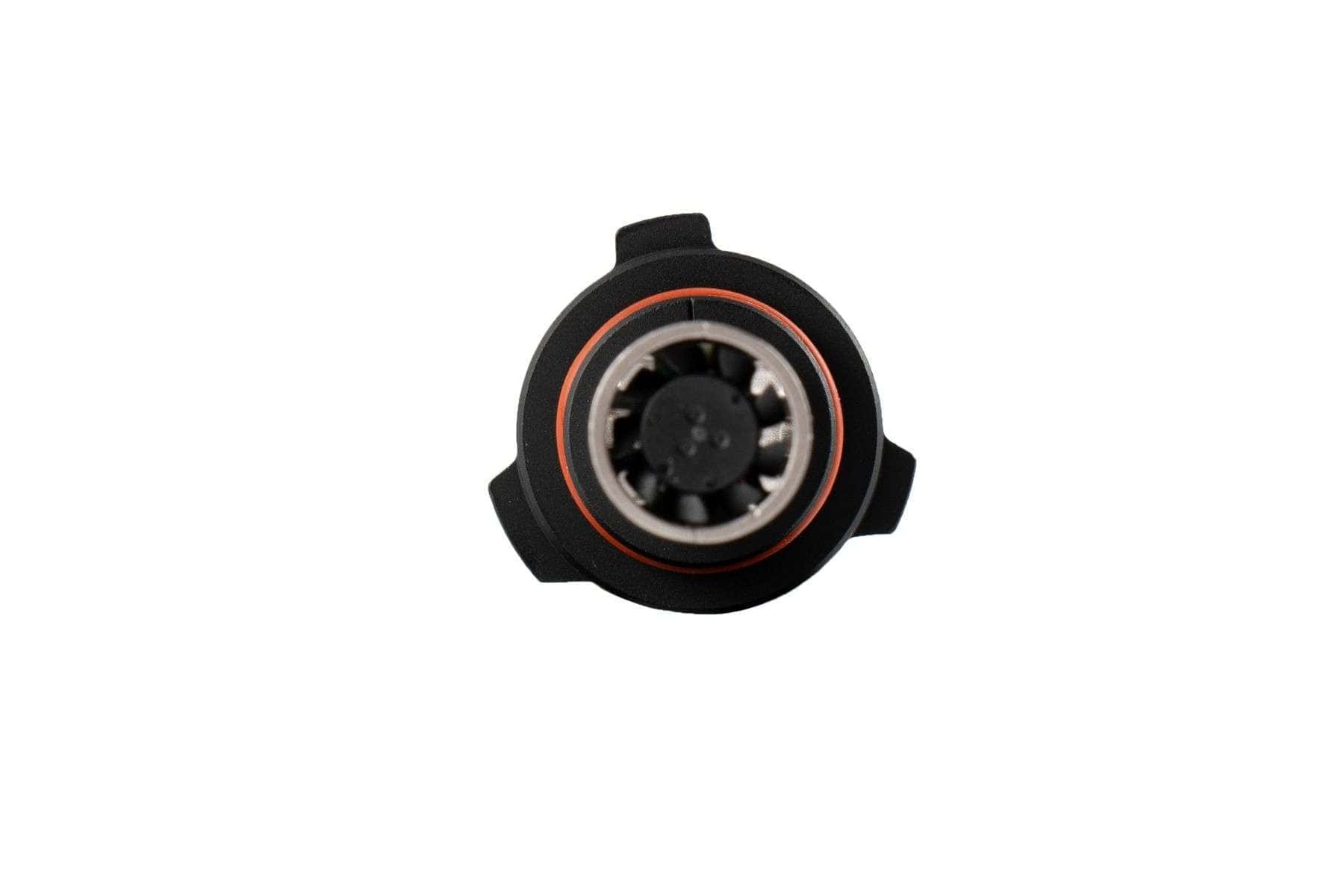

Features a sealed, top-mounted cooling fan for maximum efficiency and minimal maintenance.
-
Integrated cooling system placed directly at the heat source (the LEDs) for superior thermal control.
✔ Built for Harsh Environments
-
Tested through extreme thermal cycles (-40°F to 185°F) and environmental durability standards (SAE J575).
-
Equipped with transient protection to guard against electrical surges and spikes.
-
Compatible with electrical systems up to 30V.
✔ Lifetime Warranty & Made in the USA
-
Designed, engineered, and tested in the USA for superior quality and performance.
-
Backed by an industry-leading Limited Lifetime Warranty and a 30-Day Satisfaction Guarantee.
Specifications:
-
Bulb Size: 9006/9012
-
Output: 2400 lumens (per bulb)
-
Color Temperature: 6000K Cool White
-
Power Draw: 22W
-
Voltage Range: 9–30V
-
Current Draw: 1.7A @ 12.8V
-
Polarity: Polarity-specific
-
LED Type: Automotive-grade TST LED
-
Cooling: Integrated top-mounted fan
-
Construction: Copper PCB, Die-Cast A360 Aluminum
-
Operating Temp: -40°C to 85°C (-40°F to 185°F)
-
Connector: OEM-size Plug and Play
-
Compliance: SAE J575 Durability Test
-
DRL Function: Operates at full brightness
-
Quantity: Pair (2 bulbs)
-
Warranty: Limited Lifetime
Important Legal Notice:
The SL2 Pro is legal for fog light use only in the USA. Not DOT-compliant for headlight applications. Ideal for off-road, motorsport, ATV, and UTV use. Always check local laws for compliance.
