DIODE DYNAMICS · 2019–2024 RAM 1500
Four compact fog pods. Two factory fog pockets.

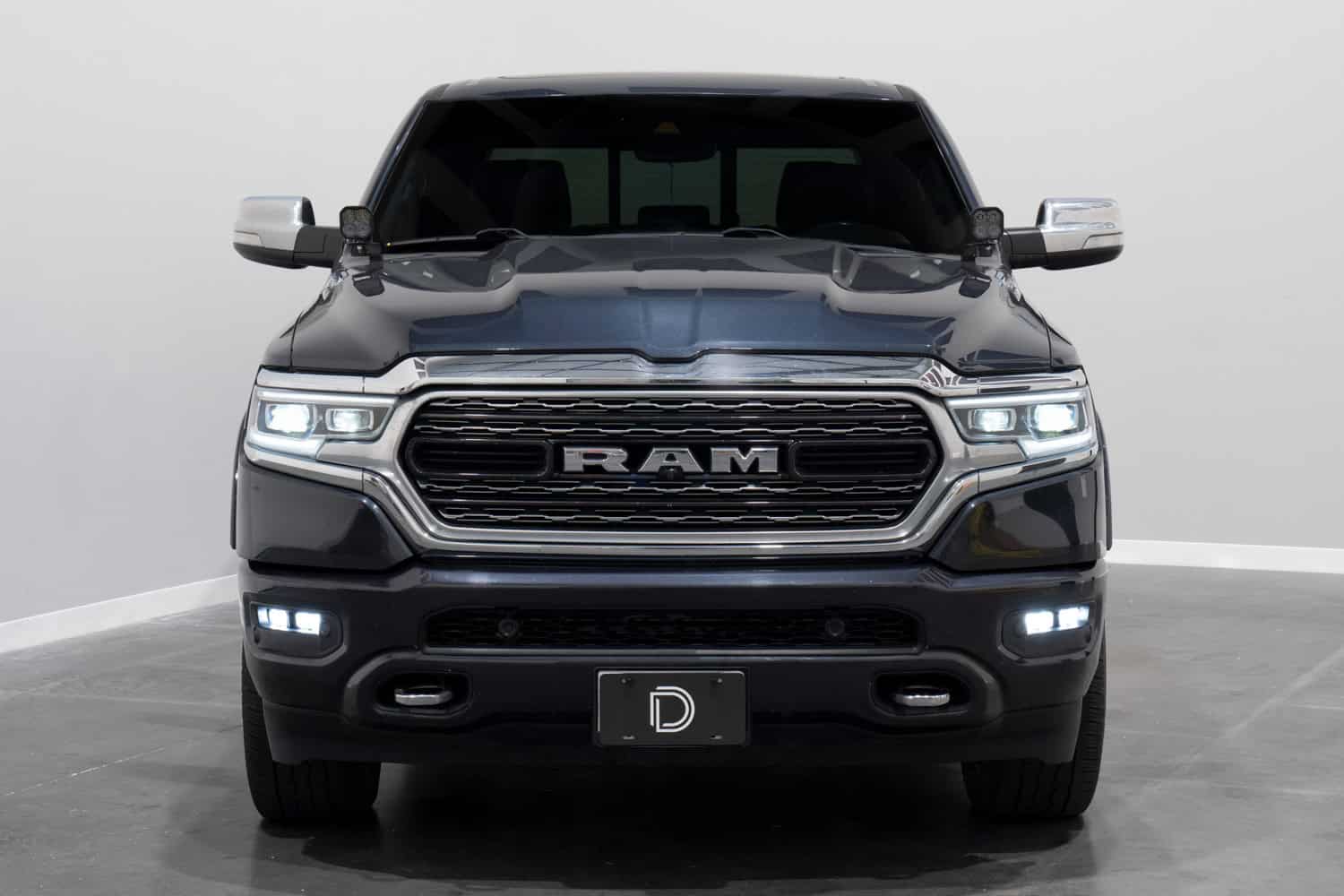

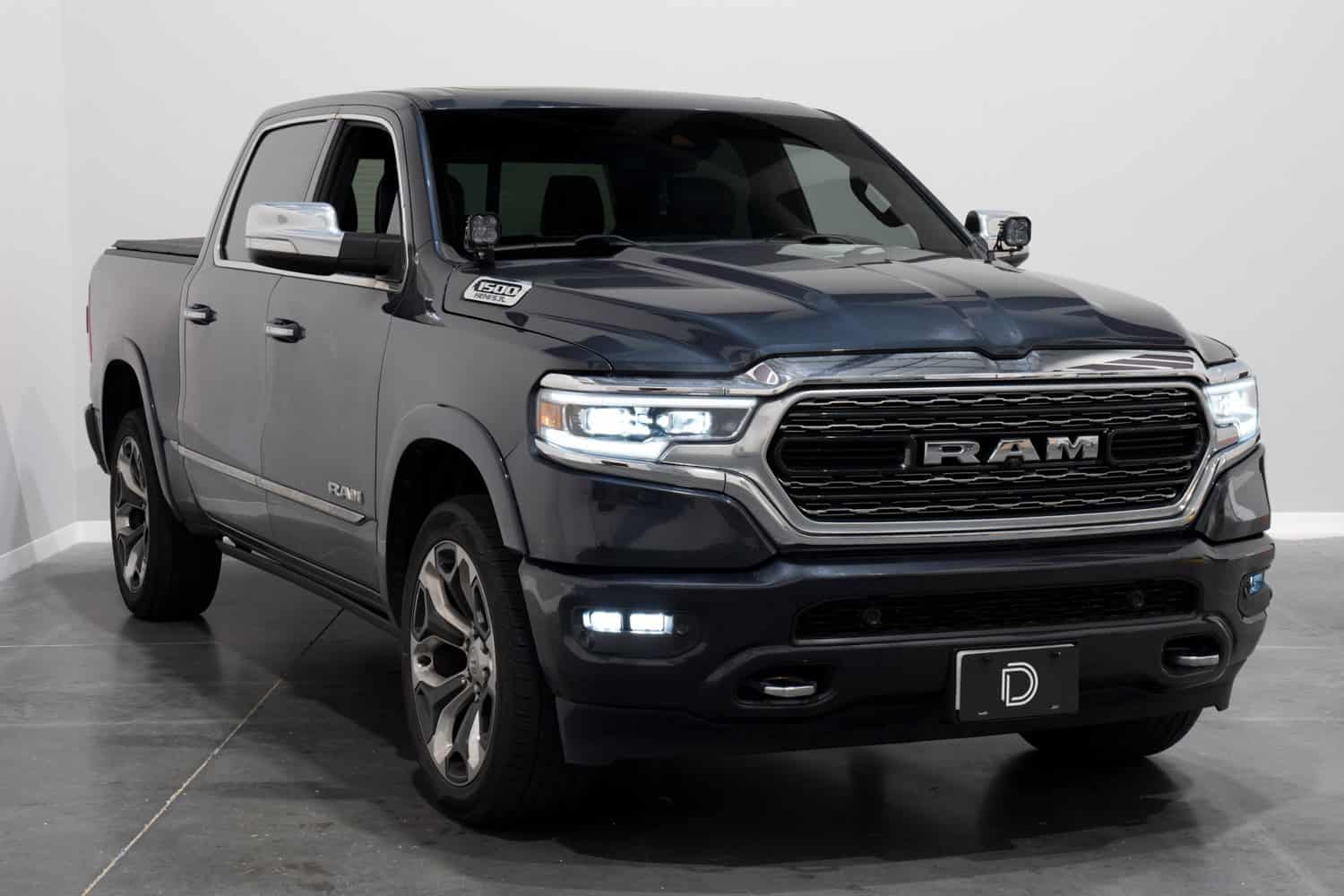

Replace the factory fog-light output with two SSC2 Sport pods per side, neatly mounted in the original fog-light pockets. Choose White or Yellow fog output and use the separate Amber accent backlight when wired as instructed.
- FOUR SSC2 PODSTwo per side
- SPORT OUTPUTWhite or Yellow fog
- FACTORY POCKETSReuses the housings
- AMBERSeparate accent backlight
PURPOSEFUL LIGHTING
A kit built around the job
Purpose-built fog optics
The fog pattern places useful light low and wide. Correct installation and aiming matter more than simply adding more lamps.
Four pods, one matched kit

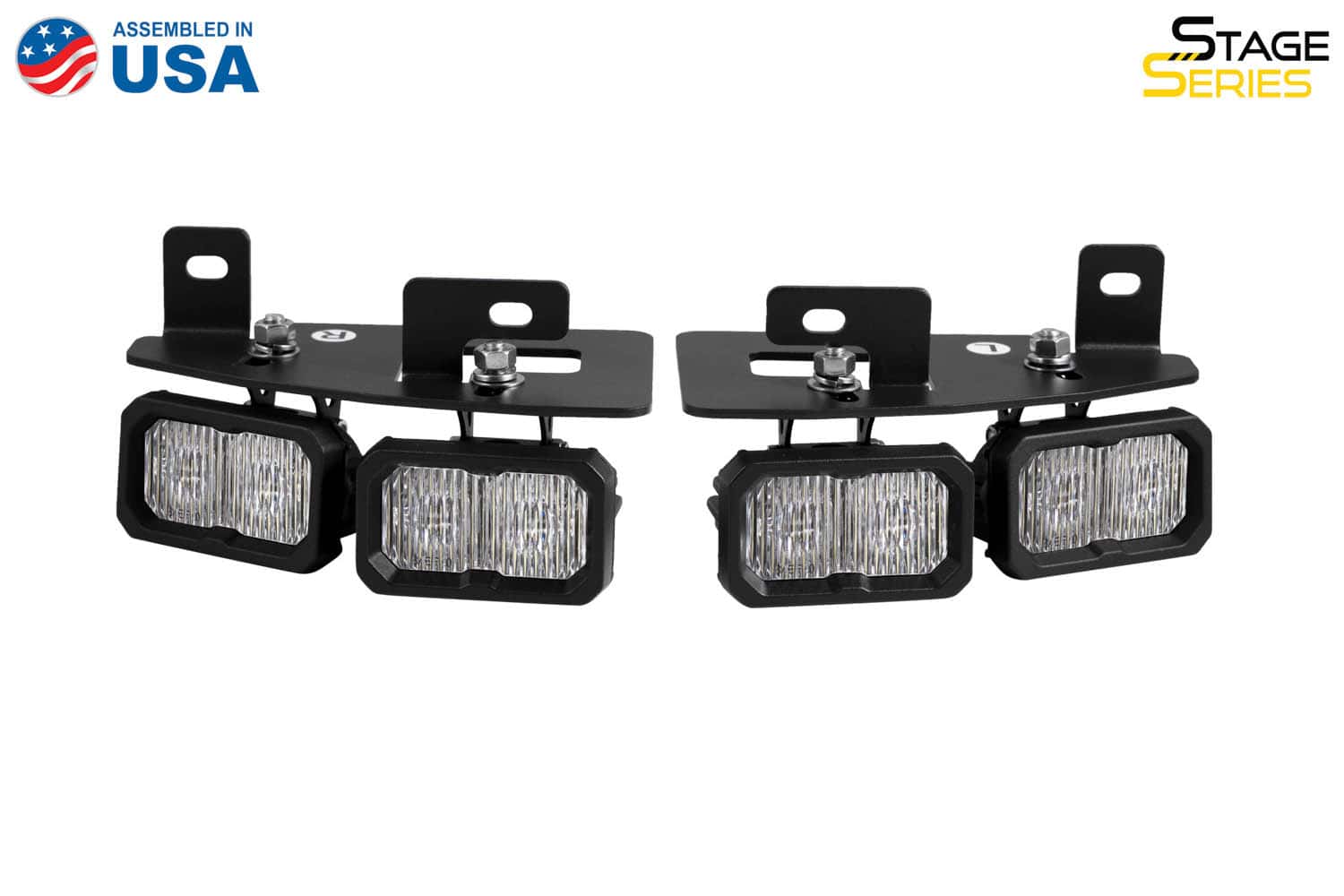

The two brackets each carry two SSC2 pods. The supplied splitter harnesses and H11 adapters connect the four lamps to the compatible factory fog-light wiring.
Main beam and backlight are different

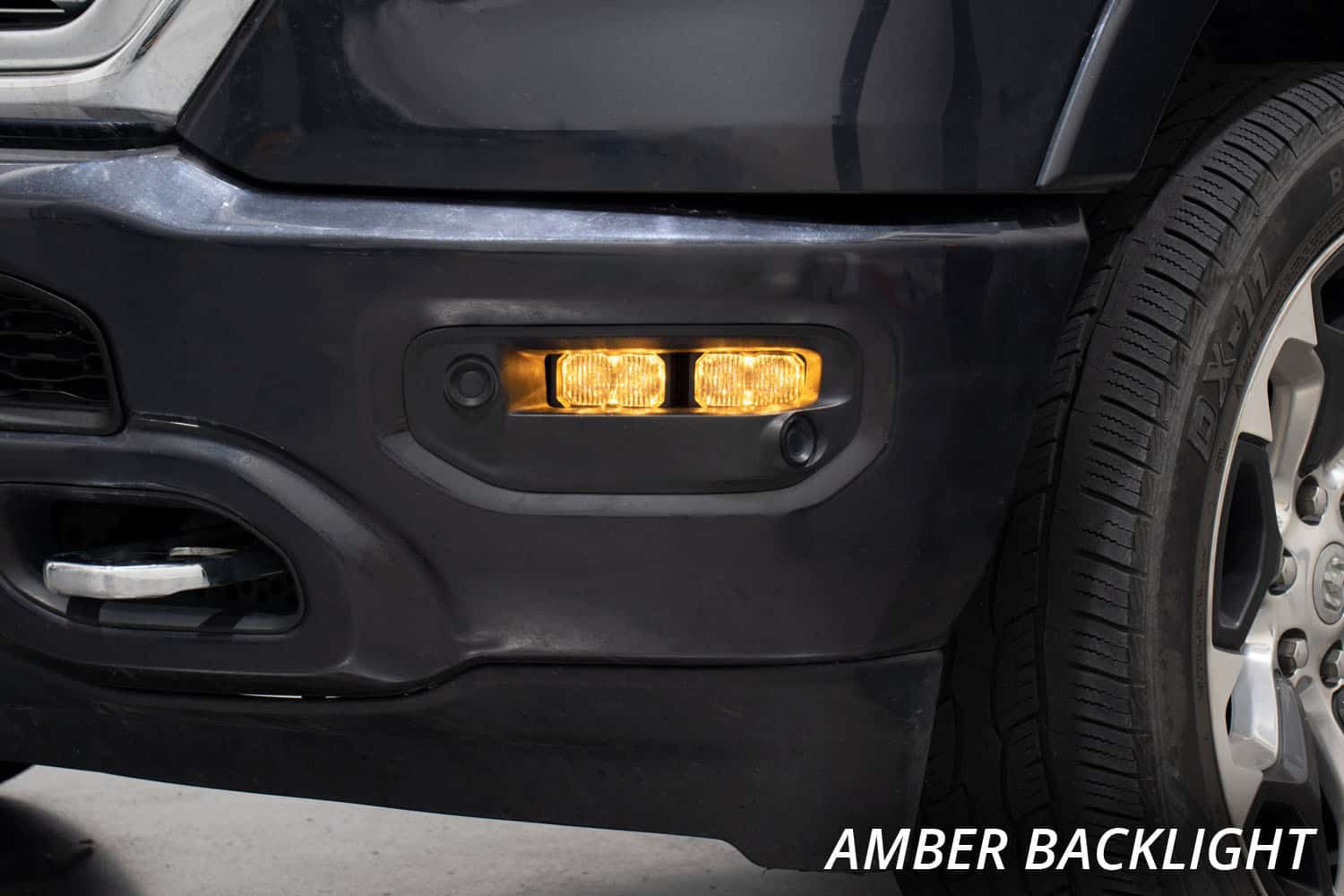

Select a fixed White or Yellow main fog beam. The Amber accent backlight is separate; these are not White/Amber switchback fog lamps.
CHECK THE VEHICLE FIRST
Exact fitment and mounting
| Check | This kit |
|---|---|
| Vehicle | 2019–2024 Ram 1500 with compatible factory fog lights. |
| Excluded factory equipment | Big Horn/Tradesman halogen fog lights; trucks with no factory fog lights. |
| Mounting | Two pods per side, using DD7621P brackets and retained factory fog housings. |
| Exact family | DD7622/DD7623 SSC2 Sport. No Pro or C2 2.0 generation substitution claimed. |
| Later years and other models | No expansion to later model years, Classic, 2500 or 3500 without exact confirmation. |
MATCH THE SKU TO YOUR SELECTION
Choose White or Yellow fog light
| Kit SKU | Output | Colour | Pattern / function |
|---|---|---|---|
| DD7622 | Sport | White | Fog |
| DD7623 | Sport | Yellow | Fog |
Both purchasable options are SSC2 Sport. DD7622 is White and DD7623 is Yellow. Each complete kit contains four pods; the Amber backlight is separate from the main fog beam.

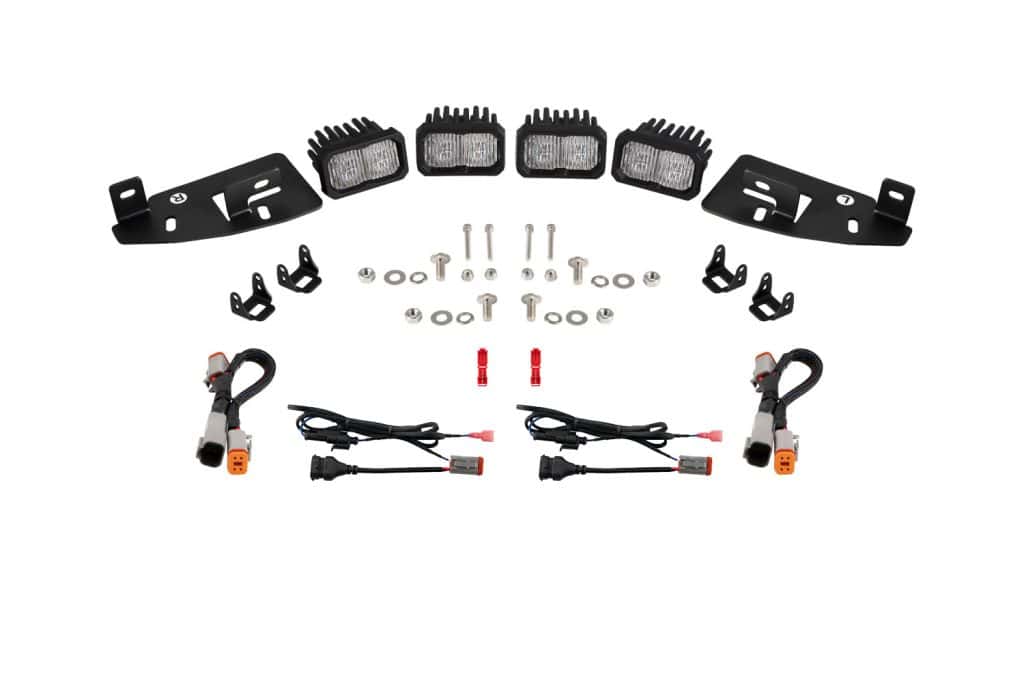

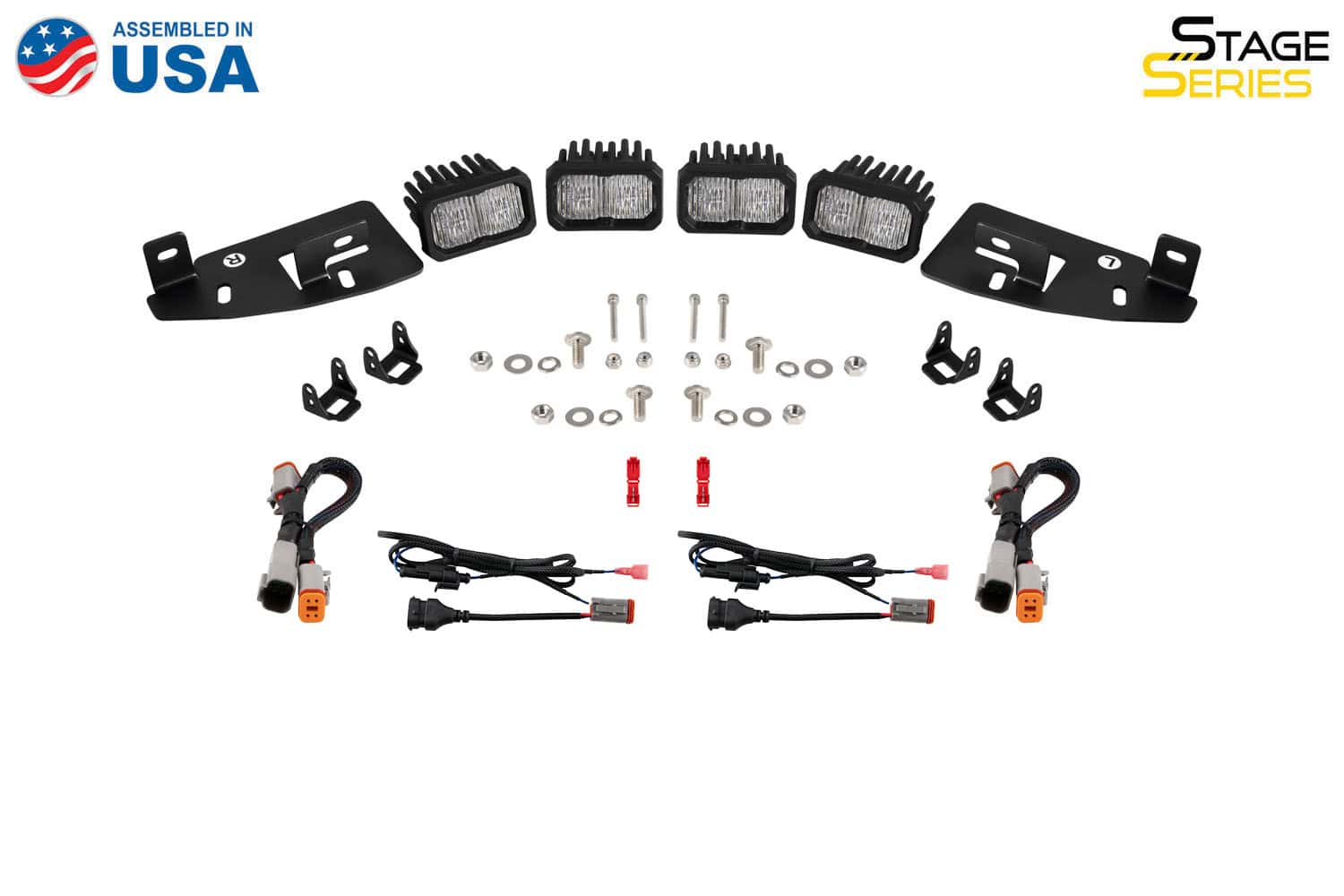

WHAT THE KIT SUPPLIES
The parts belong together
- Four SSC2 Sport fog pods in White or Yellow
- Two DD7621P Ram fog-pocket brackets
- Two DD4103 Stage Series splitter harnesses
- One DD4106P pair of H11-to-DT 4-pin backlight-tap adapters
- Mounting hardware
Retain the original compatible fog-light housings and required factory fasteners. The supplier component table names the lamp-pair part number but omits quantity multipliers; the current product overview, installation guide and complete-kit photographs show four pods.
MOUNT · WIRE · AIM
Plan the installation before you begin
Access the factory fog housings through the fender liners and remove them as instructed. Fit two SSC2 pods to each bracket, reuse the required factory hardware and connect the splitters/H11 adapters. Wire the optional Amber backlight with the included tap connections. Aim on level ground using the written guide; the H11 connector is polarity-sensitive.
Read the official installation guide
The linked guide currently uses a C2 2.0 heading, but its exact kit SKUs and the current product table still identify SSC2 Sport. This page documents DD7622/DD7623 and their published SSC2 specifications; it does not promise a generation upgrade.
UNDERSTAND THE EXACT HARDWARE
Technical specifications
| Detail | This kit |
|---|---|
| Kit quantity | Four SSC2 Sport pods: two per factory fog pocket. |
| Main-beam colour | 6000K White or 3000K Yellow. |
| Power per pod | Main beam 7.7 W; backlight 0.7 W. |
| Operating voltage | 9–16 V DC. |
| Connector | H11 vehicle adapters and Deutsch DT pod inputs; polarity-sensitive. |
| Lamp intrusion rating | IP69K manufacturer rating. |
| Eligible-lamp warranty | Manufacturer limited lifetime terms for eligible lamps; commercial, industrial and fleet use limited to 8 years. Wiring and accessory terms are separate. |
Output by option
| Option | Peak intensity per pod | Measured lumens per pod | Raw lumens per pod |
|---|---|---|---|
| Sport White Fog | 5,000 cd | 871 lm | 1,130 lm |
| Sport Yellow Fog | 4,400 cd | 777 lm | 960 lm |
Current exact SSC2 kit specifications, per individual pod. These are not four-pod totals and are not C2 2.0 output figures. Measured and raw lumens are distinct.
Diode Dynamics provides a limited lifetime warranty for this product for eligible purchases from April 15, 2025. Commercial, industrial and fleet use is limited to 8 years. After the first 3 years, covered products require return for inspection and repair or replacement at the manufacturer’s discretion. Coverage applies to the specified lamp or component; bundled wiring and accessories follow their own published terms. Keep proof of purchase. Manufacturer approval and an RMA are required before return; labor and normal wear are excluded. Shipping obligations vary by location. See the manufacturer warranty terms for eligibility, exclusions and claim instructions.
OFFICIAL DIODE DYNAMICS VIDEOS
See the installation and understand the light
Load a video when you are ready. No autoplay or video download is required to read this page.
Ram SSC2 fog-pocket installation
Follow the current written instructions and fitment restrictions. Demonstration footage may show another tier or earlier housing; it does not expand this kit’s contents or supported years.
Diode Dynamics fog-light aiming
Follow the current written instructions and fitment restrictions. Demonstration footage may show another tier or earlier housing; it does not expand this kit’s contents or supported years.
Lumens, Lux, and Candela EXPLAINED | Diode Dynamics
General light-output terminology; not an exact-kit output test.
CLEAR ANSWERS
Before you order
Is this two pods or four?

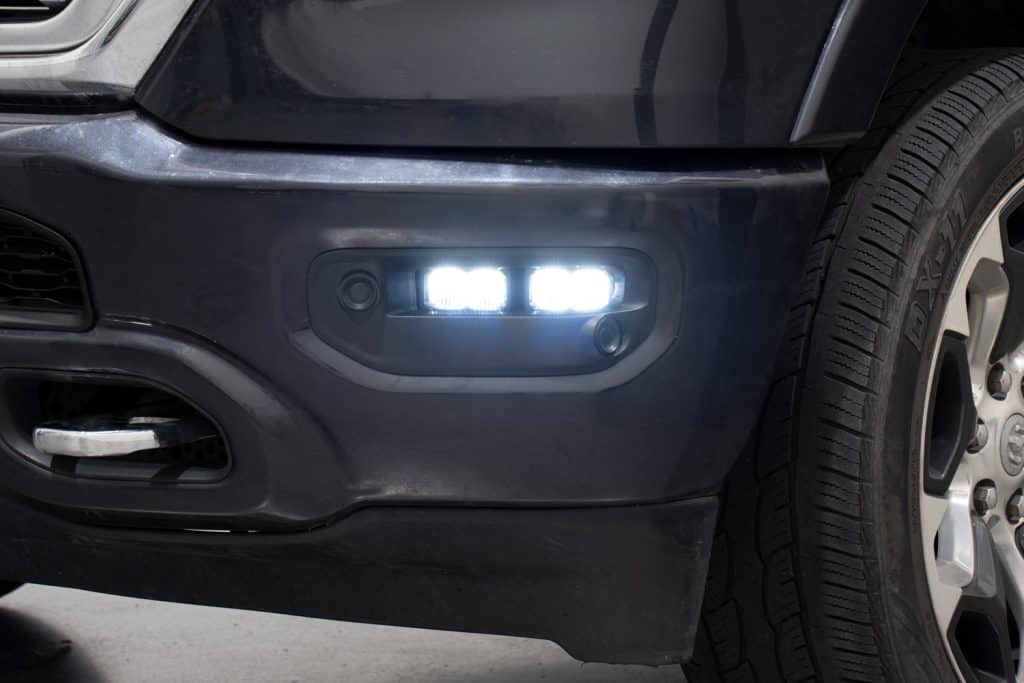

Four. Each bracket holds two SSC2 pods, filling the two factory fog pockets.
Will it fit my Big Horn or Tradesman?
The manufacturer excludes Big Horn/Tradesman models with halogen fog lights. Trucks without factory fog lights are also excluded. Confirm the exact factory fog housing before ordering.
Are these Pro or C2 2.0 lamps?
The purchasable DD7622 and DD7623 configurations are SSC2 Sport. A newer-family name in the shared instruction heading is not proof that these exact kits include upgraded lamps.
Are these switchback fog lights?
No. The main fog beam is fixed White or Yellow. The separate Amber accent backlight can be wired to the appropriate running-light circuit as instructed.
What warranty applies?
Eligible lamps have a manufacturer limited lifetime warranty. Commercial, industrial and fleet use is limited to 8 years. Bundled wiring and accessories follow their own published terms. Keep proof of purchase and contact BTS for assistance; complete manufacturer terms apply.
Are the kit photographs extra items I need to buy?
The listed kit contents are supplied. Other vehicle lighting and accessories in installation photographs are separate. Select the exact kit SKU and follow the notes under each photograph.
THE DETAILS MATTER
A closer look at the selected hardware
