DIODE DYNAMICS · 2019–2024 RAM 1500
Big SS5 output. A clean lower-bumper position.
Mount a matched pair of five-inch SS5 pods inside the Ram 1500 lower bumper. Choose Sport or Pro, White or Yellow, and Combo or Driving optics without confusing this two-pod kit with the separate four-pod grille system.
- TWO SS5 PODSMatched bumper pair
- EIGHT CHOICESTier · colour · beam
- TRIMMING REQUIREDLower plastic grille
- MATCHED WIRINGDD4093 harness
PURPOSEFUL LIGHTING
A kit built around the job
Choose the beam for the terrain
Combo blends reach and spread; Driving concentrates more light ahead. Both are auxiliary off-road configurations, not an automatic street-legal upgrade.
Separate main and accent lighting
White SS5 versions have eight selectable backlight colours. Yellow SS5 versions have an Amber-only backlight. The main beam remains White or Yellow as selected.
A vehicle-specific mounting system

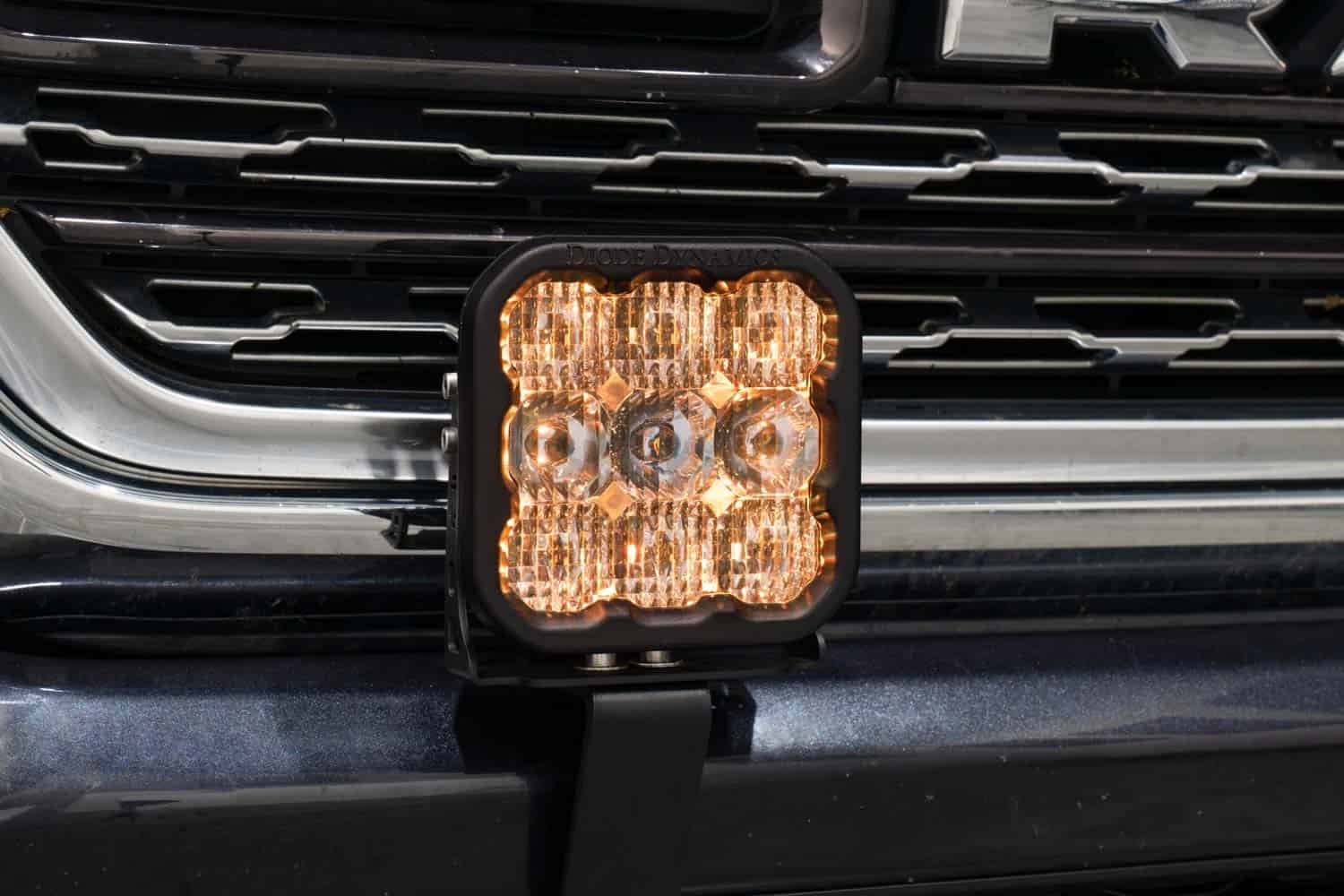

The DD7612P brackets position a pair of SS5 pods in the lower bumper. The supplied harness supports the main beam and separate accent function.
CHECK THE VEHICLE FIRST
Exact fitment and mounting
| Check | This kit |
|---|---|
| Vehicle | 2019–2024 Ram 1500, with a compatible lower bumper. |
| Exclusions | Not compatible with lower active shutters or the Stealth Bumper Lightbar Kit. |
| Modification | Plastic lower-grille trimming; protect and reinstall parking sensors as instructed. |
| Quantity | Two SS5 pods. The separate four-pod grille/CrossLink kit is not included. |
| Other body styles | No separate Classic, 2500 or 3500 fitment claim. Verify your bumper before ordering. |
MATCH THE SKU TO YOUR SELECTION
Eight exact kit choices
| Kit SKU | Output | Colour | Pattern / function |
|---|---|---|---|
| DD7613 | Sport | White | Combo |
| DD7614 | Sport | Yellow | Combo |
| DD7615 | Pro | White | Combo |
| DD7616 | Pro | Yellow | Combo |
| DD7617 | Sport | White | Driving |
| DD7618 | Sport | Yellow | Driving |
| DD7619 | Pro | White | Driving |
| DD7620 | Pro | Yellow | Driving |

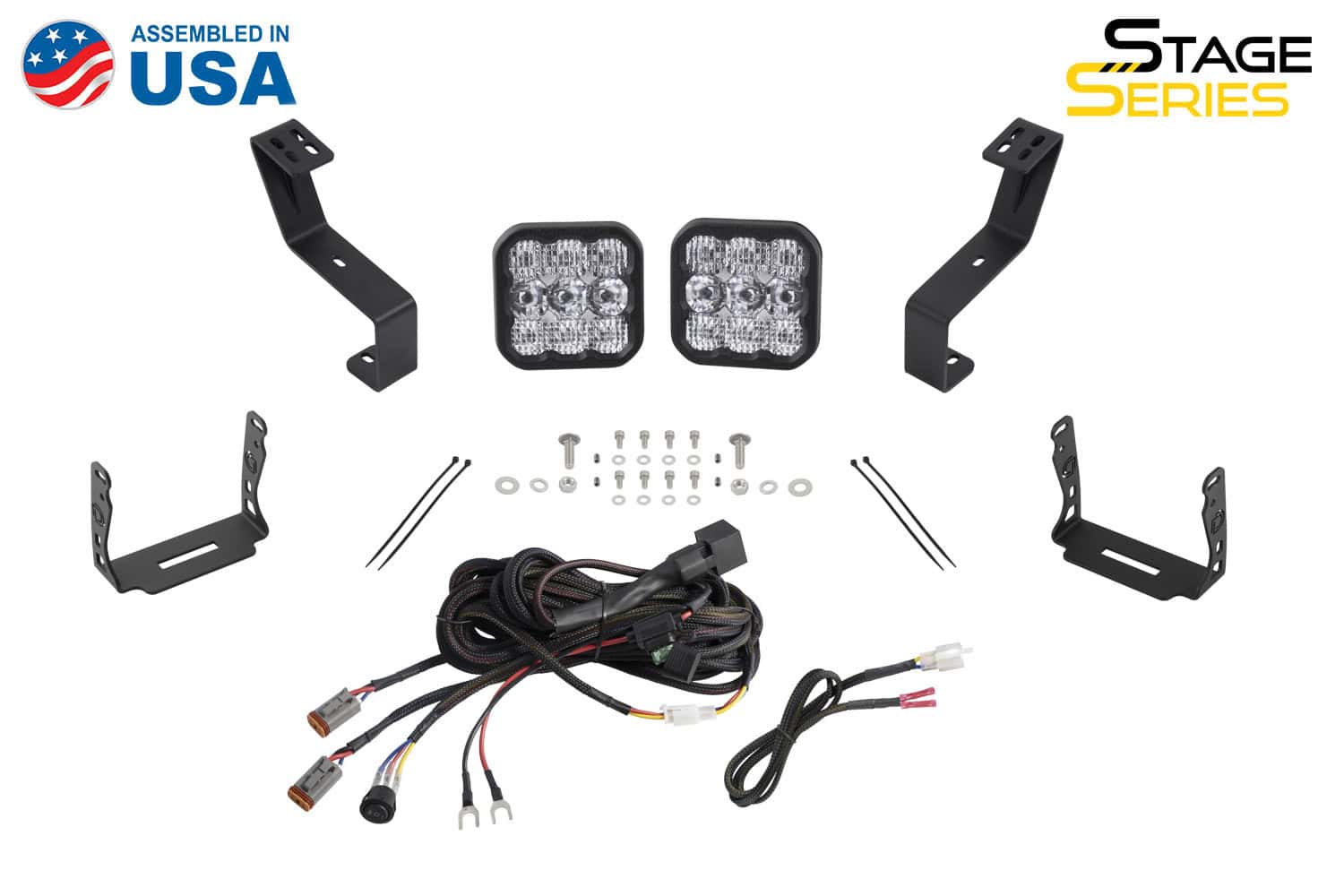

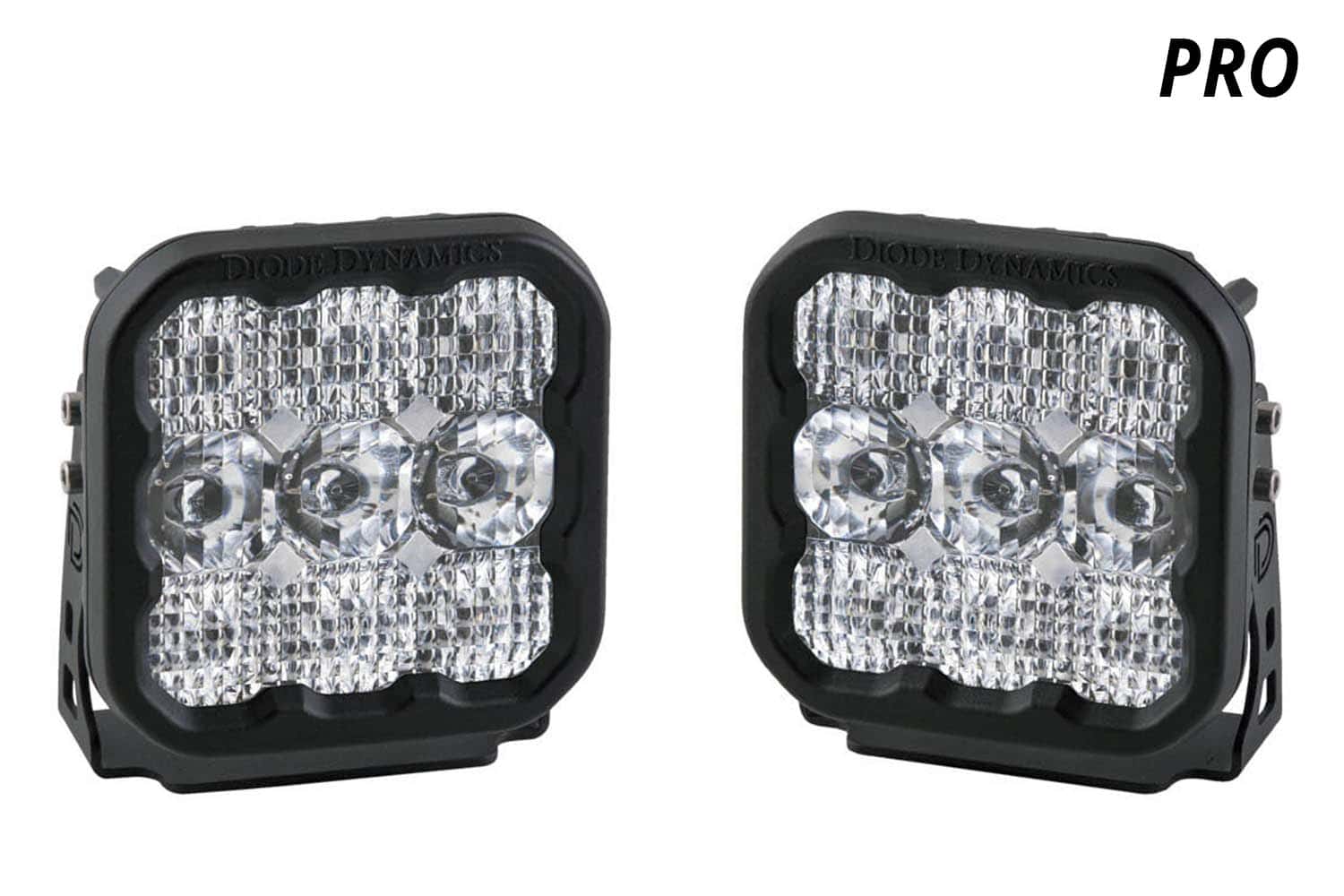

Choose Sport or Pro, White or Yellow, and Combo or Driving above. White versions offer eight accent colours; Yellow versions offer Amber only. Complete-kit photographs show the selected configuration. An additional Pro White Combo lamp-pair close-up is labelled as a component view.

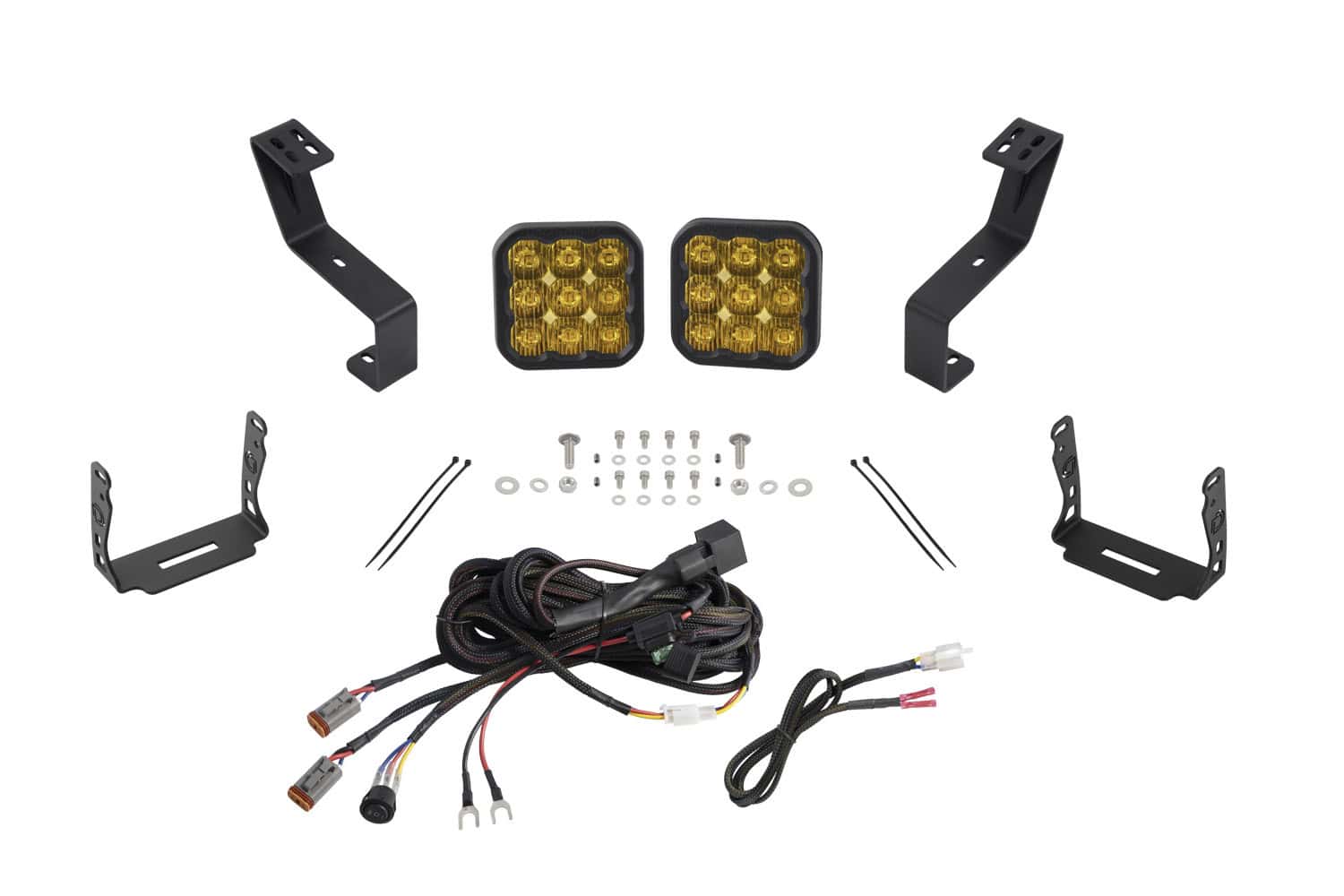

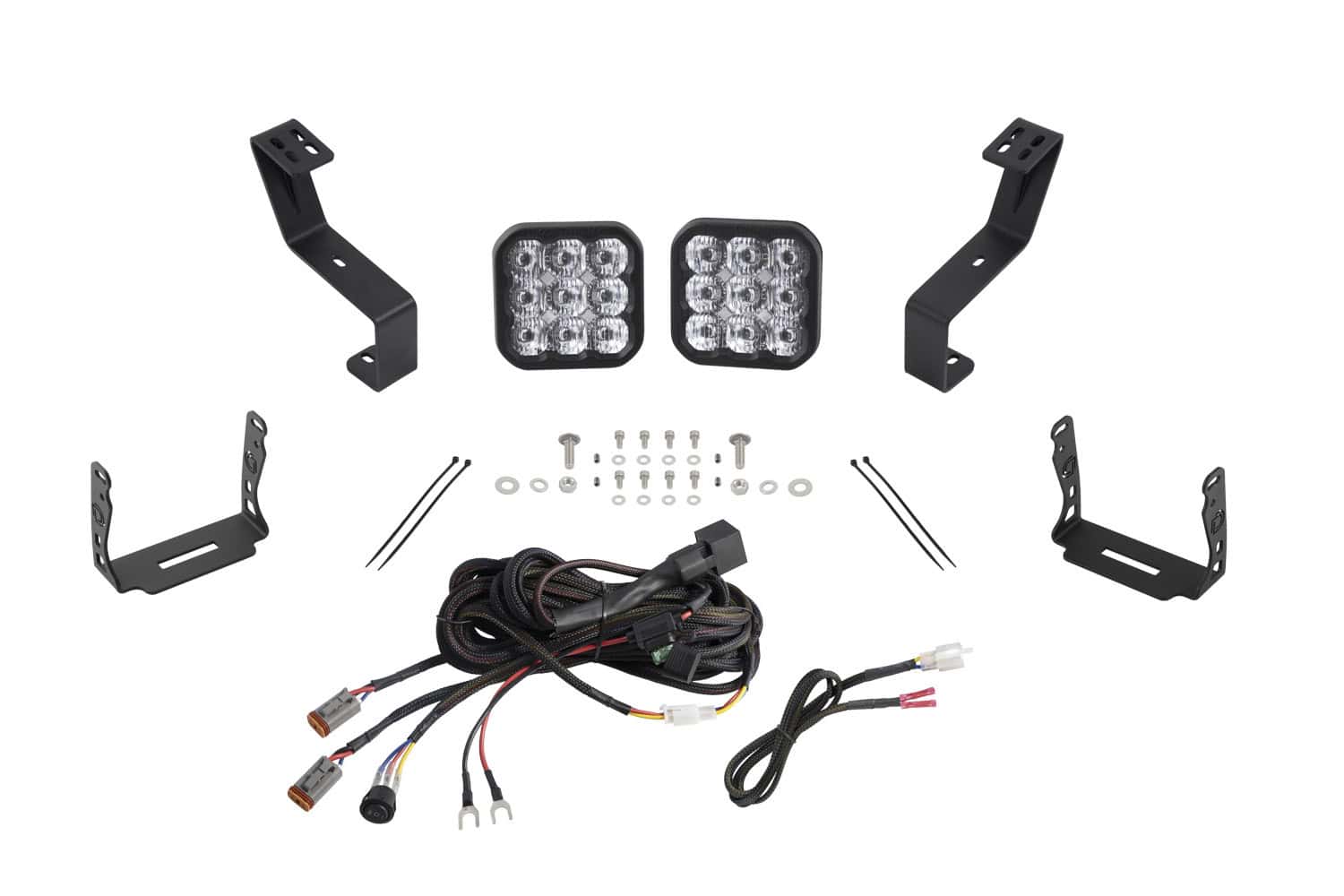

WHAT THE KIT SUPPLIES
The parts belong together
- Two SS5 pods in the selected tier, colour and beam pattern
- Two DD7612P vehicle-specific bumper brackets
- One DD4093 heavy-duty dual-output 4-pin wiring harness
- Mounting hardware

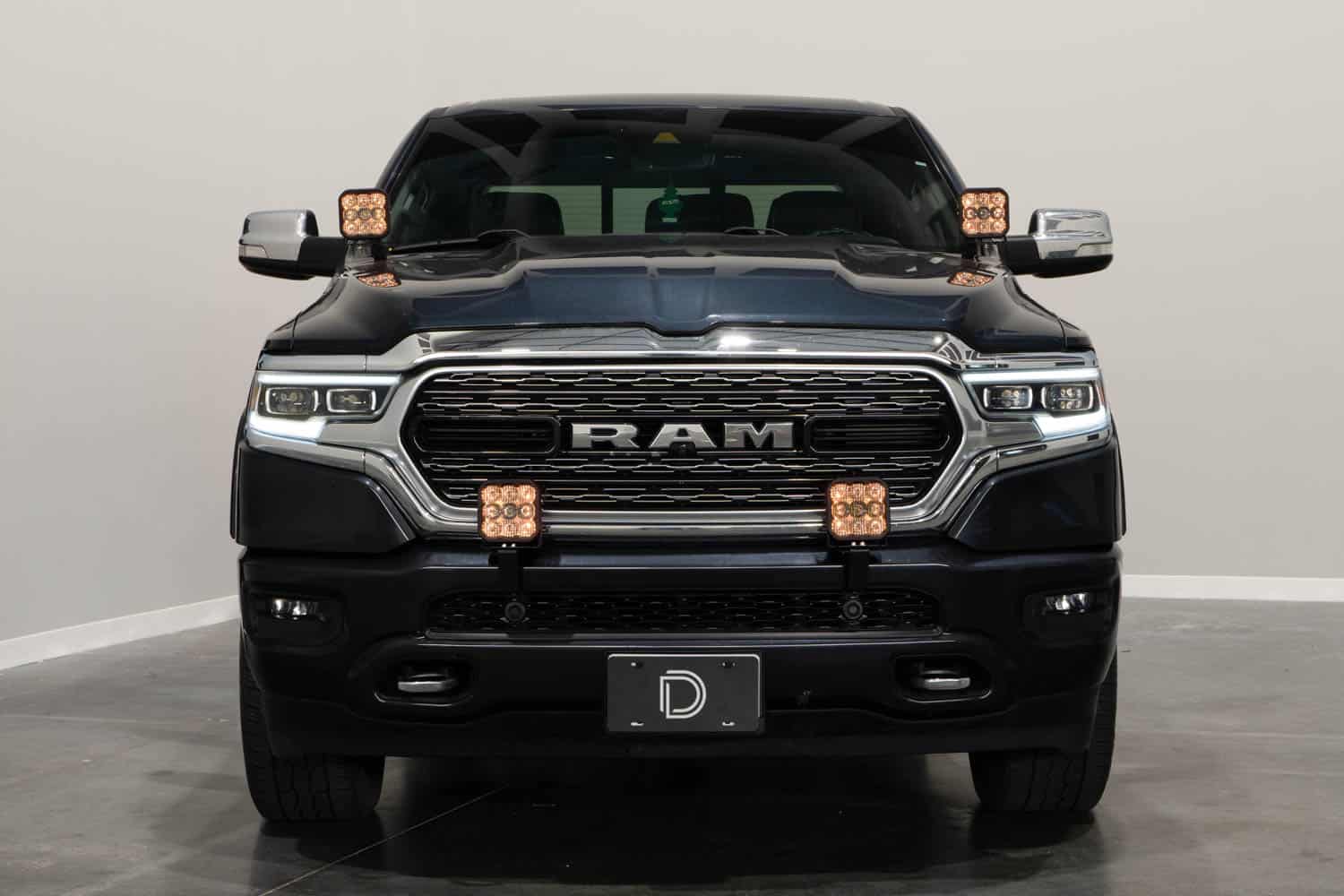

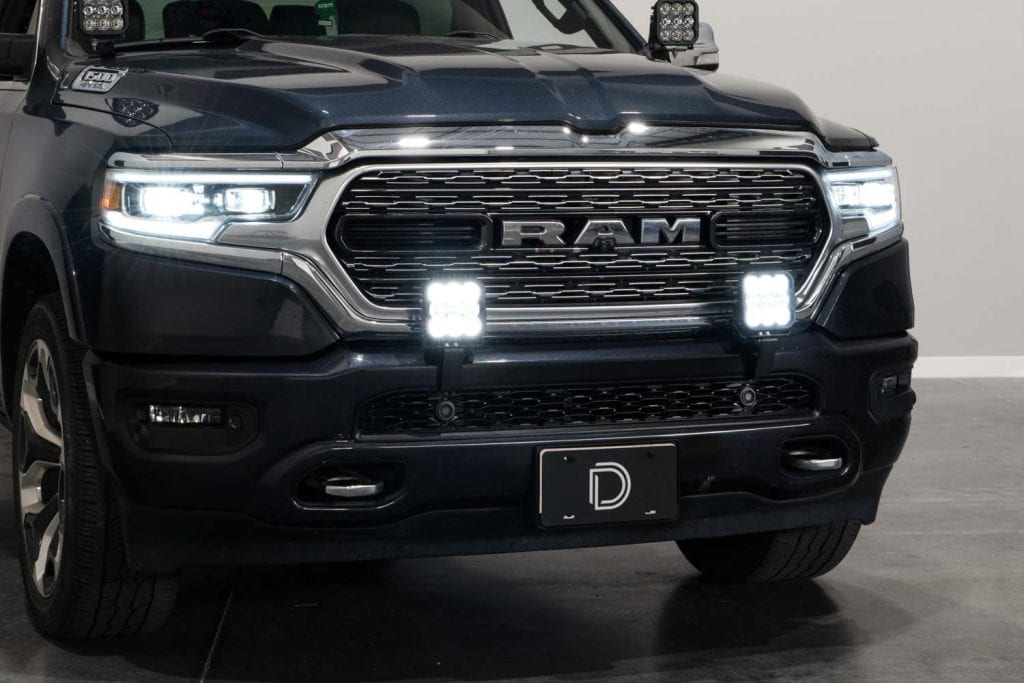

Other lights on the demonstration truck are separate. All eight exact kit configurations have complete-kit photographs. The additional Pro White Combo lamp-pair close-up is a component view, not a list of everything included.
MOUNT · WIRE · AIM
Plan the installation before you begin
Remove the required lower-bumper trim and handle any parking sensors as shown in the guide. Trim the plastic grille around the indicated openings, fit the brackets and two pods, then reinstall the removed parts. Route the fused relay harness safely and aim the lamps. Cabin-switch installation may require a panel opening and firewall routing; check the guide before starting.
Read the official installation guide
The shared guide also covers a separate four-pod grille system and retains a 2019–2023 title. The current product page lists this two-pod bumper kit for 2019–2024 with the exact DD7613–DD7620 SKUs. Follow the bumper-kit steps, not the grille-kit quantity.
UNDERSTAND THE EXACT HARDWARE
Technical specifications
| Detail | This kit |
|---|---|
| Kit quantity | Two SS5 pods, vehicle brackets and one harness. |
| Power per pod | Sport 40 W; Pro 90 W, main beam. |
| Main beam | 6000K White or 3000K Yellow; Combo or Driving. |
| Backlight | White: eight selectable colours. Yellow: Amber only. |
| Operating voltage | 9–16 V DC. |
| Lamp intrusion rating | IP69K manufacturer rating; correct sealed connections required. |
| Eligible-lamp warranty | Manufacturer limited lifetime terms for eligible lamps; commercial, industrial and fleet use limited to 8 years. Wiring and accessory terms are separate. |
Output by option
| Option | Peak intensity per pod | Measured lumens per pod | Raw lumens per pod |
|---|---|---|---|
| Sport White Combo | 81,600 cd | 3,800 lm | 4,800 lm |
| Pro White Combo | 75,700 cd | 9,600 lm | 9,700 lm |
| Sport White Driving | 131,300 cd | 3,800 lm | 4,800 lm |
| Pro White Driving | 170,000 cd | 9,600 lm | 9,700 lm |
| Sport Yellow Combo | 71,200 cd | 3,700 lm | 4,800 lm |
| Pro Yellow Combo | 58,500 cd | 7,900 lm | 8,900 lm |
| Sport Yellow Driving | 103,000 cd | 3,700 lm | 4,800 lm |
| Pro Yellow Driving | 131,600 cd | 7,900 lm | 8,900 lm |
Manufacturer figures are per individual pod, not kit totals. Peak intensity, measured lumens and raw emitter lumens describe different things; a higher total lumen figure does not mean a higher peak candela figure for every optic.
Diode Dynamics provides a limited lifetime warranty for this product for eligible purchases from April 15, 2025. Commercial, industrial and fleet use is limited to 8 years. After the first 3 years, covered products require return for inspection and repair or replacement at the manufacturer’s discretion. Coverage applies to the specified lamp or component; bundled wiring and accessories follow their own published terms. Keep proof of purchase. Manufacturer approval and an RMA are required before return; labor and normal wear are excluded. Shipping obligations vary by location. See the manufacturer warranty terms for eligibility, exclusions and claim instructions.
OFFICIAL DIODE DYNAMICS VIDEOS
See the installation and understand the light
Load a video when you are ready. No autoplay or video download is required to read this page.
Lumens, Lux, and Candela EXPLAINED | Diode Dynamics
General light-output terminology; not an exact-kit output test.
CLEAR ANSWERS
Before you order
Does it require trimming?
Yes. The written guide requires trimming the lower plastic grille. It is not a no-modification installation.
Does it work with active shutters or a Stealth light bar?
No. The manufacturer excludes lower active shutters and the Stealth Bumper Lightbar Kit.
Do Yellow lamps have eight backlight colours?
No. Eight selectable accent colours apply to White SS5 versions. The Yellow lens versions have Amber-only backlighting.
Is the Driving option automatically street legal?
No. These SS5 auxiliary bumper configurations are for off-road use where permitted. A Driving beam name does not establish on-road approval.
What warranty applies?
Eligible lamps have a manufacturer limited lifetime warranty. Commercial, industrial and fleet use is limited to 8 years. Bundled wiring and accessories follow their own published terms. Keep proof of purchase and contact BTS for assistance; complete manufacturer terms apply.
Are the kit photographs extra items I need to buy?
The listed kit contents are supplied. Other vehicle lighting and accessories in installation photographs are separate. Select the exact kit SKU and follow the notes under each photograph.
THE DETAILS MATTER
A closer look at the selected hardware
