Three useful functions. One removable HitchMount.
DD7649 · C1R + Brake · 2021–2023 Ford F-150
Add a White reverse light, a low-output Red running light and a high-output Red brake light in the unused hitch receiver. This complete kit includes the C1R lamp and the F-150-specific DD4150 harness.

Know which light comes on
Backing up
The 6000K White main beam comes on with reverse. The C1R uses a broad 50 × 50-degree Flood optic.
Running lights
A low-output Red backlight follows the truck’s tail lights.
Braking
The C1R adds a high-output Red brake function. SafetyStrobe is enabled by default and can be disabled as shown in the guide.

This listing is the C1R package. The lower-output C1 Sport shown in the comparison is a different product; it is not a selectable option here.
Check the receiver and the factory connections
- For the supported 2021, 2022 and 2023 Ford F-150 installation.
- Requires an open-backed receiver so the DT connector can pass through.
- The F-150 guide uses the 2-inch receiver sleeve. The included 2.5-inch adapter is not used for that installation.
- Connect the dedicated harness behind the factory 7-pin trailer socket and through the appropriate factory tail-light signal adapters.
- Confirm nonstandard bumpers, receiver layouts, modified wiring or different model years before ordering.
The HitchMount supplements the factory lights; it does not replace them. Remove it before using the receiver for towing.

The F-150 wiring is part of the kit
The initial F-150 installation involves removing both tail lights, choosing the signal adapters for their factory functions, and routing the harness between the two sides. The plug-in pod is quick to remove afterward, but the complete first installation is more than plugging a light into a trailer socket.
Use the illustrated F-150 harness selection chart instead of copying a generic HitchMount wiring diagram. If you already have the appropriate C1R lamp and only need its vehicle harness, view DD4150 separately.
All eighteen original installation images
See the factory connections, signal-harness table, routing and retaining clips at full size.

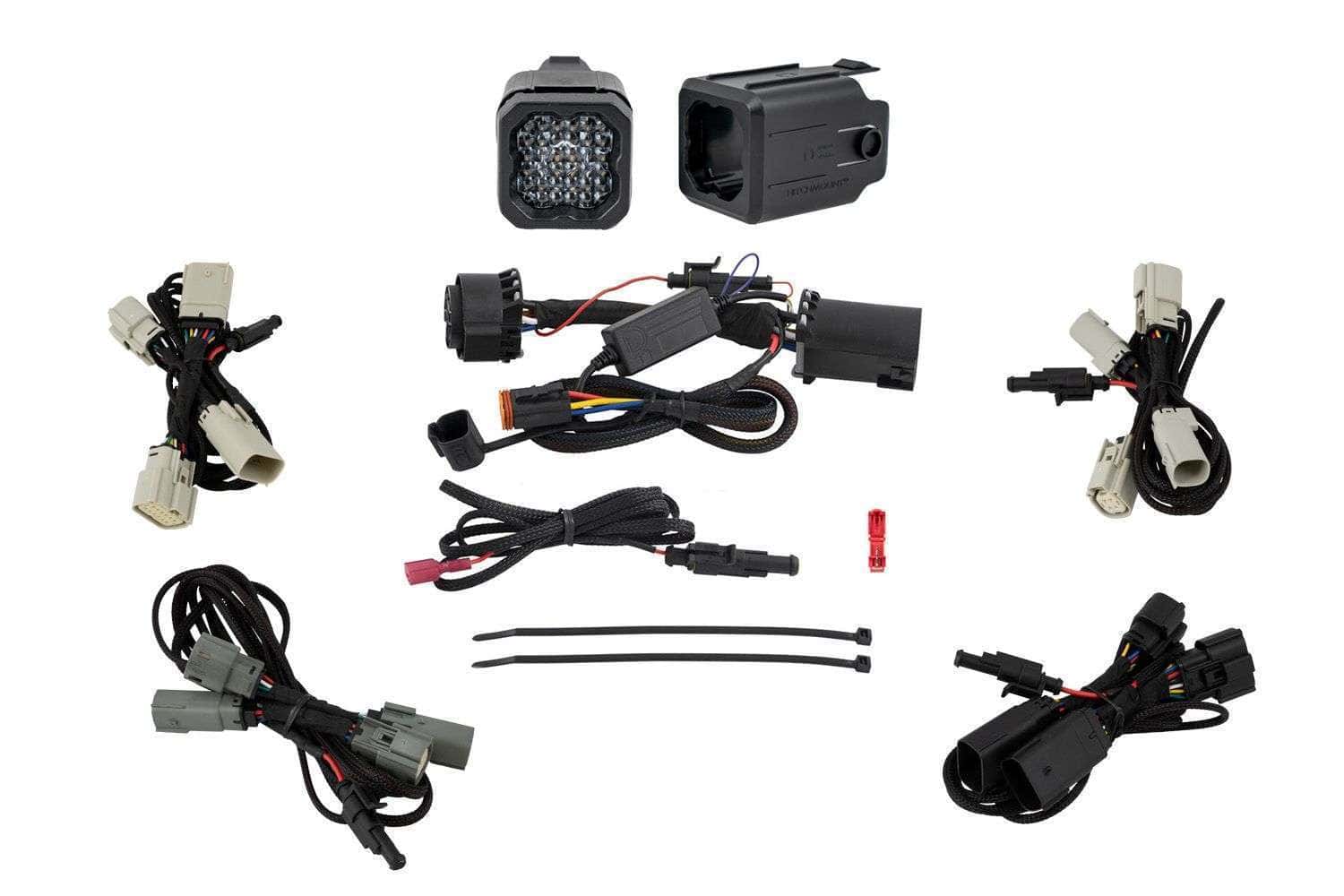

What this DD7649 package includes
- One C1R HitchMount LED pod and snap-fit mounting sleeve
- One dedicated DD4150 F-150 C1R wiring-harness package
- One snap-in 2.5-inch receiver adapter, not used by the guide’s 2-inch F-150 installation
- Two zip ties and installation instructions
A locking hitch pin is optional and sold separately. The standard snap-fit installation does not need one; adapting the sleeve for a locking pin requires the modification shown in the guide.

C1R specifications
White reverse beam
1,080 measured lumens
480 candela
6000K · 50 × 50-degree Flood
Electrical and construction
9–16V input · 14.1W
1.1A at 12.8V
Aluminum housing, polycarbonate optic and DT input
These manufacturer figures are for the C1R lamp. Red running and brake functions are separate from the White reverse beam.
See the actual F-150 installation
Practical questions
Can I still use the hitch?
Yes, after removing the lamp. Release its two retaining clips, slide it out, unplug it and cap the DT connector while the light is stored.
Can I turn the White light on while parked?
The supplied arrangement follows the reverse signal. Manual override requires a separately confirmed harness/control plan; do not assume a cab switch is included.
Can the brake light stay steady?
Yes. The manufacturer’s procedure disables SafetyStrobe by cutting the designated purple loop on the C1R harness. Review the exact diagram before making that optional change.
Does this fit every F-150 trim or later year?
Match the stated year, open-backed receiver and supplied tail-light/trailer connections. A similar-looking trailer plug alone does not establish compatibility with a different application.
Manufacturer warranty
Diode Dynamics provides a limited lifetime warranty for this product for eligible purchases from April 15, 2025. Commercial, industrial and fleet use is limited to 8 years. After the first 3 years, covered products require return for inspection and repair or replacement at the manufacturer’s discretion. Coverage applies to the specified lamp or component; bundled wiring and accessories follow their own published terms. Keep proof of purchase. Manufacturer approval and an RMA are required before return; labor and normal wear are excluded. Shipping obligations vary by location. See the manufacturer warranty terms for eligibility, exclusions and claim instructions.
