2021–2023 Ford F-150 · SS5 CrossLink
Five pods. One fitted lightbar.
Give your F-150 a curved row of five SS5 pods, mounted in front of its original grille. The complete kit brings together vehicle-specific steel brackets, CrossLink hardware and the wiring for your chosen Sport or Pro setup.

Choose your power. Choose your colour.
Sport · 40W per pod
Five SS5 Sport pods with the matching heavy-duty five-pod wiring and single-output harness. Choose White Combo or Yellow Combo.
Pro · 90W per pod
Five SS5 Pro pods for higher output, supplied with the matching ultra-heavy-duty five-pod and relay harnesses. Choose White Combo or Yellow Combo.
Both power levels use the same five-pod mounting layout and Combo beam pattern. The power figures above are per pod.
6000K White Combo
Cool-white main lighting, with a separate accent backlight that can be set to eight colours.
3000K Selective Yellow Combo
Yellow main lighting through a yellow lens. This version has an Amber-only backlight.
The option photos above show the complete kit for each selection, including the appropriate harness. No bracket-only choice is included on this product page.
Reach downrange. Fill the sides.

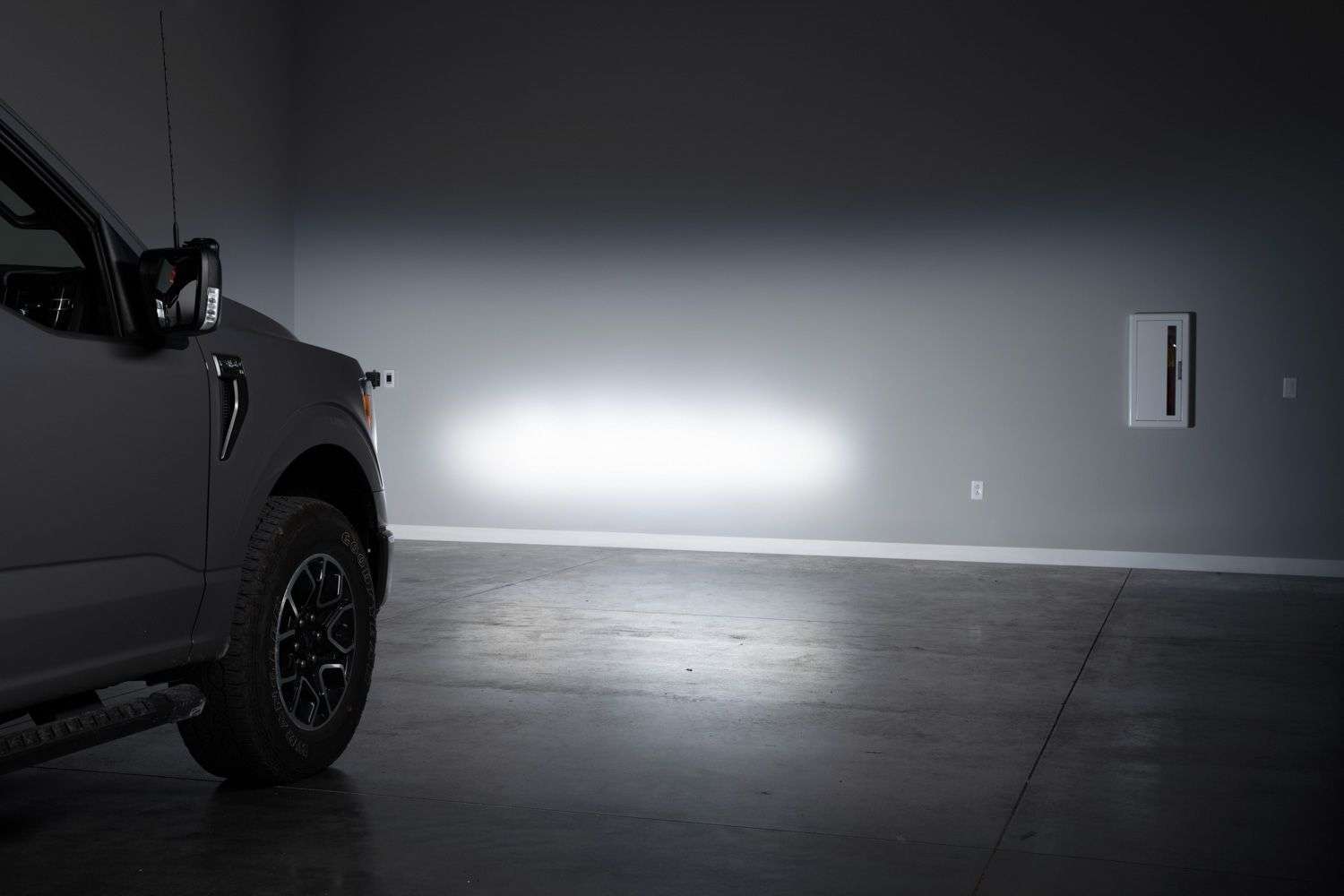

The Combo optic brings driving and flood sections together in every pod: focused light downrange with wider coverage around it. This is an off-road auxiliary lightbar, separate from your headlight and fog-light controls.


Diode Dynamics introduces this five-pod F-150 kit and its features.
A different look with the main beam off

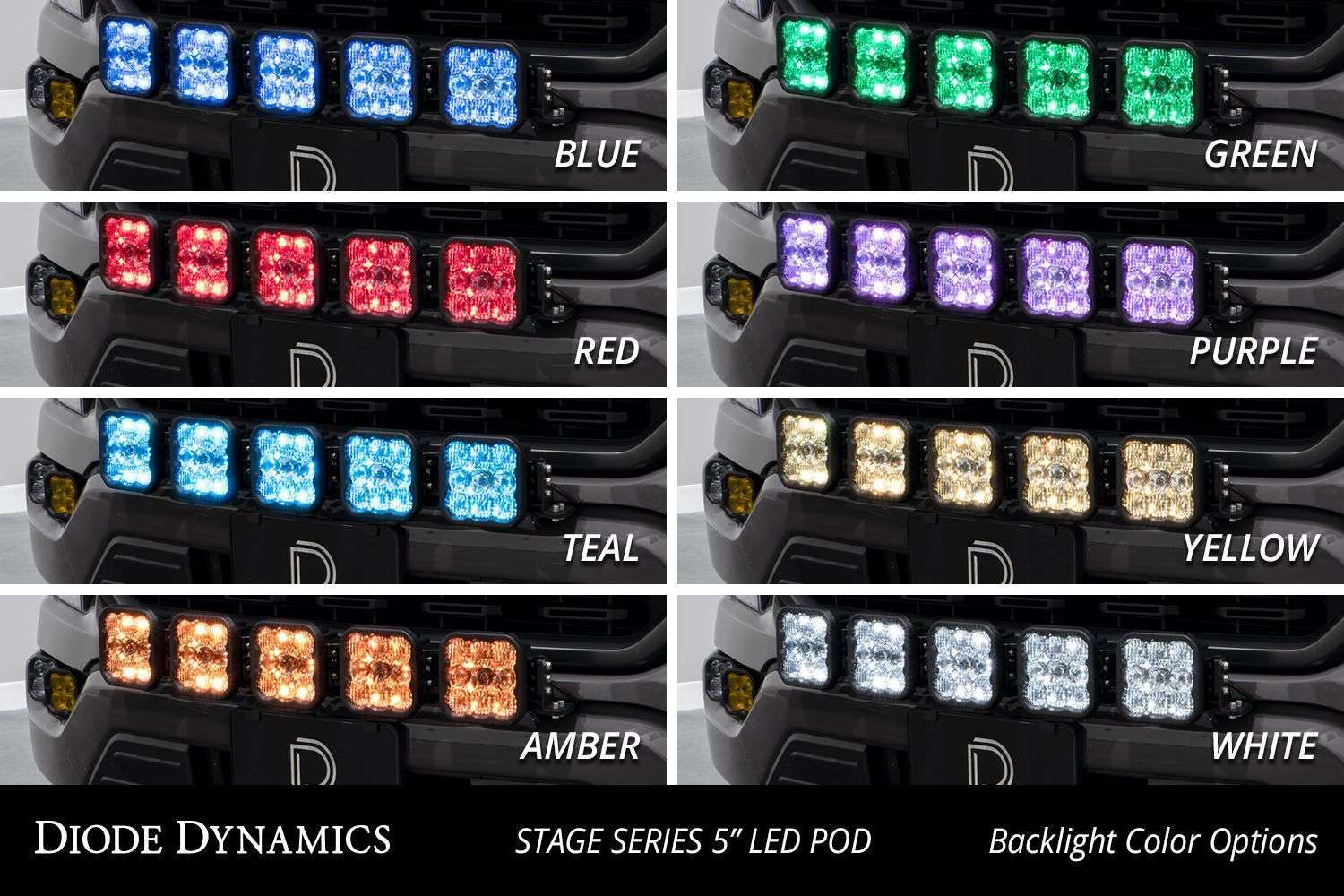

Use the backlight as an accent without running the main beam. White-lens kits offer White, Red, Blue, Green, Purple, Yellow, Amber and Teal. The selected colour saves through a simple power-toggle sequence; no separate colour controller is required.

Made for the original grille and bumper
- Vehicle
- 2021–2023 Ford F-150, excluding Raptor. Not for 2024 or newer models.
- Mounting
- Application-specific brackets use existing mounting points. No cutting or drilling of the vehicle is required for the supported installation.
- Front camera
- The bar can cover part of the front-camera view on trucks with the 360 Degree Camera Package. Diode Dynamics confirms that the camera remains usable; see its example below.
- Controls
- Use two factory auxiliary switches for separate main-beam and backlight control, or the included toggle-switch adapter if your truck has no factory aux bank.

This is the five-pod CrossLink grille kit. It is different from the separate two-pod SS5 bumper kit and the factory fog-pocket kit.
The pieces to build the complete bar
- Five SS5 pods in your selected power level and colour
- Two vehicle-specific heavy-duty steel brackets
- Four CrossLinks with hardware
- CrossLink end mounts and mounting hardware
- A five-pod connecting harness matched to Sport or Pro
- A matching heavy-duty or ultra-heavy-duty single-output harness
- Switch/aux-control connections and installation instructions
The machined CrossLinks join the pods into a rigid curved assembly. Follow the F-150 guide’s second-notch setting when assembling the bar.

See the installation before you start
Plan for approximately 1–2 hours. The installation involves removing the upper bumper valance and grille, installing the brackets, routing the harness and assembling the linked bar.
BTS illustrated guide
Mounting, wiring and backlight setup
Follow the five-pod F-150 procedure with the original marked diagrams, CrossLink assembly details, factory-aux wiring and colour/reset instructions.
Diode Dynamics’ installation video covers the vehicle access and bracket work. The BTS guide separates the five-pod route from the video’s two-pod option.
Built for exposed mounting
- Housing and lens
- Aluminum housing, polycarbonate lens and rubber gasket
- Cooling
- Passive pin-fin heatsink
- Weather protection
- IP69K
- Operating voltage
- 9–16V
- Assembly
- Designed, engineered and assembled in the USA
Manufacturer warranty: limited lifetime coverage applies to eligible SS5 pods and off-road brackets. Wiring and accessories carry separate three-year coverage; commercial or industrial use changes lifetime-eligible coverage to eight years. Manufacturer terms and exclusions apply.
A few useful answers
Does the kit include all five lights?
Yes. Each of the four choices on this page is a complete five-pod kit with the corresponding brackets, links and wiring.
Can I fit it without factory auxiliary switches?
Yes. The included harness has a toggle-switch adapter. The BTS guide also covers the factory-aux route, with separate main-beam and backlight circuits.
Is the curved bar shown on the BTS truck included?
This listing supplies the five-pod CrossLink kit. The BTS truck photo shows an installation on the original bumper; the truck’s other lighting and accessories are sold separately.
Can I change lenses later?
Diode Dynamics offers replacement SS5 lenses to change colour or optic. Replacement lenses and snap-on covers are sold separately.
How do I get the backlights back to the same colour?
The BTS installation guide includes the manufacturer’s synchronisation reset for White-lens SS5 pods, followed by the normal colour-selection steps.
