NX804 – 40″ Slimline LED Light Bar (12–24V, 19,400 Lumens, Combo Beam)
Maximum Reach. Ultra-Slim Profile. Built for Serious Illumination.
The NX804 40″ Slimline LED Light Bar is the ultimate combination of sleek design and overwhelming performance. Packing a massive 19,400 raw lumens into a 33mm ultra-slim housing, this 216W light bar uses advanced reflector optics to create a high-performance combo beam — delivering both wide flood and long-distance spot lighting up to 714 meters at 1 Lux.
Whether you’re lighting up remote trails, wide open work zones, or highway stretches, the NX804 offers exceptional reach, reliability, and versatility — all while maintaining a low-profile, aerodynamic appearance.
Key Features & Benefits
-
Incredible Output: 19,400 raw lumens for unmatched visibility across distance and width.
-
Extreme Distance Beam: Reaches 714m at 1 Lux with a combo beam pattern for optimal forward and peripheral coverage.
-
Ultra-Slim Profile: Only 33mm deep — perfect for tight-fitting installs or vehicles with limited clearance.
-
Flexible Mounting: Comes with side and rear adjustable brackets for universal mounting flexibility.
-
Weatherproof Protection: Rated IP68 & IP69K to withstand pressure washing, dust, mud, and deep water exposure.
-
Impact-Resistant Lens: Built from tough polycarbonate for superior durability in demanding environments.
-
Clean White Output: 5700K daylight-style light improves contrast, reduces fatigue, and increases safety.
-
EMI Safe: R10 EMI compliance ensures no interference with radios or electronic systems.
-
Efficient Voltage Support: Compatible with 12V and 24V DC systems for wide application use.
-
Quick-Connect Setup: Includes 500mm lead to 2-pin DTP plug + 150mm DT fly lead for a secure, sealed install.
-
3-Year Warranty: Covered by the trusted Noxsolis limited warranty for performance assurance.
When You Need Full Power in a Clean Package
The NX804 Slimline LED Light Bar is designed for those who want the longest reach and widest beam in the slimmest form. Perfect for modern bumpers, roof racks, trailers, and equipment that demand a sleek fit without compromising on performance.
Its combo beam offers long-range penetration with surrounding flood coverage — making it an ideal solution for high-speed off-road, commercial fleet vehicles, and long-haul highway setups.
Vehicle & Application Compatibility
Perfect for:
-
Off-road and 4WD vehicles
-
Overland and expedition builds
-
Highway trucks and commercial transport
-
UTVs, SxS, and agricultural equipment
-
Utility and service fleets
-
Roof racks, bumpers, or trailer installations
Compatible with 12V and 24V DC electrical systems.
Technical Specifications
-
Light Output: 19,400 Lumens (Raw)
-
Power Consumption: 216W
-

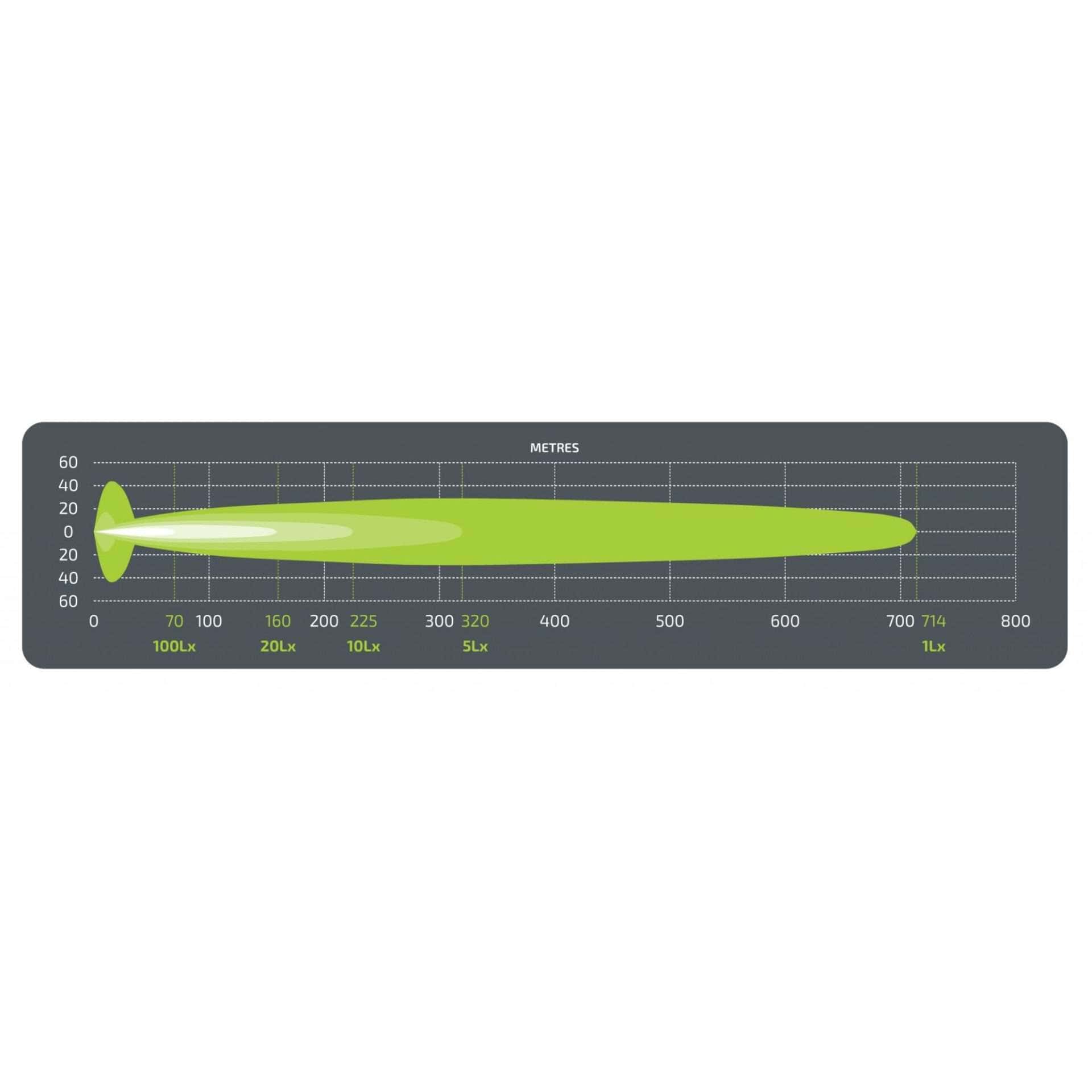

Beam Distance: 1 Lux @ 714m
-
Beam Type: Combo (Spot + Flood)
-
Voltage Range: 12–24V DC
-
Current Draw: 16.0A @ 13.8V / 8.1A @ 24V
-
Color Temperature: 5700K
-
Waterproof Rating: IP68 & IP69K
-
Lens Material: Polycarbonate
-
Mounting Options: Side brackets + adjustable rear brackets
-
EMI Compliance: R10
-
Connector: 2-Pin DTP (500mm lead + 150mm DT fly lead included)
-
Weight: 2.11kg
-
Warranty: 3-Year Limited Warranty
What’s Included
-
1x NX804 40″ Slimline LED Light Bar (Combo Beam)
-
2x Side Mount Brackets
-
2x Adjustable Rear Brackets
-
Full Mounting Hardware
-
150mm DT Fly Lead
Now Available at BTS Lighting — Longest Reach, Sleekest Fit
Get the most out of your lighting setup with the NX804 40″ Slimline LED Light Bar. Designed for maximum performance in minimal space, this powerhouse is ready to tackle night drives, worksite lighting, and all-terrain adventure.
