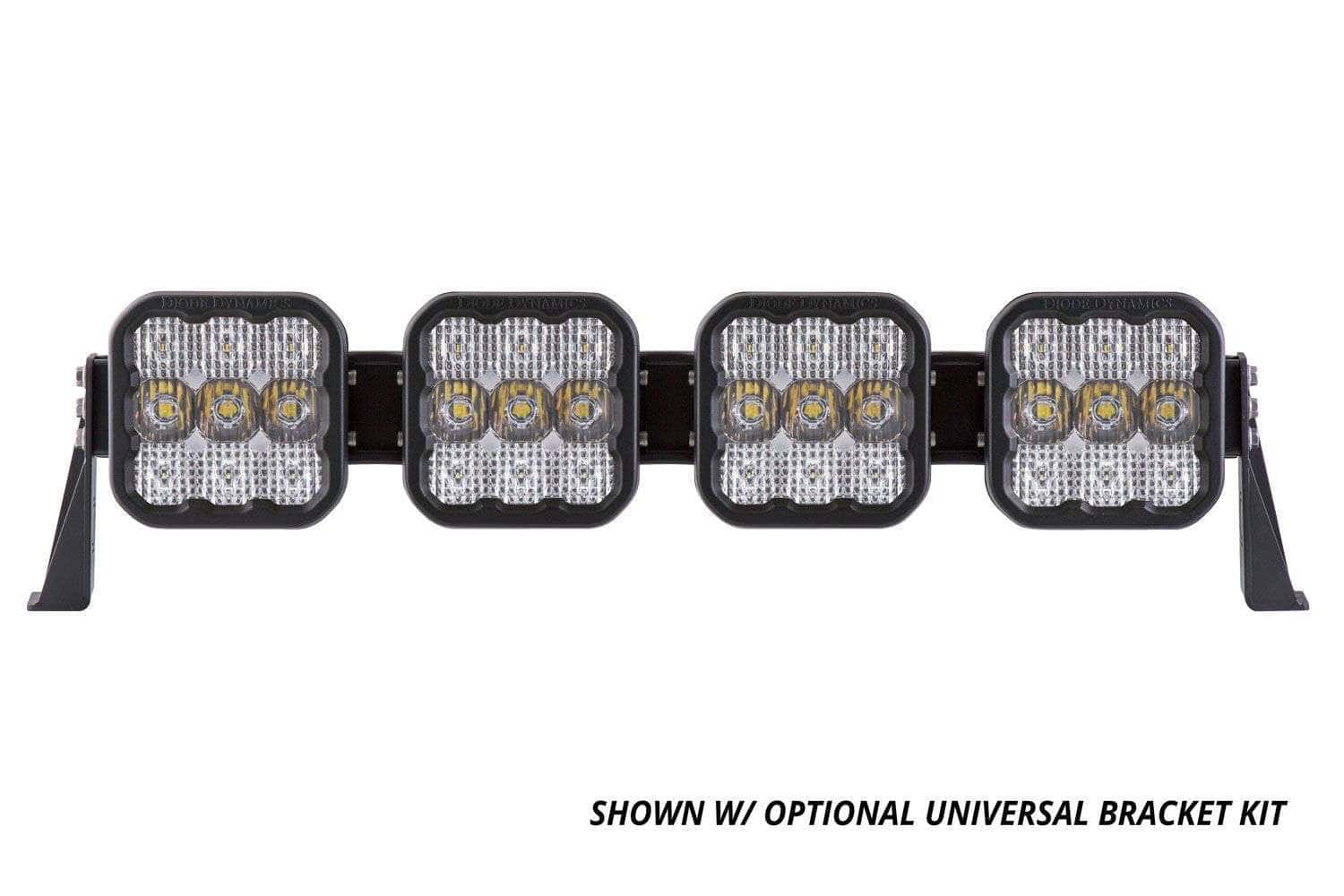

Diode Dynamics SS5 CrossLink 4-Pod LED Light Bar – 25”
Unmatched power and performance in a compact 4-pod design.
The Diode Dynamics SS5 CrossLink 4-Pod LED Light Bar delivers intense illumination with advanced TIR optics, a selectable 8-color backlight, and rugged construction. Using Diode’s patent-pending CrossLink technology, this 25-inch bar seamlessly links four SS5 pods into a single unit for maximum output and clean styling.
Whether you’re hitting trails or lighting up a worksite, the SS5 offers versatile beam patterns (Driving or Combo) and color options (White or Yellow) to match any environment.

Key Features:
-
25″ linked light bar with four SS5 LED pods
-
Engineered TIR optics for maximum efficiency and focus
-
Selectable backlight with 8 color options
-
Ultra-bright output with Sport (40W) or Pro (90W) versions
-
Built for durability and extreme conditions
-
Assembled in the USA
-
Lifetime Warranty
What’s Included:
-
(4) SS5 5” LED Pods
-
(3) CrossLink Connectors + Hardware
-
(1) Endmount Bracket Kit
-
(1) 4-Pod DT Harness
-
(1) Deutsch-style Pigtail
Beam Pattern Options:
-
Driving: 30° x 20° focused beam for high-speed use
-
Combo: 70° x 30° flood + driving pattern for wide-range visibility
Output Colors:
-
Cool White (6000K)
-
Selective Yellow (3000K)
Perfect for: Off-roaders, work trucks, overlanders, and motorsport applications seeking top-tier lighting and reliability.
Configurations and installation details
Diode Dynamics SS5 CrossLink 4-Pod LED Light Bar-Sport 40Watts. Select the exact manufacturer configuration and check the mounting, connector and package details below.
- Advanced TIR optics provide high efficiency and focus
- Durable powdercoated aluminum construction
- High-intensity automotive-type LEDs
- Integrated Deutsch-style connector
- Pin-fin heatsink design
Choose your configuration
| Manufacturer SKU | Configuration |
|---|---|
| DD6794 | SS5 Sport Universal CrossLink 4-Pod Lightbar White Combo |
| DD6795 | SS5 Sport Universal CrossLink 4-Pod Lightbar Yellow Combo |
| DD7206 | SS5 Sport Universal CrossLink 4-Pod Lightbar White Driving |
| DD7207 | SS5 Sport Universal CrossLink 4-Pod Lightbar Yellow Driving |
What is included?
- Four (4) Stage Series 5inch LED Pods
- Three (3) CrossLinks with hardware
- One (1) CrossLink endmount kit
- One (1) DT 4-Pod connecting harness
- One (1) Deutsch-style wire pigtail
Questions and answers
Is this the 4-pod Sport configuration?
Yes. This page groups the 4-pod SS5 Sport CrossLink bar. Select White or Yellow and Driving or Combo using the exact SKU table; a different pod count or power level is a separate configuration.
Does the connecting harness include the vehicle’s switched power wiring?
The package lists the pod-to-pod connecting harness and a Deutsch-style wire pigtail. It does not list a complete battery-to-switch harness. Plan the appropriate fused power supply and switching for the selected bar.
Are vehicle-specific roof-rack brackets included?
This is the universal CrossLink bar package with its listed endmount and support hardware. A vehicle- or rack-specific mounting kit is separate; match the rack dimensions and mounting points before ordering.
Manufacturer warranty
Diode Dynamics lists a lifetime limited warranty for this product range. Coverage is subject to the manufacturer’s terms and exclusions.
