NX812 – 14″ Dual Row LED Light Bar (12–24V, 4,653 Lumens, Combo Beam)
Dual Row Power. Wide Coverage. Compact and Versatile.
The NX812 14″ Dual Row LED Light Bar delivers superior performance in a compact and rugged form factor. Designed as the perfect all-round auxiliary lighting upgrade, it outputs 4,653 raw lumens using premium Osram OSLON® LEDs, delivering a powerful combo beam that throws light up to 555m at 1 Lux while offering a broad flood pattern for up-close visibility.
Whether used as a standalone light bar or part of a larger setup, the NX812 is ideal for off-road adventures, highway runs, and daily driving. With both side and bottom mounting brackets included, it’s ready to install on bumpers, bull bars, roof racks, or number plate brackets — wherever light is needed most.
Key Features & Benefits
-
Dual Row Combo Beam: Offers wide spread + focused distance illumination — fence-to-fence coverage and long-range throw.
-
Osram OSLON® LEDs: High-performance diodes provide superior light clarity, efficiency, and lifespan.
-

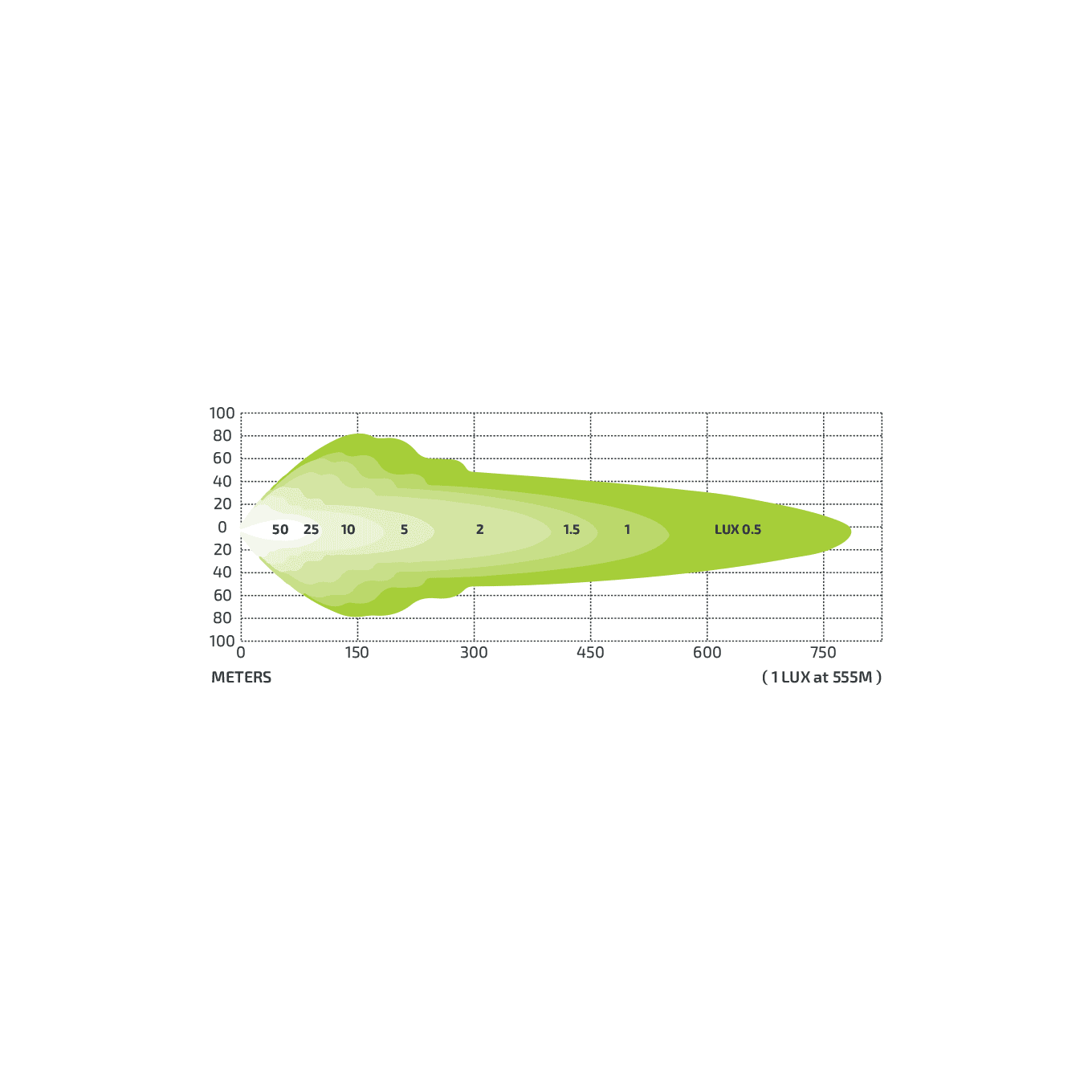

1 Lux at 555m: Beam reach ensures enhanced visibility in high-speed or off-road conditions.
-
All-Weather Protection: Rated IP67 & IP69K waterproof — sealed against dust, rain, mud, and pressure washing.
-
Heavy-Duty Mounting Options: Includes side and bottom brackets to suit any mounting scenario.
-
Shock & Vibration Resistant: Engineered for off-road terrain and high-impact environments.
-
Clean White Light: 5700K color temperature enhances night driving clarity and reduces fatigue.
-
EMI Certified: R10 compliant — won’t interfere with vehicle electronics or communication devices.
-
3-Year Warranty: Backed by Noxsolis for long-term performance and durability.
One Bar. Total Coverage. Rugged and Ready.
The NX812 is built for drivers who want a compact dual row bar that performs like a full-size unit. It lights up the trail, the road, and everything in between with a smooth, clean combo beam — making it ideal for off-road explorers, long-haul drivers, and weekend warriors alike.
With simple, secure mounting and pro-grade components, this light bar is ready to elevate your build.
Vehicle & Application Compatibility
Perfect for:
-
Pickup trucks, UTVs, and off-road 4WDs
-

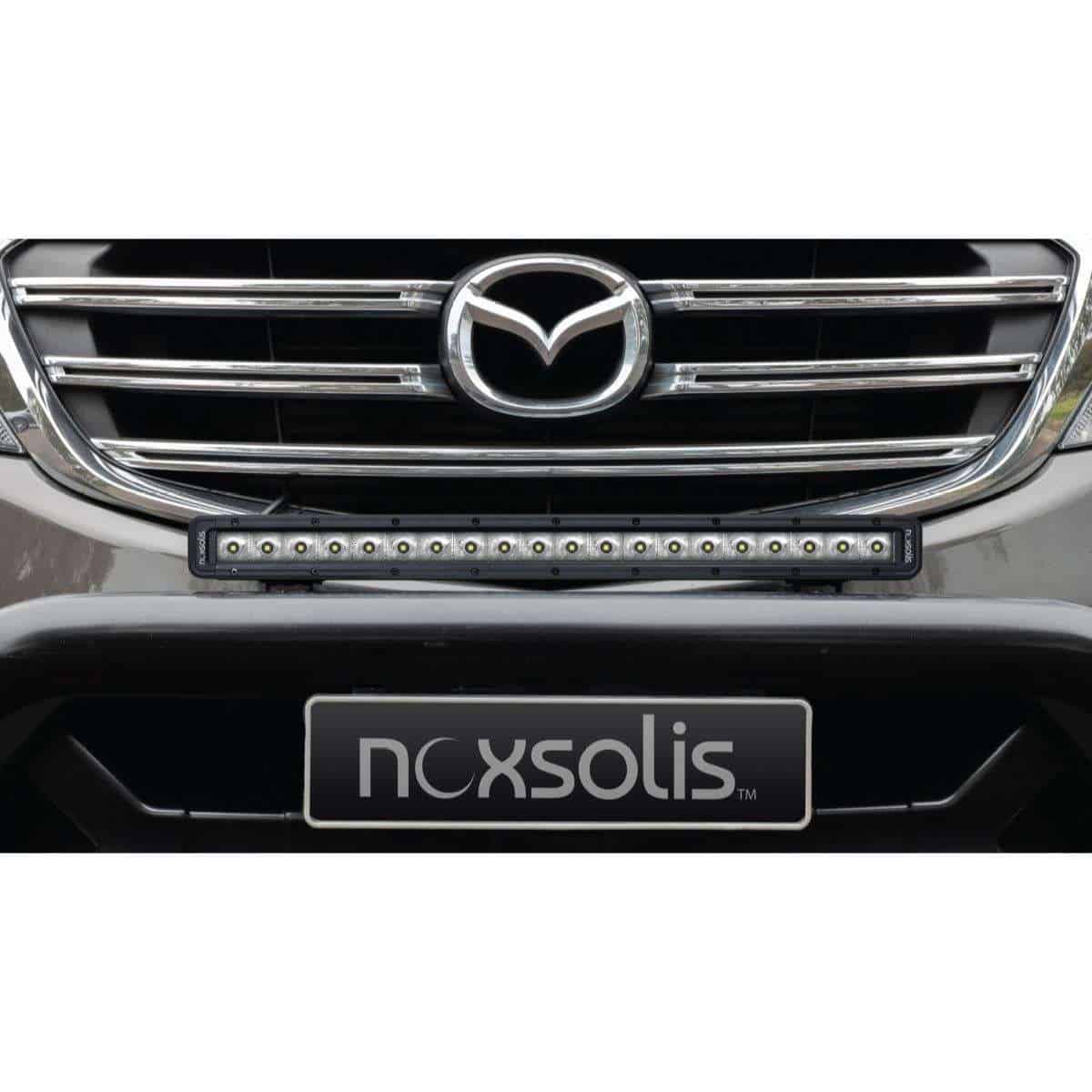

Roof racks, bull bars, and bumper mounts
-
Trailers, caravans, and campers
-
Agricultural and utility equipment
-
Commercial, mining, and service vehicles
Compatible with 12V and 24V electrical systems.
Technical Specifications
-
Light Output: 4,653 Lumens (Raw)
-
Beam Distance: 1 Lux @ 555m
-
Beam Type: Combo (Flood + Spot)
-
Power Consumption: 96W
-
Current Draw: 4.06A @ 13.8V / 2.36A @ 24V
-
LED Type: Osram OSLON®
-
Color Temperature: 5700K
-
Voltage Range: 12–24V DC
-
Waterproof Rating: IP67 & IP69K
-
Circuit Type: Single
-
EMI Compliance: R10
-
Connector: 2-Pin Deutsch DT
-
Weight: 1.0kg
-
Warranty: 3-Year Limited Warranty
What’s Included
-
1x NX812 14″ Dual Row LED Light Bar (Combo Beam)
-

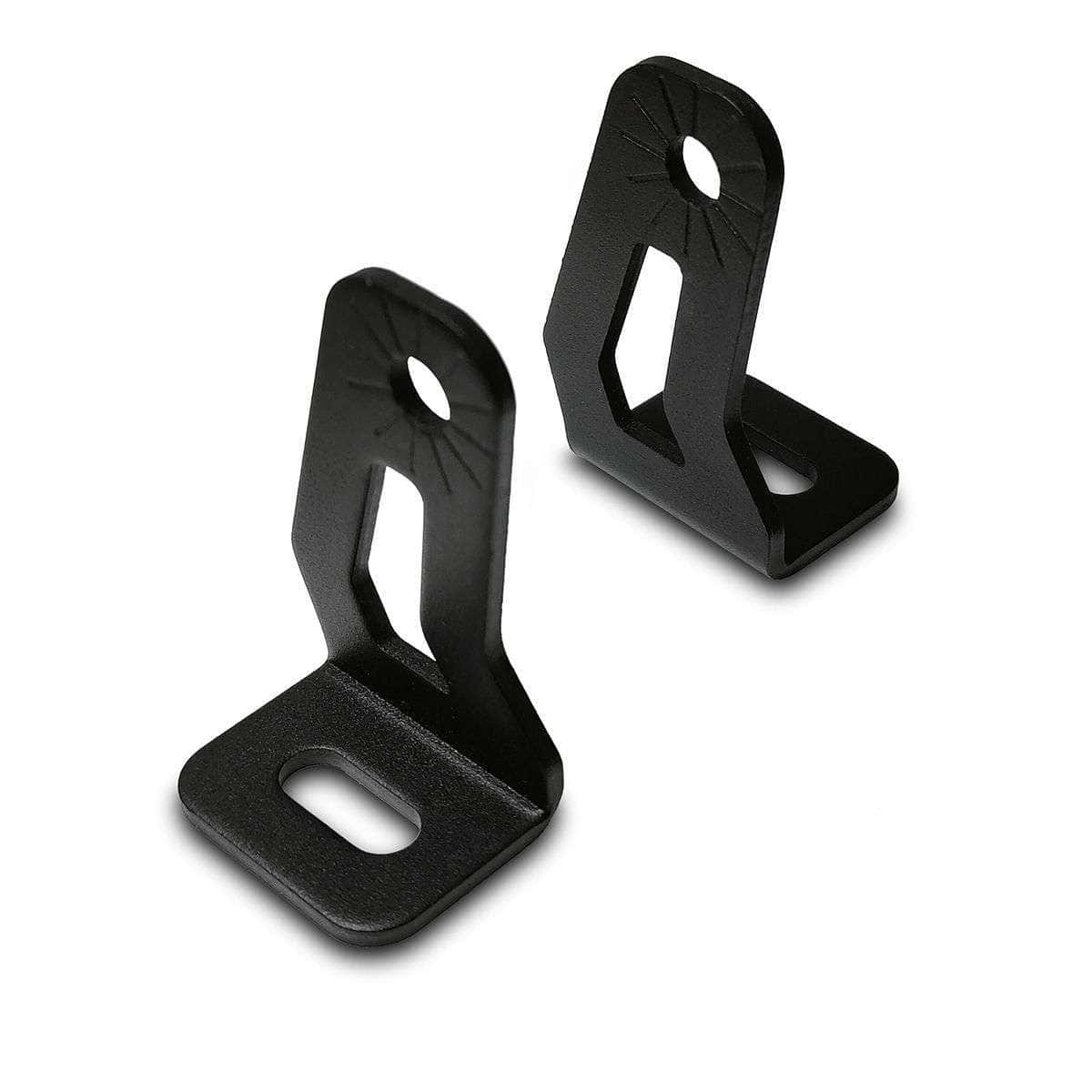

1x Pair of Side Mounting Brackets with Hardware
-

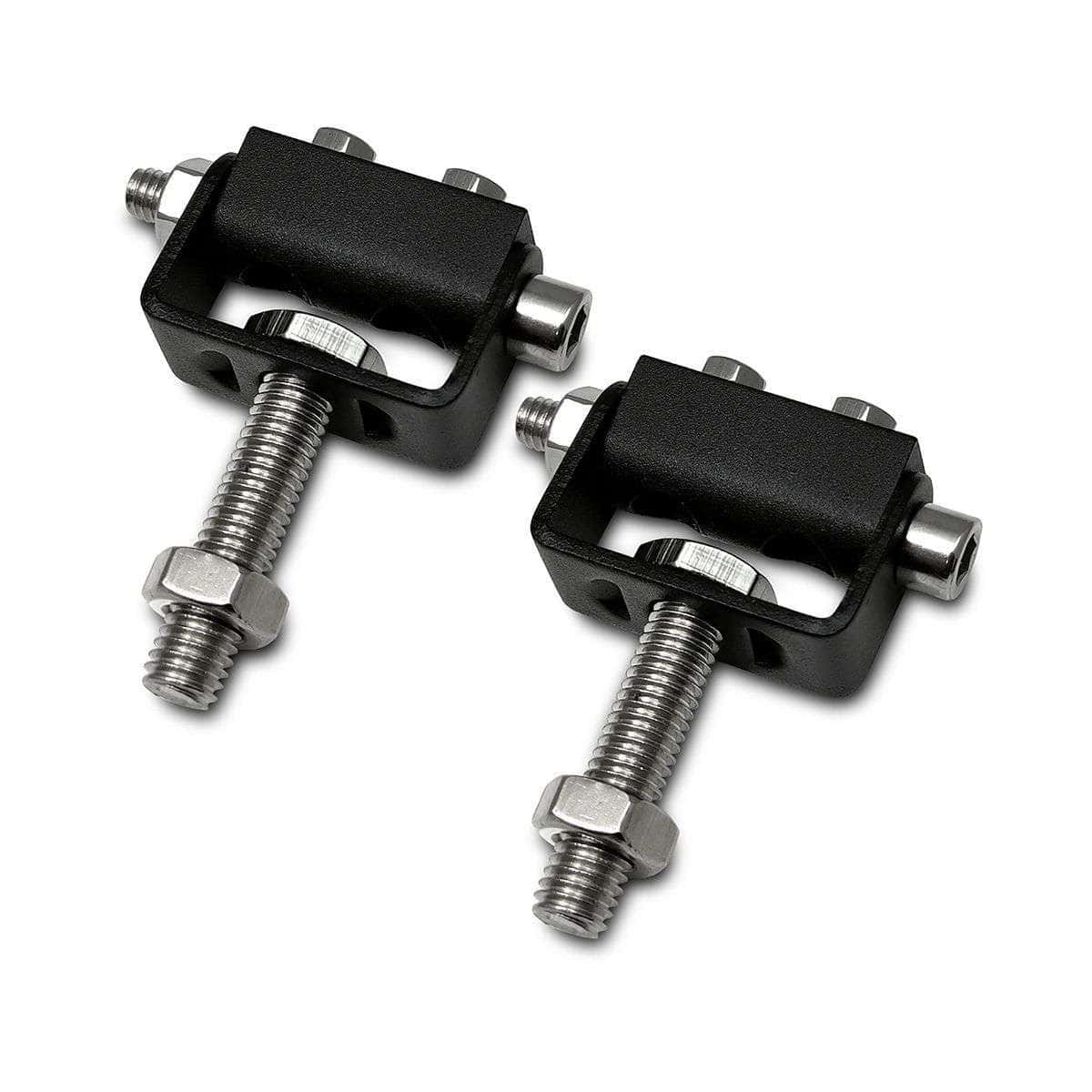

1x Pair of Bottom Mounting Brackets with Hardware
Now Available at BTS Lighting — Compact. Capable. Ready to Lead.
Whether you’re mounting it low, high, or somewhere in between, the NX812 Dual Row Light Bar brings powerful visibility in a smart, install-anywhere size. From off-road escapes to highway hauls, this bar is ready to perform when the lights go down.
