SS5 CrossLink 3-Pod 18.5-Inch LED Light Bar (Single)
Three-pod linked LED light bar utilizing CrossLink technology and TIR optics. Designed for high-intensity forward projection with configurable beam patterns and selectable backlight functionality.

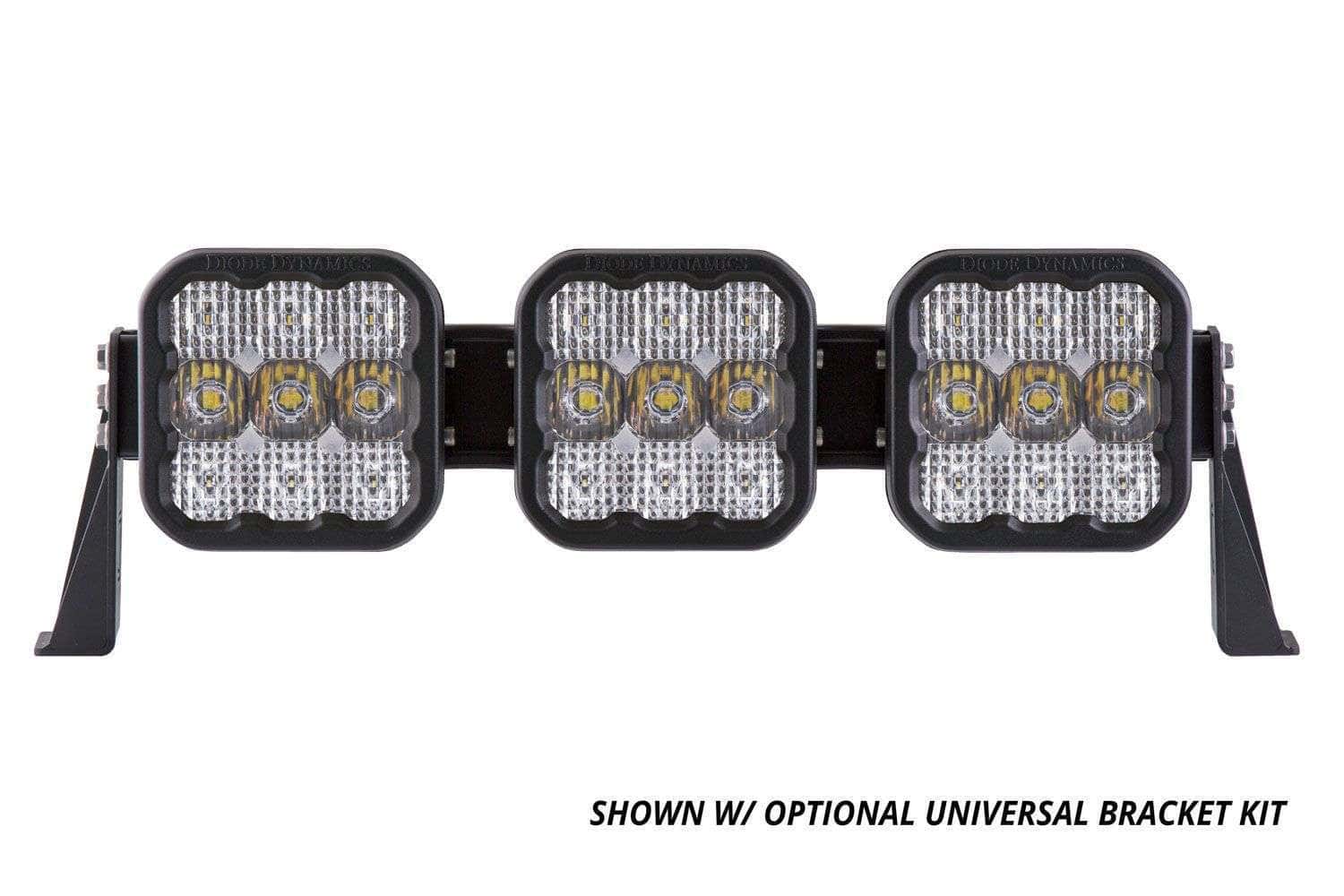

CrossLink 3-Pod Light Bar Configuration
Integrated 3-pod system forms a rigid 18.5-inch light bar.
Features include:
- Three SS5 LED pods linked via CNC aluminum CrossLink system
- Single-piece structural linking design for increased rigidity
- Adjustable alignment for straight or curved configurations
Supports expansion up to eight linked pods.
TIR Optics – Maximum Light Efficiency
Total Internal Reflection (TIR) optics replace traditional reflectors.
Key advantages:
- Directs nearly all emitted light forward
- Reduces internal loss and glare
- Eliminates secondary outer lens loss
Improves usable light output and beam precision.
High-Intensity Output
Engineered for long-range illumination.
Performance characteristics:
- High candela output for distance visibility
- Capable of projecting light at extreme range
- Available in Sport (40W) or Pro (90W) configurations
Designed for high-speed and off-road driving applications.

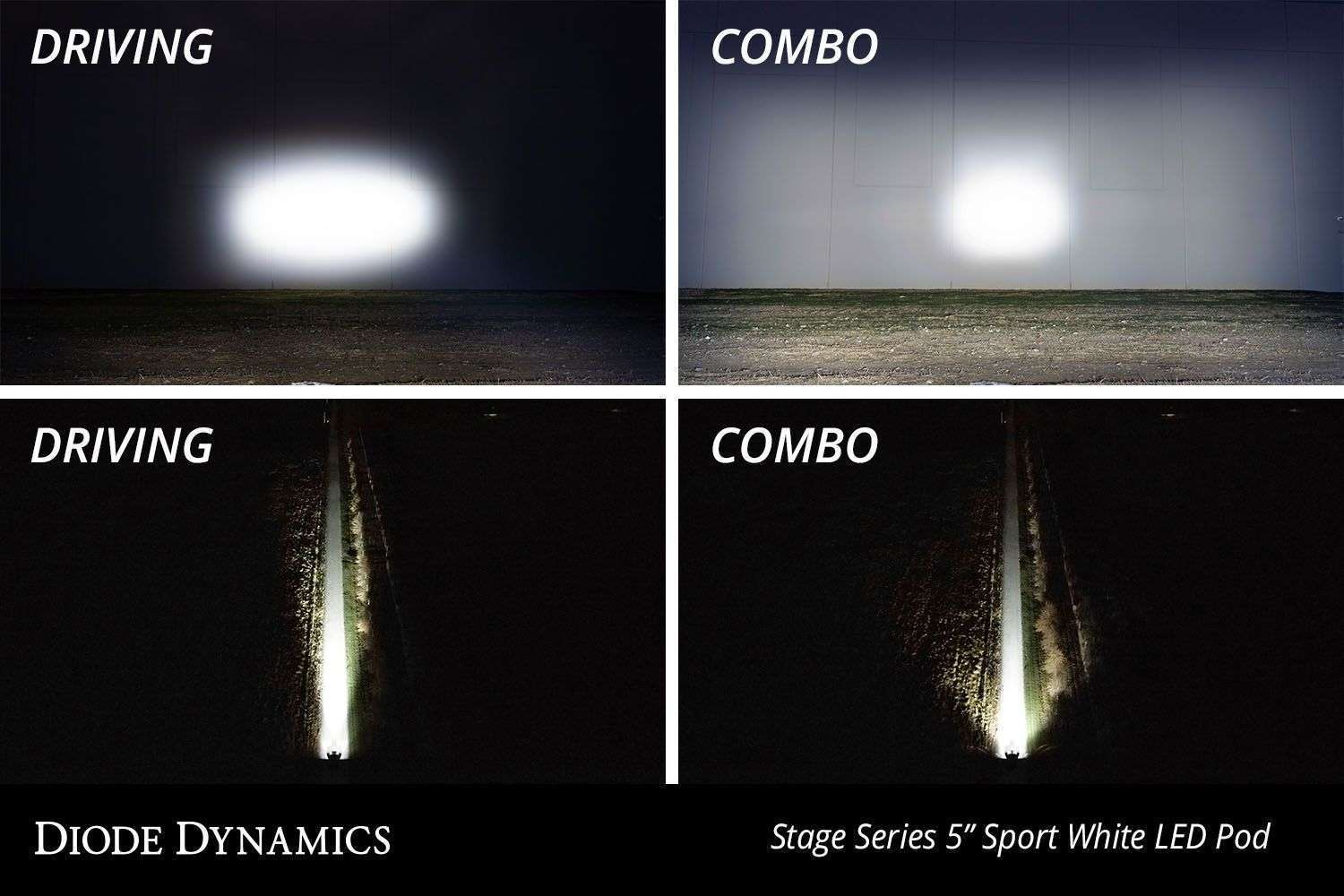

Functional Beam Pattern Options
Multiple beam patterns available for different use cases.
Options include:
- Driving: 30×20° focused forward projection
- Combo: 30×20° driving + 70×30° flood fill
Provides balanced distance and foreground illumination depending on setup.
Selectable Backlight System
Integrated backlight with multiple color options.
Features include:
- Eight selectable backlight colors
- Full optic illumination for accent lighting
- No controller required (power cycle selection)
Enhances visibility and styling when main beam is off.
White or Selective Yellow Output
Available output color options:
- White: 6000K cool white output
- Yellow: 3000K selective yellow for high contrast
Interchangeable lenses allow future color or optic changes.
Modular CrossLink System
Expandable and configurable lighting system.
Features include:
- Link up to eight pods
- No special linking variant required
- Integrated mounting threads on each pod
Supports custom light bar configurations.
Electrical & Connection System
Designed for reliable installation and connectivity.
Includes:
- DT-style Deutsch connectors on each pod
- 3-pod linking harness included
- 6-inch pigtail with bare leads
Compatible with standard DT wiring harnesses.
Durability & Environmental Testing
Built for extreme operating conditions.
Tested for:
- Temperature range: -40°F to 185°F
- Vibration resistance
- Moisture and corrosion exposure
Manufactured and assembled in the USA.
Application & Use Case
Designed for:
- Off-road and high-speed driving
- Truck and SUV auxiliary lighting
- Roof, bumper, and grille mounting
High-output configuration intended for off-road use.
Installation & Technical Details
- Length: 18.5 inches
- Configuration: 3-pod CrossLink system
- Power: Sport (40W) or Pro (90W)
- Beam Patterns: Driving or Combo
- Connector Type: DT (Deutsch-style)
- Mounting: Adjustable CrossLink system
Build Quality & Materials
- CNC aluminum CrossLink brackets
- Integrated TIR optic/lens design
- Heavy-duty housing construction
- Weather-resistant sealing
Designed for long-term durability in harsh environments.
What’s Included
- 3 × SS5 5″ LED pods

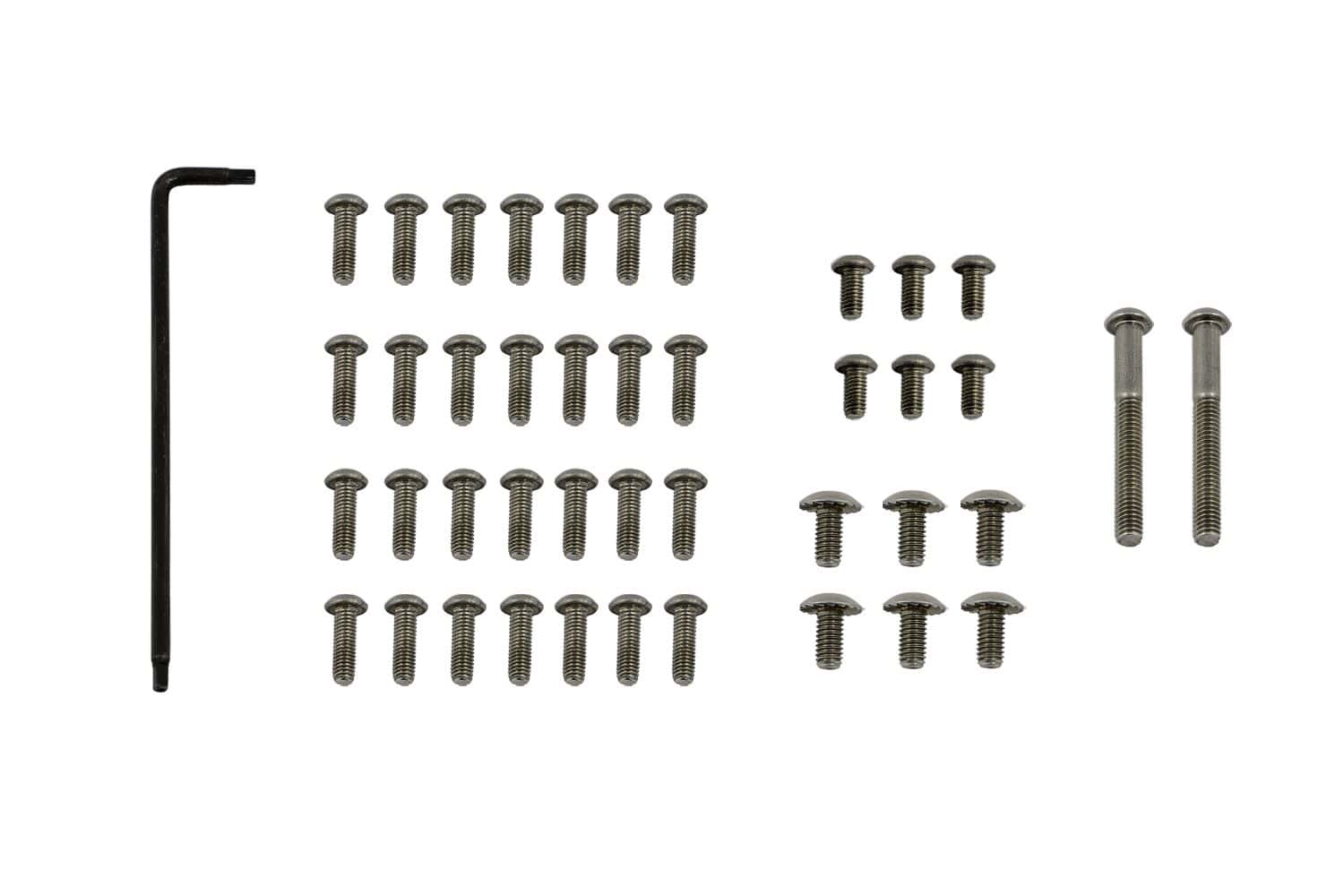

- 2 × CrossLink connectors with hardware
- 1 × CrossLink end mount kit
- 1 × DT 3-pod connecting harness
- 1 × Deutsch-style pigtail
Warranty Coverage
- Lifetime warranty
- 30-day return policy
- Satisfaction guarantee
Frequently Asked Questions About SS5 CrossLink Light Bars
What is CrossLink technology?
CrossLink is a CNC aluminum linking system that connects multiple LED pods into a single rigid light bar.
What makes TIR optics different?
TIR optics direct nearly all emitted light forward, improving efficiency and reducing glare compared to reflectors.
What beam pattern should I choose?
Driving is best for distance at speed. Combo provides both distance and surrounding illumination.
Can I expand this light bar?
Yes. The system supports linking up to eight pods.
Are the lenses interchangeable?
Yes. Lenses can be swapped to change beam pattern or output color.
Is this light street legal?
This light is designed for off-road and auxiliary use. Check local regulations for on-road use.
What is the difference between Sport and Pro?
Sport uses lower power (40W total), while Pro doubles output to 90W for higher intensity.
