NX811 – 14″ LED Light Bar (12–24V, 3,165 Lumens, Combo Beam)
Compact Size. Dual Mounting. All-Round Performance.
The NX811 14″ LED Light Bar is the ultimate all-purpose lighting upgrade for any vehicle — whether used on its own or as part of a larger lighting setup. Delivering a clean combo beam that reaches 1 Lux at 495m, the NX811 offers a wide-angle flood spread for near-field visibility, plus a focused spot beam that punches far down the road — making it ideal for both off-road terrain and highway driving.
Packed with 3,165 raw lumens powered by Osram OSLON® LEDs, this light bar balances brightness, beam precision, and durability. With side and bottom mount options included, you can fit the NX811 to virtually any bumper, bull bar, roof rack, or number plate bracket.
Key Features & Benefits
-
Powerful Combo Beam: Fence-to-fence spread + strong center punch beam for full visibility on and off the road.
-
Dual Mounting Options: Includes both side and bottom mount brackets for versatile installation on any vehicle surface.
-
Premium LEDs: Built with Osram OSLON® high-performance diodes for long life and consistent brightness.
-
Perfect for Any Setup: Ideal as a stand-alone bar or as part of a multi-light configuration.
-
Clean White Output: 5700K daylight-style color temp for enhanced contrast and reduced driver fatigue.
-
Compact & Lightweight: 14″ form factor weighing only 0.7kg — ideal for smaller builds or discreet installs.
-
EMI Certified: R10 EMI compliance ensures safe use with radios and electronics.
-
All-Weather Protection: IP67 & IP69K waterproof rating for rain, pressure washing, dust, and mud.
-
Shock & Vibration Resistant: Made to perform in the harshest environments and terrain.
-
3-Year Warranty: Backed by the Noxsolis guarantee for long-term reliability.
One Light Bar That Does It All
The NX811 is a compact lighting solution with serious capability. Whether you’re trail running at night, driving backroads, or navigating remote work sites, the combination of spread and distance makes this bar ideal for total front-end coverage. With dual mounting options included in the box, installation is a breeze no matter your build style.
Vehicle & Application Compatibility
Perfect for:
-
Pickup trucks, UTVs, ATVs, and overland rigs
-
Off-road, 4WD, and adventure vehicles
-
Trailers, campers, and caravans
-
Bull bars, roof racks, nudge bars, and number plate mounts
-
Utility, agricultural, or commercial service vehicles
Compatible with both 12V and 24V systems.
Technical Specifications
-
Light Output: 3,165 Lumens (Raw)
-
Beam Distance: 1 Lux @ 495m
-
Beam Type: Combo (Spot + Flood)
-
Power Consumption: 48W
-
Current Draw: 3.26A @ 13.8V / 1.89A @ 24V
-
LED Type: Osram OSLON®
-
Color Temperature: 5700K
-
Voltage Range: 12–24V DC
-
Circuit Type: Single
-
Waterproof Rating: IP67 & IP69K
-
Lens Material: Polycarbonate
-
Mounting Options: Side brackets & bottom mount brackets
-
Connector: 2-Pin Deutsch DT
-
Weight: 0.7kg
-
Warranty: 3-Year Limited Warranty
What’s Included
-
1x NX811 14″ LED Light Bar (Combo Beam)
-

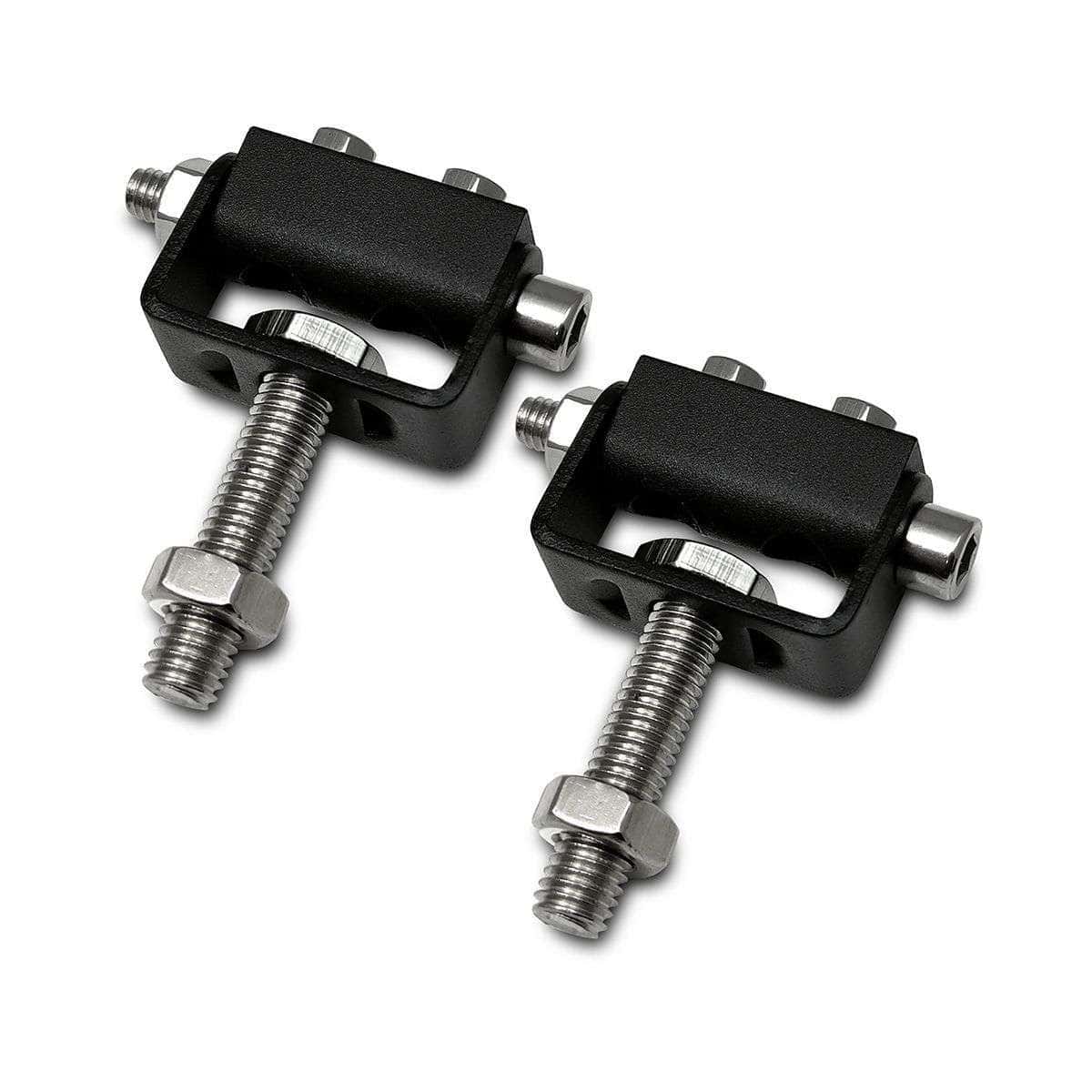

1x Pair of Side Mounting Brackets with Hardware
-

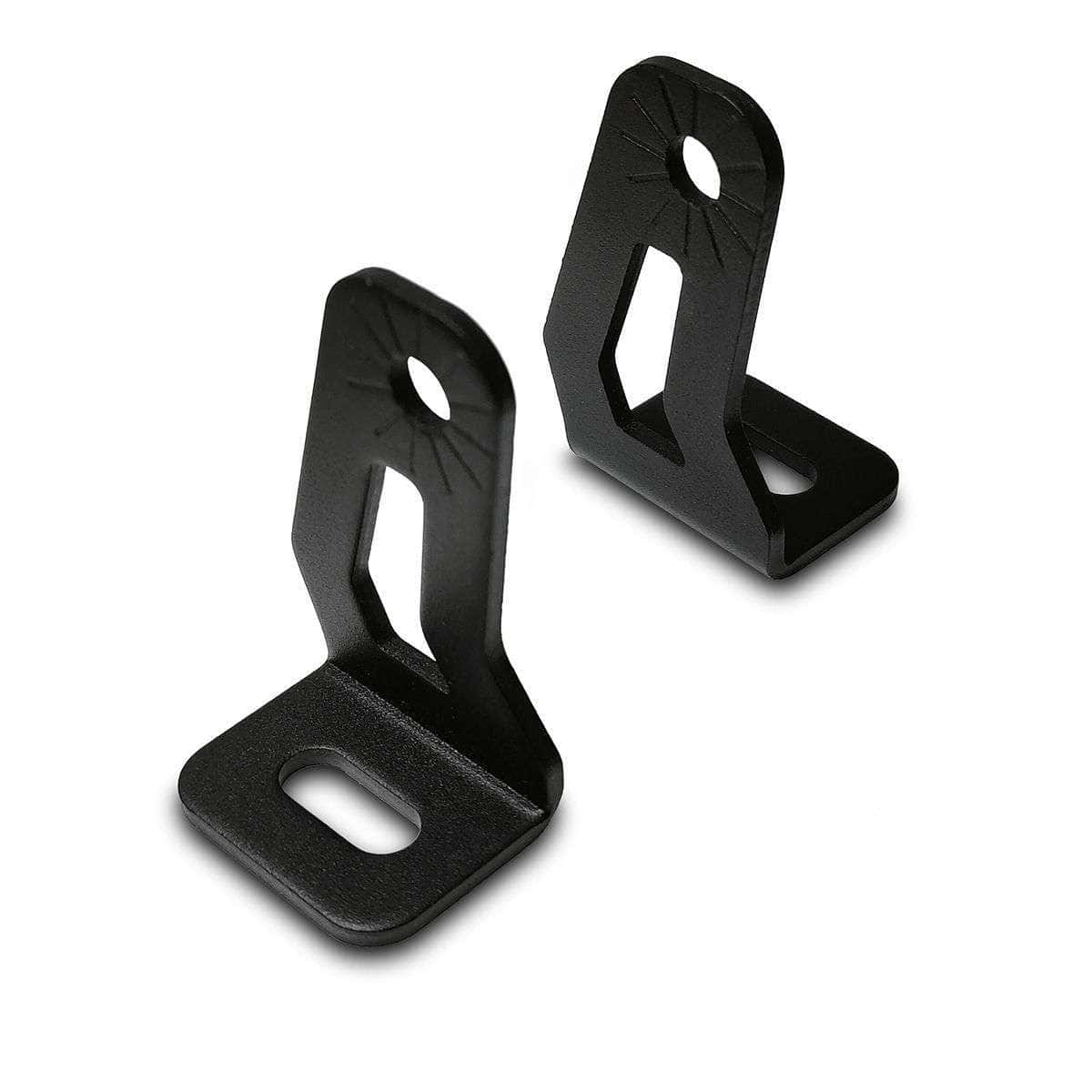

1x Pair of Bottom Mounting Brackets with Hardware
Now Available at BTS Lighting — The Ultimate All-Rounder Light Bar
Sleek, powerful, and built to fit nearly anywhere, the NX811 delivers everything you need in a compact LED bar — broad visibility, punchy distance, and simple mounting. Whether you’re upgrading a work truck or an off-road build, this bar is ready for action.
