NX822 – 22″ Dual Row LED Light Bar (12–24V, 10,133 Lumens, Combo Beam)
Maximum Power. Broad Coverage. Built for the Long Haul.
The NX822 22″ Dual Row LED Light Bar is a heavy-hitting auxiliary light that delivers exceptional distance and spread — all in a versatile, mid-size housing. Producing an impressive 10,133 raw lumens, this bar features a precision-designed combo beam pattern that lights up the trail or highway with up to 770m of reach at 1 Lux. Whether you’re heading deep into the backcountry or cruising on-road, the NX822 is built to light your path with unmatched clarity.
Powered by Osram OSLON® LEDs, and protected by an IP67 & IP69K waterproof housing, the NX822 is engineered for performance and resilience. With both side and bottom mount brackets included, it’s ready to install on nearly any bull bar, roof rack, nudge bar, or number plate bracket.
Key Features & Benefits
-
Extreme Output: 10,133 raw lumens and dual-row Osram LEDs deliver serious performance.
-
Long Distance + Wide Spread: Combo beam offers 1 Lux @ 770m while filling the foreground fence-to-fence.
-
Dual Row Power: More LED density for a brighter, fuller beam pattern.
-
All-Inclusive Mounting Kit: Comes with both side and bottom brackets for universal installation.
-
Rugged & Durable: Waterproof to IP67 & IP69K, and vibration resistant for off-road or highway use.
-
Clean 5700K Light: Bright white daylight color temp enhances detail, contrast, and long-range visibility.
-
Electronics Safe: R10 EMI compliance ensures zero interference with radios or vehicle electronics.
-
3-Year Warranty: Built to last, backed by Noxsolis’ reputation for rugged reliability.
One Light Bar That Does It All
The NX822 is the ideal choice when you want a light bar that can handle distance driving, close-up trail coverage, and everything in between. Its slim 22″ profile fits cleanly on a variety of vehicles, while the dual row layout and combo beam deliver unmatched versatility. Whether you’re a weekend explorer, long-haul driver, or fleet operator — this light means business.
Vehicle & Application Compatibility
Perfect for:
-
Off-road 4WDs, overland vehicles, and UTVs
-
Pickup trucks, service vehicles, and highway rigs
-
Agricultural and industrial machinery
-
Bull bars, roof racks, trailers, and canopy setups
-
Commercial fleet and emergency lighting
Compatible with 12V and 24V DC electrical systems.
Technical Specifications
-
Light Output: 10,133 Lumens (Raw)
-

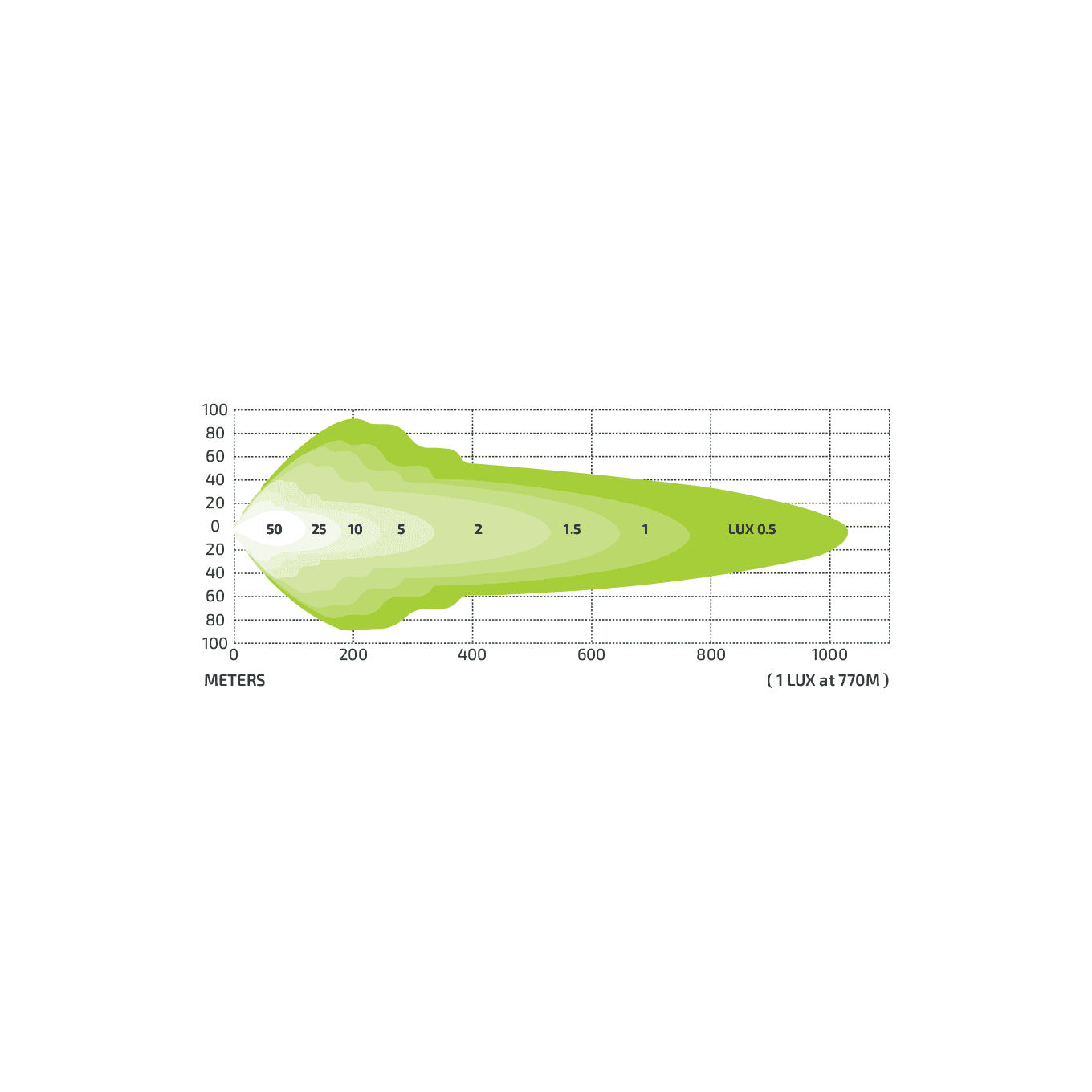

Beam Distance: 1 Lux @ 770m
-
Beam Type: Combo (Spot + Flood)
-
Power Consumption: 160W
-
Current Draw: 8.91A @ 13.8V / 5.14A @ 24V
-
Circuit Type: Dual
-
LED Type: Osram OSLON®
-
Color Temperature: 5700K
-
Voltage Range: 12–24V DC
-
Waterproof Rating: IP67 & IP69K
-
Lens Material: Polycarbonate
-
Mounting Options: Side brackets + bottom mount brackets
-
Connector: 2-Pin Deutsch DT
-
Weight: 1.56kg
-
Warranty: 3-Year Limited Warranty
What’s Included
-
1x NX822 22″ Dual Row LED Light Bar (Combo Beam)
-

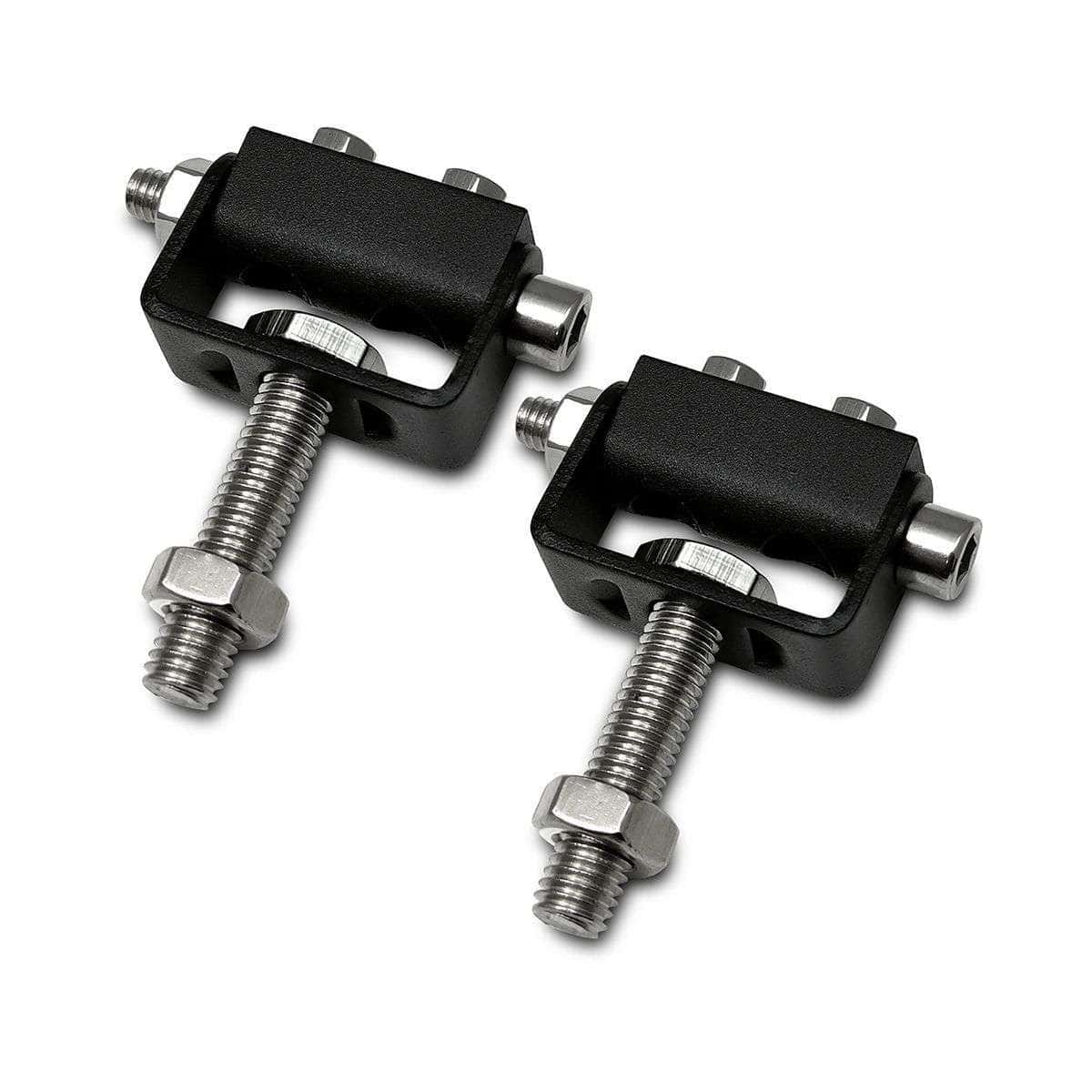

1x Pair of Side Mounting Brackets with Hardware
-

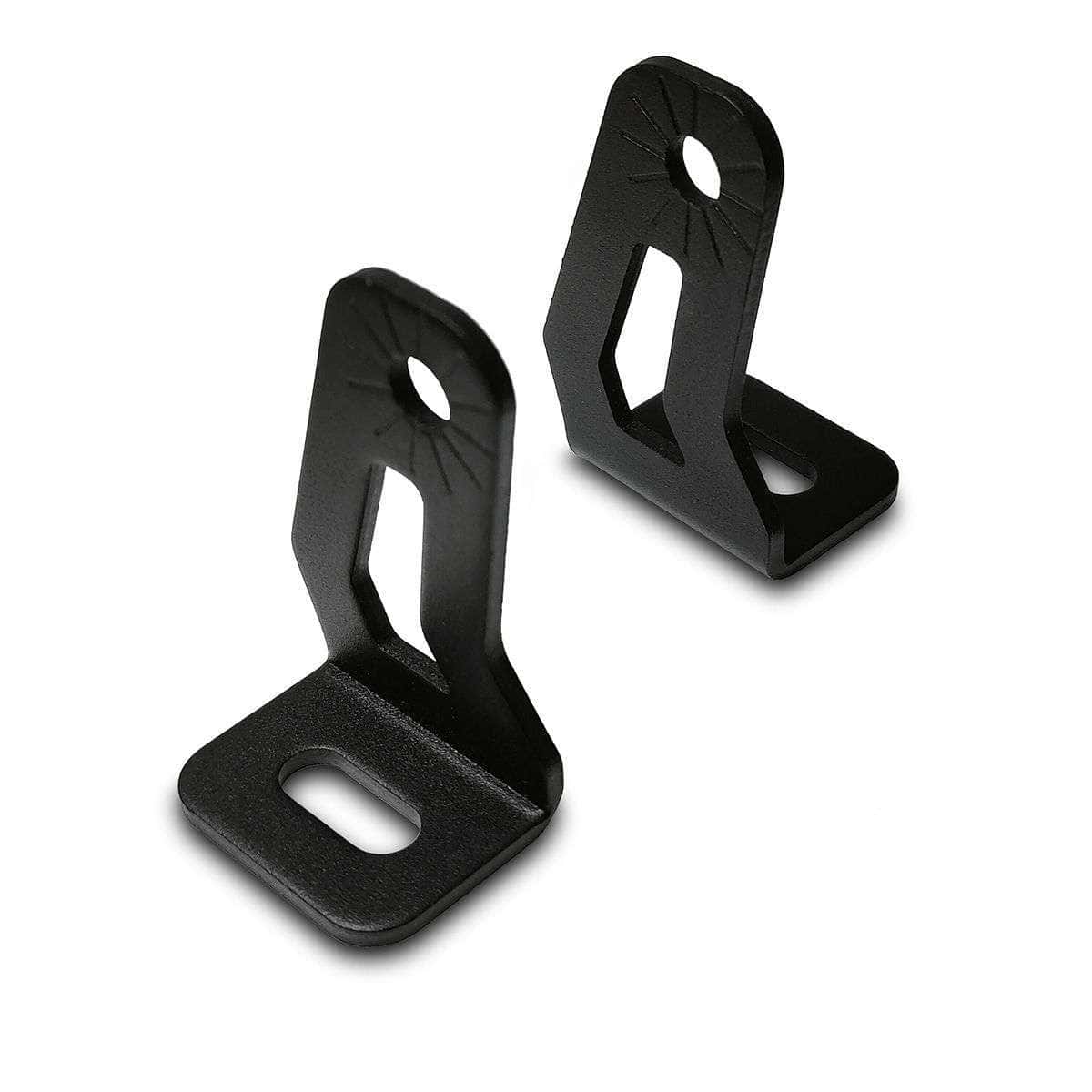

1x Pair of Bottom Mounting Brackets with Hardware
Now Available at BTS Lighting — Wide. Far. Built to Go Anywhere.
If you’re looking for a do-it-all lighting solution that can throw light far ahead while flooding the immediate area around you, the NX822 is your answer. Slim, powerful, and rugged — this is serious lighting for serious drivers.
