Ford Raptor 2017-2020 – SS5 Grille CrossLink Lightbar Kit
Features
-
Bolt-on fitment on 2017-2020 Ford Raptor
-
Mounts a six-pod CrossLink lightbar across the grille
-
Ultra-high intensity, custom-engineered TIR optics
-
Selectable backlight color, with eight color options
-
Torture-tested, heavy-duty construction
-
Control through factory aux switch bank using the included harness
-
Utilizes existing mounting points for easy installation – no cutting or drilling required
Overview

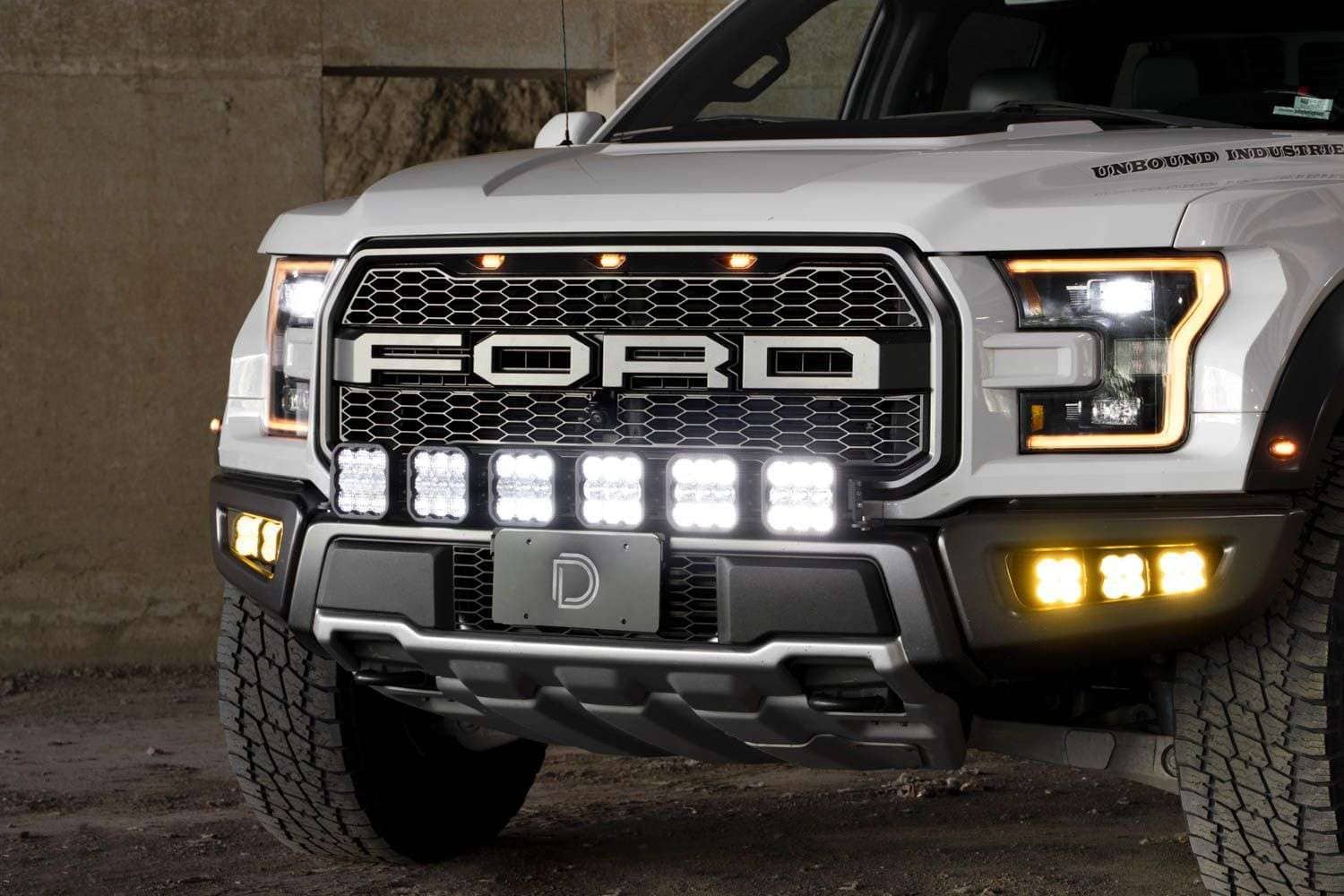

Perfect Fitment. The Grille CrossLink Lightbar Kit for the 2017-2020 Ford Raptor allows you to mount six linked SS5 LED pods across the grille using application-specific brackets. These brackets are CAD-designed to bolt directly into factory mounting points—no cutting or drilling required!
Designed for Performance. With the highest output intensity of any 5-inch LED pod on the market, the SS5 delivers maximum functionality. Featuring patented technology, custom-engineered TIR optics, and rugged construction, this kit is built for serious performance.

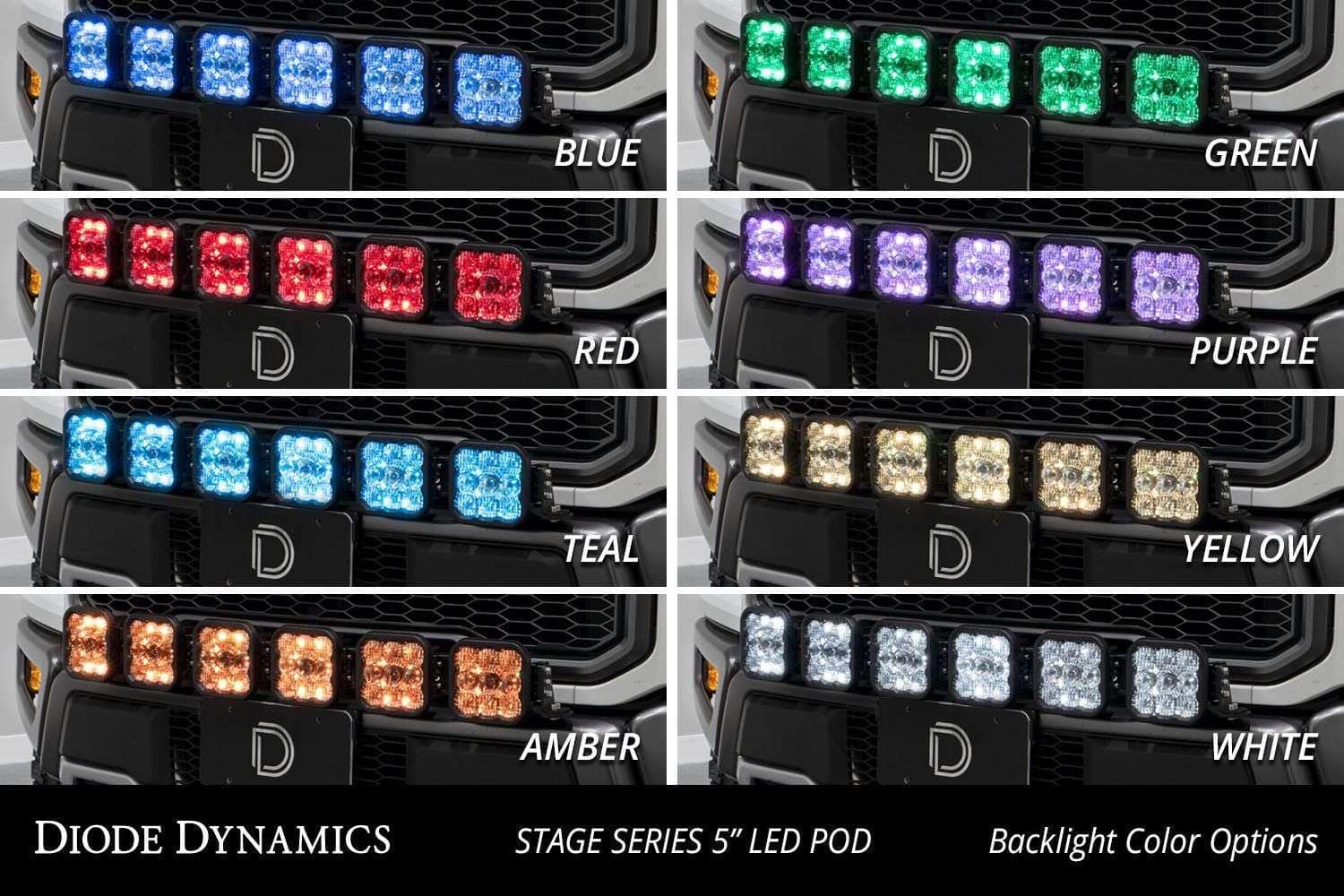

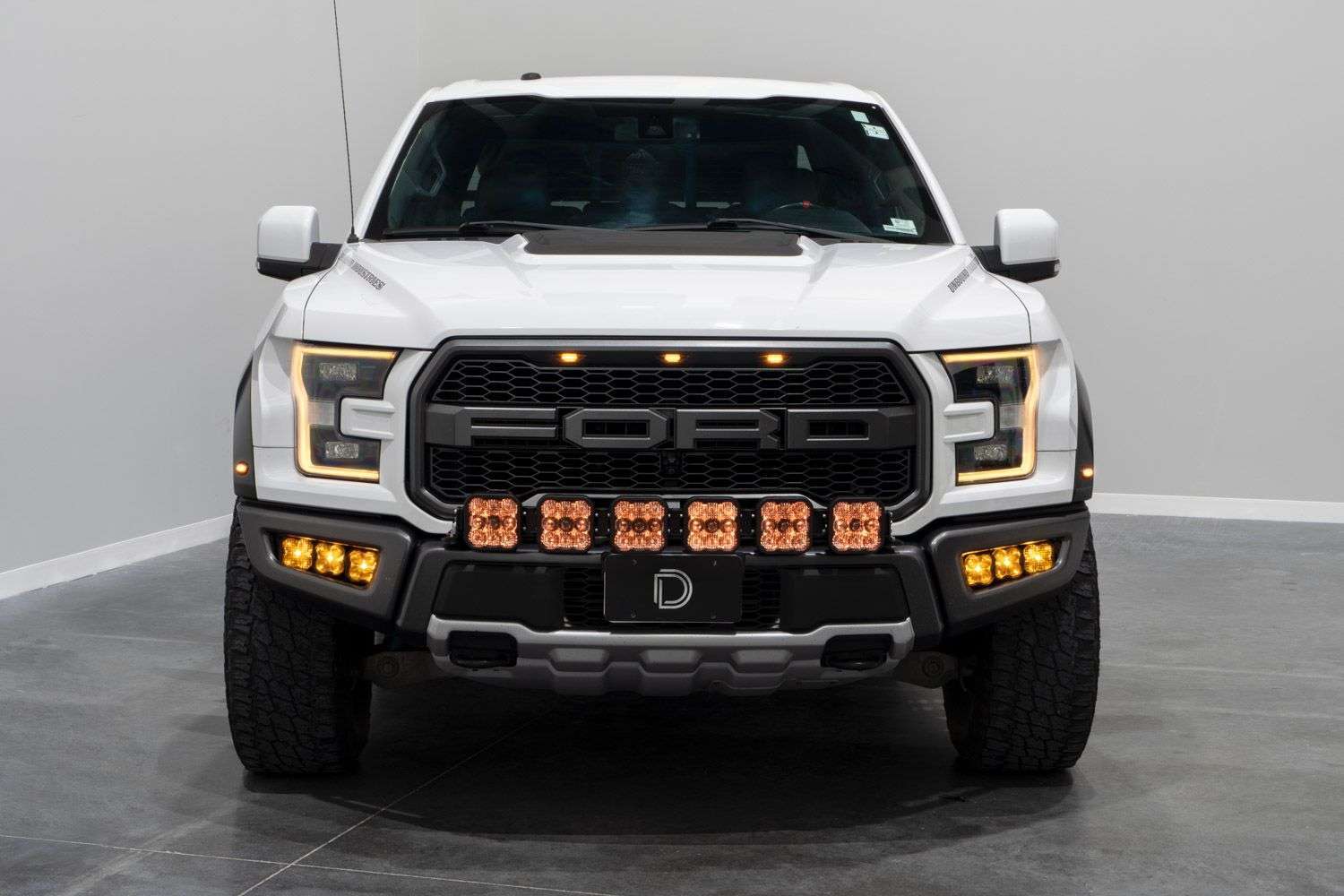

Selectable Backlight. The White kit includes SS5 pods with a selectable backlight offering eight color options. Simply alternate power on and off to change colors—no controller required. The backlight fully illuminates the TIR optic, creating a unique, modern accent light. (Note: Yellow kit is only available with Amber backlight due to lens color.)
CrossLink Technology. Our patent-pending CrossLink system links all six SS5s into a single lightbar using one-piece CNC aluminum links. This ensures extreme rigidity and full adjustability without needing special versions of the pods. This kit comes pre-configured for a curved setup.
OEM Aux Switch Control. The included harness connects to your factory-installed aux switch bank for seamless control. Two switches are used: one for the main beam and one for the backlight. If your vehicle lacks an aux switch bank, a toggle switch adapter is included.

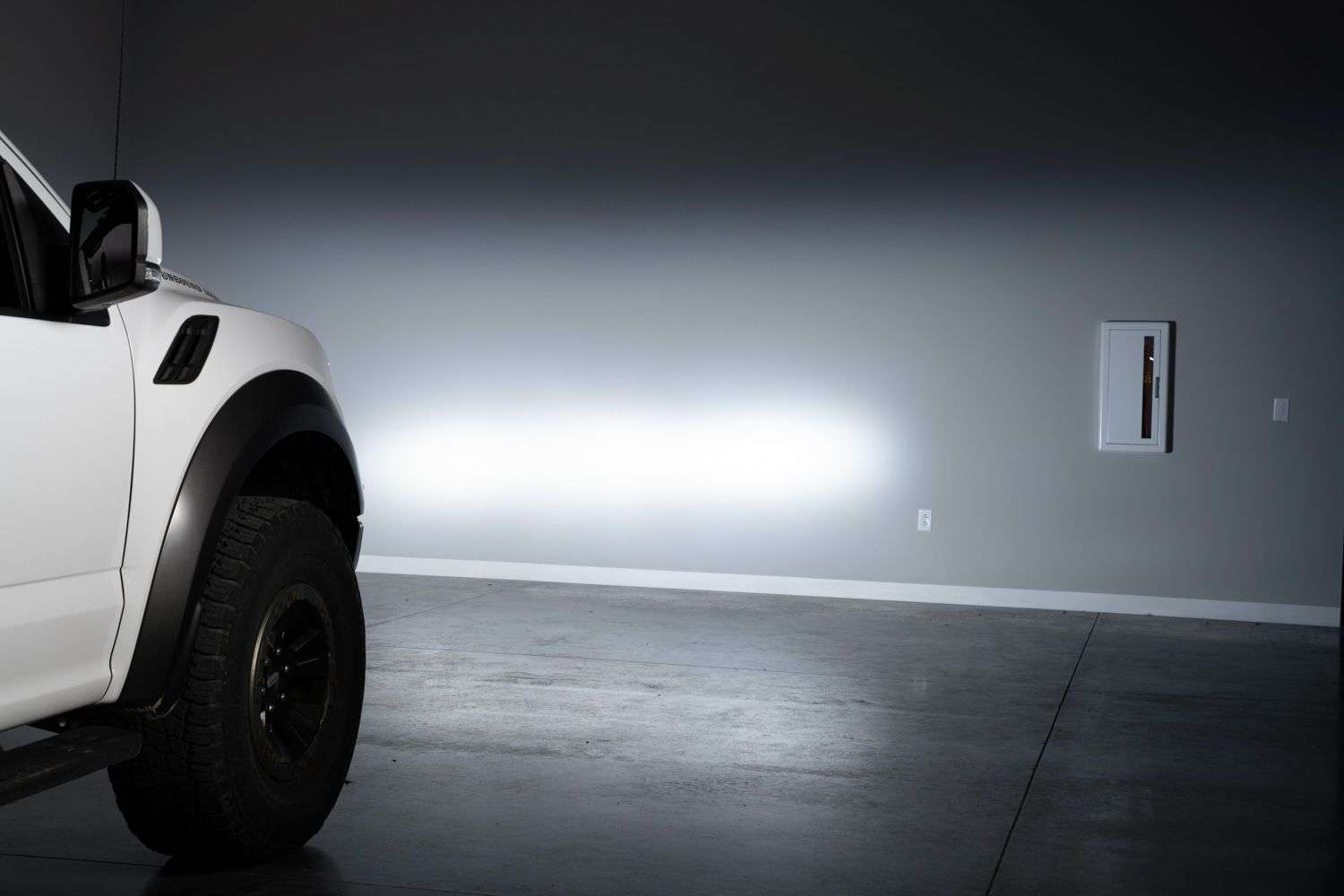

Functional Output. Stage Series beam patterns are designed with advanced optical simulation for highly efficient, functional output.
-
Combo Pattern: Combines Driving and Flood optics. The driving beam punches light downrange in a 30×20 pattern, while the flood optic widens coverage into a full 70×30 degree spread—ideal for all-around visibility.
Color Options. Available in:
-
White (6000K): A true cool white output that matches most factory LED lighting
-
Yellow (3000K): A selective yellow for better visibility in poor weather or a distinctive style
Interchangeable Lenses. Need to change beam pattern or color? Replacement lenses allow you to swap optics and colors anytime.
Sport or Pro Options.
-
Sport: Nine high-intensity LEDs, 40W total power
-
Pro: Double the output at 90W total power for maximum brightness
Snap-On Covers. Available in multiple colors to meet state requirements and keep your SS5 pods protected from dust, dirt, and debris.
Proven Reliability. Tested to SAE standards for extreme temps (-40° to 185°F), vibration, moisture intrusion, and corrosion. Trusted by both racers and enthusiasts.
Experience. Backed by Diode Dynamics, a leading name in automotive LED lighting with over a decade of innovation, assembly, and engineering in the USA.
What’s Included
-
Two (2) Application-specific heavy-duty steel brackets
-
Two (2) Low-mount heavy-duty steel brackets
-
Six (6) Stage Series 5” LED pods
-
One (1) Heavy-duty single-output 4-pin wiring harness or Ultra heavy-duty single-output 4-pin wiring harness
-
One (1) DT 6-Pod connecting harness
-
One (1) CrossLink endmount kit
-
Five (5) CrossLinks with hardware
-
Installation guide
Quantity: One (1)
Warranty: Lifetime Warranty
Return Policy: 30-Day Return, No Restocking Fee, 100% Satisfaction Guarantee
Fitment
-
Make: Ford
-
Model: Raptor
-
Years: 2017, 2018, 2019, 2020
Note: May partially obstruct the viewing window of trucks with the 360° Camera Package. However, the camera remains functional.
Choose the correct Diode Dynamics configuration
| Manufacturer SKU | Configuration |
|---|---|
| DD7334P | SS5 Grille Mount Bracket Kit for 2017-2020 Ford Raptor |
| DD7335 | SS5 Grille CrossLink Lightbar Kit for 2017-2020 Ford Raptor Sport White Combo |
| DD7336 | SS5 Grille CrossLink Lightbar Kit for 2017-2020 Ford Raptor Sport Yellow Combo |
| DD7337 | SS5 Grille CrossLink Lightbar Kit for 2017-2020 Ford Raptor Pro White Combo |
| DD7338 | SS5 Grille CrossLink Lightbar Kit for 2017-2020 Ford Raptor Pro Yellow Combo |
Questions and answers
How do I choose the correct version?
Select the options that match the manufacturer SKU and configuration table on this page. The listed choices cover DD7334P, DD7335, DD7336, DD7337, DD7338; each row is a real product configuration.
Does every option include the same parts?
Included parts depend on the selected manufacturer SKU. The selected option description lists its package contents; use those details when comparing a complete kit with a replacement part.
How do complete kits and component-only options differ?
Choose the exact configuration before ordering. Bracket-only, harness-only and complete lighting options have different included parts; the manufacturer SKU and selected option identify the package you receive.
Explore pod lights, vehicle-specific lighting kits and matching wiring harnesses.
Manufacturer warranty
Diode Dynamics provides a limited lifetime warranty for this product for eligible purchases from April 15, 2025. Commercial, industrial and fleet use is limited to 8 years. After the first 3 years, covered products require return for inspection and repair or replacement at the manufacturer’s discretion. Coverage applies to the specified lamp or component; bundled wiring and accessories follow their own published terms. Keep proof of purchase. Manufacturer approval and an RMA are required before return; labor and normal wear are excluded. Shipping obligations vary by location. See the manufacturer warranty terms for eligibility, exclusions and claim instructions.
