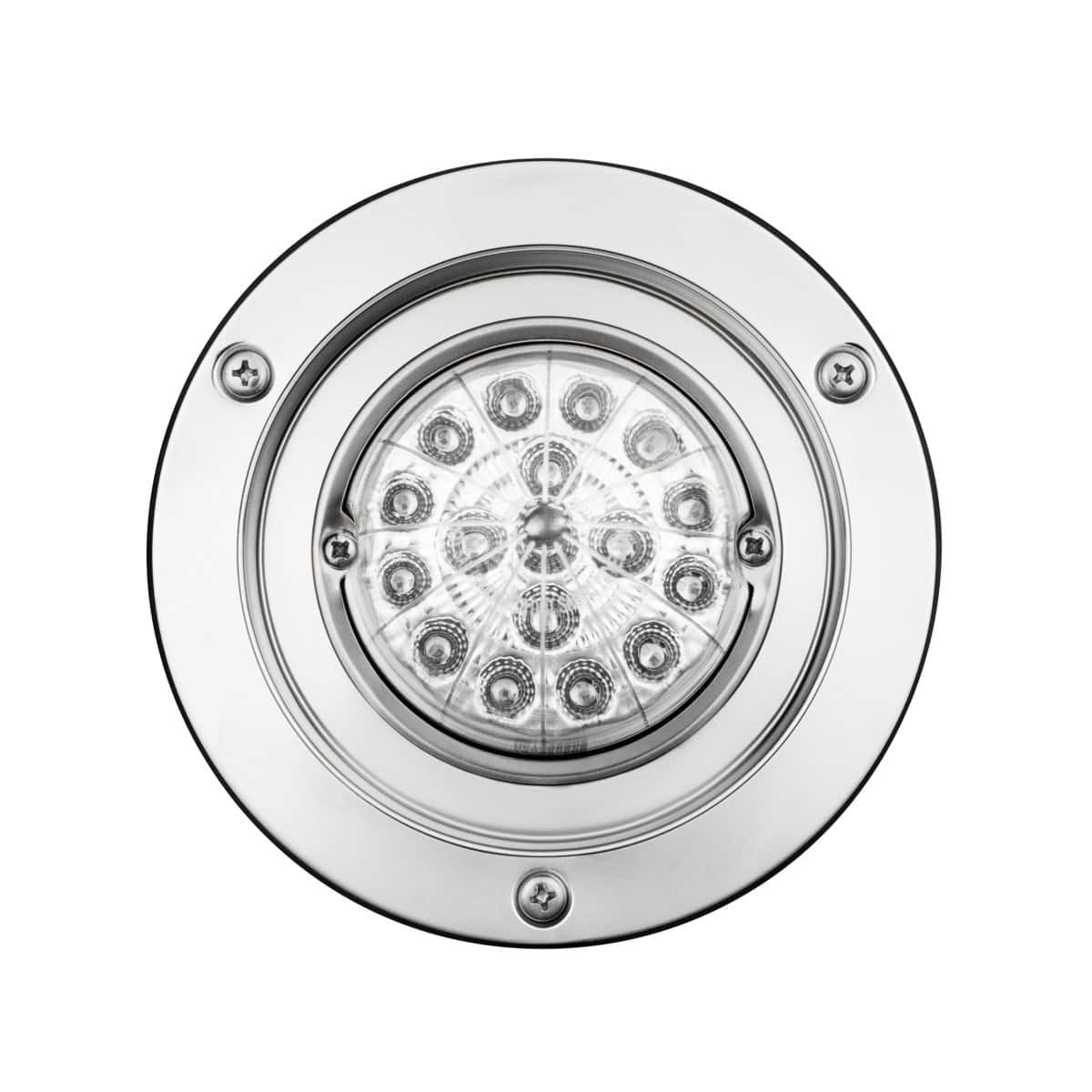

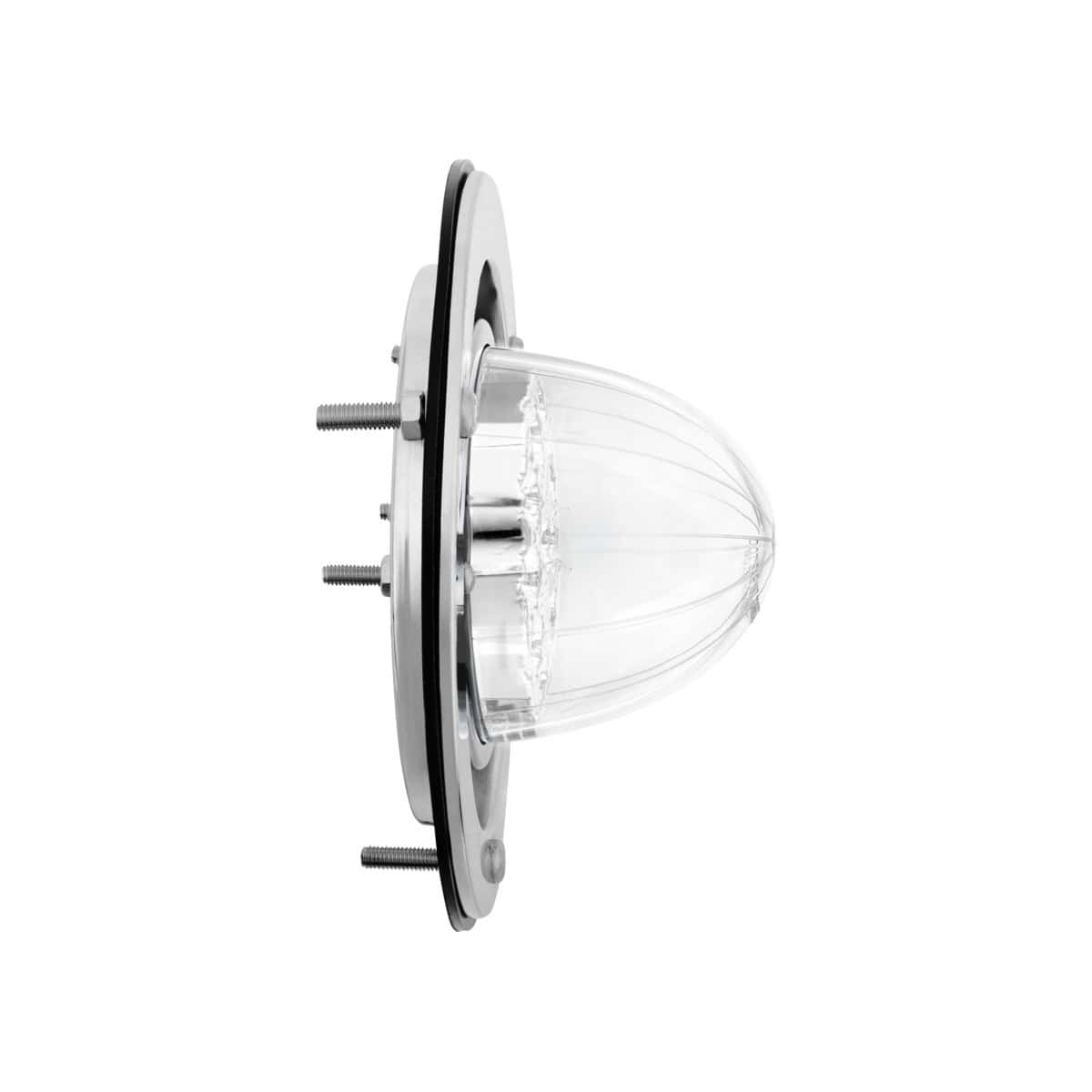

Double Fury Amber & Blue LED Sleeper Bunk Light Kit

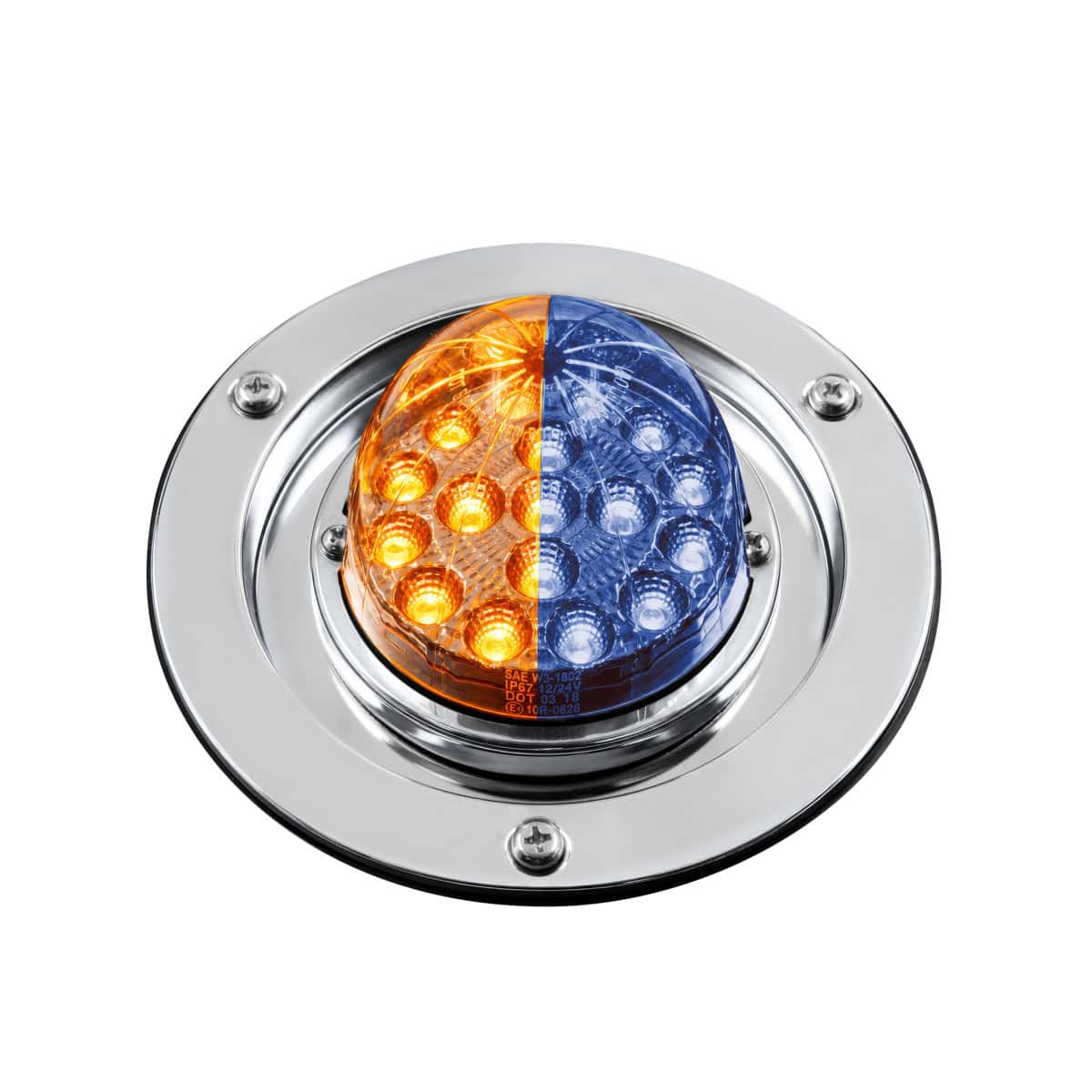

This Double Fury watermelon light kit features 17 LEDs in a dual-colour design. The amber primary lighting provides low and high functions, while the blue secondary lighting is designated for auxiliary use only.
Dual-Colour, Dual-Function Lighting
Separate wire leads control the primary colour’s low and high functions and the secondary auxiliary colour. This provides distinct connections for each lighting function.
Polished 304 Stainless Steel Bezel

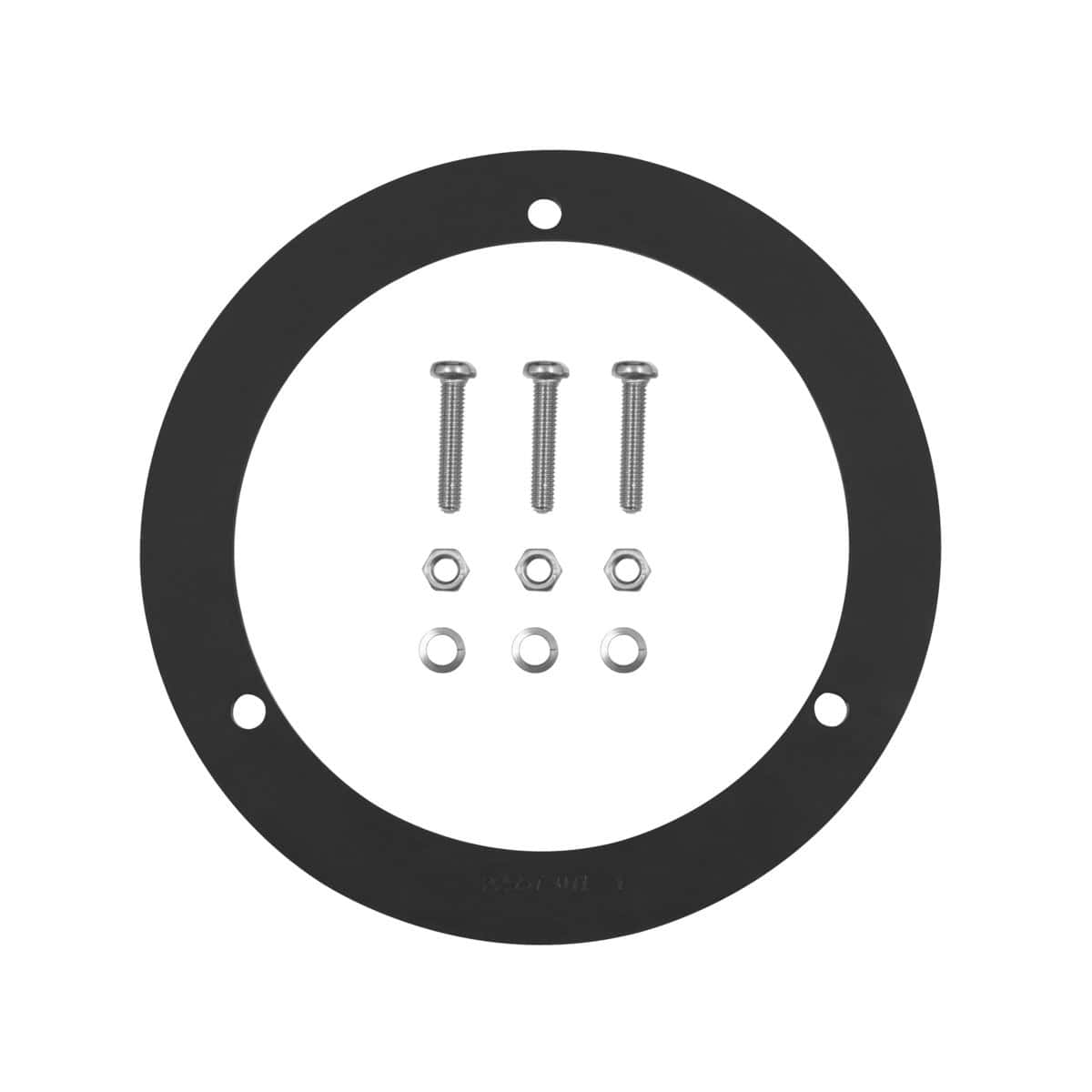

The kit includes a polished 304 stainless steel bezel and a foam gasket to complement your sleeper bunk lighting installation. Confirm the mounting dimensions and available clearance before ordering.
Sealed 12V DC Electronics
The electronics are completely sealed to resist corrosion and moisture. The supplied specifications list an IP67 water resistance rating and 12V DC operation.

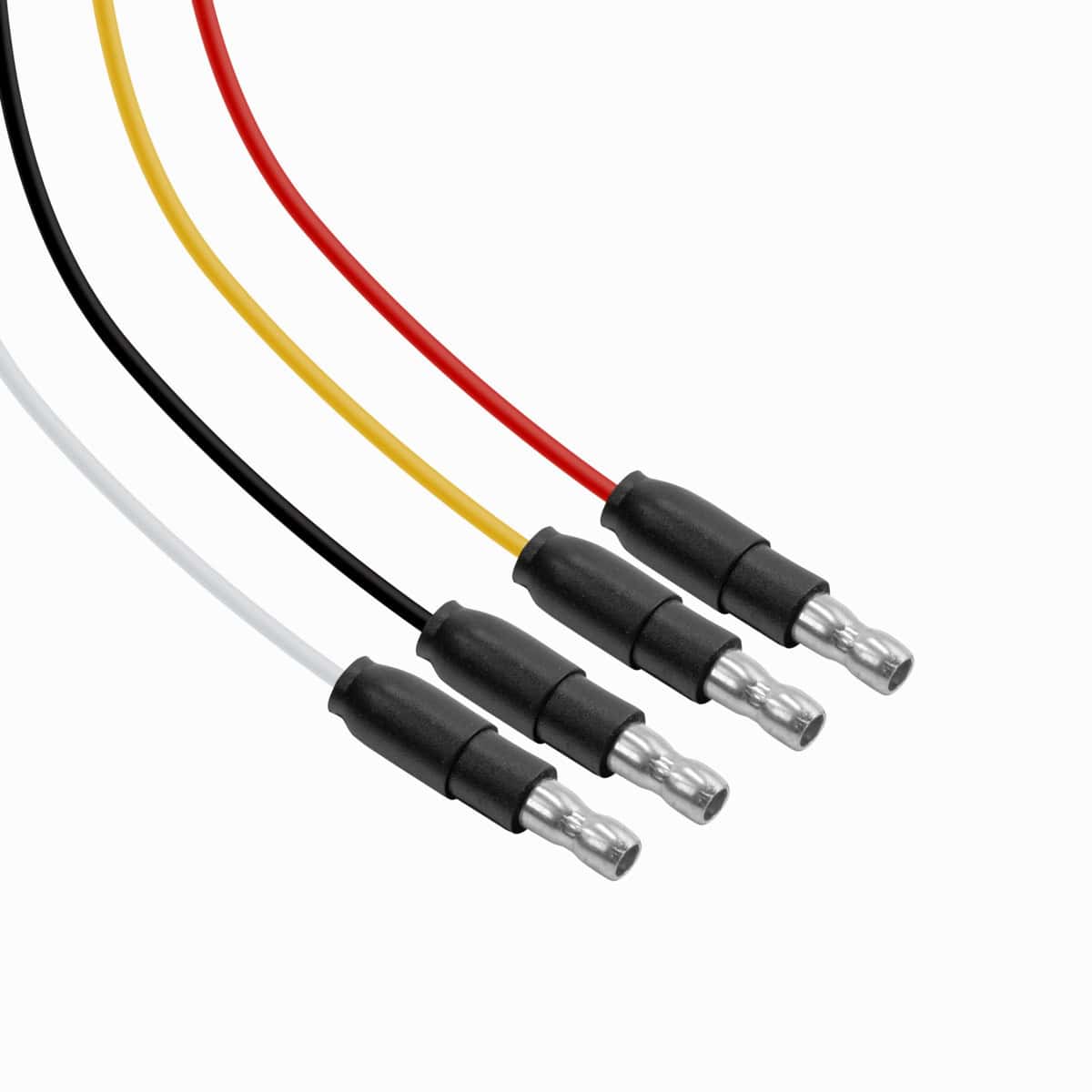

Colour-Coded Wiring with Bullet Plugs

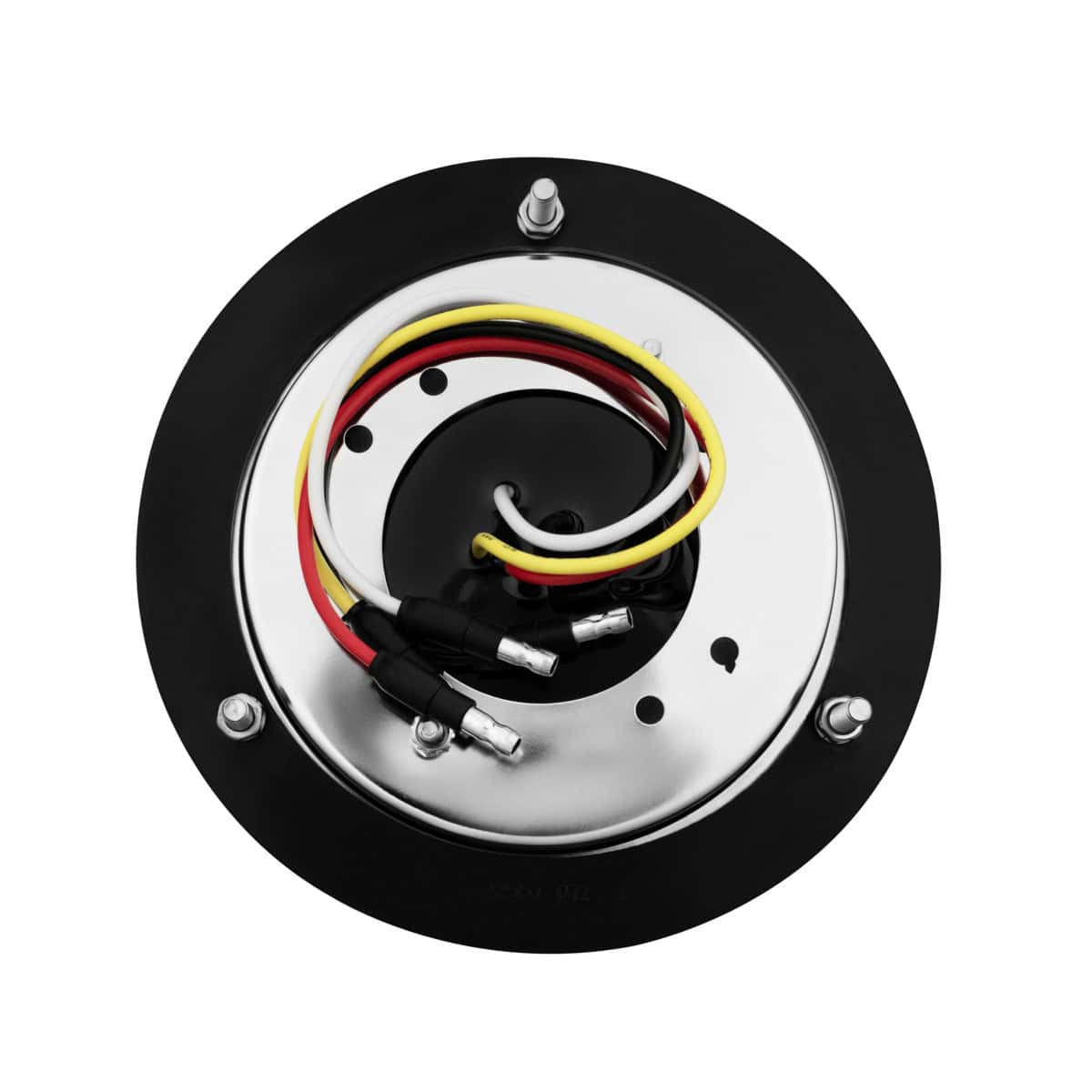

Four wire leads feature overmolded male bullet plugs. The supplied wiring colour code is:
- White: Ground
- Black: Primary amber low function
- Red: Primary amber high function
- Yellow: Secondary blue auxiliary function
Confirm mating connector compatibility and circuit requirements before installation.
Product Details
- Product type: Watermelon sleeper bunk light kit
- Series: Double Fury
- LED count: 17
- Primary LED colour: Amber

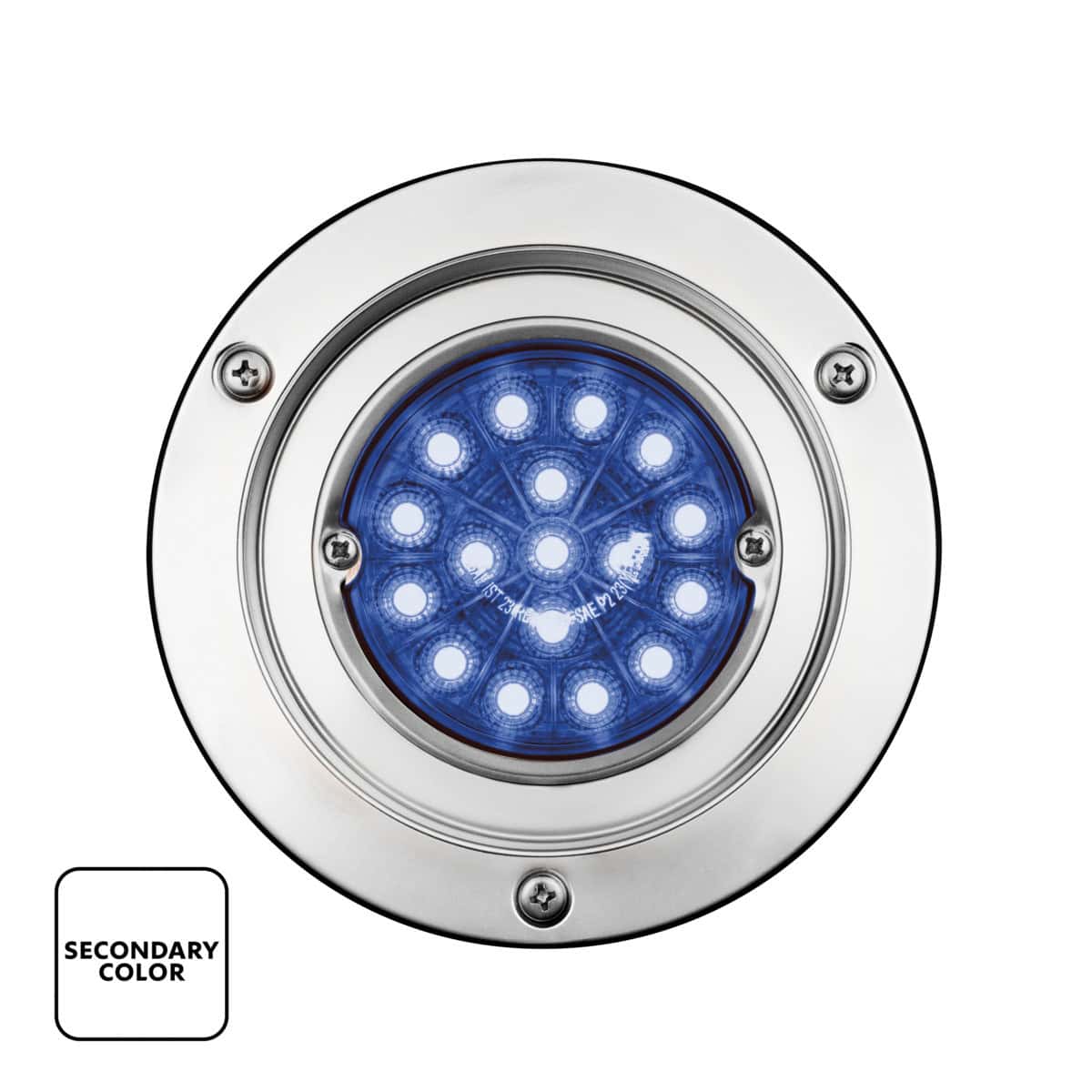

- Secondary LED colour: Blue, auxiliary use only
- Primary functions: Low and high
- Bezel: Polished 304 stainless steel
- Gasket: Foam, included
- Operating voltage: 12V DC
- Wiring: Four leads with overmolded male bullet plugs
- Water resistance: IP67
- Listed compliance: DOT/SAE, FMVSS 108; secondary colour is for auxiliary use only
- Warranty: 3 years
FAQs
What colours does this light kit provide?
The kit provides amber primary lighting and blue secondary auxiliary lighting.
What does dual function mean on this light?
The primary amber colour has separate low and high functions. The blue auxiliary colour uses a separate wire lead.
Is the blue lighting covered by the listed compliance claim?
The supplied information specifically designates the secondary blue colour for auxiliary use only. It should not be treated as an approved required vehicle lighting function.
What is included with the light kit?
The supplied description identifies the light, a polished 304 stainless steel bezel and a foam gasket. The number of light assemblies per kit was not provided.
How is the light wired?
White is ground, black controls primary amber low, red controls primary amber high, and yellow controls secondary blue. The leads have overmolded male bullet plugs.
What voltage does it use?
The light operates on 12V DC.
What is the water resistance rating?
The supplied specifications list an IP67 water resistance rating.
What warranty is included?
The product includes a 3-year warranty.
