Original Amber/Green Glass Is Class Duo watermelon light

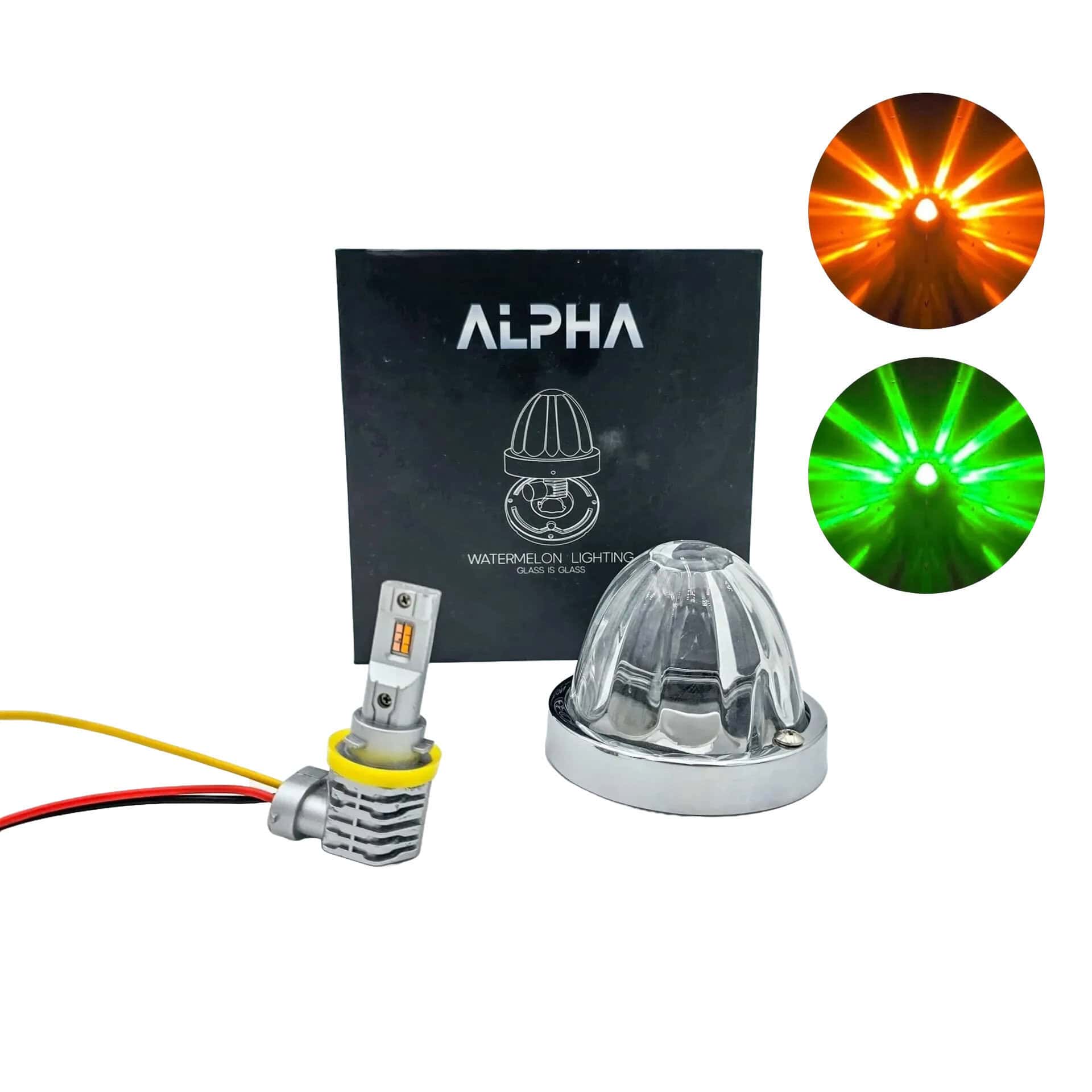

SKU Alpha-Duo-AG identifies the original amber/green dual-color assembly. It pairs a real glass star-pattern lens with a fanless custom H11-style bulb for a custom show or off-road lighting installation. The glass housing and LED bulb are included; the vehicle mounting bracket is separate.
For a new build, compare the current Amber/Green Glass Is Class Duo Gen 2 assembly. The generations use different bulbs and specifications.
Color control and electrical details
- Primary LED color: Amber
- Secondary LED color: Green
- Published supply: 12V
- Bulb: fanless, custom H11-style dual-color LED
- Connection: ground and separate primary/secondary color feeds
- Priority: secondary color overrides when both color feeds are powered
- Optic: real glass watermelon star-pattern lens
Follow the supplied wire identification. Do not use wire colors or a power rating from a Gen 2 bulb as instructions for this original Duo.
Mounting and replacement parts
Compare the glass housing, bulb clearance, mounting pattern and bracket before installation. The LED component should be protected from direct water spray as specified in the existing installation information. Glass remains breakable; avoid overtightening retaining hardware.
These lights are identified for show and off-road use and are not claimed to meet SAE/DOT road-lighting requirements. Matching an amber or red color does not establish certification.
Compare this original Duo with the current Gen 2 assembly
| Detail | Original Amber/Green Duo | Gen 2 Amber/Green Duo |
|---|---|---|
| Assembly SKU | Alpha-Duo-AG | GICG2-DUO-AG |
| Listed supply | 12V | 12V / 24V |
| Bulb cooling | Fanless | Active fan and passive heat-sink body |
| Bulb identity | Original custom H11-style Duo | GICG2-LED-AG |
| Listed limited warranty | Six months | One year |
Warranty terms and exclusions apply to the specific purchased product. This comparison does not promise cross-generation interchangeability.
Warranty
Six-month limited warranty. The existing warranty terms and exclusions for this original product apply.
Frequently Asked Questions
Is Alpha-Duo-AG the original Duo or the Gen 2 version?
This SKU identifies the original Amber/Green Glass Is Class Duo assembly with a fanless custom H11-style dual-color bulb. The Amber/Green Gen 2 assembly is a separate product with its own bulb and specifications.
Which two LED colors does Alpha-Duo-AG use?
The primary LED color is amber and the secondary is green. These names describe the light output, not the wire insulation colors. Confirm the exact SKU when replacing a bulb.
What happens when both color feeds are powered?
The documented original Duo wiring gives priority to the secondary green color when both color feeds are powered. Match the supplied ground, primary and secondary lead identification before connection.
Can this original Duo be connected to a 24V system?
The published operating specification for this original fanless Duo is 12V. The newer Gen 2 model’s 12V/24V rating must not be applied to this original assembly without exact component verification.
Does an H11-style base make it a vehicle headlight bulb?
No. This is a custom dual-color bulb for its matching glass watermelon-light housing. The base shape alone does not establish an OEM headlight application or electrical interchangeability with another bulb.
Does the original Duo include a vehicle mounting bracket?
The assembly includes the glass light and its dual-color bulb; the vehicle mounting bracket is separate. Compare the pattern and clearance using the BTS watermelon light brackets. A truck model name does not confirm a custom mounting location.
Is the primary color certified for road use?
The current BTS product description identifies this original Duo for show and off-road applications and states it is not SAE/DOT compliant. Do not treat the primary LED color as proof of road-lighting certification.
Can I order a current Gen 2 alternative in the same colors?
Yes. BTS lists a separate Amber/Green Glass Is Class Duo Gen 2 assembly. Compare its included components, dimensions and wiring for your installation. Sharing a color pair does not establish that every old part can be reused.
