United Pacific 39235 · Double Fury 4 LED Mini watermelon light
Amber primary, white secondary and a clear lens

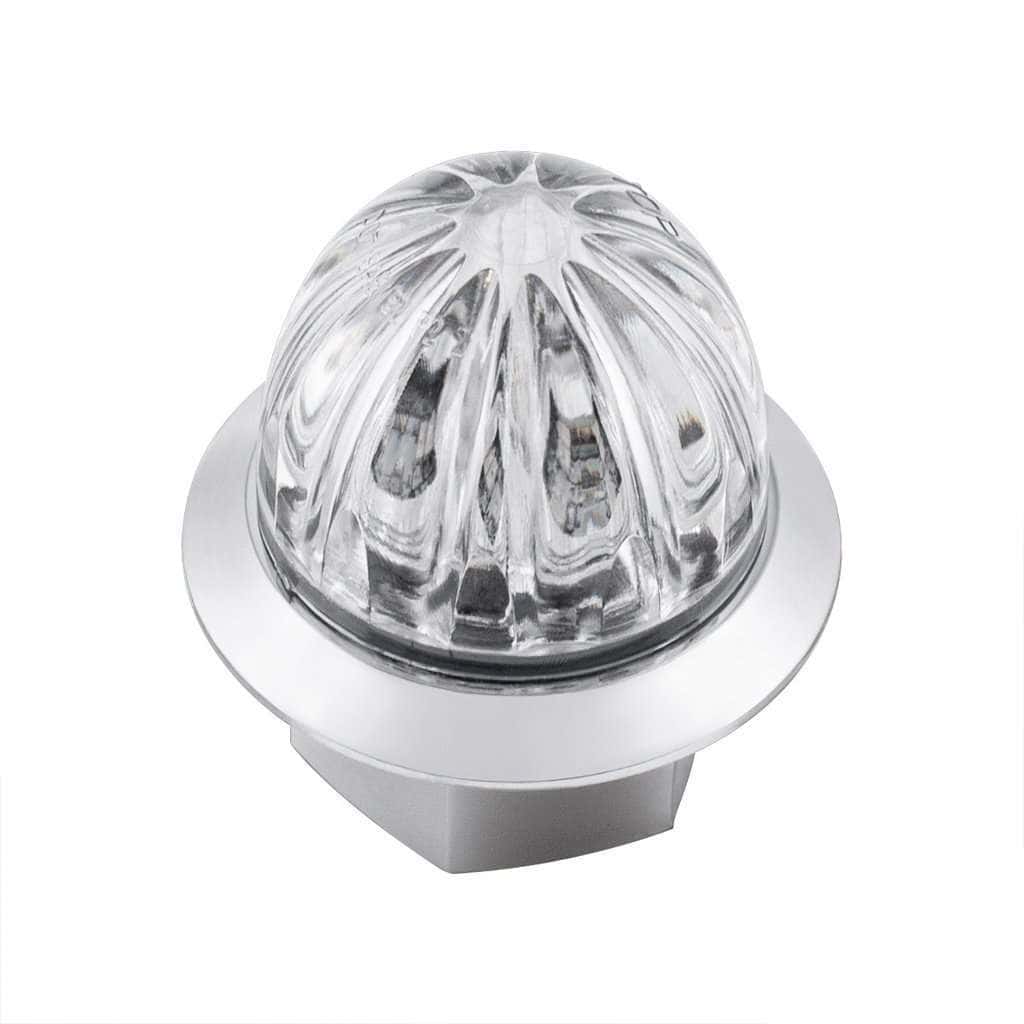

UPI 39235 pairs amber primary lighting with a separately controlled white secondary colour. Four dual-colour LEDs, a clear polycarbonate lens and a chrome plastic bezel give it the classic Mini watermelon look.
Two colours, separate controls

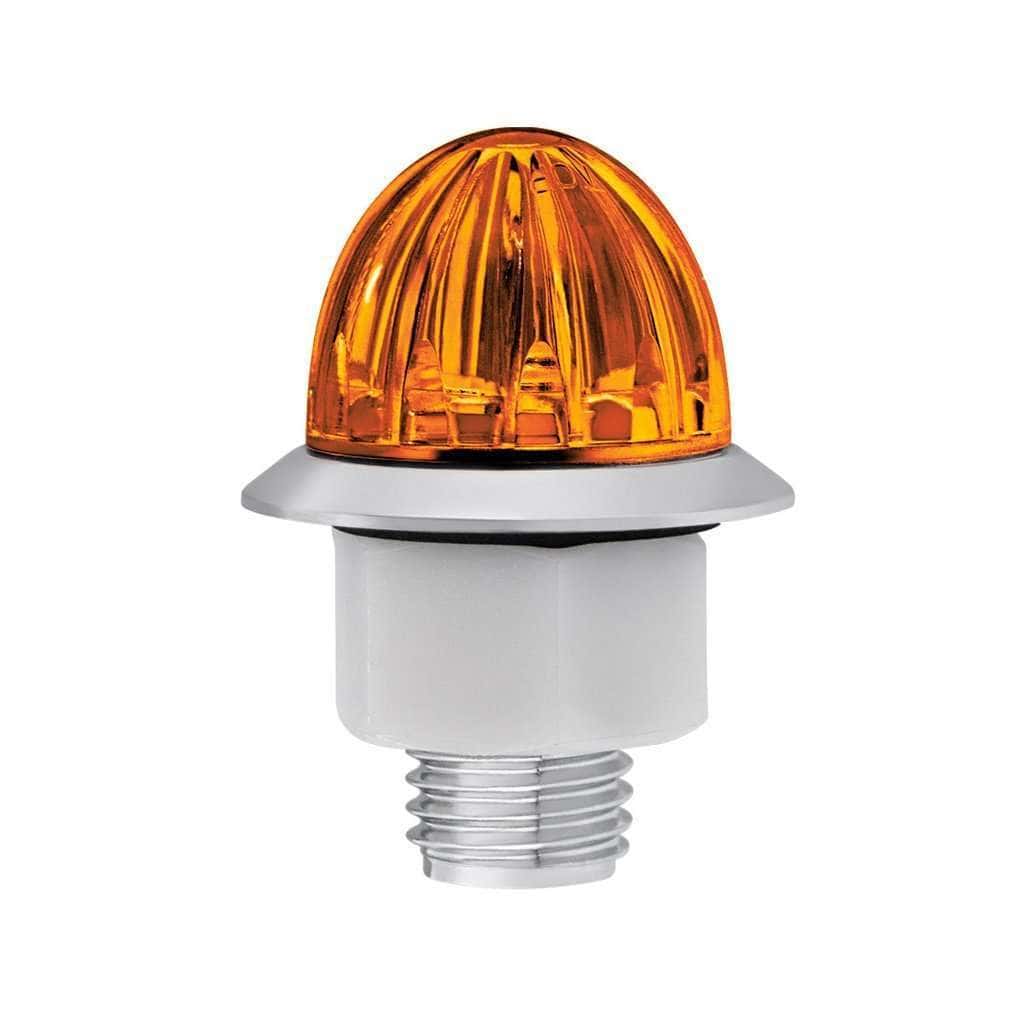

Black powers the amber primary colour. Yellow powers the white secondary colour.
Secondary colour takes priority

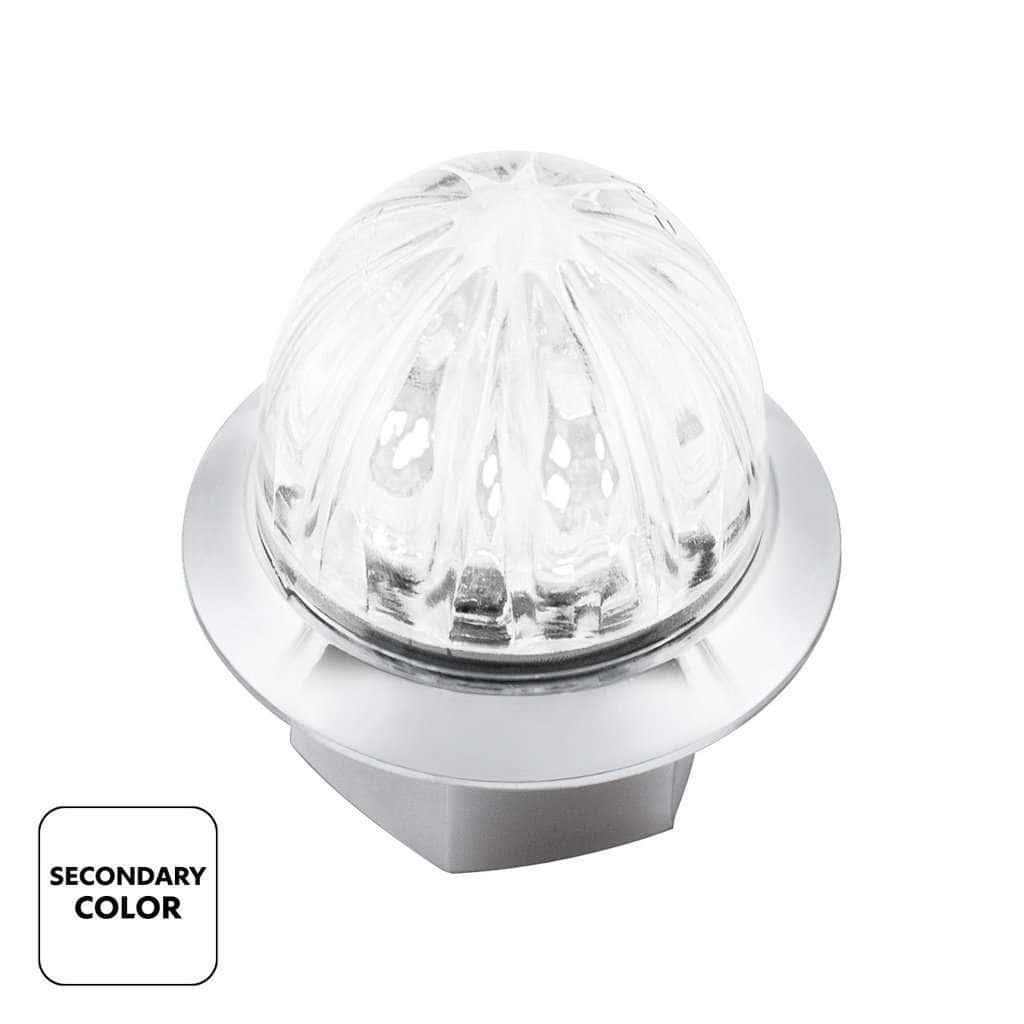

When the white secondary circuit is powered, it overrides the amber primary circuit. Secondary colour is for auxiliary/off-road use only.
Threaded-stud mounting

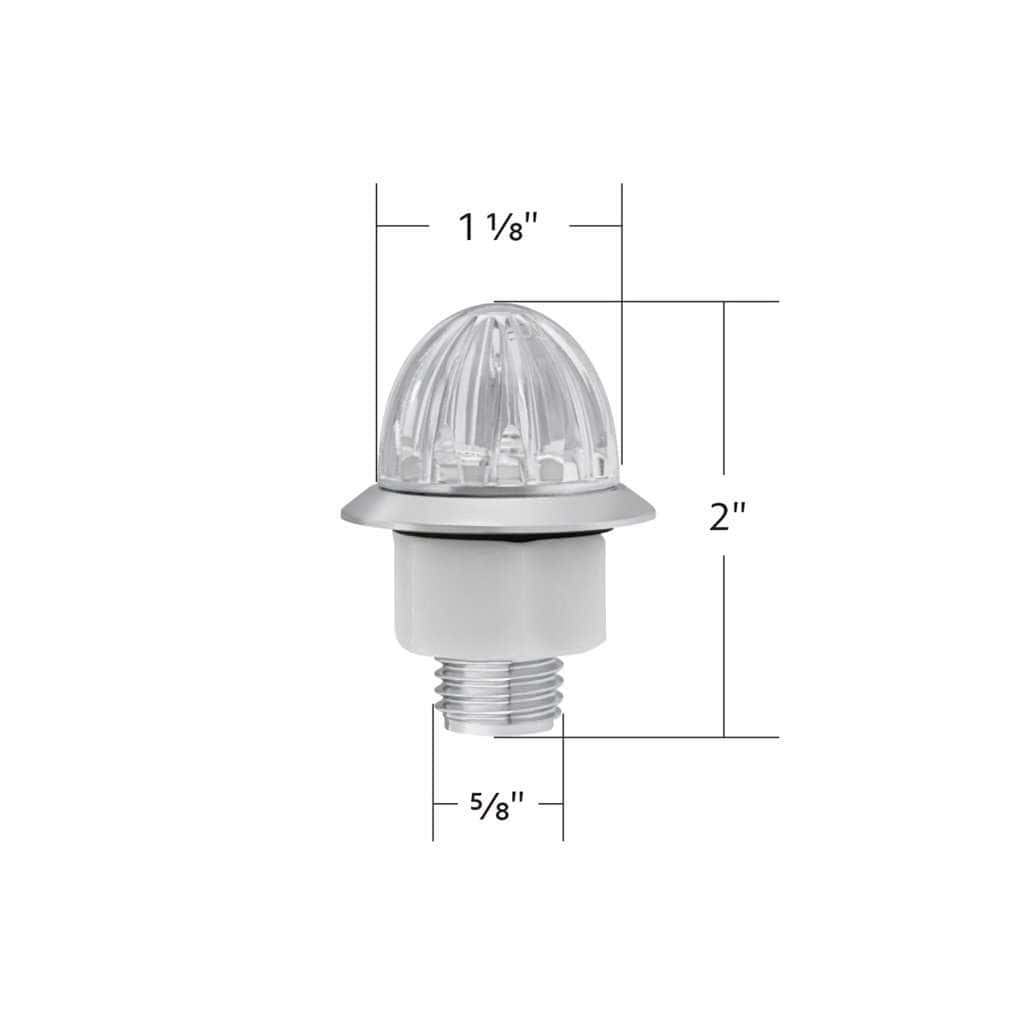

Requires a 3/4-inch installation hole. The light mounts with a threaded stud and nylon nut.
Need a separate mount? Compare penny and watermelon-light brackets, then check the exact light’s retention method, bezel and rear clearance against the bracket and mounting location. A matching hole size alone does not confirm fit.
Installation and colour control
Wiring, mounting and what comes with the light

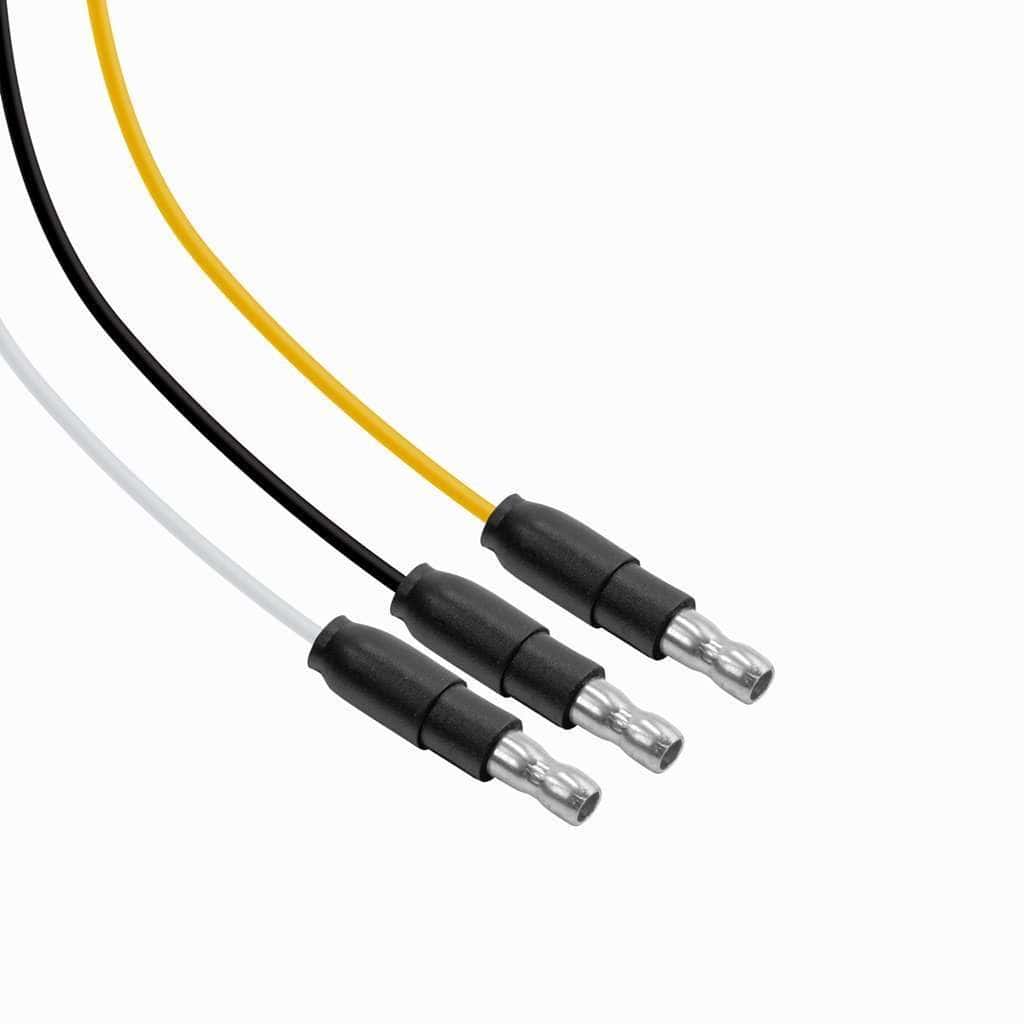

Three-wire colour control
- 12V operation
- White: ground (−)
- Black: amber primary positive (+)
- Yellow: white secondary positive (+)
- Three-wire connection with male bullet plugs
What’s included
- (1) 4 LED 1-1/8" Watermelon Double Fury Light – Amber & White LED
- Chrome plastic bezel
- Nylon mounting nut
- Threaded mounting stud
The clear lens is polycarbonate, with epoxy-sealed construction and manufacturer-specified IP67 water resistance.
United Pacific lists DOT/SAE and FMVSS 108 for this family. Confirm the primary colour, function and mounting position for the intended application. The white secondary colour is for auxiliary/off-road use only.
Compare Mini watermelon lights by LED colour and function to find the LED colours and controls for your build. Read our Double Fury vs. Dual Revolution guide to compare the two lighting families.
If you need separate low and high inputs for the primary colour, compare the UPI 36215 amber/white Double Fury with primary low/high functions. Check that product’s wiring and mounting details before choosing.
Before you choose
United Pacific 39235 questions
What does “Double Fury” mean?
Double Fury refers to the dual-color LED configuration with independent primary and secondary circuits. The secondary LED overrides the primary when activated.
Is this light street legal?
United Pacific limits the white secondary colour to auxiliary/off-road use only. The manufacturer lists DOT/SAE and FMVSS 108 for the family; confirm the primary colour, function and mounting position for the intended application.
Does this require a 1-1/8" mounting hole?
No. United Pacific specifies a 3/4-inch installation hole for the threaded-stud mount. The 1-1/8-inch wording is the product-name size, not the required hole size.
Is this light waterproof?
United Pacific specifies IP67 water resistance and epoxy-sealed construction to prevent moisture intrusion.
Can I wire the white LED to a separate switch?
Yes. The yellow wire allows independent control of the secondary LED, making it ideal for custom switch setups.
Warranty
Warranty: 3-year manufacturer warranty.
